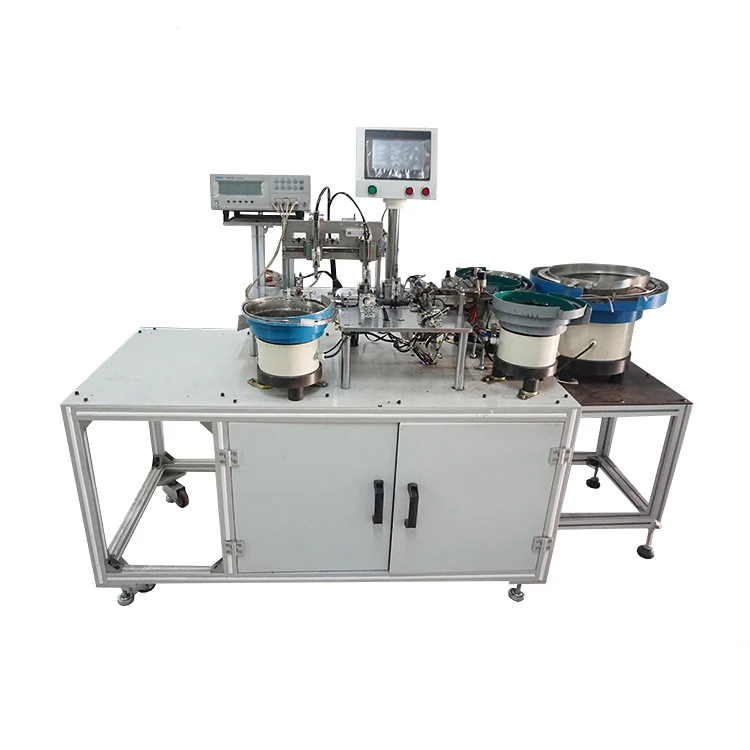

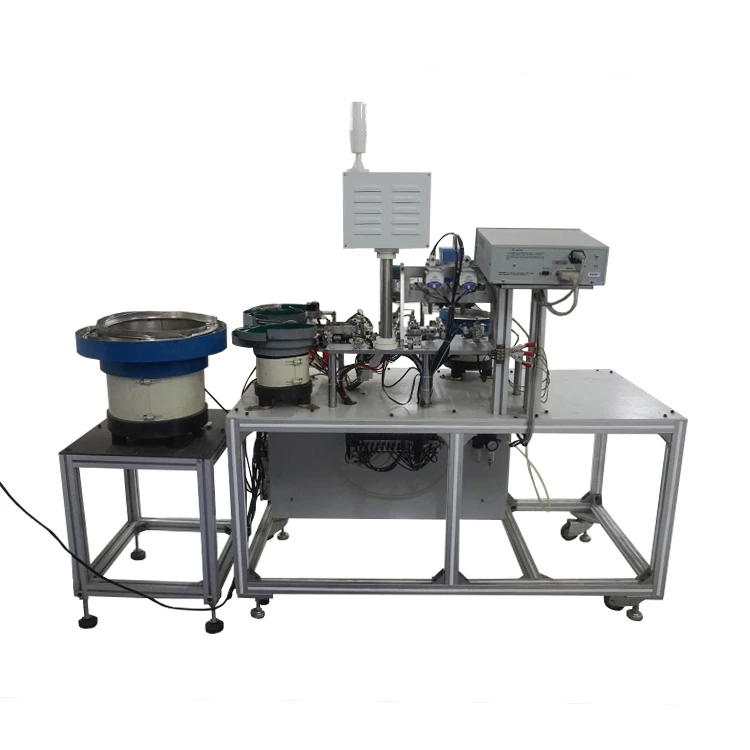

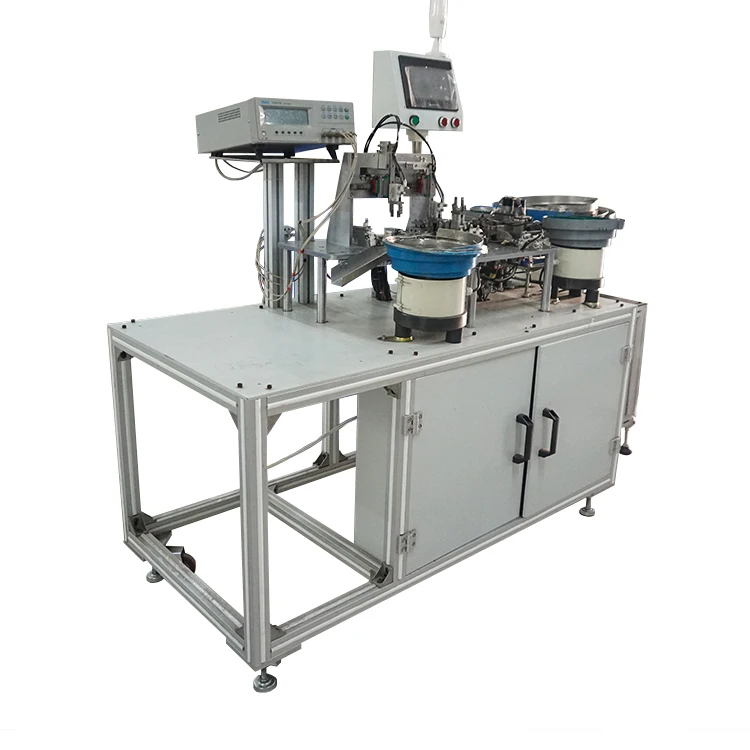

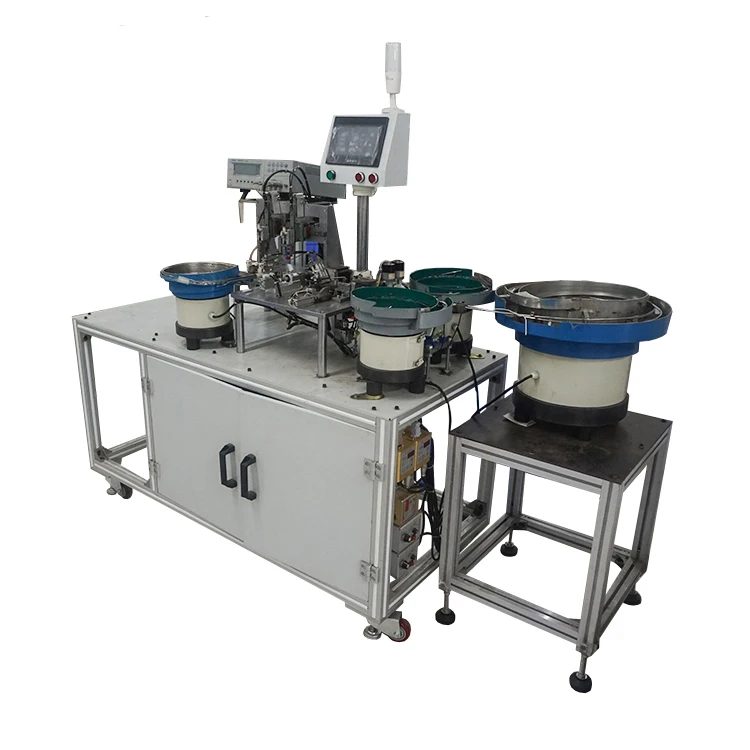

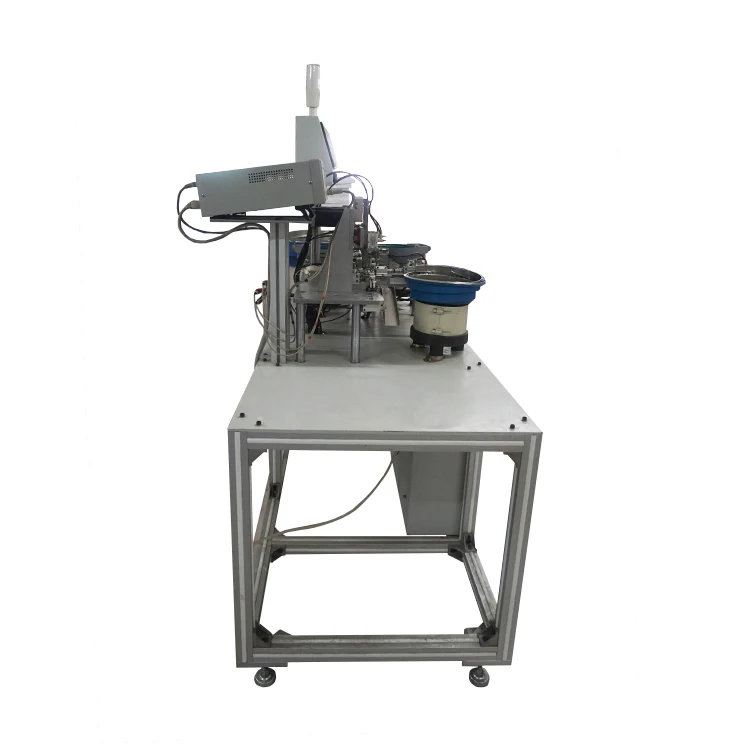

Automatic feeding magnet core tape testing integration machine for transformer HOT SALE in Southeast Asia countries.



Product discription



1.The Magnetic core feeding with magnetic suction scheme to reduce the operating noise, Improve product performance and surface cleanliness

2.The machine structure design is simple and reasonable.All important standard accessories use high-end brands to make sure the equipment runs fast,high precision, good stability, strong rigidity and extended the service life of the equipment greatly at the same time.

3.The machine is controlled by PLC.Chinese and English touch screen, there are nine independent axes each adopts a set of servo electric motor for separate control. this system developed by our company is convenient to use and easy to debug.

4.This machine is the automatic wrap tape assembly equipment aim to replace manpower for magnetic core adsorption and assembly, wrap tape, detection, set plate and feeding . it with high production efficiency, the magnetic core adsorption material function effectively reduce magnetic core surface cleanliness and damage degree, improve the production quality, it can greatly reduce labor cost with simple operation, can be widely used in high frequency transformer production areas.



Filling ferrite core machine specification



Power voltage	AC:220-240V
rated prower	370W
rated current	1.7A
applicable product	UU9.8 vertical
production efficiency(PCS/h)	2100
control system	PLC
The machine size(mm)	1380(L)x650(W)x1500(H)
The machine weight(kg)	420
Applicable air pressure(MPa)	0.4-0.6
Optional functions	The finished product plate



















As a High-tech enterprises, the Headquarters located at Guangzhou city, have business and after-sales service branches in Shenzhen, Zhongshan, Jiangsu and Zhejiang. The founder and CEO Mr. Wei Zheng Wong has 20 years experience in transformer field. The company has a number of software copyrights and utility model patents. Since its inception,after more than ten senior hardware and software engineers work,developed a series of transformer equipments. Specialized in: Automatic magnetic core assembly and tape wrapped testing Multi machine, tape wrapped testing machine, UU series filter automatic assembly machine , automatic flip soldering tin machine ,wrapped machine, Auto 12,16,20 spindle axis automatic transformer inductor coil winding machine and transformer automatic production line OEM. export to Turkey,Ukraine,India,Brazil and Southeast Asia . To ensure the quality, all parts made by brand supplier, keep good business cooperate with SMC. Machines’ Pneumatic Components made by SMC Japan , AirTac Taiwan, F &C and Omron inductor Taiwan ,slider made by Hiwin Taiwan, PLC system and motor made by Panasonic . Owned brand “ Feleng”, taking independent innovation and building national brand industrial automatic equipment as responsibility, to be more automation, intelligence, to actively participate in “Made in China 2025”, promote development, production, promotion and application of industrial automation equipment. Promote industrial upgrading and transformation, and improve industrial competitiveness.
