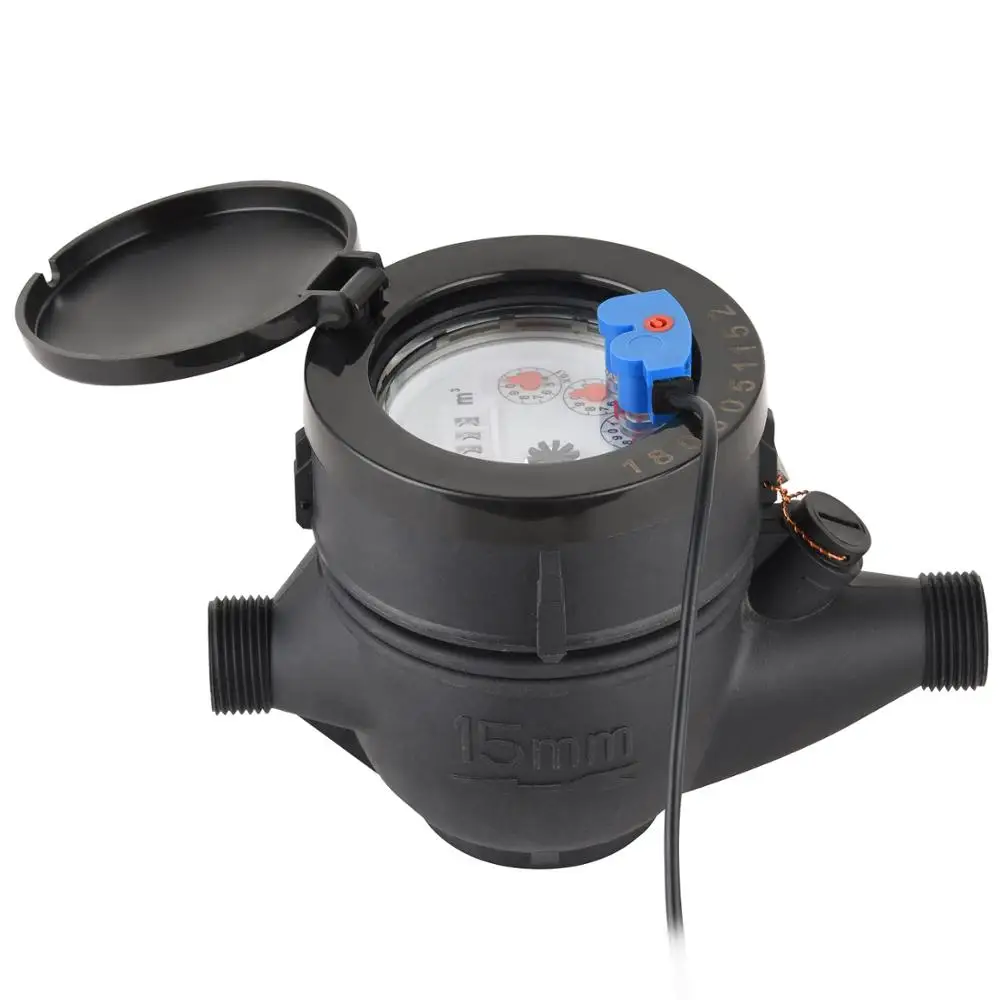

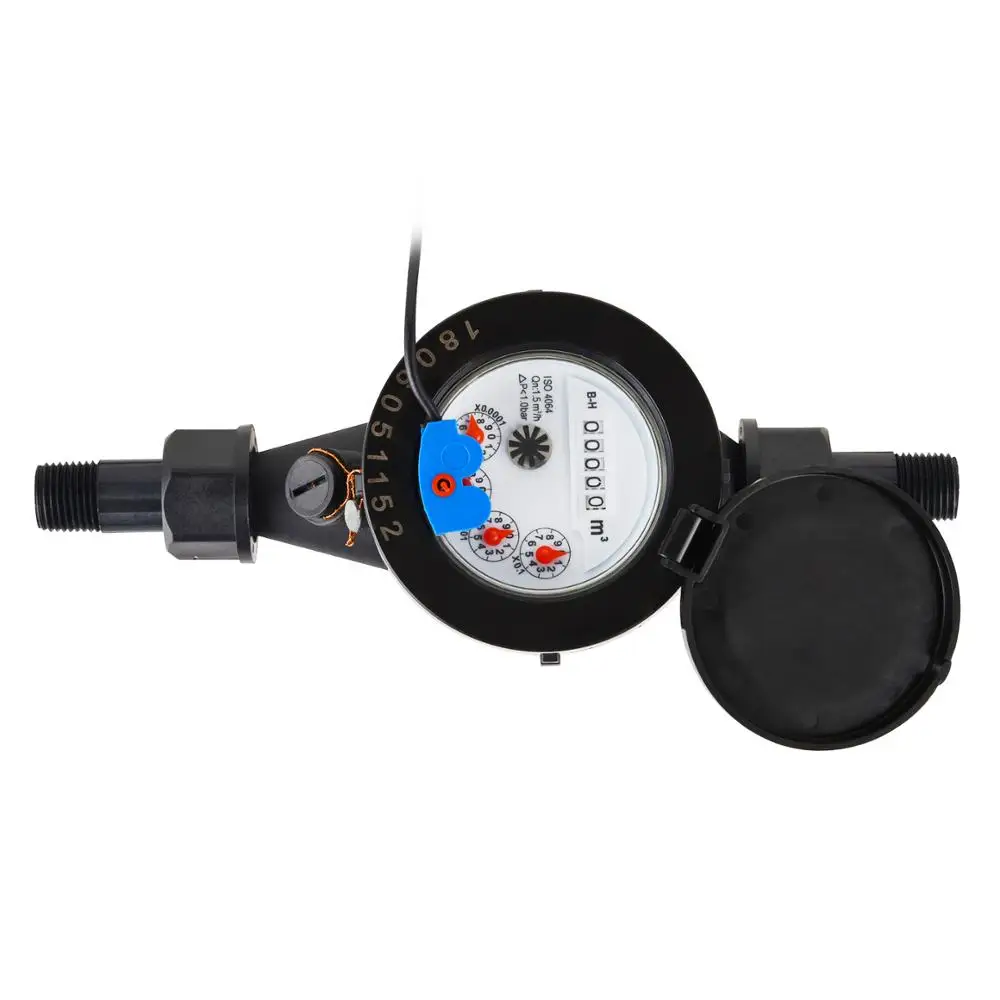

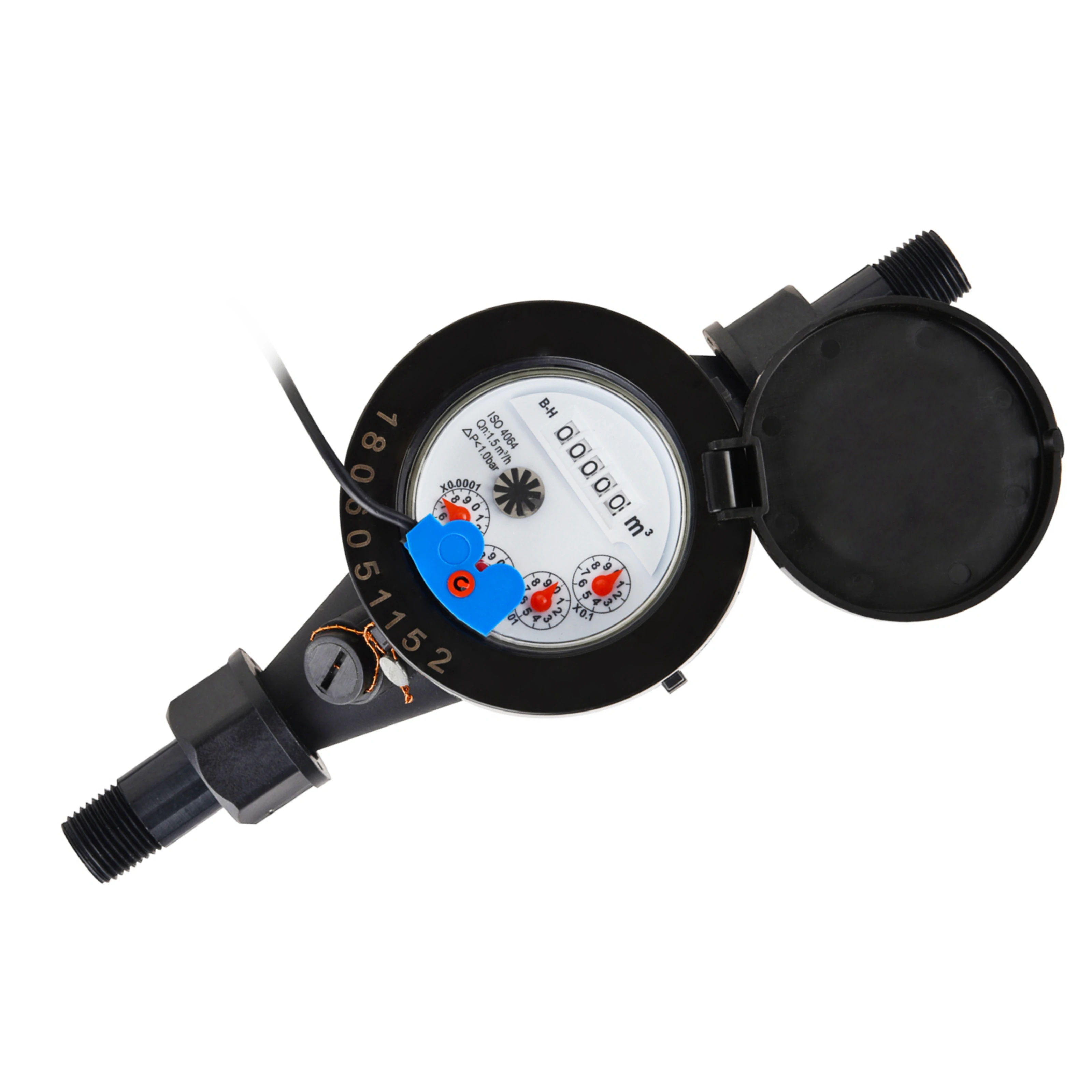

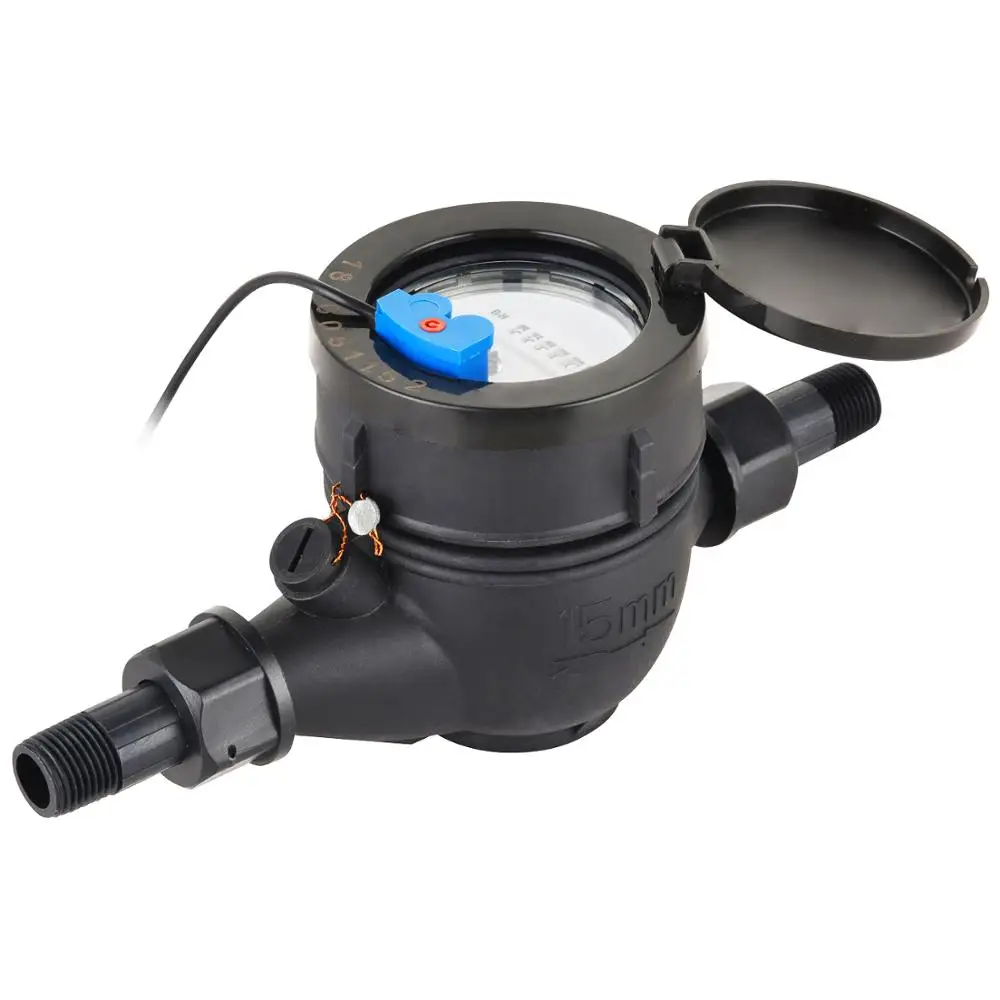

Многоструйный пластиковый счетчик воды с импульсным
- Категория: Счетчики воды >>>
- Поставщик: Ningbo,Xinghang,Meter,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.10 $* | 0.19 $* |
| Aug-19-2025 | 0.37 $* | 0.75 $* |
| Jul-19-2025 | 0.74 $* | 0.47 $* |
| Jun-19-2025 | 0.44 $* | 0.33 $* |
| May-19-2025 | 0.8 $* | 0.48 $* |
| Apr-19-2025 | 0.25 $* | 0.93 $* |
| Mar-19-2025 | 0.57 $* | 0.45 $* |
| Feb-19-2025 | 0.31 $* | 0.25 $* |
| Jan-19-2025 | 0.80 $* | 0.14 $* |
Характеристики
MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-1996) Standard
Size | Class | Qs | Qp | Qt | Qmin | Min reading | Max reading | |
Overload flow | Nominal flow | Transitional flow | Min flow | |||||
DN(mm) | Inch | m³/h | L/h | m³ | ||||
15 | 1/2" | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
B | 120 | 30 | ||||||
C | 22.5 | 15 | ||||||
20 | 3/4" | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
B | 200 | 50 | ||||||
C | 37.5 | 25 | ||||||
25 | 1" | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
B | 280 | 70 | ||||||
32 | 11/4" | A | 12 | 6 | 600 | 240 | 0.0001 | 99999 |
B | 480 | 120 | ||||||
40 | 11/2" | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
B | 800 | 200 | ||||||
50 | 2" | A | 30 | 15 | 1500 | 600 | 0.001 | 99999 |
B | 1200 | 300 | ||||||
MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-2007) Standard
DN | Mm | 15 | 20 | 25 | 32 | 40 | 50 |
Q4(m³/h) | 3.125 | 5 | 7.875 | 12.5 | 20 | 31.25 | |
Q3(m³/h) | 2.5 | 4 | 6.3 | 10 | 16 | 25 | |
R80 | Q2(L/h) | 50 | 80 | 126 | 200 | 320 | 500 |
Q1(L/h) | 31.25 | 50 | 78.75 | 125 | 200 | 312.5 | |
R100 | Q2(L/h) | 40 | 64 | 100.8 | 160 | 256 | 400 |
Q1(L/h) | 25 | 40 | 63 | 100 | 160 | 250 | |
R125 | Q2(L/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 320 |
Q1(L/h) | 20 | 32 | 50.4 | 80 | 128 | 200 | |
R160 | Q2(L/h) | 25 | 40 | 63 | 100 | 160 | 250 |
Q1(L/h) | 15.62 | 25 | 39.37 | 62.5 | 100 | 156.2 | |
Min reading(m³) | 0.00005 | 0.00005 | 0.00005 | 0.00005 | 0.001 | 0.001 | |
Max reading(m³) | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | |
Max pressure(MAP) | 16 | 16 | 16 | 16 | 16 | 16 | |
Max loss(ΔP) | 63 | 63 | 63 | 63 | 63 | 63 | |
Max temperature | T50 | T50 | T50 | T50 | T50 | T50 | |

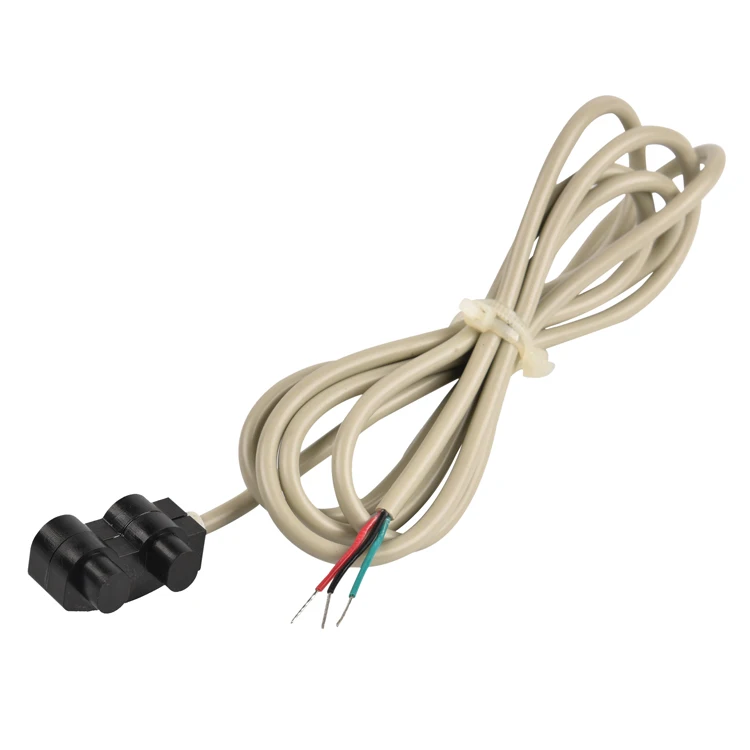

Pulse output option | Vmax=24V, Imax=100mA, Pmax=2W | ||||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | L Length | B Width | H Height | Connecting Thread D | Weight Kg |
| mm | |||||
| 15 | 165 | 99 | 104 | G 3/4B | 0.75 |
| 20 | 190 | 99 | 106 | G 1B | 1.0 |
| 25 | 225 | 104 | 120 | G1 1/4B | 1.2 |
| 32 | 230 | 104 | 120 | G1 1/2B | 1.6 |
| 40 | 245 | 125 | 155 | G 2B | 2.5 |
| 50 | 300 | 125 | 155 | G2 1/2 B | 2.9 |
WORKING CONDITION
Water temperature:≤40℃ for cold water meter
Water temperature:≤90℃ for hot water meter
Working pressure:≤1.6Mpa
