100 кВт электрический тепловой Масляный Нагреватель циркулирующая система отопления с охлаждающим устройством для нефтехимической
- Категория: Industrial Heater >>>
- Поставщик: Jiangsu,Ruiyuan,Heating,Equipment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 8092.82 $* | 8497.71 $* |
| Aug-18-2025 | 8024.79 $* | 8425.56 $* |
| Jul-18-2025 | 6732.79 $* | 7069.75 $* |
| Jun-18-2025 | 7888.22 $* | 8282.58 $* |
| May-18-2025 | 6868.9 $* | 7211.59 $* |
| Apr-18-2025 | 7752.22 $* | 8140.54 $* |
| Mar-18-2025 | 7684.83 $* | 8068.92 $* |
| Feb-18-2025 | 7616.40 $* | 7997.30 $* |
| Jan-18-2025 | 7548.50 $* | 7925.93 $* |
Характеристики
Products Description

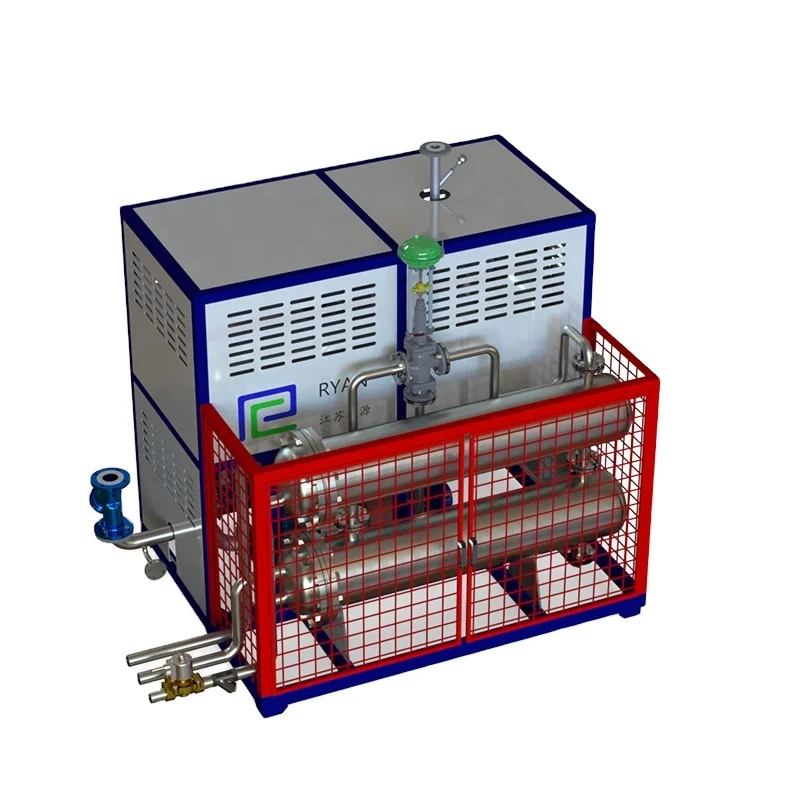

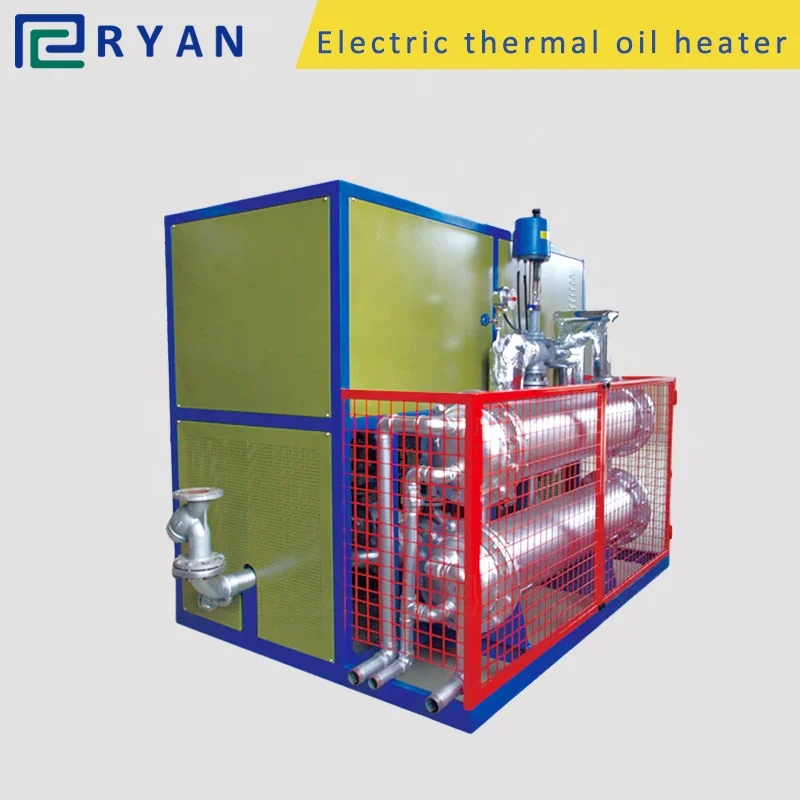

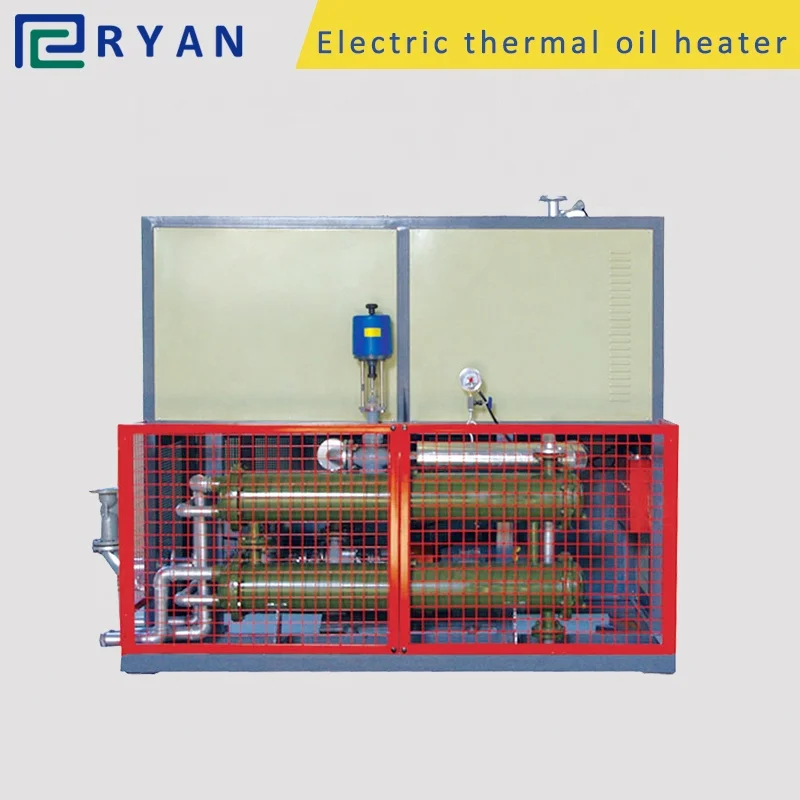

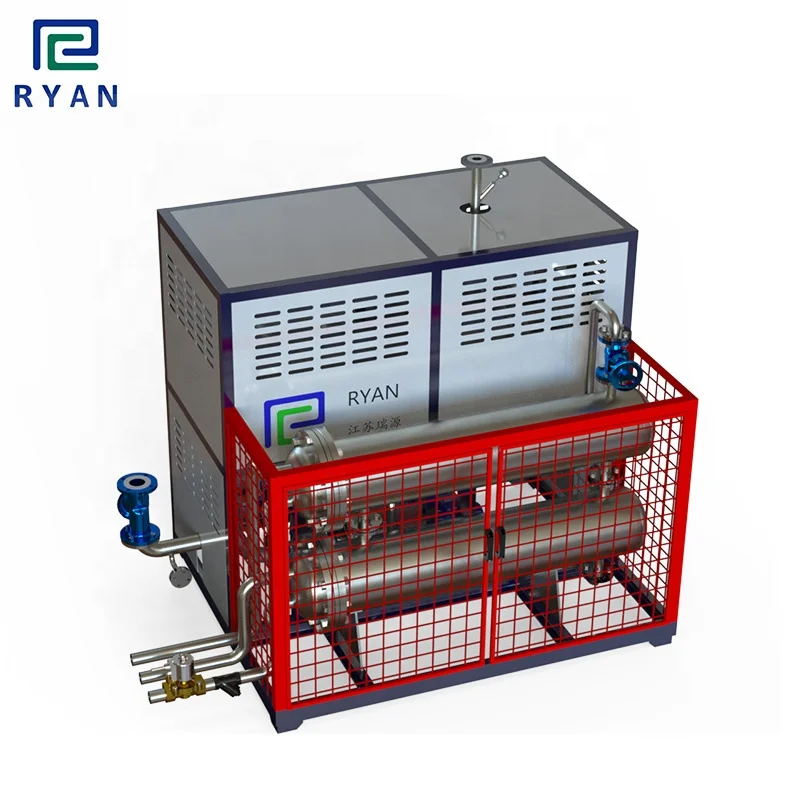

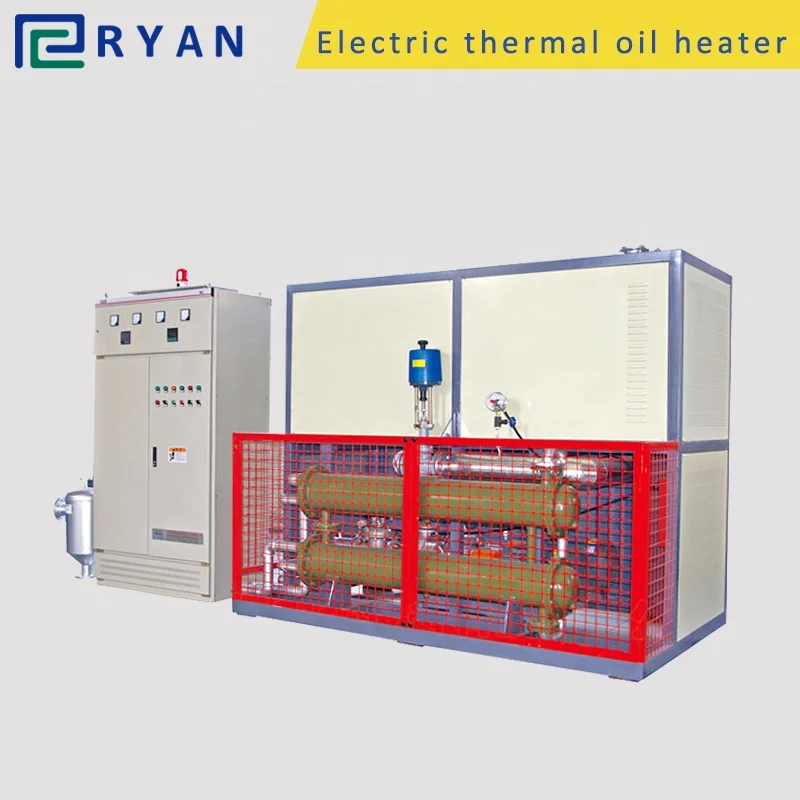

GYD serial Thermal oil heater is a kind of new-typed heating equipment with heat energy conversion. It takes the electricity as power, changes it into the heat energy through the electrical organs, takes the organic carrier (heat thermal oil) as medium, and continues to heat through the compulsive circulation of the heat Thermal oil driven by high-temperature oil pump, so as to meet the heating requirements of users. In addition, it could also satisfy the requirements of set temperature and temperature controlling accuracy. We are manufactured for capacities from 6 to 2,400 kw as well as temperatures of up to +320 °C.
1. Electric heater system
2. High thermal efficiency
3. Horizontal centrifugal pump
4. All welded construction
5. PID Temperature Controller (FUJI Electric PXR5/9)
6. Fast installation and low maintenance efforts
7. Isolation gate valves and strainer
8. SSR(Solid State Relay) control on heater circuits
9. Pressure test and Functional test of system
For non-woven fabrics, chemical industry, chemical fiber, rubber, composite, sanitary fittings and other industries.
GYD series electric thermal oil heater
parameter table
Model | Heater Power (kw) | Oil Capacity (L) | Heating-oil Pump Flow Head Power | Total Weight (KG) | Expansio Tank (L) | |||||
GYD10 | 10 | 15 | 1100*500*1100 | 6 | 27 | 1.5 | 200 | 100 | ||
GYD18 | 18 | 23 | 1600*500*1250 | 6 | 27 | 1.5 | 200 | 130 | ||
GYD24 | 24 | 28 | 1950*650*1450 | 12.5 | 30 | 3 | 350 | 150 | ||
GYD36 | 36 | 48 | 1950*650*1450 | 12.5 | 30 | 3 | 350 | 200 | ||
GYD48 | 48 | 48 | 1950*650*1450 | 18 | 40 | 5.5 | 350 | 230 | ||
GYD60 | 60 | 52 | 1950*650*1450 | 18 | 40 | 5.5 | 350 | 230 | ||
GYD70 | 70 | 60 | 2150*700*1750 | 30 | 48 | 7.5 | 550 | 280 | ||
GYD90 | 90 | 68 | 2150*700*1750 | 30 | 48 | 7.5 | 550 | 280 | ||
GYD120 | 120 | 105 | 2200*700*1880 | 30 | 48 | 7.5 | 750 | 300 | ||
GYD150 | 150 | 195 | 2200*700*1880 | 30 | 48 | 7.5 | 750 | 300 | ||
GYD180 | 180 | 230 | 2200*900*1880 | 45 | 48 | 11 | 1200 | 320 | ||
GYD240 | 240 | 260 | 2300*1000*1950 | 80 | 38 | 15 | 1200 | 350 | ||
GYD300 | 300 | 293 | 2600*1200*2000 | 80 | 38 | 15 | 1600 | 350 | ||
GYD400 | 400 | 358 | 2800*1200*2000 | 80 | 38 | 15 | 1750 | 450 | ||
GYD500 | 500 | 510 | 2800*1500*2000 | 80 | 38 | 15 | 1850 | 550 | ||
GYD600 | 600 | 562 | 3000*1800*2150 | 80 | 38 | 15 | 1950 | 600 | ||
GYD700 | 700 | 638 | 3000*1800*2150 | 80 | 38 | 15 | 2200 | 650 | ||
