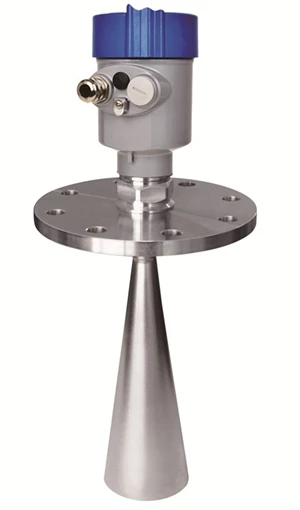

 CX-RLM-806 30m PTFE  98mm trumpet DN100 flange Hot Sale Good Quality Rs485 Intelligent Radar Level Meter



What's the Intelligent Radar Level Meter?

The radar level antenna transmits a narrower microwave pulse and is transmitted downward through the antenna. After the microwave contacts the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit to be automatically converted into a level signal.



What's the advantages of Intelligent Radar Level Meter?

• Small antenna size, easy to install; Non-contact radar, no wear, no pollution;
• Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes;
• Serious dust environment on the high level meter work has little effect;
• A shorter wavelength, the reflection of solid surface inclination is better;
• Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference;
• The measuring range is smaller, for a measurement will yield good results;
• High signal-to-noise ratio, the level fluctuation state can obtain better performance;
• High frequency, measurement of solid and low dielectric constant of the best choice.



A.[Technical Parameters]



product name	CX-RLM-806 Intelligent Radar Level Meter
medium:strongly corrosion liquid	Mild corrosive liquid
range	30meters
cable material	PTFE  98mm trumpet
accuracy	+/-3mm
Process Connection	DN100 flange
supply voltage	24V
medium temperature	-40-130C
process pressure	-0.1- 4MPa
anti-explosion/IP grade	Exia II CT6/IP67
signal output	4-20mA/HART(2wires)

 B.[Application]

C.[Installation description]

D.[Company Info]
