LIVTER Low Cost Manual Circular Sawblade Sharpening Machine For Friction Plate
- Категория: Chamfering Machines >>>
- Поставщик: Xiamen,Strongtech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2380.36 $* | 2499.61 $* |
| Aug-19-2025 | 2360.81 $* | 2478.9 $* |
| Jul-19-2025 | 1980.68 $* | 2079.5 $* |
| Jun-19-2025 | 2320.29 $* | 2436.88 $* |
| May-19-2025 | 2020.34 $* | 2121.87 $* |
| Apr-19-2025 | 2280.77 $* | 2394.65 $* |
| Mar-19-2025 | 2260.28 $* | 2373.9 $* |
| Feb-19-2025 | 2240.93 $* | 2352.58 $* |
| Jan-19-2025 | 2220.5 $* | 2331.97 $* |
Характеристики
Product Description
| Model | YT1000 | ||
| Saw Blade Capacity | φ130-φ1000mm | Max. thickness of blade | 8mm |
| Pitch Range | 25mm | Grinding wheel diameter | φ70~150 mm |
| Depth of teeth | 8mm | Grinding wheel speed | 4,500 r.p.m. |
| Range of Cutting Angle | 0-30° | Drive motor | 1/2 HP |
| Feed Speed | 45~180 teeth/min | Grinding Wheel Motor | 3/4 HP |
| Machine Dimension | 1600x1100x1300mm | Weight | 350kgs |
| Voltage & Frequency | as customer's requirement | ||

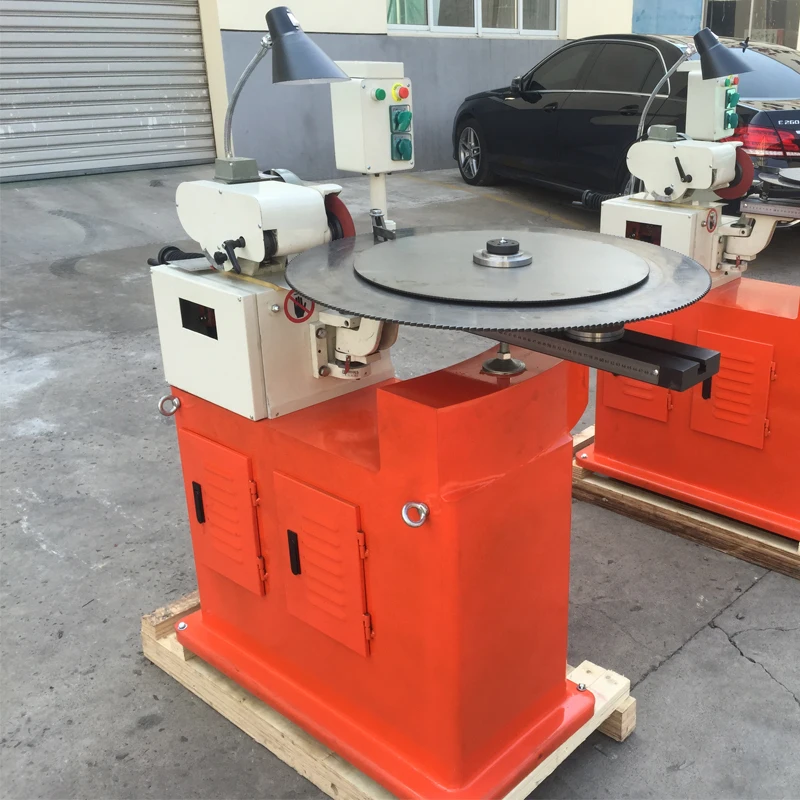

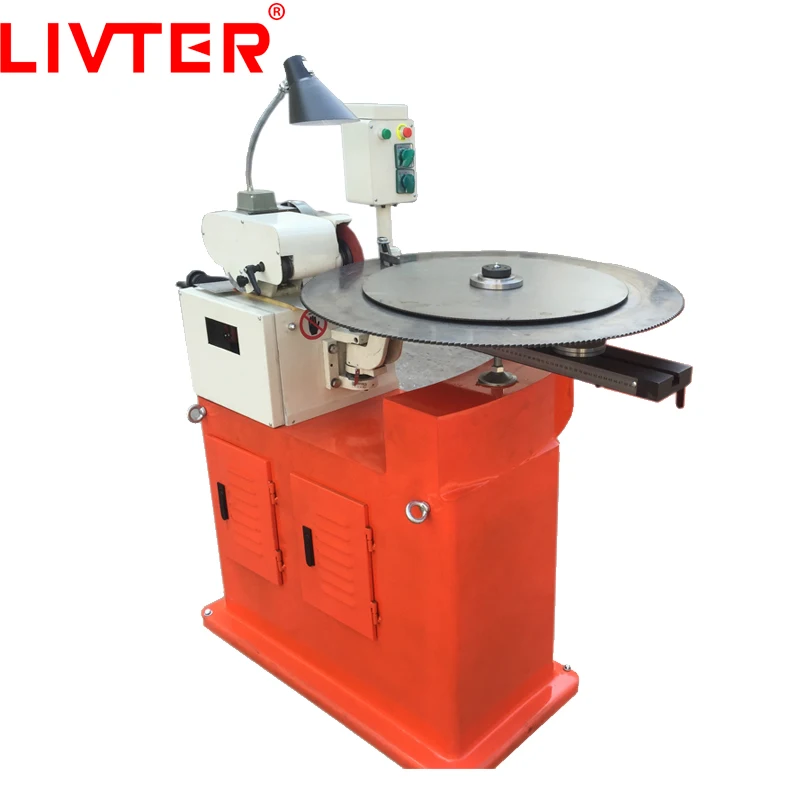

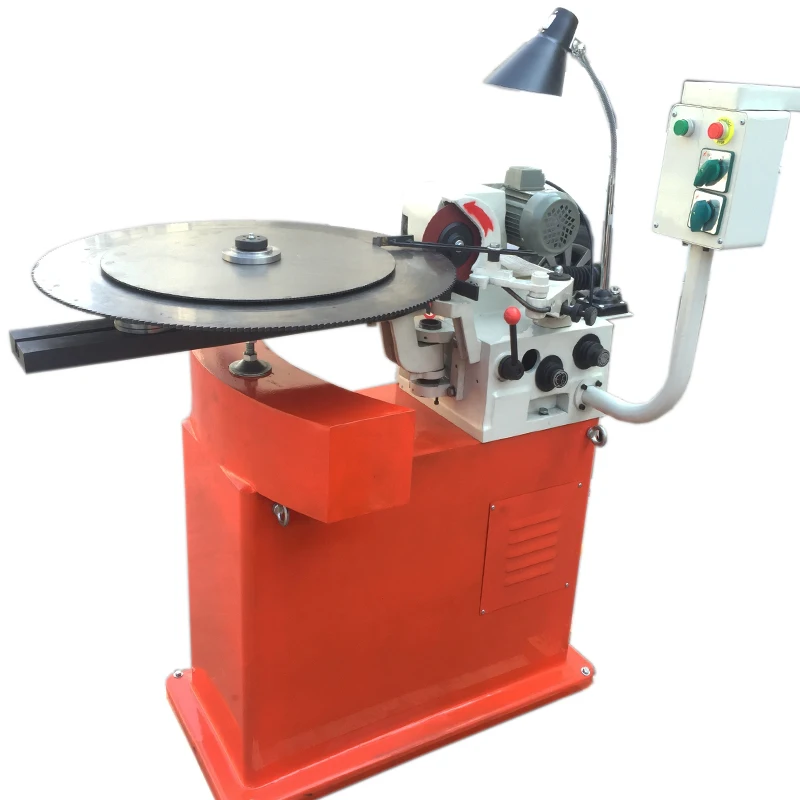

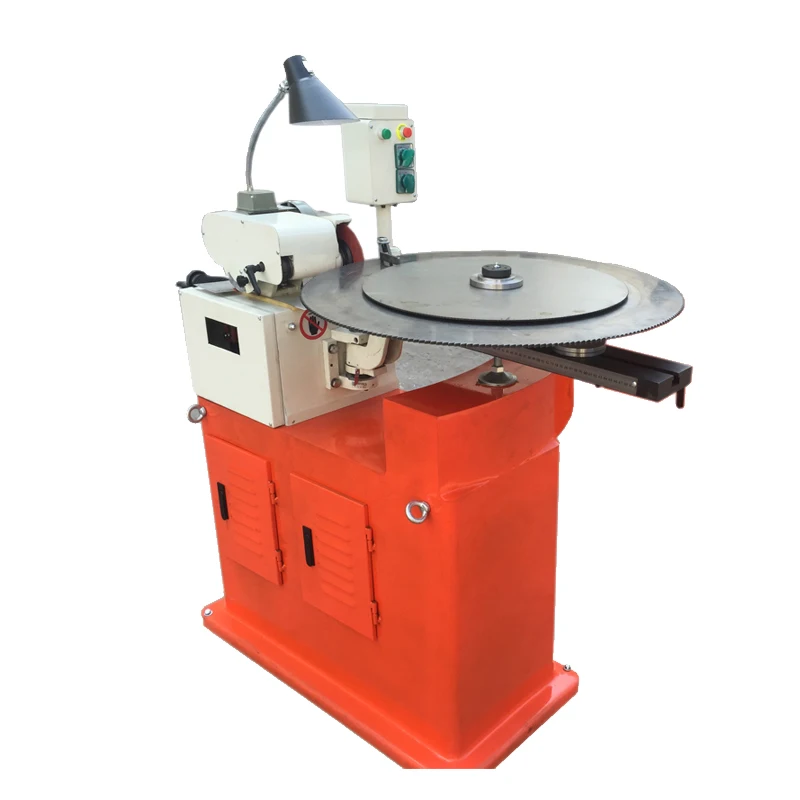

The GS-1000 is the perfect circular saw blade sharpener allowing you to do your own sharpening economically and quickly right in your own shop. It increases efficiency as cold saw blades can be sharpened to exact specifications without delay.
•All cast components are made from ductile iron. Simplified design, easy operation and precision built allowing for years of accurate sharpening.
•Alternate high/low teeth can be sharpened in one pass. The tooth height difference is varied and shown on the indicator for perfect circular saw blade sharpening.
•Quick set cutting angle saves valuable set-up time so that sharpening is done quickly. Blade thickness is quickly adjusted and can be read on the indicator meter.
•Tooth chamfering is easily performed without having to change the grinding wheel. •Economical, efficient and simple construction. Drive assembly is a simple combination of driving motor and cam drive motor, providing trouble free operation.
•Micrometric adjustment for pitch and depth of teeth. Variable speed pulley allows a complete range of feed from 45 to 180 teeth per minute.
•Convenient hand lever changes tooth profile quickly.
•Positioner tungsten carbide tipped for long wear and offers accurate feeding.
220Volt 3Phase Cold Saw Blade Sharpener. Saw Blade Capacity 39".
Our factory
About STRONGSAW GROUP )
Our Factory is Certified by ISO9001:2000 quality system.
90% of our production equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUCTS.
OUR MANAGEMENT TEAM IS MULTINATIONAL NATIVE SPEAKERS MANAGEMENT TEAM.
OUR MAIN PRODUCTS IS :
1 : Metal CUTTING MACHINE
2: Tube Chamfering MACHINE
3: Pipe Bending MACHINE
4: SAW BLADE GRINDING MACHINE
5: VARIES SAW BLADE
"With us your MONEY in safe ; Your BUSINESS in safe"
We had the honor to serve many of the famous jewelry companies allover the world.
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS".
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE".
WELCOME TO CONTACT US.
