Горное оборудование используется ширина ленты 800 мм термостойкий Конвейерный
- Категория: Rubber Belts >>>
- Поставщик: Baoding,Huayun,Conveyor,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.33 $* | 0.56 $* |
| Aug-19-2025 | 0.57 $* | 0.76 $* |
| Jul-19-2025 | 0.29 $* | 0.67 $* |
| Jun-19-2025 | 0.81 $* | 0.69 $* |
| May-19-2025 | 0.47 $* | 0.6 $* |
| Apr-19-2025 | 0.25 $* | 0.13 $* |
| Mar-19-2025 | 0.6 $* | 0.78 $* |
| Feb-19-2025 | 0.15 $* | 0.78 $* |
| Jan-19-2025 | 0.48 $* | 0.77 $* |
Характеристики

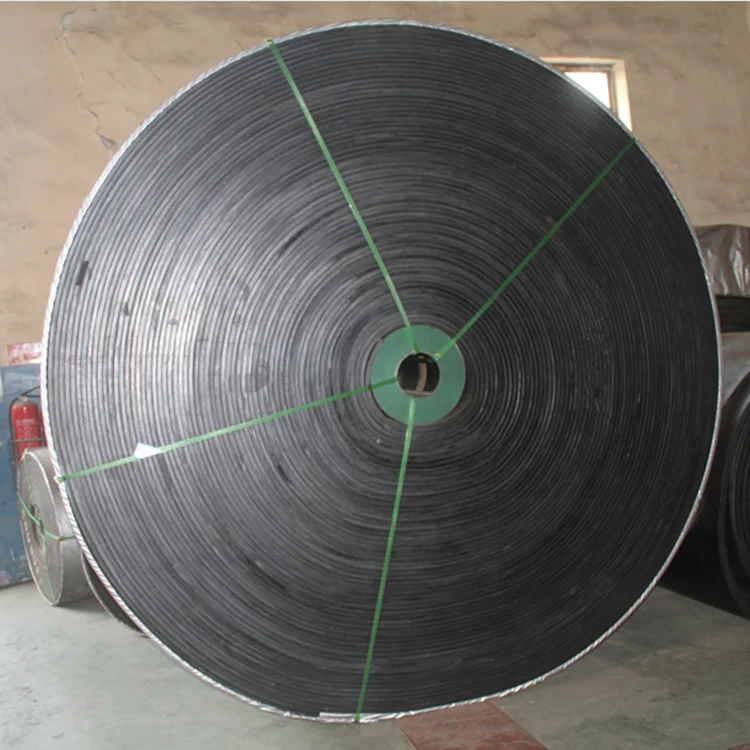

mining equipment used 800mm belt width heat resistant conveyer belt
Mould of heat resistant conveyer belt
NN100, NN150, NN200, NN250, NN300, NN400 , NN500, NN600
Standards for conveyor belt
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etcTypes:
Besides General Nylon Belt, there are Fire-resistant type, Cold-resistant type, Wear-resistant type,
Besides General Nylon Belt, there are Fire-resistant type, Cold-resistant type, Wear-resistant type,
Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type,
High-grade type and etc.
conveyor belt with nylon canvas have the following merits
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile
strength, good shock resistance, good trough ability, high adhesion between plies, splendid
flexibility and long working life.
Specification and technical data of multi-ply conveyor belt
Fabric type | Fabric structure
| Fabric specs | Ply Thickness (mm/p) | (N/mm) strength | (mm) Cover thickness | Width (mm) | Length (m) | ||||||
Wrap |
Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
Nylon (NN)
| Nylon (N) | Nylon (N) | NN-100 | 0.75 | 200 | 300 | 400 | 500 | 600 | 1.5 ~ 12 | 0 ~ 4.5 | 400 ~ 2200 | ≤300 |
NN-150 | 0.80 | 300 | 450 | 600 | 750 | 900 | |||||||
NN-200 | 0.90 | 400 | 600 | 800 | 1000 | 1200 | 500 ~ 2200 | ||||||
NN-250 | 1.15 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
NN-300 | 1.25 | -- | 900 | 1200 | 1500 | 1800 | |||||||
NN-400 | 1.45 | -- | -- | 1600 | 2000 | 2400 | 800 ~ 2200 | ||||||
NN-500 | 1.55 | -- | -- | 2000 | 2500 | 3000 | |||||||
Adhesion and elongation of conveyor belt
Belt carcass | Adhesion strength | Elongation | |||
Between plies N/mm | Between rubber and carcass N/mm | Longitudinal elongation elongation at break%≥
| Longitudinal elongation at reference load%≤
| ||
Cover thickness ≤1.5mm | Cover thickness ≥1.5mm | ||||
Nylon canvas | ≥4.50 | ≥3.20 | ≥3.50 | 10 | 4.0 |
According to the customer’s requirements, the belts could be made into endless belt, and the covering
rubber could be made into pit, chevron and level type etc.
Production process for heat resistant conveyer belt
Useage:
It is suitable for conveying materials at medium or long distance and under conditions of heavy load and high speed.
Our research and development center, test equipment
Certifacation
Our company and customers
For more details,please inquiry us!
