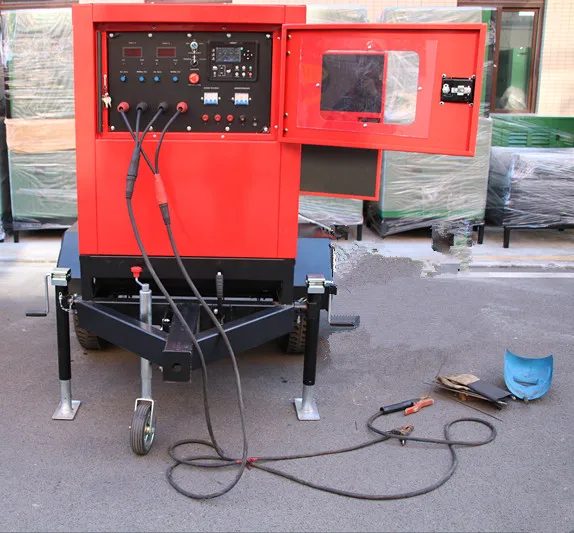

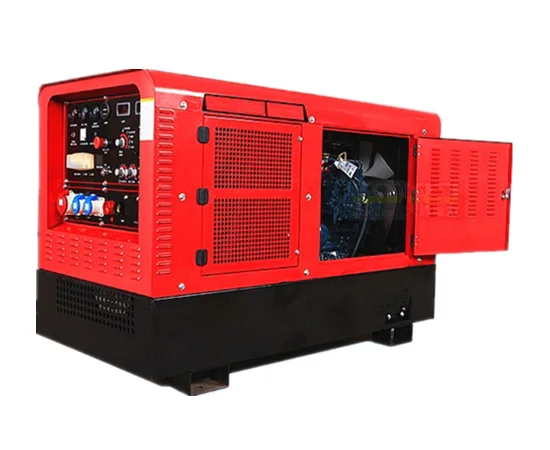

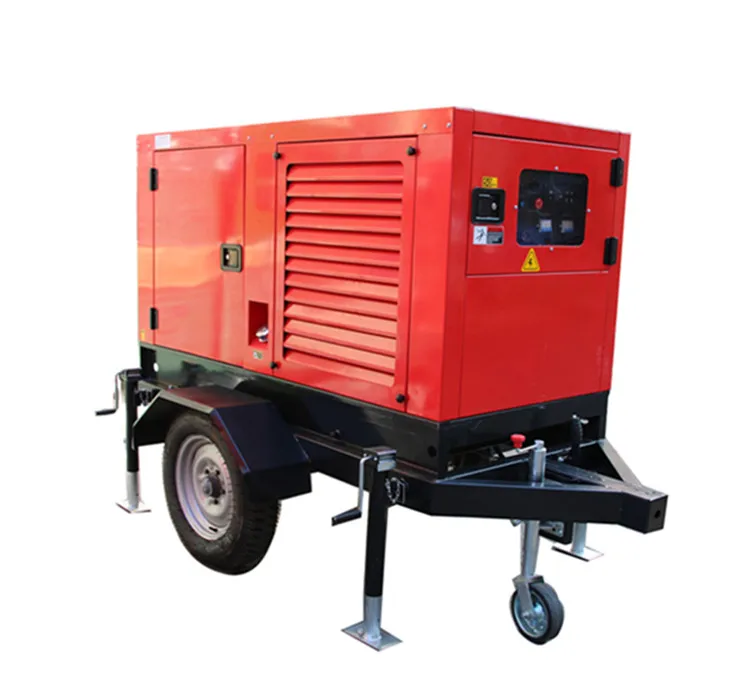

Mobile trailer industrial 10kw TIG MMA DC 500amp diesel welding machine arc MIG welder generator



1. Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.









Model	GPW 500 diesel welding generator
Welding output
Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	30-500			30-500			30-500
Welding Current (A)	310	350	500	310	350	500	310	350	500
Welding Voltage (V)	32.4	34	36	22.4	24	26	29.5	31.5	33
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	16Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/16Kw					AC 230V/6.9Kw
Engine
type	4 stroke ,direct injection  diesel engine
Fuel	Diesel
Rated Power	30Kw
Rated Speed	1500 RPM
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel  Capacity	50L
Cooling Method	Water-cooled
Fuel Consumption	5.0L/hr
Complete appliance





 Engine Features:



1. World most famous brand diesel engine: Perkins ,Cummins , Kubota, etc.

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



 Alternator Features:



1. World famous brand brushless AC alternator

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate:≤±1%

6. Rated Voltage: 127V/220V, 220V/380V, 230V/400V





 Control system:



1.  Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.



2. Operation display:



   a) Unit voltage, tri-phase load current and frequency display



   b) Water temperature, oil pressure display



   c) Fuel level, fuel temperature display



   d) Audible and visual alarm lamps and buzzers
