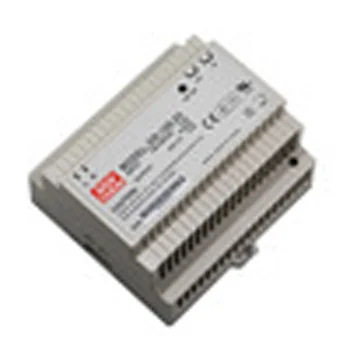

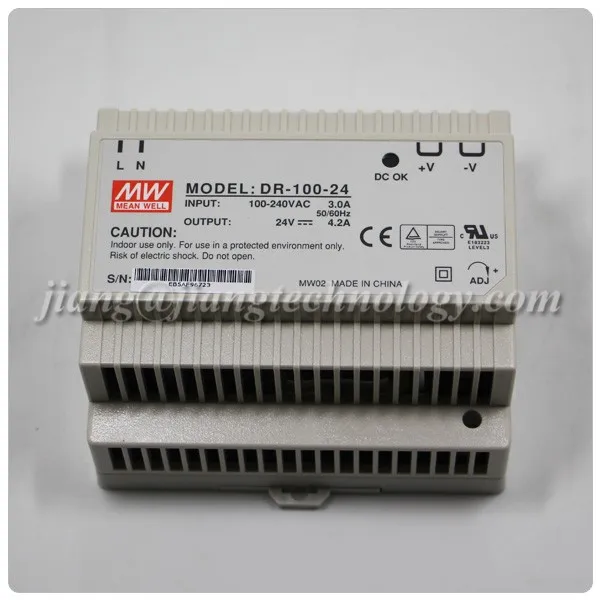

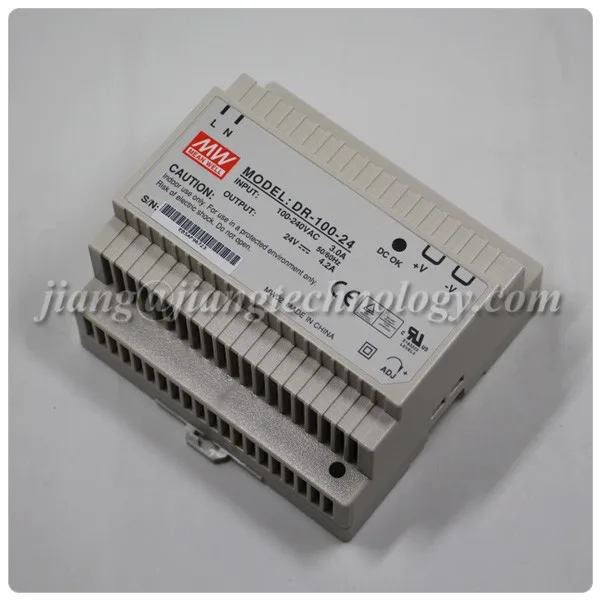

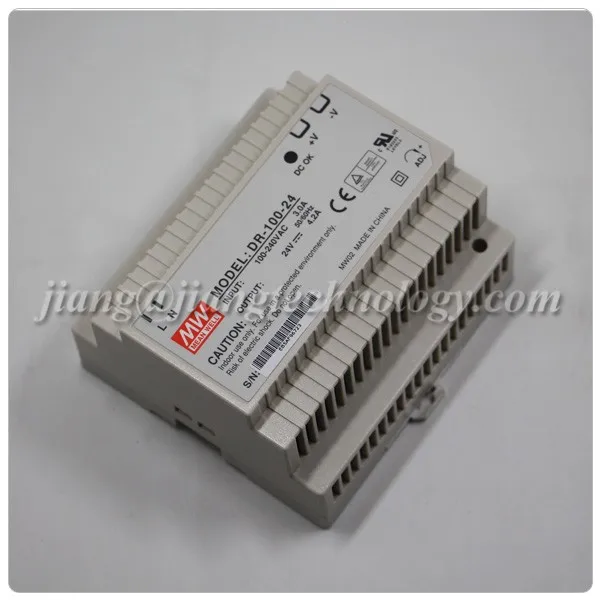

Meanwell Single Output Smps DIN Rail 24V 100W DR-100-24 DC power supply Din rail
Product Description
Features:
Meanwell 24V 100W Power Supply
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation class Ⅱ
LED indicator for power on
No load power consumption<1W
100% full load burn-in test
3 years warranty
Model Series:
DR-100-12 / DR-100-15 / DR-100-24
Detail:
MODEL
DR-100-12
DR-100-15
DR-100-24
OUTPUT
DC VOLTAGE
12V
15V
24V
RATED CURRENT
7.5A
6.5A
4.2A
CURRENT RANGE
0 ~ 7.5A
0 ~ 6.5A
0 ~ 4.2A
RATED POWER
90W
97.5W
100.8W
RIPPLE & NOISE
120mVp-p
120mVp-p
150mVp-p
VOLTAGE ADJ. RANGE
12 ~ 15V
15 ~ 18V
24 ~ 29V
VOLTAGE TOLERANCE
±2.0%
±1.0%
±1.0%
LINE REGULATION
±1.0%
±1.0%
±1.0%
LOAD REGULATION
±1.0%
±1.0%
±1.0%
SETUP, RISE TIME
2700ms, 80ms/230VAC 2700ms, 80ms/115VAC at full load
HOLD UP TIME
50ms/230VAC 18ms/115VAC at full load
INPUT
VOLTAGE RANGE
88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY
87%
87%
89%
AC CURRENT
3A/115VAC 1.6A/230VAC
INRUSH CURRENT
COLD START 30A/115VAC 45A/230VAC
PROTECTION
OVERLOAD
105 ~ 160% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
16 ~ 20V
19 ~ 23V
30 ~ 35V
Protection type : Shut off o/p voltage, re-power on to recover
ENVIRONMENT
WORKING TEMP.
-20 ~ +60°C (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85°C , 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/°C (0 ~ 50°C)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC
SAFETY STANDARDS
U60950-1, TUV EN60950-1 approved, design refer to EN50178
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH
EMC EMMISION
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
OTHERS
MTBF
486K hrs min. MIL-HDBK-217F (25°C )
DIMENSION
100*93*56 mm (W*H*D)
PACKING
0.35Kg; 36pcs/13.6Kg/0.89CUFT

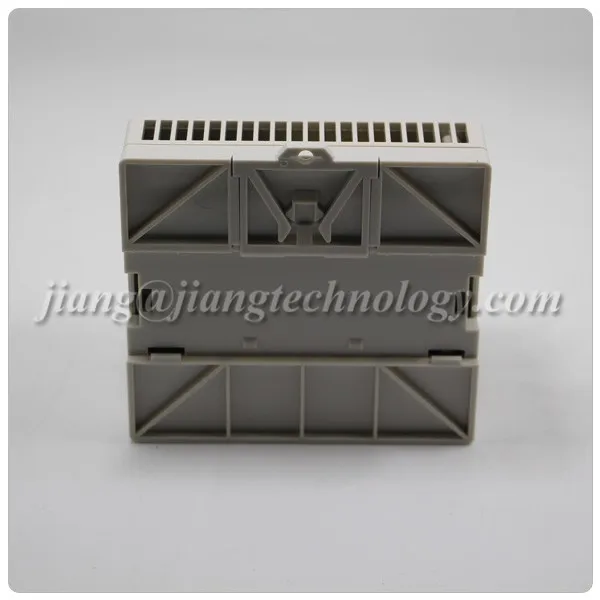

Mechanical Specification:
