Product Description

The PPTD centrifuge is top discharging, hermetic closure type equipment.

The dry material dip in ethanol, and then use centrifuge for dewatering. The working temperature is very low, around -30~-80 C, to prevent the ethanol from volatilization.

Model PPTD flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.

Process overview

Operator fills filter bag with milled plant material and places it in the machine.
The centrifuge is then flooded, and bi-directional agitated for full target compound removal.
After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.
The alcohol wash is then collected to some container for further processing

Features

304 and 316L Sanitary Stainless Steel Construction
Low temperature rating: -40c
Reinforced Sight Glass
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading
Heavy-Duty Spin Drying
No foundation required

\t Model	\t Basket dia.(mm)	\t Motor power (kw)	\t Max batch capacity (kg)	\t Overall dimension (mm)
\t PPTD-25	\t 450	\t 1.5	\t 8kg	\t 980650870
\t PPTD-50	\t 600	\t 3	\t 15kg	\t 1300880900
\t PPTD-135	\t 800	\t 5.5	\t 30kg	\t 180012001140
\t PPTD-200	\t 1000	\t 7.5	\t 45kg	\t 205015001220
\t PPTD-300	\t 1200	\t 11	\t 60kg	\t 235016501370

The whole extraction system is also available, including the tanks, filters, evaporator, cooling tower, chiller, pumps, etc

Application

1. Low temperature ethanol extraction, solvent extraction

2. Trim extraction

3. Plant material extraction

4. Any dry biomass extraction

etc.

Collocation

1. Ex proof motor

2. Viton Seals

3. Touch screen panel with PLC program

4. Inverter control box

5. On spot ex button

6. Closed type filter bags

7. Tri clamp fittings for feed and drain port

8. Drum without curl inward

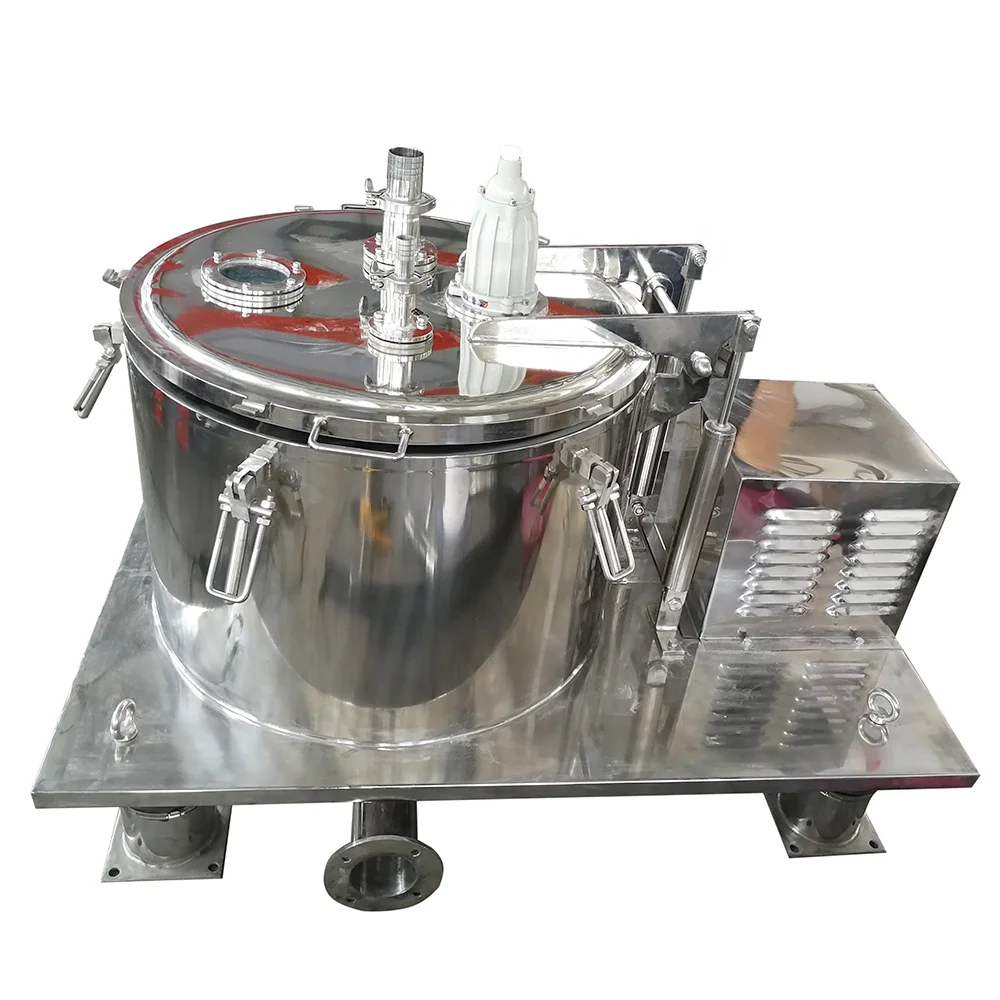

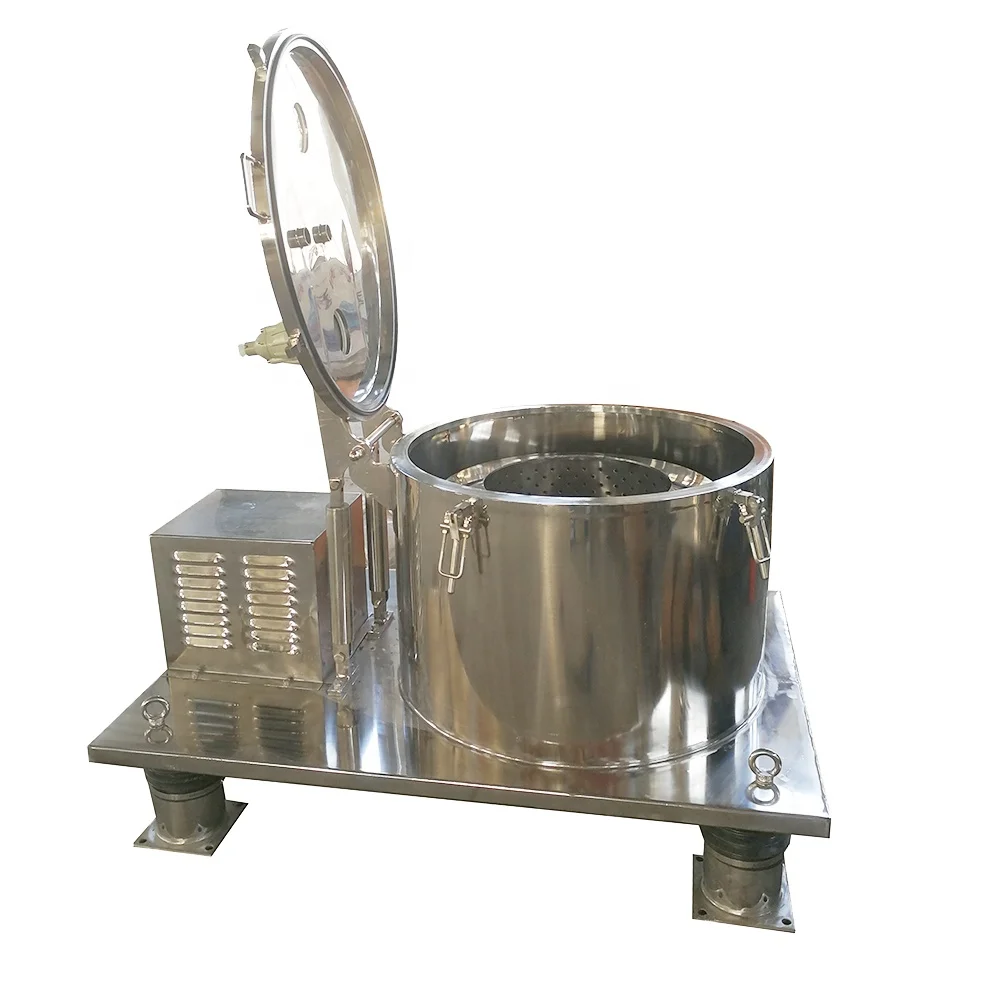

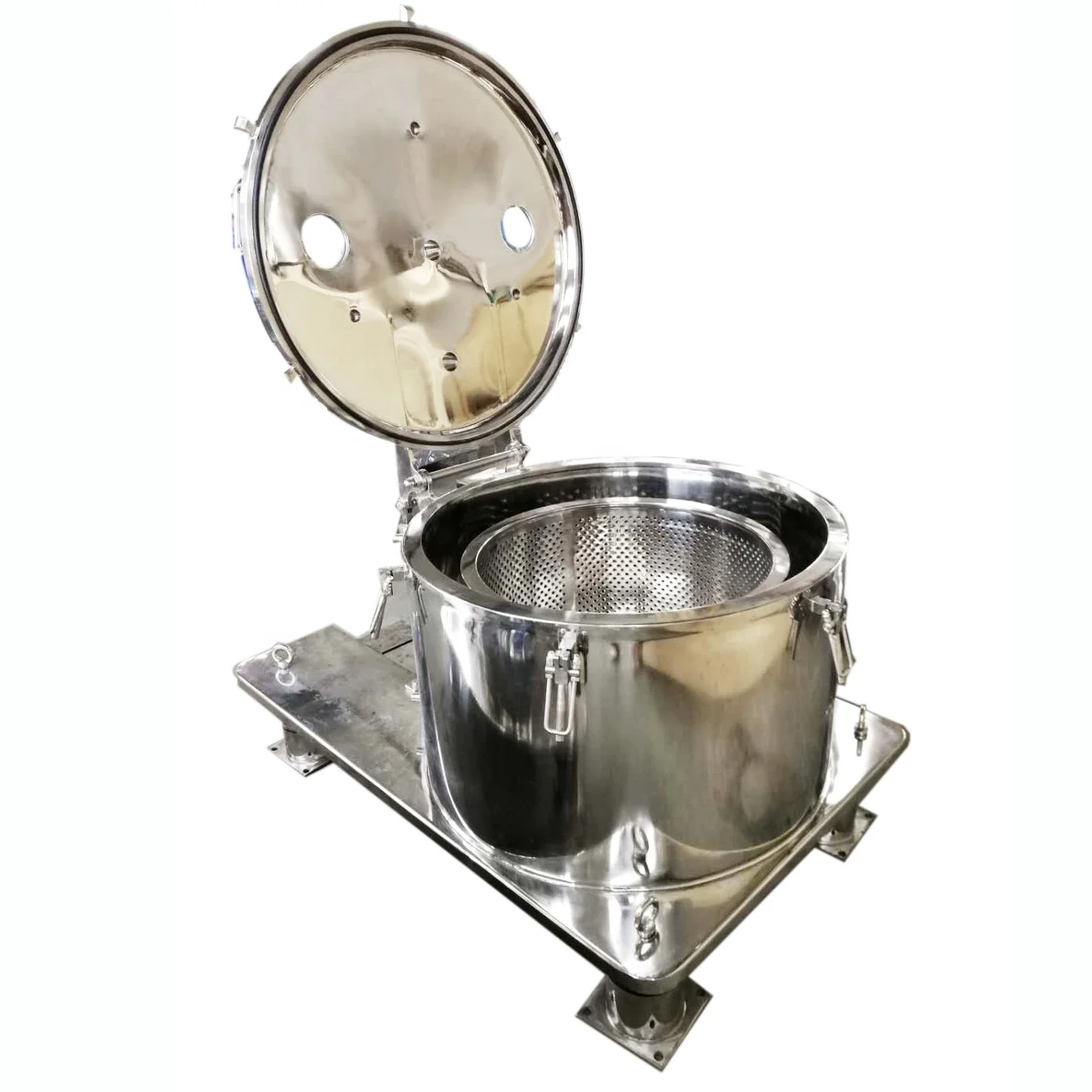

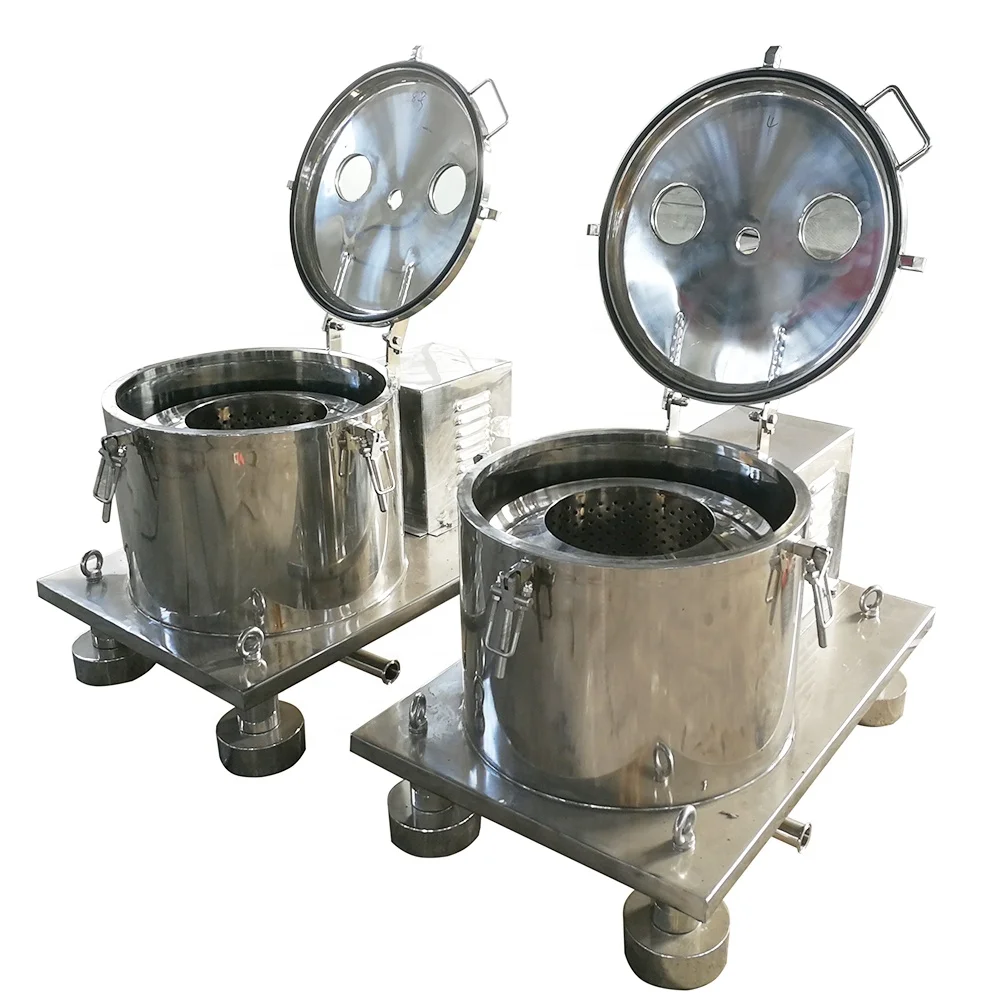

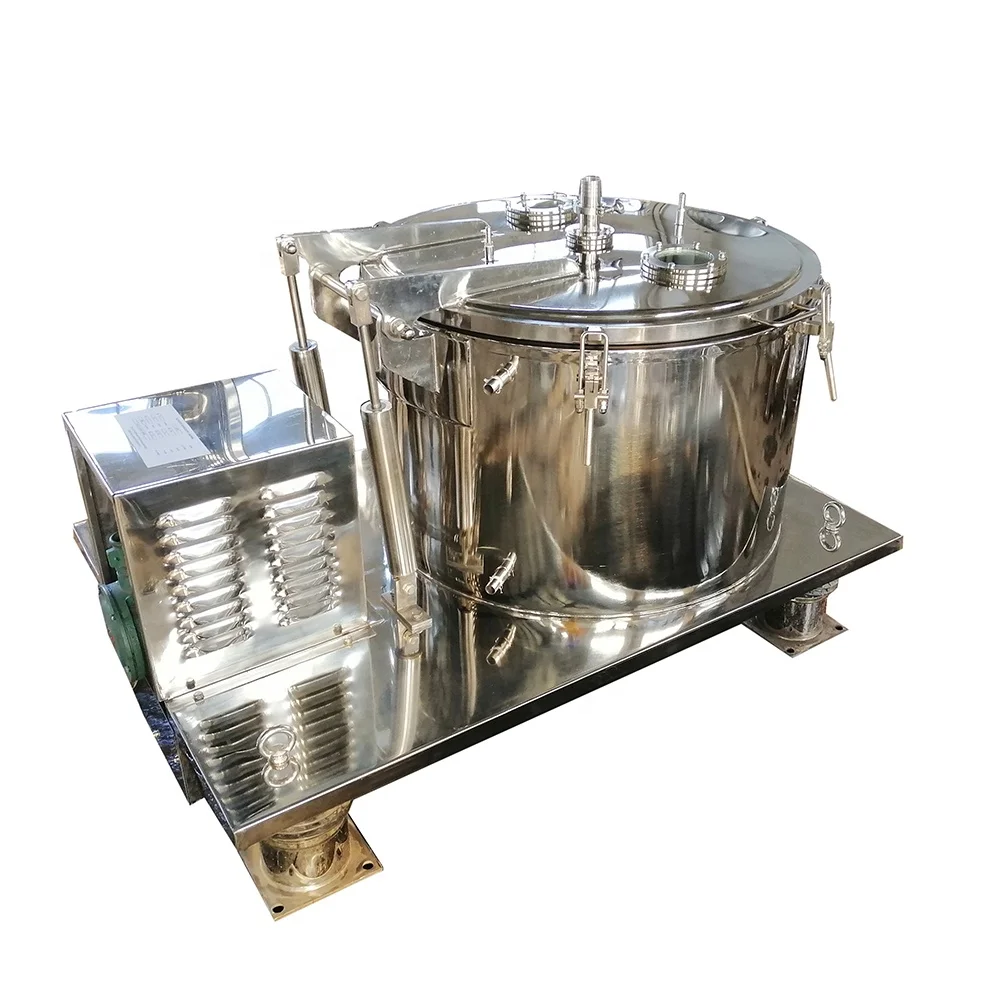

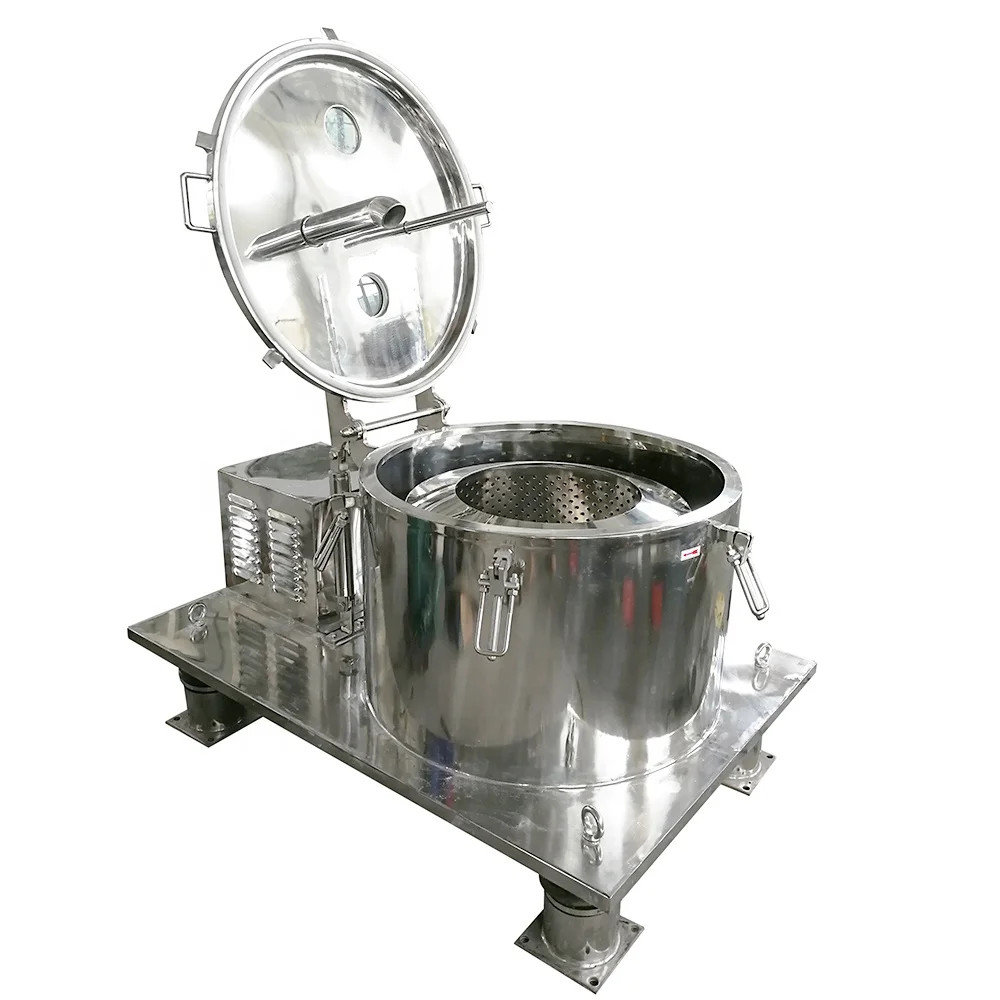

Detailed Image

Customer Site

Packing & Delivery

Our Certifications

Our Exhibition

FAQ

1. How can we visit your factory?
- If you come from aborad, air to shanghai or nanjing airport, or if you arrive shanghai, you can take bullet trian
- If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station

2. Can we visit your end user or contact them?
Yes, we will provide you the name list, and arrange the visit after their approval.

3. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.

4. Will you dispatch technicians for installation and commissioning?
Yes, we will upon required.

5. What is your advantage compared with your competitors?
Quality and experience, we are top centrifuge supplier in China,our designs and structures
are analogous to world leader brands.

6. Is your price competitive?
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the
most favorable, for the same price, my quality is definately superior to other brands

7. Do you have OEM service? Do you sppply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements

8. Do you supply second hand equipments?
No, we don't.

9. Do you have agents or service centre abroad?
We have some partership in several countries as Indonesia, Brzil, USA.

10. What payment mode you accept?
TT, and LC at sight

11. Will you help to go to our site for commissioning and training?

Yes, we can.
