Прицеп для транспортировки сада ATV 1000
US $750.00-$1000
Оптовая продажа по индивидуальному заказу Заводская поставка резервуар для сжиженного нефтяного газа полуприцеп
- Категория: >>>
- Поставщик: Foshan,MBP,Auto,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 9520.11 $* | 9996.6 $* |
| Aug-18-2025 | 9440.96 $* | 9912.33 $* |
| Jul-18-2025 | 7920.49 $* | 8316.47 $* |
| Jun-18-2025 | 9280.47 $* | 9744.59 $* |
| May-18-2025 | 8080.50 $* | 8484.55 $* |
| Apr-18-2025 | 9120.24 $* | 9576.68 $* |
| Mar-18-2025 | 9040.39 $* | 9492.76 $* |
| Feb-18-2025 | 8960.97 $* | 9408.79 $* |
| Jan-18-2025 | 8880.1 $* | 9324.17 $* |
Характеристики
Product Description

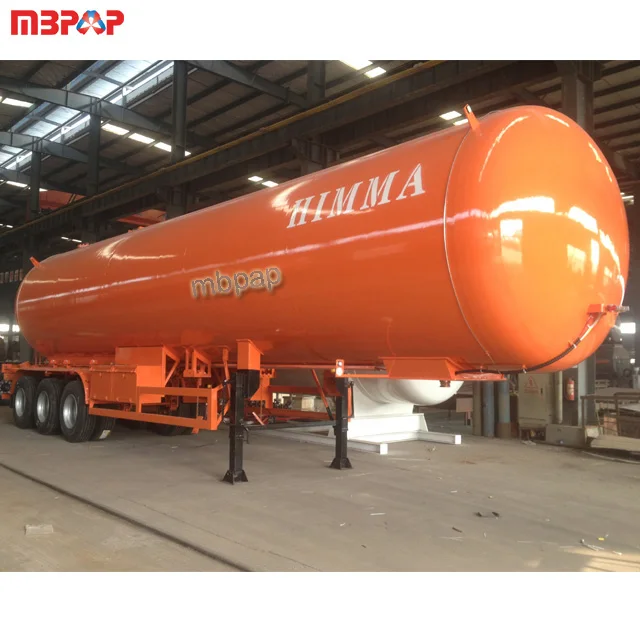

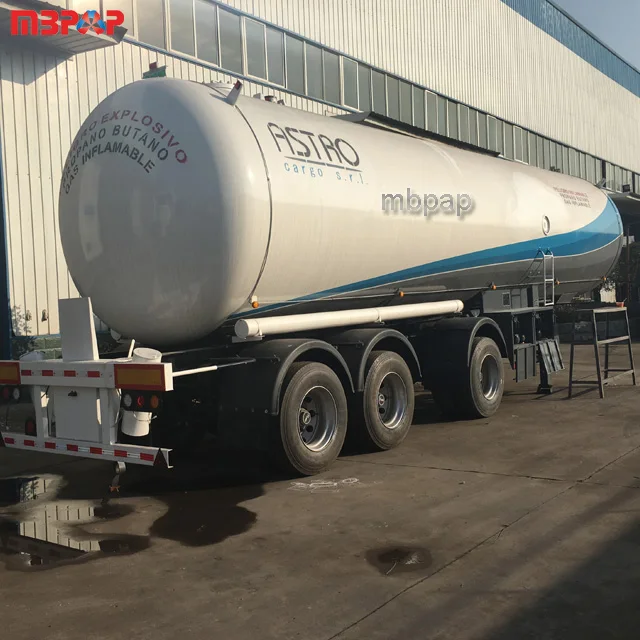

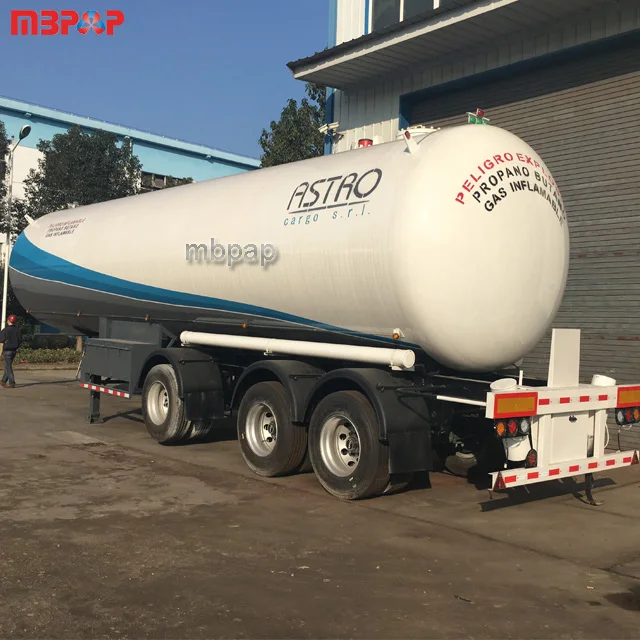

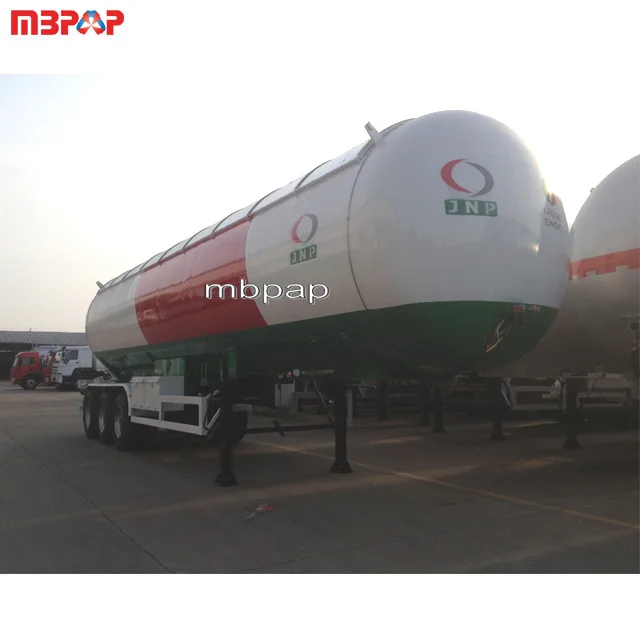

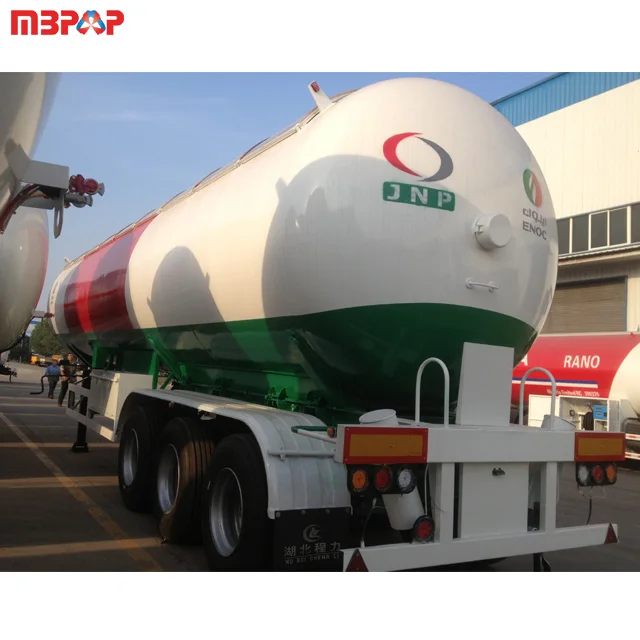

Liquefied gas storage tank series can be used for transport of liquefied petroleum gas (propane), propylene, ammonia, dim ethyl ether, methanol, butadiene, ISO-butane, ethylene oxide, methylamine etc natural gas in normal temperature with low or medium pressure .Tank volume various from 40.5cubic meters --- 60cubic meters.
Truck trailer model | 9320GYQ | 9400GYQA | |||
Loading capacity | 40cbm | 49.6cbm | 56cbm | 60cbm | |
Wheelbase | mm | 6720+1320 | 6800+1310+1310 | 6865+1310+1310 | 7230+1310+1310 |
Front track | mm | - | - | - | - |
Rear track | mm | 1840/1840 | 1840/1840/1840 | 1840/1840/1840 | 1840/1840/1840 |
Total mass | T | 31 | 37 | 39 | 41 |
Truck size | m | 11324*2500*3730 | 12740*2480*3800 | 12700*2500*3975 | 13000*2500*3977 |
Curb weight | T | 13.5 | 15.3 | 15.4 | 15.5 |
Loading mass | T | 17.01 | 20.832 | 23.52 | 25.34 |
Steel spring NO | Pcs | -/7/7 | -/7/7/7 | ||
Axles information | |||||
Axles brand | / | BPW | |||
Axles NO | Pcs | 2 | 3 | ||
Axles loading | kg | 13000*2 | 13000*3 | ||
Legs information | |||||
Legs brand | / | Jost | |||
Legs loading | kg | 28000 | |||
Tyre information | |||||
Tyres No | Pcs | 12+1 | 12+1 | ||
Tyre type | / | 12 tubeless | |||
Truck LPG tanker information | |||||
Tanker volume | L | 40500 | 49600 | 56000 | 60000 |
Tanker material | / | Carbon steel Q345R or Q370R | |||
Tanker thickness | mm | 12 | 12 | 12 | 12 |
Tanker diameter | mm | 2200 | 2300 | 2450 | 2475 |
Tanker design pressure | Mpa | 1.77 | |||
Working pressure | Mpa | 1.61Mpa | |||
Tanker temprature |
| -19 to 50 | |||
Twist Lock | No locks | ||||
Pneumatic Braking System | Two unit of WABCO RE 6 relay valve; Four units of double air-chamber, two unit of single air-chamber, two unit of air tank. | ||||
Electrical System | 7-pin ISO sockets; Tail lamp with turn signal, brake light & reflector, Side lamp etc.One set of 7-pin standard Cable. | ||||
Painting | Sand blasting processing clean rust,1 coat of anticorrosive primer, 2 coats of finish paint, Color as customer choice | ||||
Accessories | One tooling box with a set of standard trailer tool | ||||
Twist Lock | No locks | ||||
Pneumatic Braking System | Two unit of WABCO RE 6 relay valve; Four units of double air-chamber, two unit of single air-chamber, two unit of air tank. | ||||
Others | Single out the solution, Bilateral Handing, Double valve box, Single kit, Safety valve, Thermometer, Pressure gauge, Emergency shut-off valve, Fire extinguishers, Anti-static grounding tape. | ||||
Packaging & Shipping
N/M by container/Ro-Ro ship/bulk ship/road
Delivery Time
20 working days after confirm down payment
