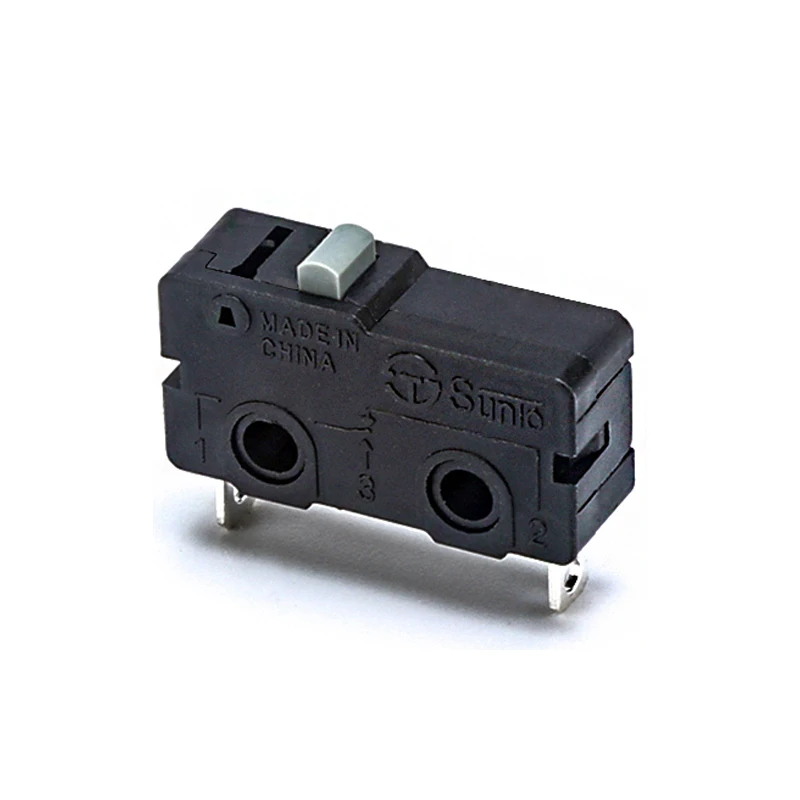

Микро-выключатель с нормально открытым концевым выключателем 5A

Описание и отзывы

Трекер стоимости

Характеристики

Product Display

Products Information

·Action features

Model	ST-oF1	ST-oF2	ST-oF3	ST-oF	ST-o	ST-oH
OF(N)	Max0.5	Max1.0	Max1.5	Max1.9	Max2.7	Max3.6
RF(N/Min)	0.1	0.15	0.3	0.35	0.45	0.55
OP(mm)	8.6±0.2
PT(mm/Max)	0.6
OT(mm/Min)	0.5
MD(mm/Max)	0.2



·features

Project		Model
		ST-1	ST-5	ST-10
Operating speed		0.1~1000mm/s (Needle-like buttons)	0.5~1000mm/s(With the springboard)
Operating frequency	Mechanical	200 Times per minute
	Electrical	15 Times per minute
Insulation resistance		More than 100MΩ (Calculation of insulation resistance of DC500V)
Contact resistance(Initial value)		200mΩ	50mΩ
Pressure	Homopolar terminal Charging metal parts at the same time Charging metal parts at different times	AC1000V 50/60HZ 1min AC1500V 50/60HZ 1min AC1500V 50/60HZ 1min
life	Mechanical Electrical	More than 1 million times(60 times per mm) More than 50 thousand times(30 time per mm)
Protect the structure		IEC IP40
Electric shock protection level		CLASS I
PTI		175
Service ambient temperature		25T125
Ambient humidity		T125 below 85%RH



Note: the above ratings are tested under the following conditions:

Environment temperature:20±2℃;

Environmental humidity:65±5%RH;

Operating frequency:15Times/minute



Characteristics of ST series products:

(1)Adopt tension spring structure, strong anti - stamping ability, action force variety.

(2)Long life, high reliability.

(3)Terminal types are complete, including welding terminal, terminal block (110#), printing substrate terminal, etc. A wide variety.

(4)Equipped with various forms of springboard.

(5)Through various forms of springboard.

(6)Widely used in a variety of household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, instrumentation and other fields.

Mounting holes machining dimension:

When welding the wire to the blade terminal, please pass the conductor through the terminal before entering the operation.

·the brazing iron should have a capacity of less than 60w and time within 5s. If the operating temperature is too high or too hot for too long, it may cause deterioration of switch characteristics.

·please use solder as little as possible. If the solder goes inside the switch, it may cause contact barriers.

·the specification of the terminal connection is 0.5-0.7mm. If the printing substrate is welded in the terminal type welding groove, the solder may enter the inside of the switch and cause poor contact, so please use manual welding.

·connect the terminal blocks with the socket of #110 terminal blocks and insert them into the terminals vertically. If excessive external force is applied to the terminals horizontally, the terminals may be deformed and damaged.
