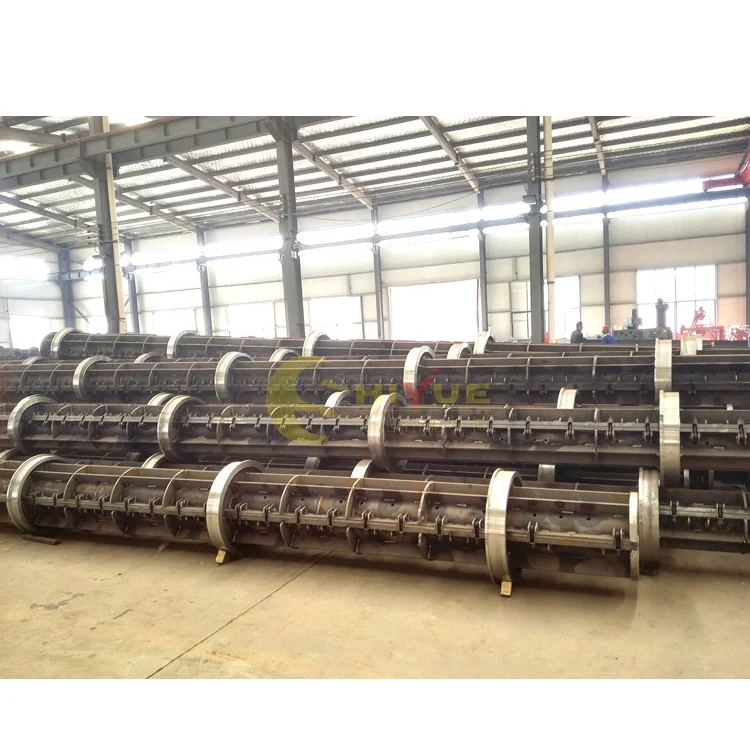

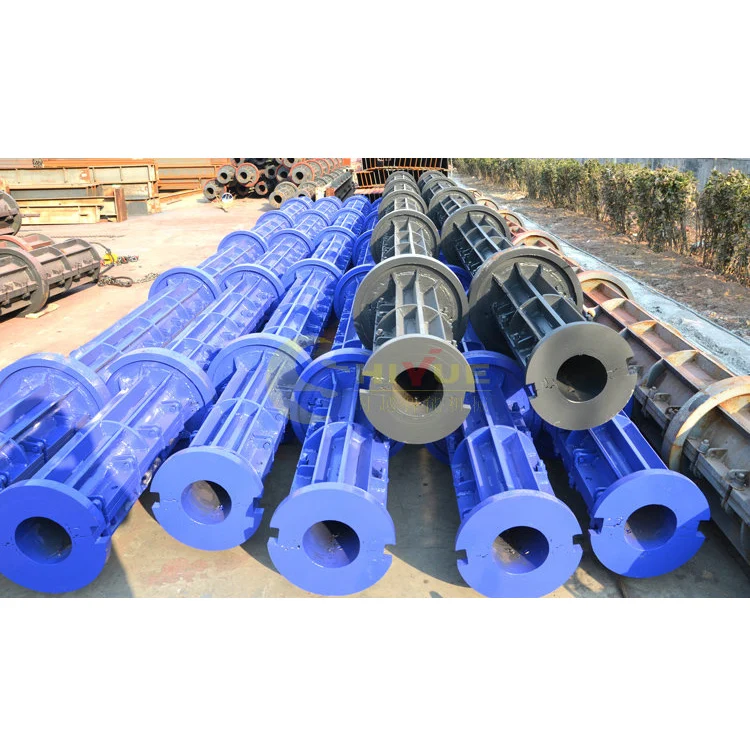

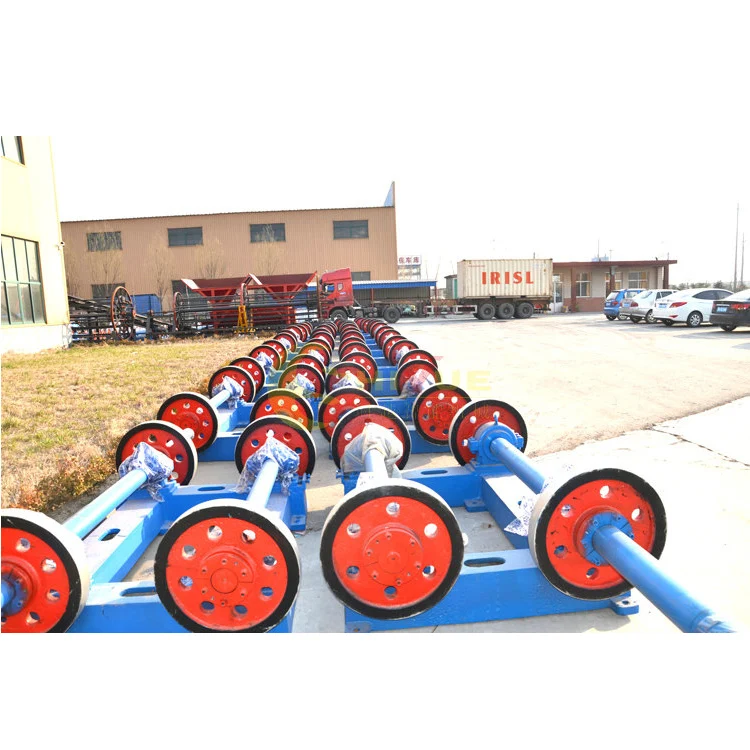

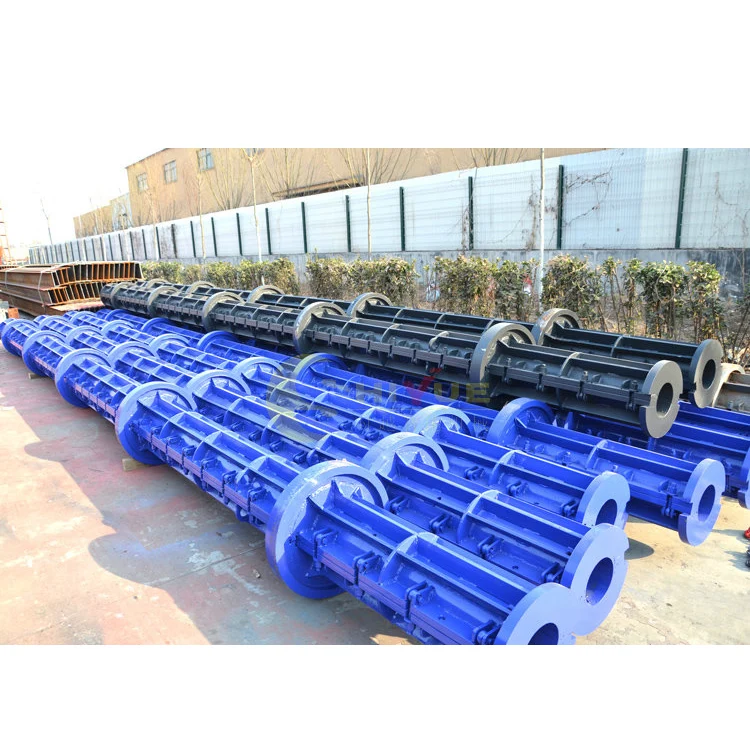

Overview of electric prestressed concrete pole making machine

Pre-stressed Concrete Electric Pole Making Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.

Pre-stressed Concrete Electric Pole Making Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.





Working Principle of electric prestressed concrete pole making machine

1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.

2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.

3. The speed of separation is slow when the viscosity of slurry is high.

4. It is good for centrifugal sedimentation when the slurry density is different in each component.





Technical Parameter of concrete pole making machine



top end inner diameter (mm)	Tread (mm)	Running wheel diameter (mm)	Length (m)
150	2000	600	7-12
170	2000	600	7-12
190	2000	650	7-15
230	2000	650	6-9
300 equal diameter	2000	600	6-9
350 equal diameter	2000	650	6-12
310	2000	650-780	6-15







Features of electric prestressed concrete pole making machine

1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).

2. Crack resistance can increase about 3~5 times.

3. Rigidity increases 1~3 times.

4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).

5. Good durability, can delay the existence and expansion of cracks.

6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.



Shipping Note
1.. All price are based on FOB, QINGDAO, China1. All kinds of mould can be made by customer's drawings

2.. Payment: by T/T 30% down payment, 70% upon machinery completion.

3.. Delivery: After finishing all the payment

4.. All the parameters above just for reference, for they are updating all the time

5. Package: Nude packing

6. Warranty: All the machine enjoys one year’s warranty, in this period , any problems or parts

Of the machine, please feel free to contact us . We will try our best to make it .

Guarantee

1.they could call our service department number any time , we will supply per day 24 hours service 1.We can supply one year guarantee period for our brick making machines, if the client have the question ,

2.Within one year, if the client meet the unsolvable questions ,we could fly to client place to help.
