automatic wall mortar cement spraying plastering putty machine
US $800.00-$2000
Однофазый и трёхфазный цемента Штукатурная автоматы для распыления цементных растворов
- Категория: Mortar Spray Machines >>>
- Поставщик: Henan,Coal,Science,Research,Institute,Keming,Mechanical,And,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.45 $* |
| Aug-16-2025 | 0.64 $* | 0.51 $* |
| Jul-16-2025 | 0.56 $* | 0.13 $* |
| Jun-16-2025 | 0.79 $* | 0.50 $* |
| May-16-2025 | 0.88 $* | 0.18 $* |
| Apr-16-2025 | 0.71 $* | 0.16 $* |
| Mar-16-2025 | 0.75 $* | 0.39 $* |
| Feb-16-2025 | 0.61 $* | 0.76 $* |
| Jan-16-2025 | 0.92 $* | 0.74 $* |
Характеристики
KLW120 Plastering Machine
Single Phase and Three Phase Cement Plaster Mortar Spray Machine
Product Description
Plastering Machine Introduction:
Compared with traditional manual plastering and rendering machine, KLW Series plastering machine has the following advantages:
(1) This machine is an advanced screw-type high-pressure mortar spraying equipment, which is easy to operate and maintain even without special skills.
(2) Evenly spraying performance, no fly ash and dust fall. It can save water and materials more than 20% of the costs.
(3) Free spraying on the wall, roof, internal and external corners. It can improve work efficiency and save costs.
(4) High efficiency. The machine can spray 120-180 square meters per hour, which can effectively shorten the construction period and save costs.
Plastering Machine Application:
KLW Plastering Machine is a new developed high-pressure screw type cement mortar plastering machine. Due to its advanced technology, convenient operation and maintenance, this plastering machine is widely used, as following:
(1) Pressure grouting for reservoir, hydropower, dam, port, dwarf etc;
(2) Basic treatment and reinforcement grouting of soft foundation;
(3) Backfill grouting or bolting grouting for tunnel, subway,mining construction;
(4) Slurry circulation and mortar backfill for ground-source heat pump deep well construction ( new technology);
(5) Building mortar conveying for floor, masonry or plastering;
(6) Conveying and spraying of cement slurry, commercial mortar or equivalent mortar etc.
(7) Spraying fireproof material, thermal insulation material etc.
Plastering Machine Specification:
Model | KLW-120 Plastering Machine |
Capacity | 100~120m2/h(mortar) 200~3002/h(putty) 3m3/h(grouting) |
Rated working pressure | 2MPa |
Motor power | 4 kw |
Main electricity motor | 3phase, 380v, 5.5kw |
Horizontal delivery dist. | 15m |
Vertical conveying dist. | 10~15m(mortar)/25~30m(putty) |
Max. aggregate size | 4mm |
Compressor motor | 2.2kw |
| Dimensions | 1300*650*900 (mm ) |
Weight | 200kg |

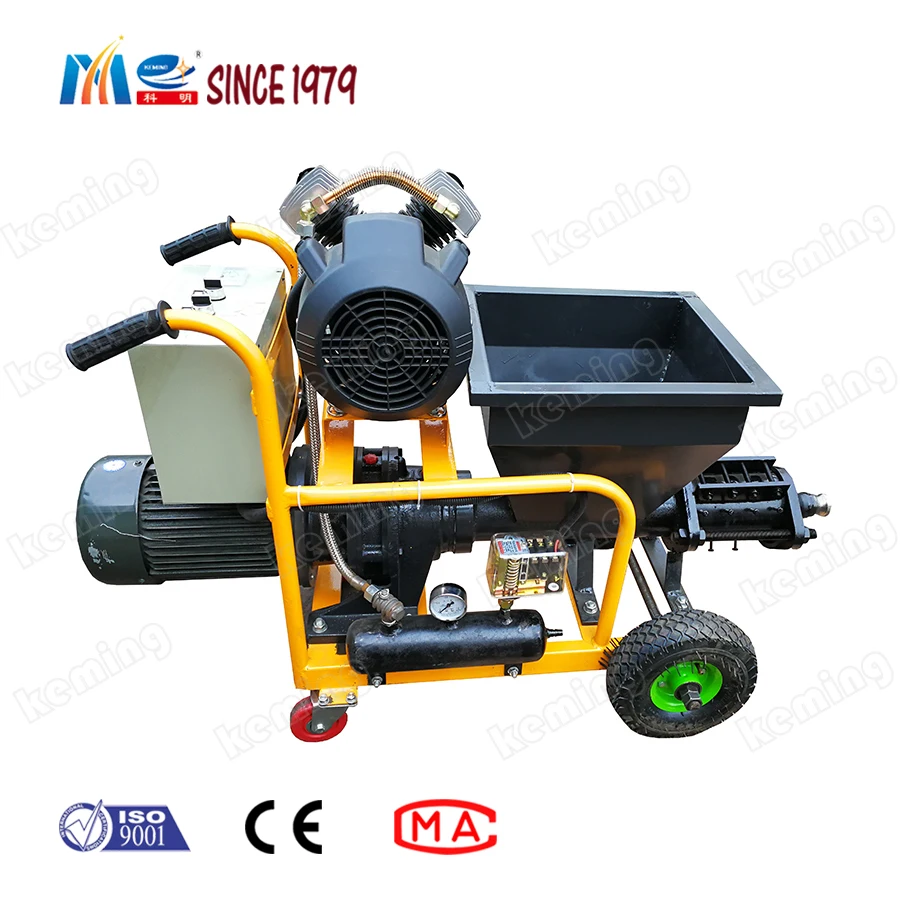

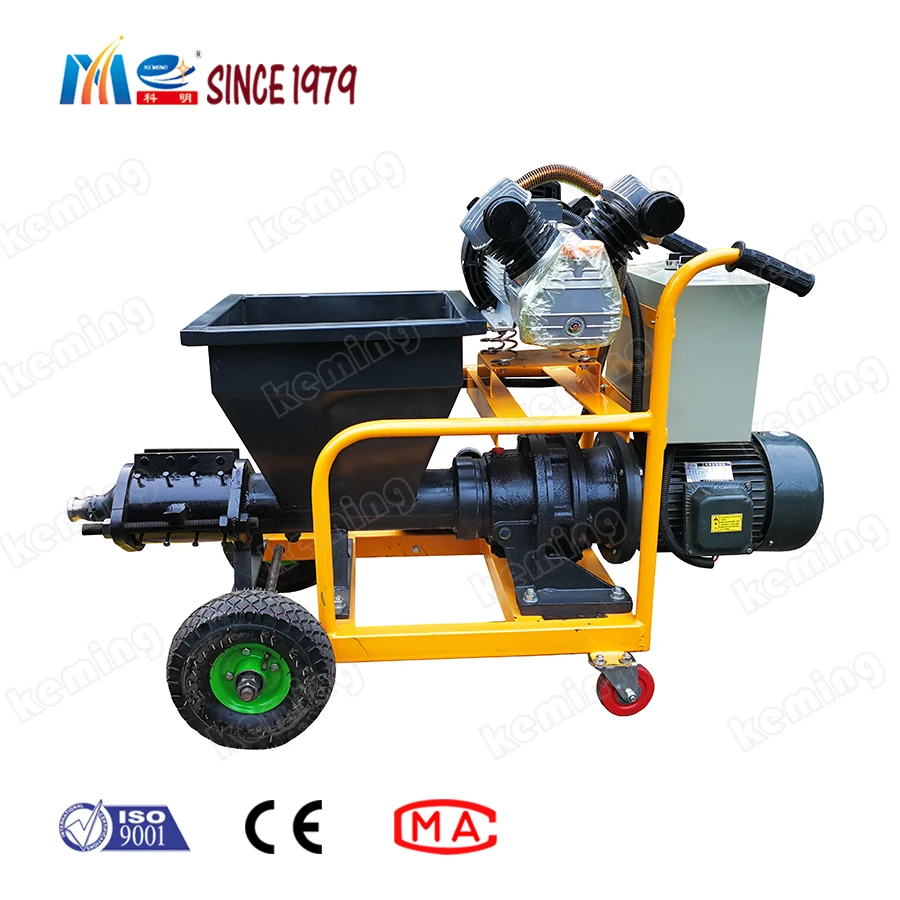

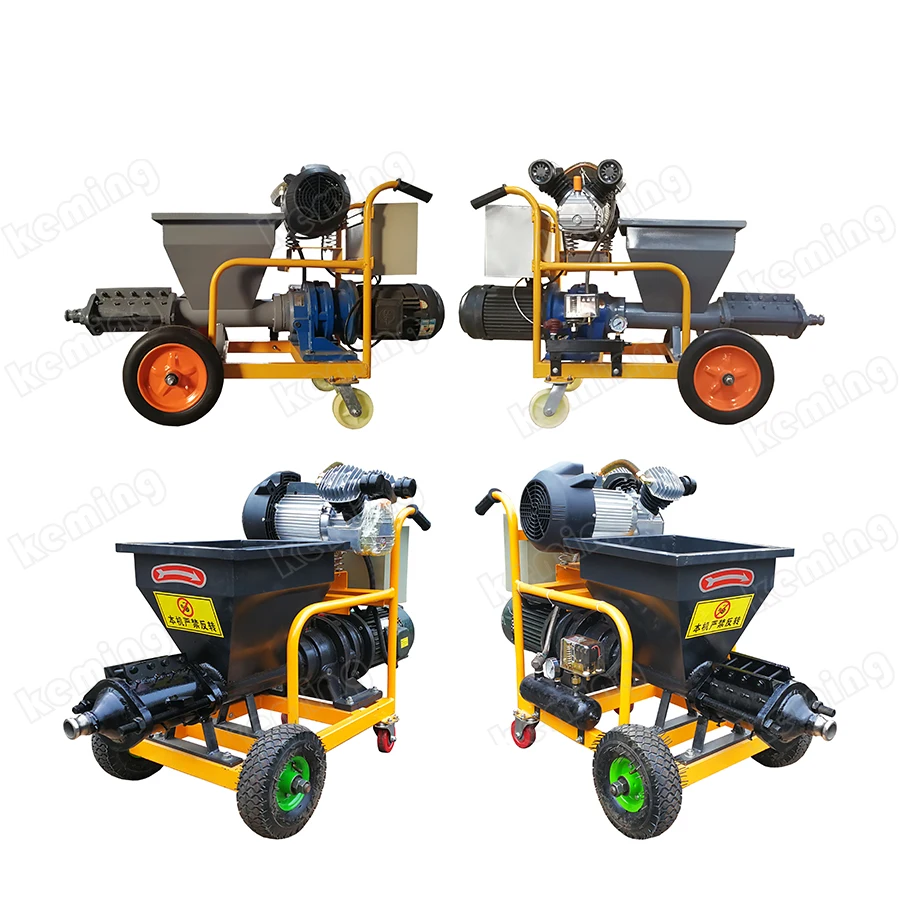

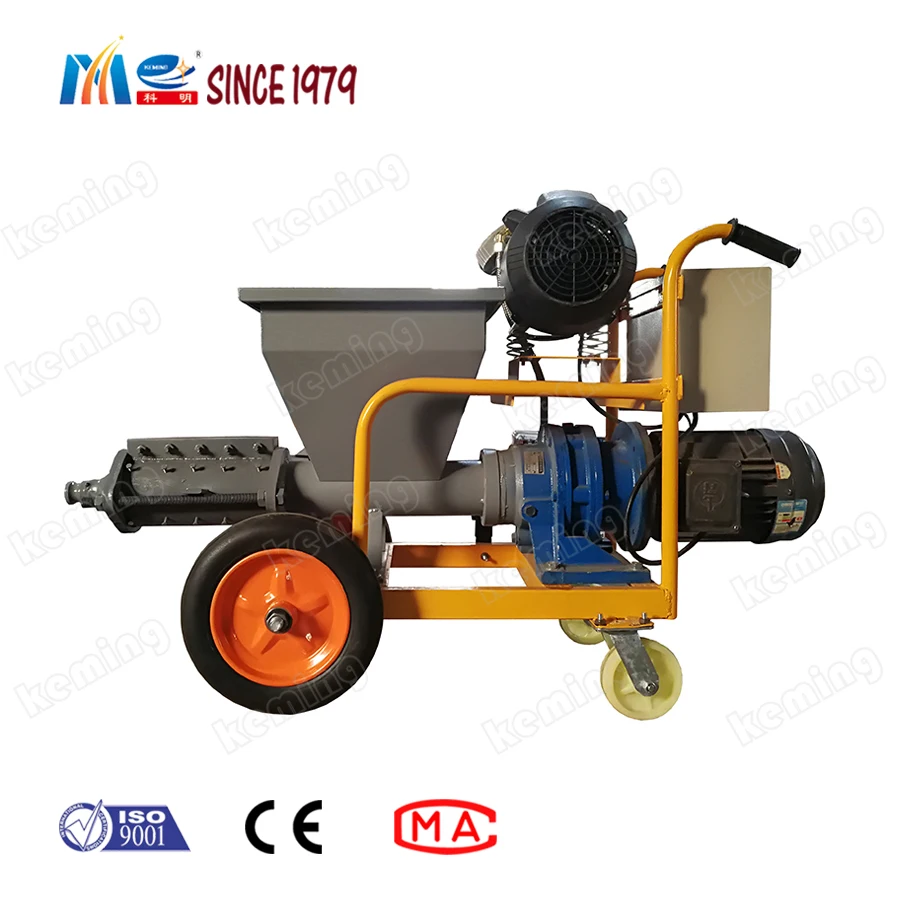

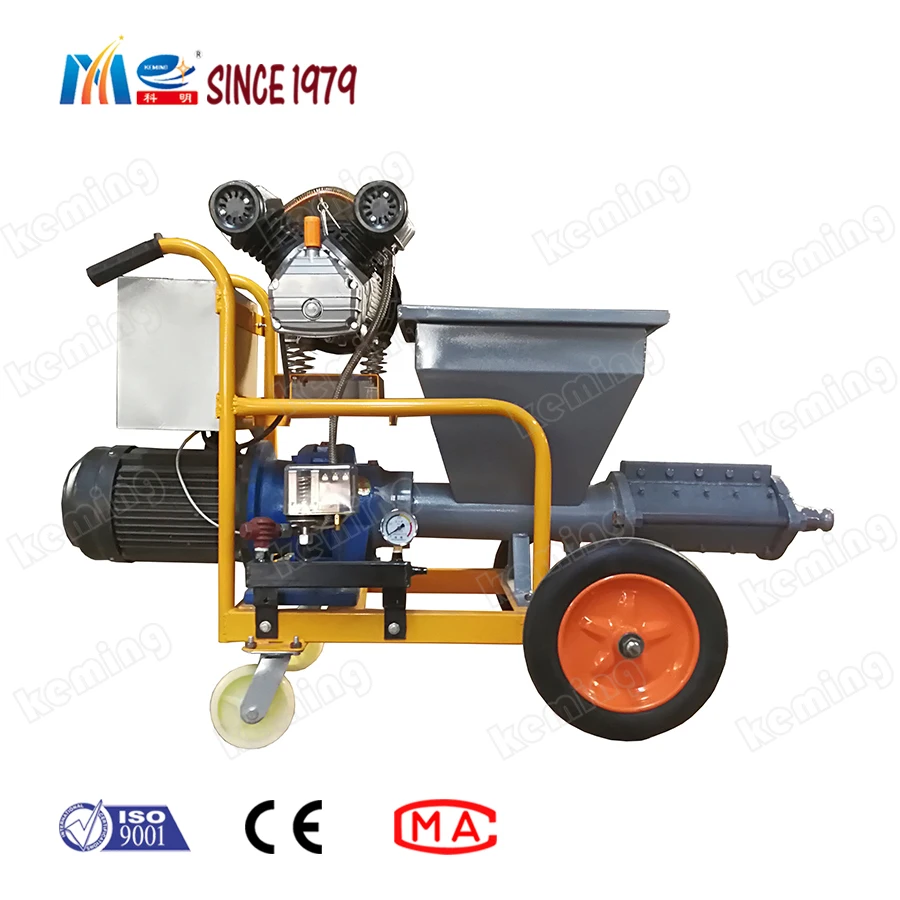

Plastering Machine Detailed Images:
Related Products -P
 |  |

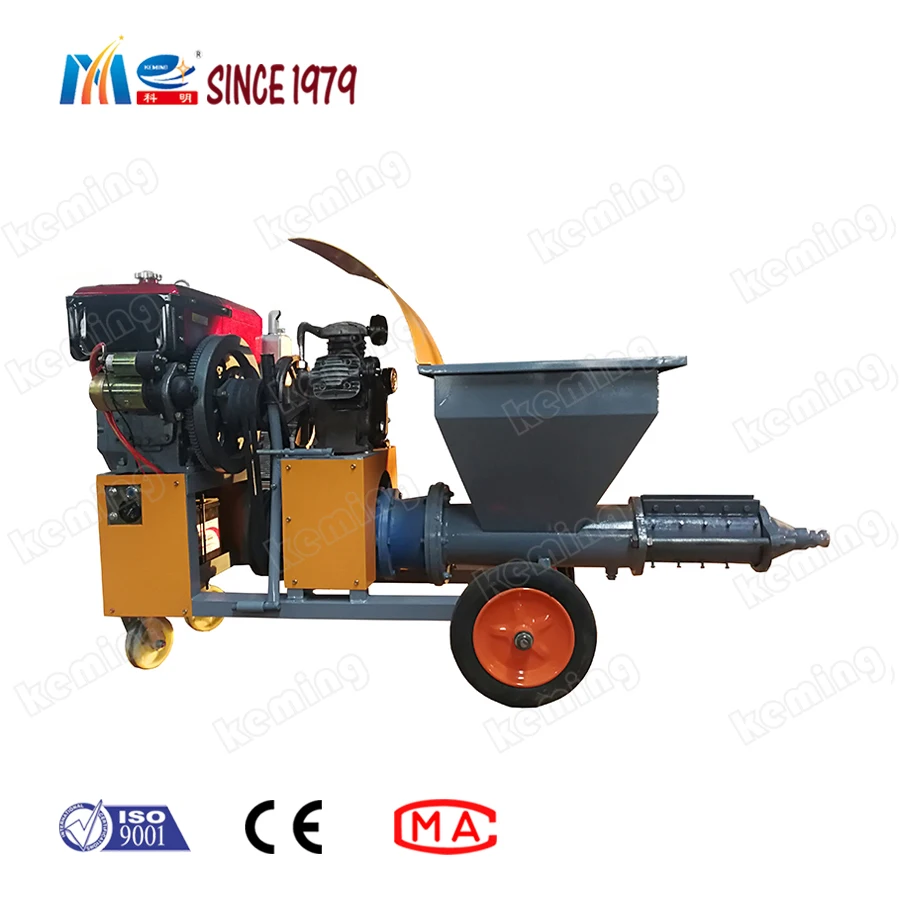

KLW-120 Plastering Machine * Screw Type * Wet Mixture * Electric motor | KLW-120D Diesel Plastering Machine * Screw Type * Wet Mixture * Diesel Engine |
 |  |
KLW-150 Plastering Machine * Screw Type * Wet Mixture * Electric motor | KLW-150D Diesel Plastering Machine * Screw Type * Wet Mixture * Diesel Engine |
|  |
KLW-180 Plastering Machine * Screw Type * Wet Mixture * Electric motor | KLW-180J Plastering Machine with Mixer * Screw Type * Wet Mixture * With Cement Sand Mixer |
|
|
KHT-3 Plastering Machine * Hose Squeeze Type * Wet Mixture * Electric motor
| KLL-3 Plastering Machine * Screw Type * Dry Mixture * Electric motor |
Plastering Machine Spares:
Company Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements:
Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”. In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Business Scope:
As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Main Products:
wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
Certifications
FAQ
---Concrete Pump, Cement Pump, Mortar Pump, Mud Pump
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
Contact Us
Tel: 0371-67836512
Fax: 0371-67836231
Mobile: +86 18703811581 (Whatsapp/Wechat)
Skype: stevewan365
QQ: 313107164
Email: steve_wan @ hnkeming.com
Single Phase and Three Phase Cement Plaster Mortar Spray Machine
