PHS5 стержневой подшипник с резьбой

Описание и отзывы

Трекер стоимости

Характеристики



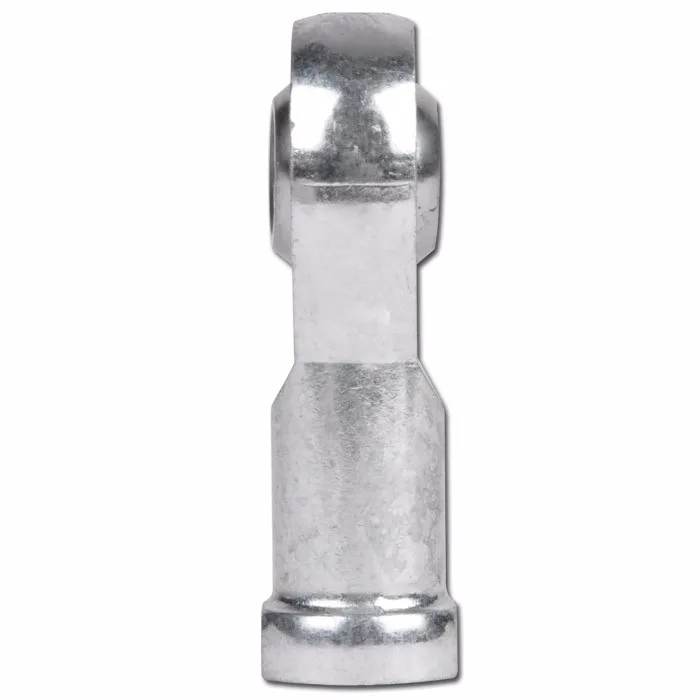

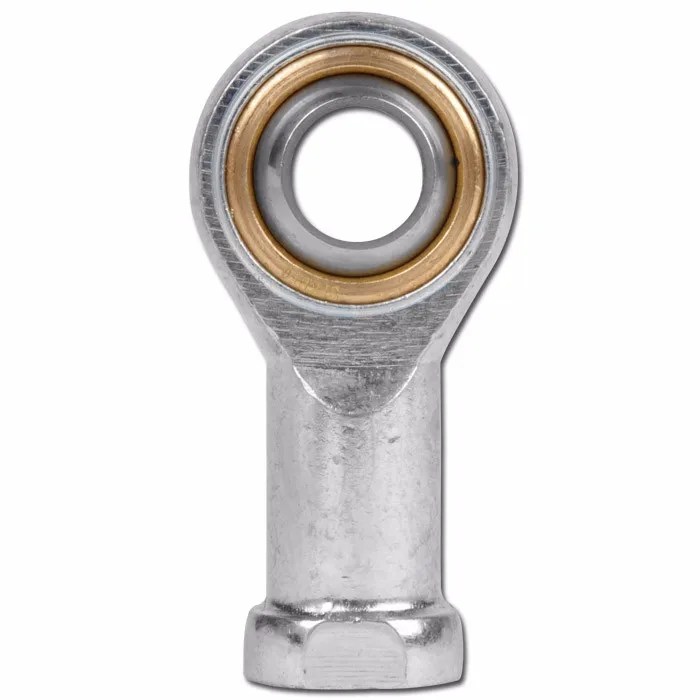

PHS5 rod end bearing with M5x0.8 thread



Features

  • Maitenance-required

  • Housing:  carbon steel and white zinc plated

  • Steel Ball:  52100 chrome steel, precision ground hardened and chrome plated

  • Race:  Bronze



Dimensions

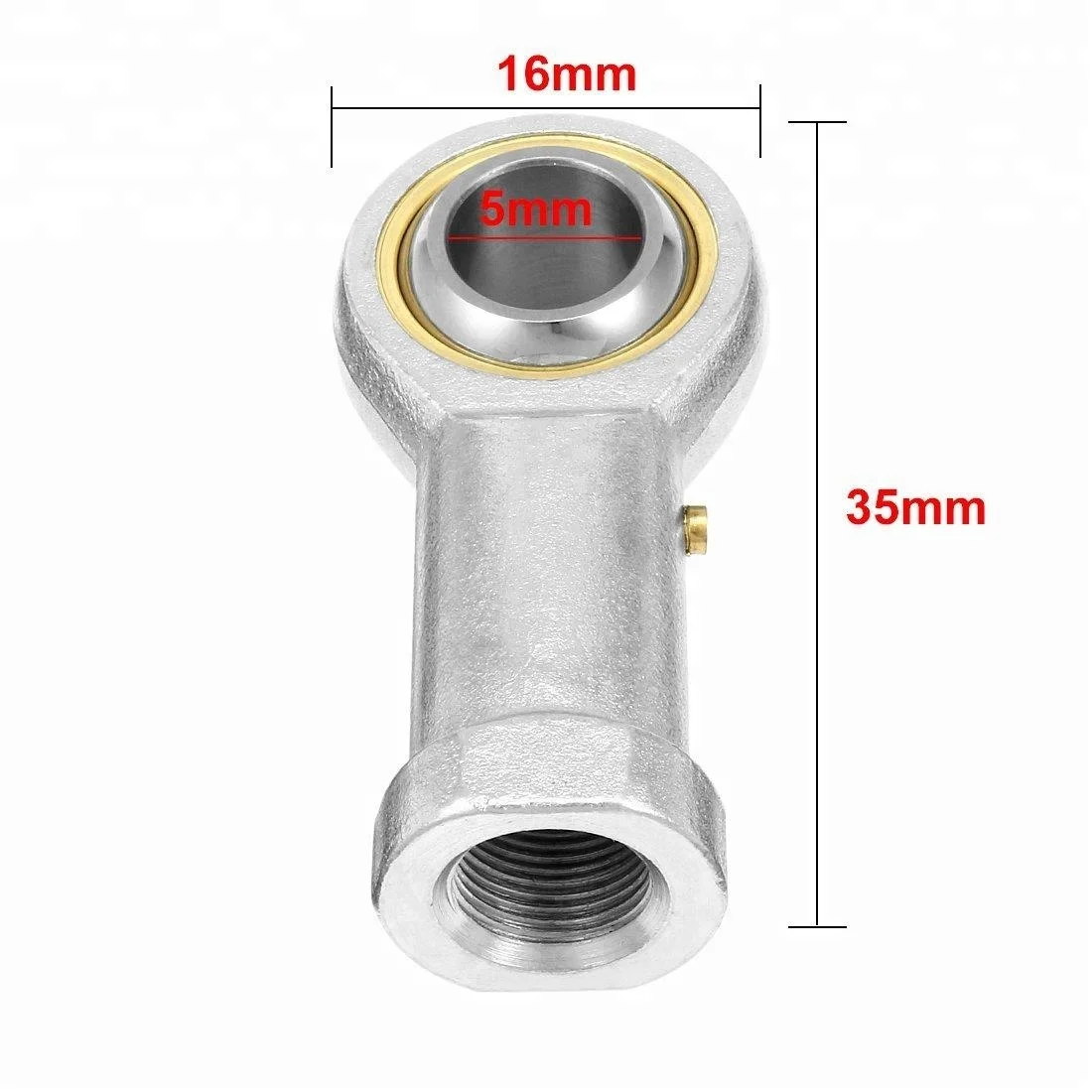

  • Inside Diameter(Bore): 5mm

  • Outside Diameter(Head): 16mm

  • Thread: M5x0.8(Right Hand)

  • Total Length: 35mm

  • Maximum Angular Misalignment: 13 Degree

  • Center of Ball to Bottom of Shank: 27mm

  • Length Through Bore: 8mm

  • Thread Length: 10mm





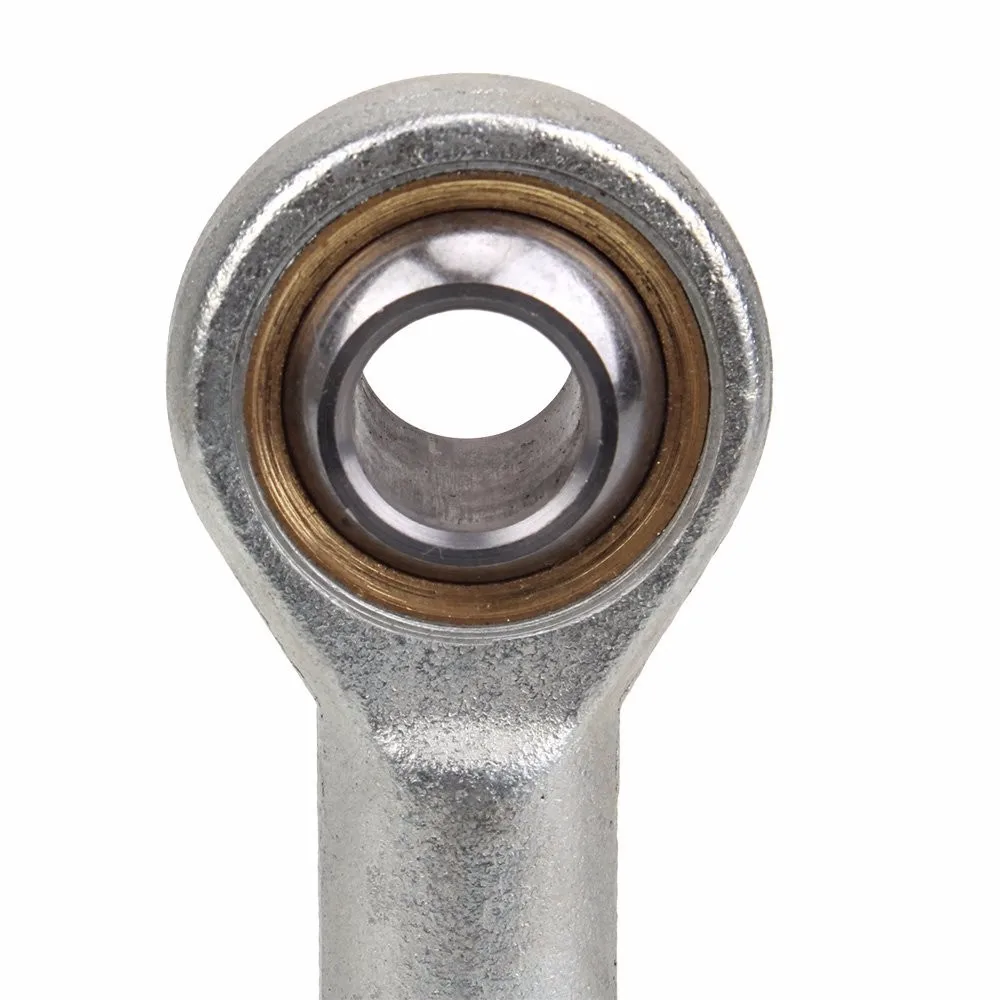

PHS rod end bearing is made up machined carbon steel housing, bronze race and hardened, chrome-plated steel ball. Hosing with nipple.



Features  • Sliding contact surface: Steel/Bronze • Lubricating: Maintenance-required  • Housing: carbon steel and white zinc plated  • Inner ring: Chrome steel,hardened and chrome-plated • Race: Bronze

ITEM		Dimension  (mm)																Weight
Right hand	Lift hand	d	d3	B	C1	L3	W	d2	d1	h1	L7	L4	L5	d4	d5	dK	a	kg
			6H			min					min						≈
PHS4	PHSL4	4	M4x0.7	7	5.25	8	8	14	6.5	24	7	31	4	8	9.5	9.525	13	0.009
PHS5	PHSL5	5	M5x0.8	8	6	10	9	16	7.7	27	8	35	4	8.5	11	11.11	13	0.016
PHS6	PHSL6	6	M6x1.0	9	6.75	12	11	18	8.96	30	9	39	5	10	13	12.7	13	0.022
PHS8	PHSL8	8	M8x1.25	12	9	16	14	22	10.4	36	11	47	5	12.5	16	15.875	14	0.047
PHS10	PHSL10	10	M10x1.5	14	10.5	20	17	26	12.9	43	13	56	6.5	15	19	19.05	13	0.077
PHS10-1	PHSL10-1	10	M10x1.25	14	10.5	20	17	26	12.9	43	13	56	6.5	15	19	19.05	13	0.077
PHS12	PHSL12	12	M12x1.75	16	12	22	19	30	15.4	50	15	65	6.5	17.5	22	22.225	13	0.1
PHS12-1	PHSL12-1	12	M12x1.25	16	12	22	19	30	15.4	50	15	65	6.5	17.5	22	22.225	13	0.1
PHS14	PHSL14	14	M14x2.0	19	13.5	25	22	34	16.9	57	17	74	8	20	25	25.4	16	0.16
PHS14-1	PHSL14-1	14	M14x1.5	19	13.5	25	22	34	16.9	57	17	74	8	20	25	25.4	16	0.16
PHS16	PHSL16	16	M16x2.0	21	15	28	22	40	19.4	64	20	84	8	22	27	28.575	15	0.22
PHS16-1	PHSL16-1	16	M16x1.5	21	15	28	22	40	19.4	64	20	84	8	22	27	28.575	15	0.22
PHS18	PHSL18	18	M18x1.5	23	16.5	32	27	44	21.9	71	22	93	10	25	31	31.75	15	0.32
PHS20	PHSL20	20	M20x1.5	25	18	33	30	50	24.4	77	25	102	10	27.5	34	34.925	14	0.42
PHS22	PHSL22	22	M22x1.5	28	20	37	32	54	25.8	84	27	111	12	30	38	38.1	15	0.54
PHS25	PHSL25	25	M24x2.0	31	22	42	36	60	29.6	94	30	124	12	33.5	42	42.86	15	0.73
PHS28	PHSL28	28	M27x2.0	35	24	48	41	66	32.3	103	33	136	14	37	46	47.63	15	0.98
PHS30	PHSL30	30	M30x2.0	37	25	51	41	70	34.8	110	35	145	15	40	50	50.8	17	1.1
PHS30-1	PHSL30-1	30	M27x2.0	37	25	51	41	70	34.8	110	35	145	15	40	50	50.8	17	1.1









C&H is a hgih quality bearings suppliers. We have skillful and training team. Somes of them have over 10 years experience.The quality control covers pre-sales aduit, process control, final product re-inspect and after-sales services. The strictly and complete process ability and quality control can guarantee to supply top-class product and services.The skillful engineer team can supply great support in technical and help customer to develop all kind of new products.





Widely used in electrical machinery, power tools, sports equipment, packaging machinery, food machinery, printing machinery, woodworking machinery, textile machinery, light machinery, mining machinery, engraving machines, automation equipment, CNC equipment, and so on.
