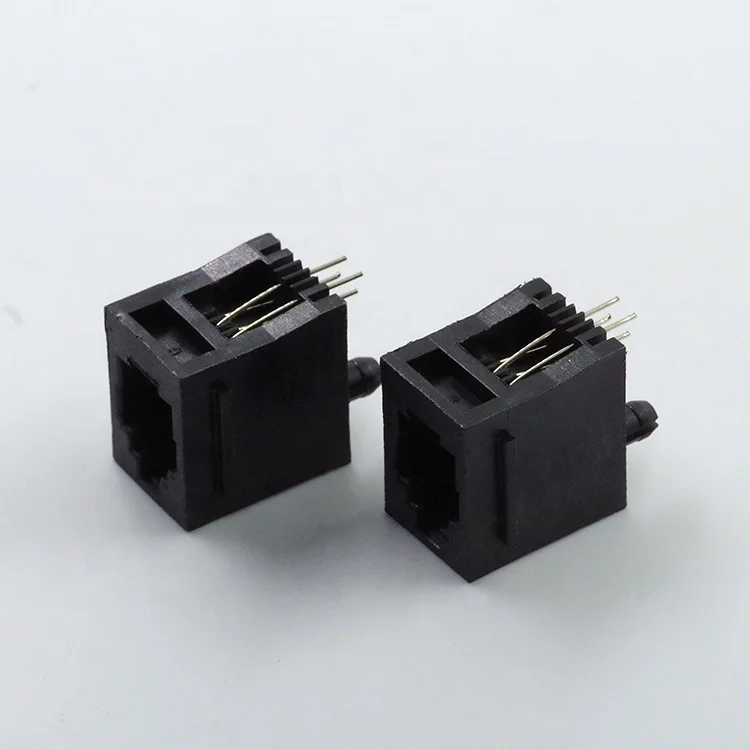

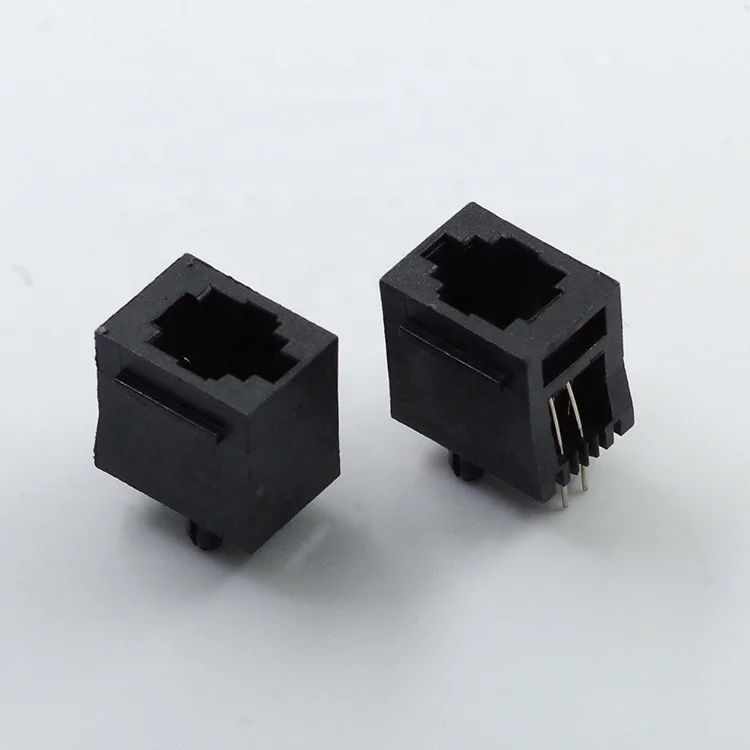

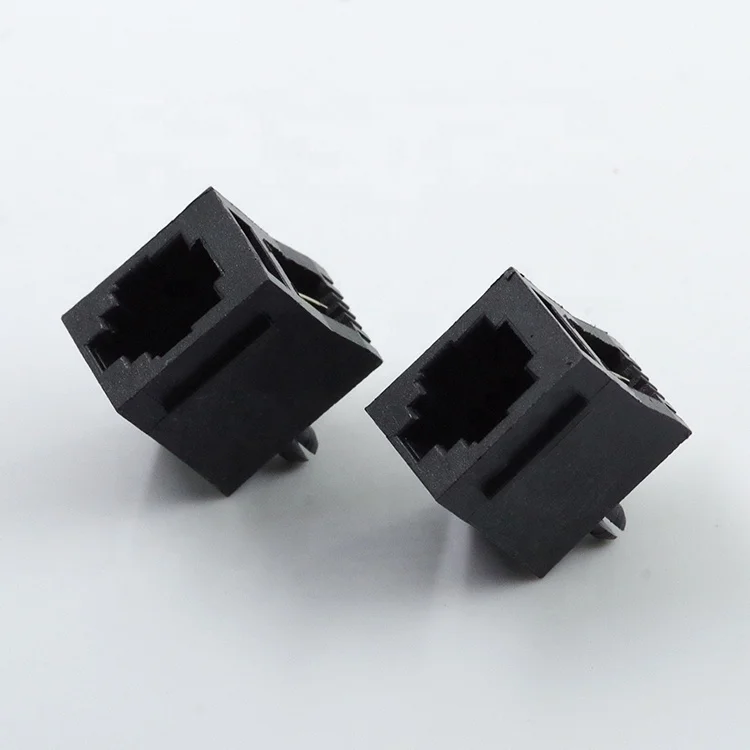

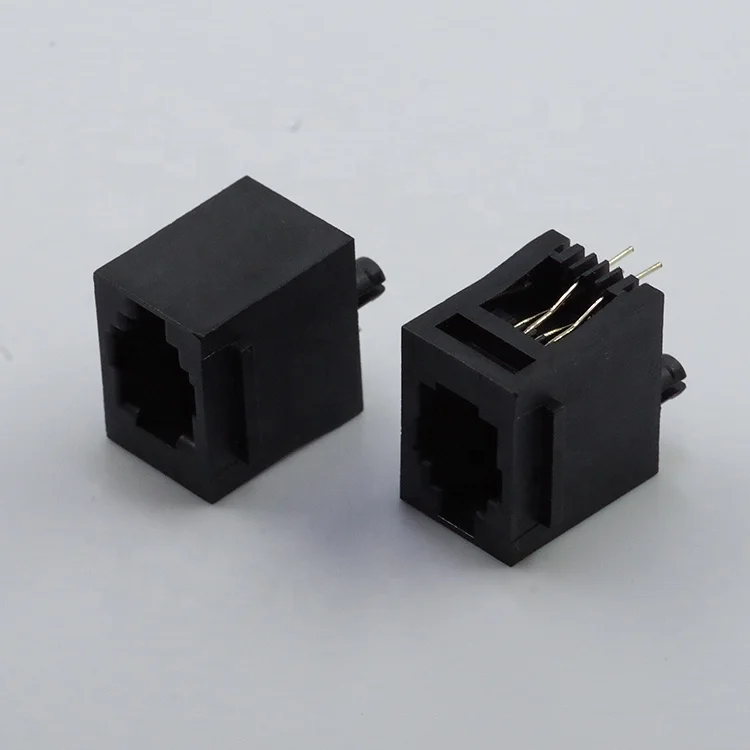

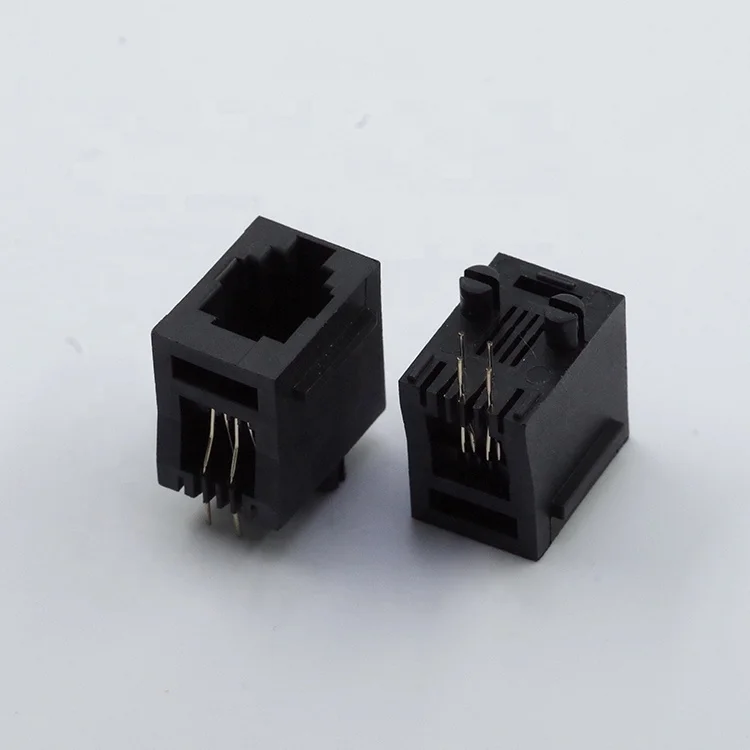

Модульный разъем Jack 4p4c 6p6c RJ11 RJ12 RJ14

Description:
RJ45 RJ11  PCB Jack
Number of position: 6

Number of contacts: 2,4,6

Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance:  30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:
Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum

Materials:

1.Housing: PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: 0.3mm thickness phosphor bronze alloy selective  gold plating over Nickel
3. Shield: 0.2-0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u

1. We can shipping all over the world by DHL, UPS, FedEx, TNT , EMS,ARAMEX,SF express,Epacket,China post and Hongkong post. Pls contact us directly and we will use the way you prefer.

2. We will ship the items within 7 working days after the payment is reached. It will take around 3-15 days to reach your hands .

3. Any import fees or charges are the buyer's responsibility.

1. We provide 30-90 days warranty time.

2. About the payment terms,we can accept Bank Transfer, Paypal, Western Union, MoneyGram, Alipay ,Cash and Ecrow terms.

3. Prices quoted are correct at time of this quotation but may be subject to change after one week due to currency fluctuations and change to quantity ordered.

4. If some of the items you received aren't of perfect quality,we would responsibly arrange your refund or replacement. But the items must remain their orginal condition.

5. Stock availability subject to previous sales. All parts quoted are new and unused and are in original factory packaging unless specified.

6. Before placing purchase order re-validate quotation.

7. We depend on our customer satisfaction to succeed. Therefore, your honest feedback is important to us.

Business Type:        Manufacturer, Trading Company

Main Products:        phone jack,dc power jack,RJ45 series,USB socket,fiber optic connector ,other network               connectors

Location:                Zhejiang, China (Mainland)

Export Mode:          Have Own Export License

Q:  Is JISJACK a manufacturer or trading company?

 A:  JISJACK is a manufacturer of RJ45 RJ11 Network Connector, DC socket, headphone jack,Plastic Enclosure etc,and we also have a strong trading team to help our clients find high cost-effective electronic components.

Q:  What's the normal lead time?

A:   For different items,we have different lead time,normally it is 3-15 days.

Q:  Can we place small MOQ order for your products?

A:  Yes,we do not only supply MOQ order, but also small samples order for trial test or small projects.

Q:  What's your payment terms?

 A:  T/T,sight L/C,Western Union,Paypal.

Q:  I am new buyer ,how can i buy from you?

A:  You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms ect. ,then we ship to you.

Welcome to china, Welcome  to JISJACK!
