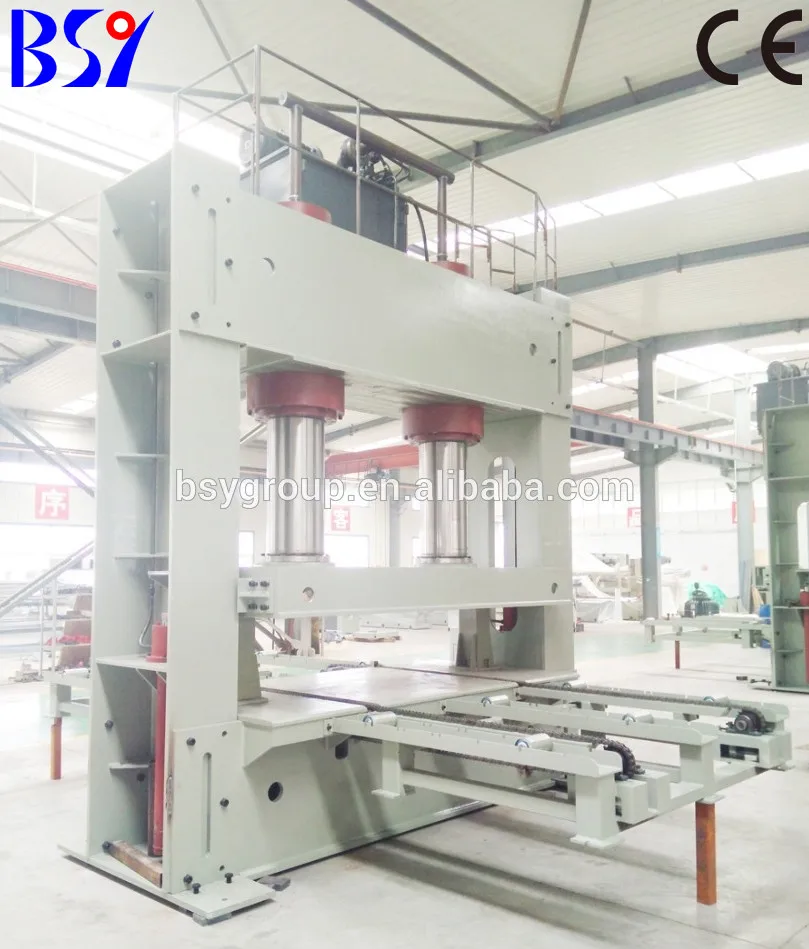

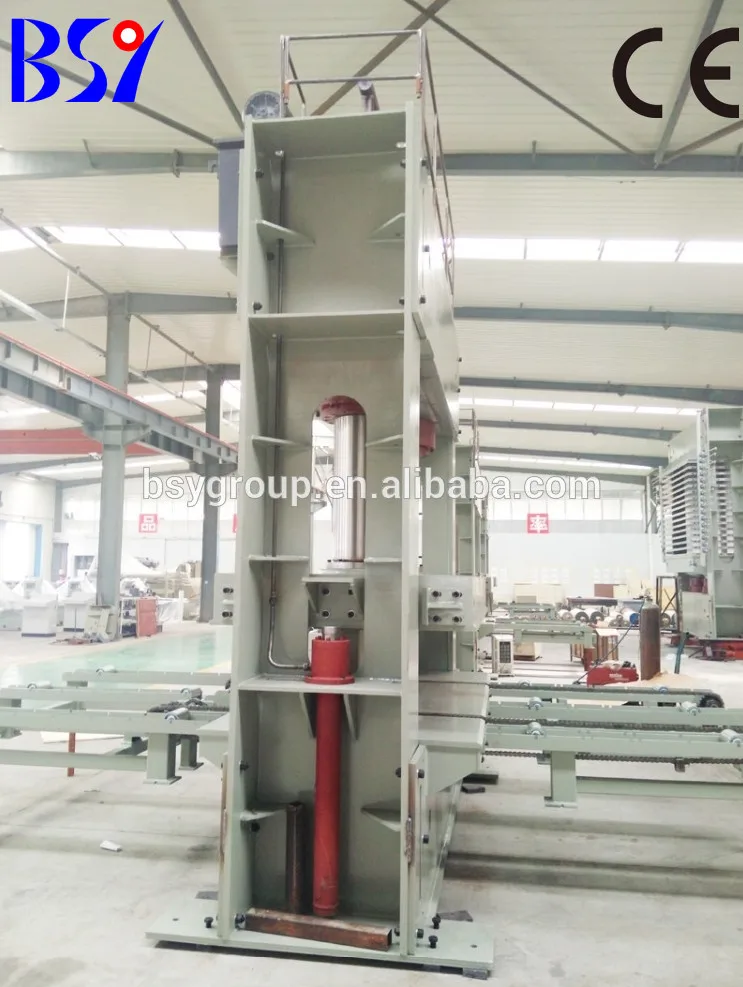

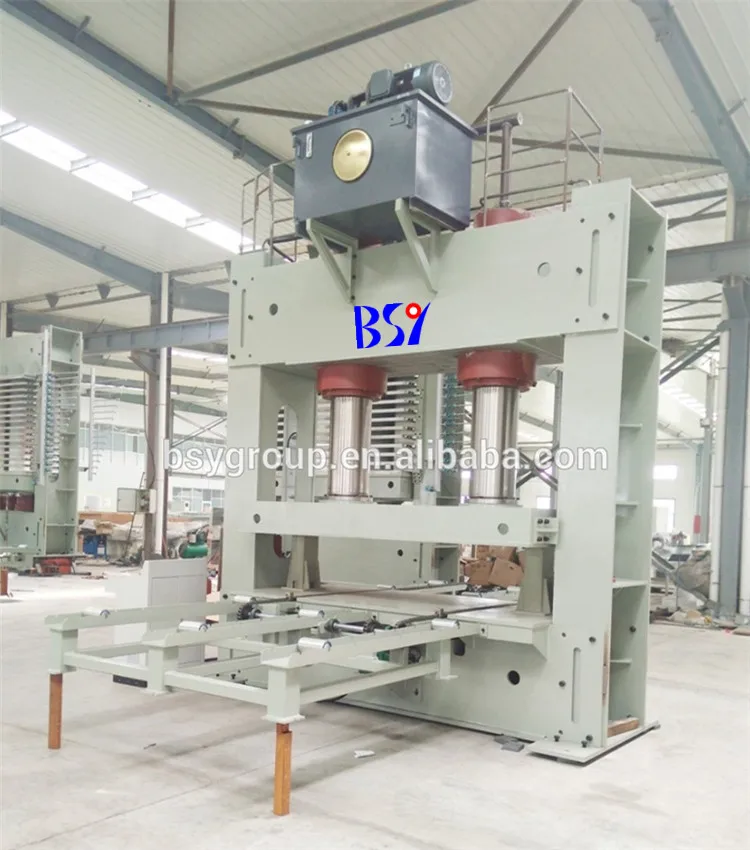

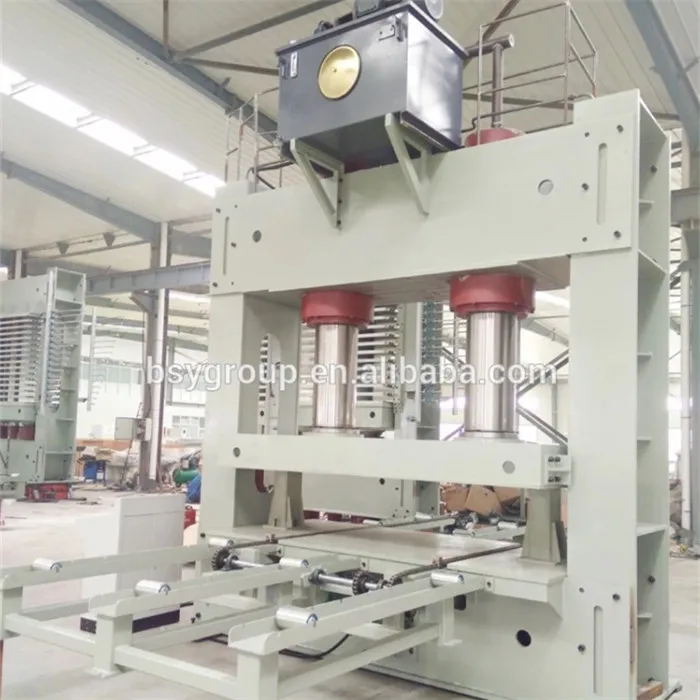

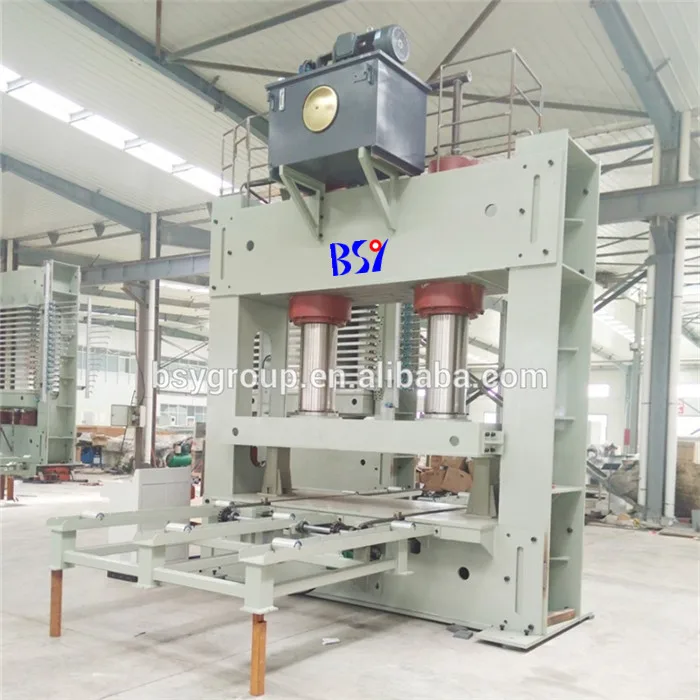

400 Ton wood veneer cold press machine for plywood production/Veneer Pre-press machine





Use:It is also named cold press,it is necessary equipment for processing plywood,suitable for 3’x7’,4’x8’ plywood.





Technical data:



Model	BY814x8/5B	BY814x8/4C
Nominal pressure	5000KN	4000KN
Surface pressure	1.3Mpa	1Mpa
Platen size	2700x1370mm	2700x1370mm
Max. Working stroke	1000mm	1000mm
Net Open	300-1300mm	300-1300mm
Pressure cylinder diameter and number	∅360/2	∅320/2
Lift cylinder diameter number	∅80/2	∅80/2
Feeding speed	6.78m/min	6.78m/min
Motor power	16.1kw	16.1kw
Overall sizes	3500x2400x4765mm	3500x2400x4650mm
Weight	18000kg	18000kg



Features:



1.Our machine's most of electrical components selection of Schneider or Chinese famous brand, main parts have option has CE authentication products.

2.Our machine's Steel plate are based on the pressure's requires to custom, to achieve our commitment pressure, quality assurance.

3.The upper and lower pliers by the gantry milling finishing, to ensure absolute formation.

4.The use of hydraulic system work, lifting speed, pressure uniformity, high efficiency.

5.With overpressure automatic control circuit and pressure off the oil protection, automatic lift, automatic oil off.

6.Fast and efficient pressing, emergency safety braking, trip limited device.

7.Automatic compression and unloading pressure function.

8.workbench height convenient worker operation.



Advantage:



1.The hydraulic cold press work noise is small, fast lifting speed, strong pressure stability, low maintenance rate.

2.the whole structure is compact, beautiful atmosphere, stable performance, durable.

3.Because foreign voltage different our country's voltage, most domestic manufacturers only change the motor, do not care about other electrical components, when clients using cold presser machine in his factory , the electrical components easy to have fever phenomenon , at last to burn down. Our cold presser will not happen.

4.Working quality to be good, pressing fast and efficient.

5.Easy to operate, reasonable design, stable performance.



About us:

SHANDONG BAISHENGYUAN GROUP CO.,LTD

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
