240x240 1 54 TFT LCD модуль RGB экран квадратный ST7789V2
- Категория: Дисплеи, вывески и Оптоэлектроника >>>
- Поставщик: Dongguan,Shineworld,Innovations,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.32 $* | 4.20 $* |
| Jul-16-2025 | 3.95 $* | 3.45 $* |
| Jun-16-2025 | 4.4 $* | 4.14 $* |
| May-16-2025 | 4.9 $* | 4.6 $* |
| Apr-16-2025 | 3.1 $* | 3.99 $* |
| Mar-16-2025 | 4.84 $* | 4.32 $* |
| Feb-16-2025 | 4.66 $* | 4.79 $* |
| Jan-16-2025 | 4.71 $* | 4.20 $* |
Характеристики
Product Description

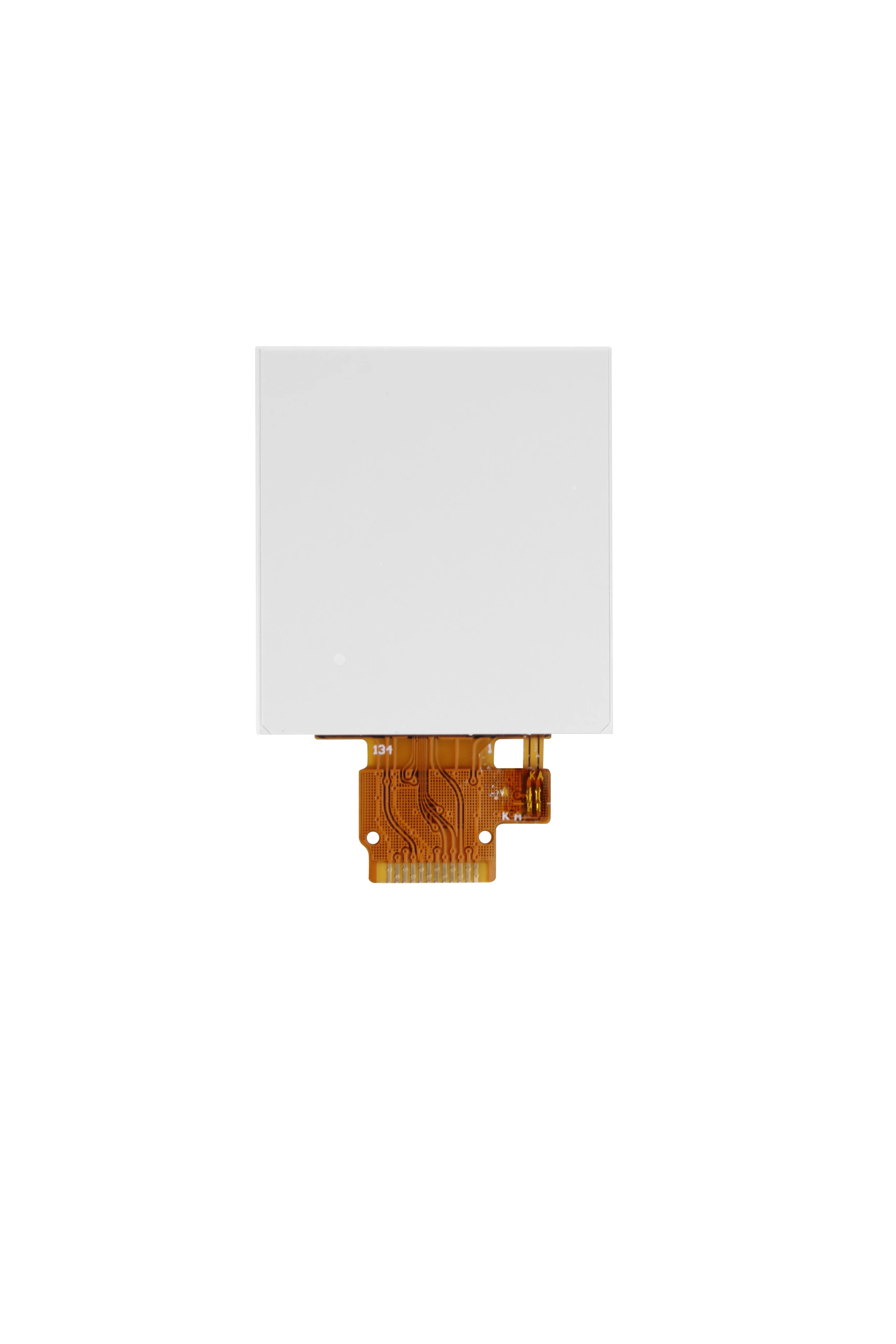

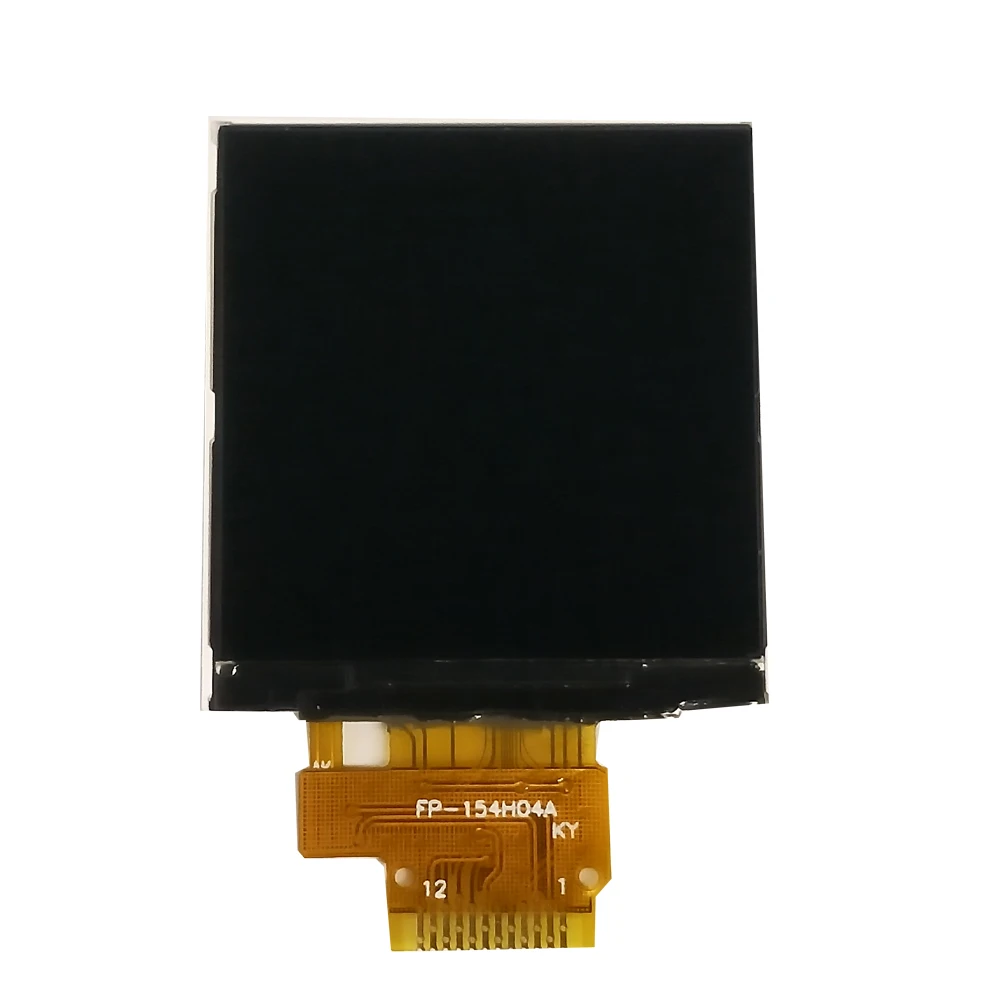

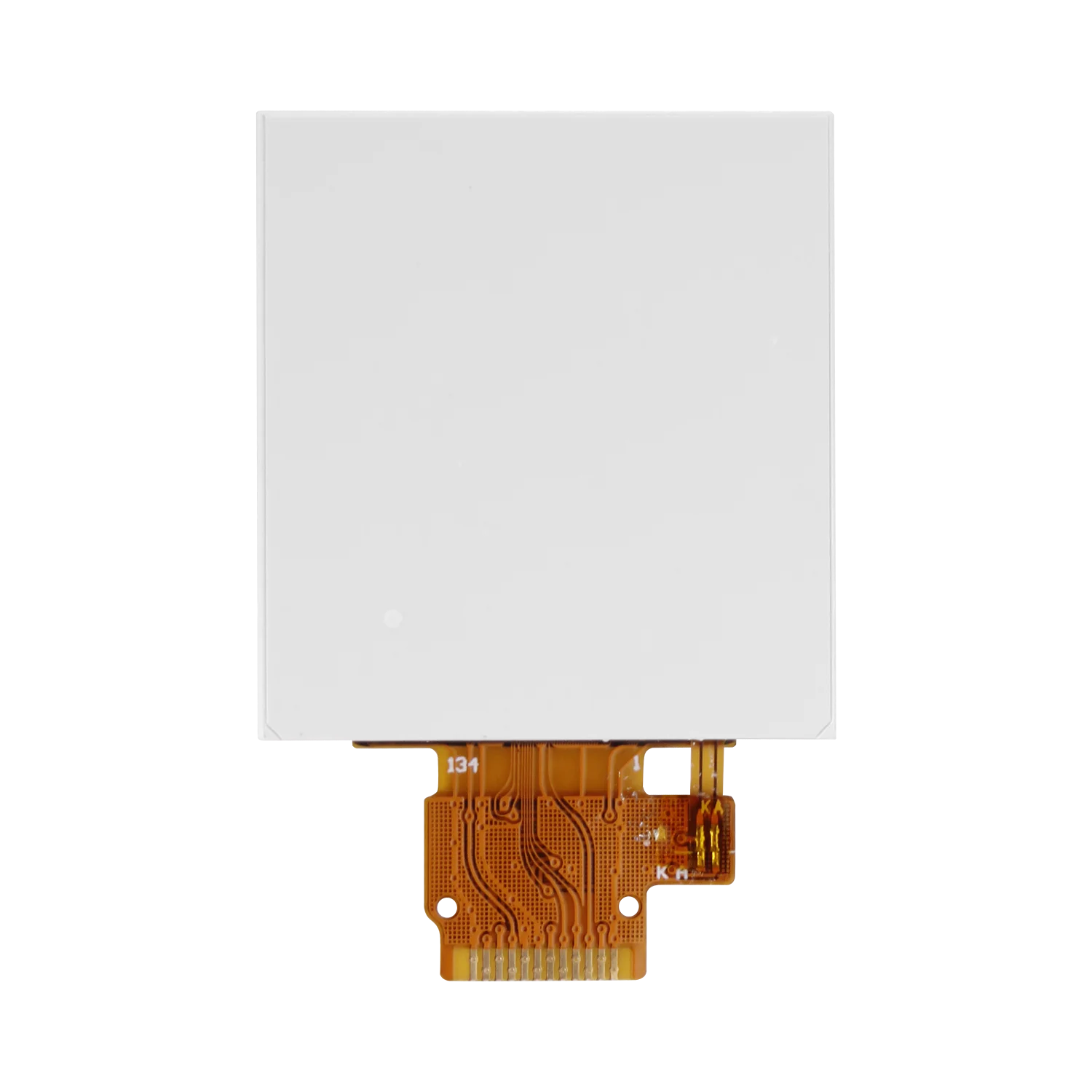

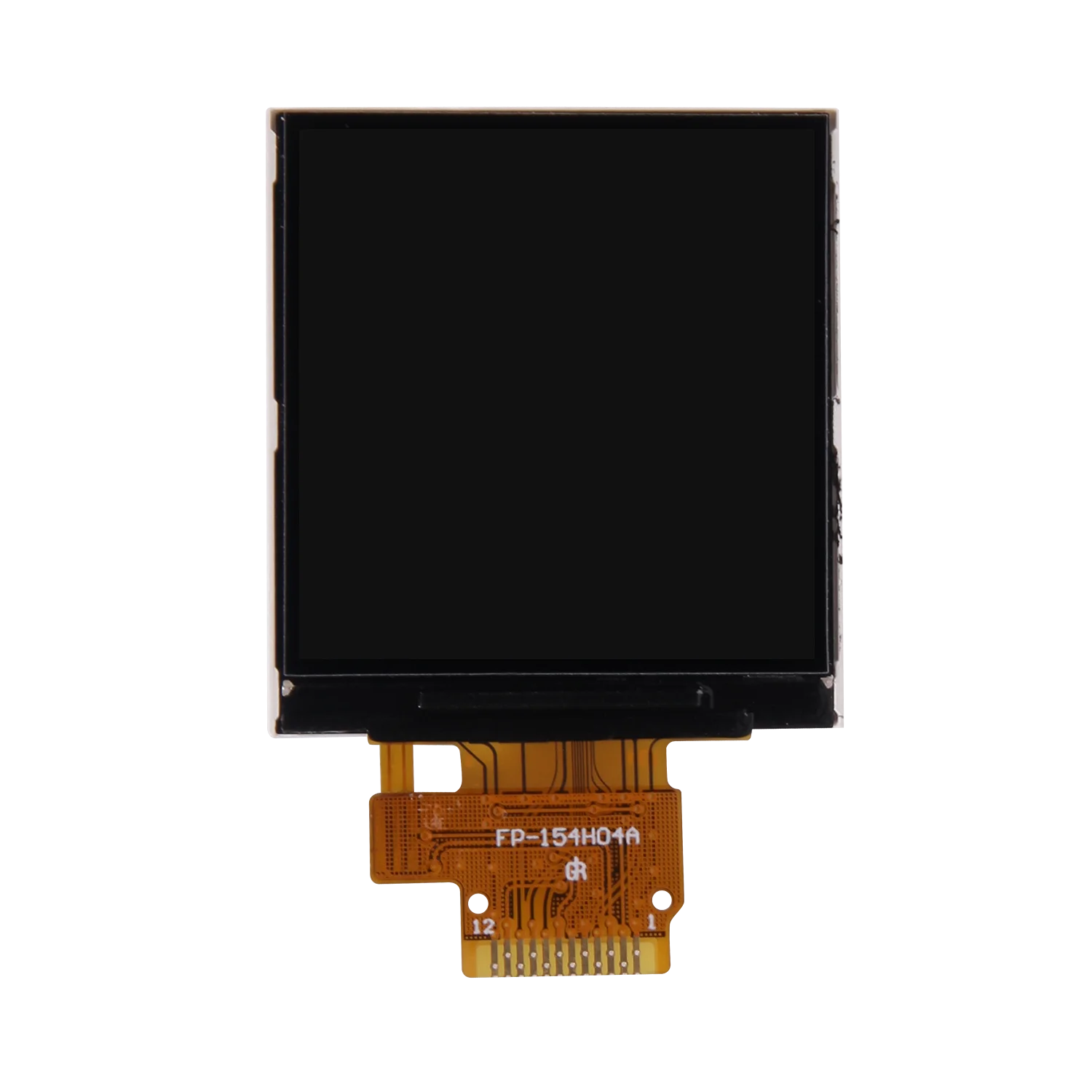

240x240 1.54 TFT LCD Module\t TFT Capacitive Touch Screen Square TFT LCD Display | ||
Diagonal Screen Size | 1.54 inch | |
Number of Pixels | 240(RGB)x240 | |
Display Type | IPS | |

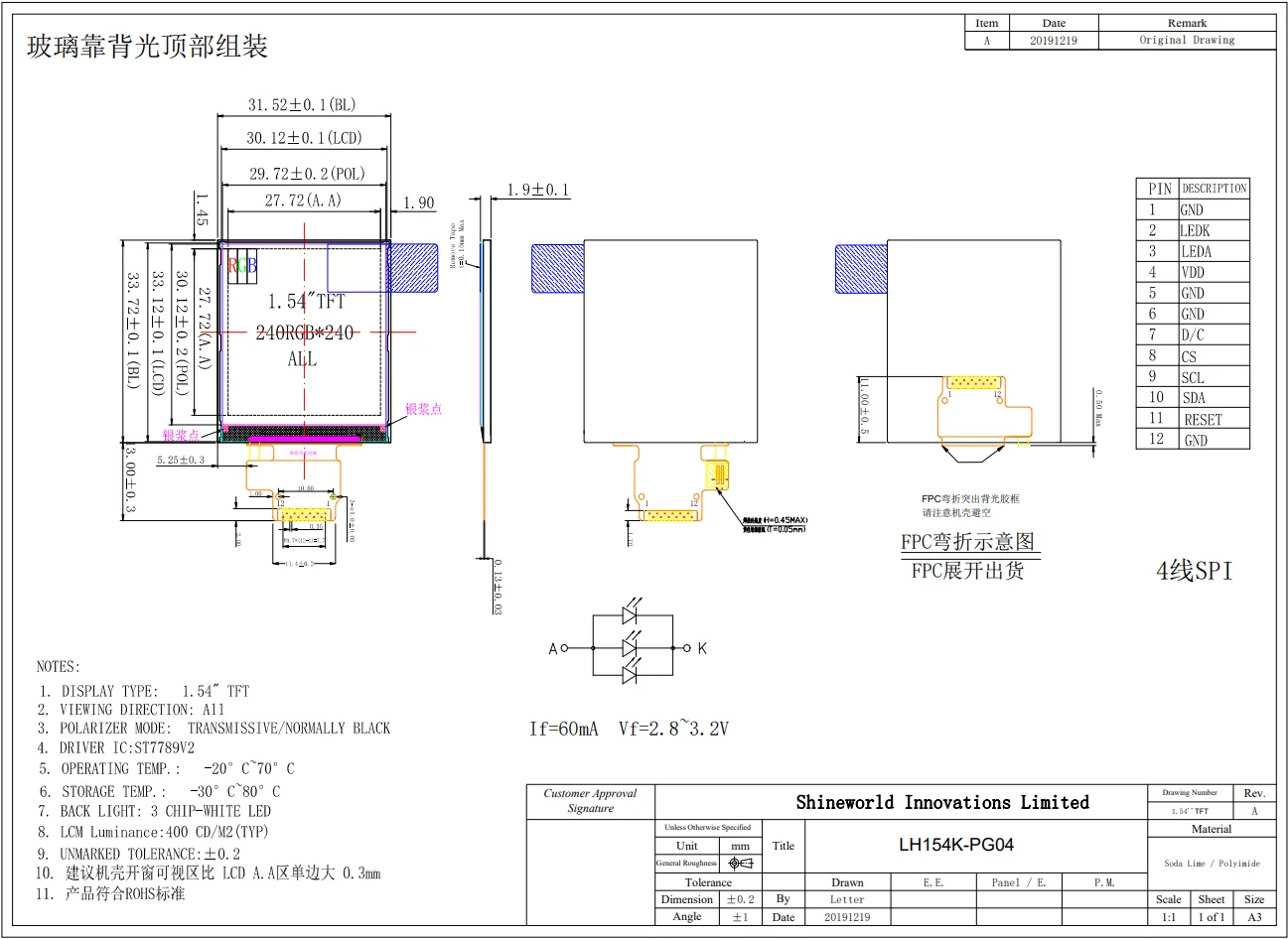

Panel Size | 31.52x33.72x1.9mm | |
Active Area | 27.72x27.72mm | |
Pins | 12 | |
Drive IC | ST7789VW | |
Interface | 4-wire SPI | |
FPC Length | 13mm | |
Assembly | Soldering | |
Temperature Range | ||||
Item | Min. | Max. | ||
Operating Temperature (°C) | -20 | 70 | ||
Storage Temperature (°C) | -30 | 80 | ||
\t\t\t\t\t\t\t\t\tMore Products \t\t\t\t\t\t\t
Screen Size | Item No. | Number of Pixels | Pins | Interface | Drive IC |
0.96" TFT Display | 80x160 | 13-pin | 4 wire SPI | ST7735S | |
1.14" TFT Display | 135x240 | 13-pin | 4 wire SPI | ST7789V | |
1.3" TFT Display | 240x240 | 12-pin | 4 wire SPI | ST7789VW | |
1.44" TFT Display | 128x128 | 39-pin | 4 wire SPI | ST7735S | |
1.54" TFT Display | 240X240 | 12-pin | 4 wire SPI | ST7789VW | |
1.77" TFT Display | 128X160 | 8 Bit-Parallel | ST7735S | ||
2.2" TFT Display | 176 x 220 | 24-pin | 4 wire SPI | GC9203 | |
4" TFT Display | 480x480 | 40-pin | RGB/SPI | ST7701S | |
4.3" TFT Display | 800X480 | 45-pin | RGB | HX8264D03 | |
7" TFT Display | 1024X600 | 30-pin | MIPI | FITI | |
9" TFT Display | 800X480 | 50-pin | RGB | FITI | |
10.1" TFT Display | 1024X600 | 60-pin | RGB | FITI |
