Характеристики

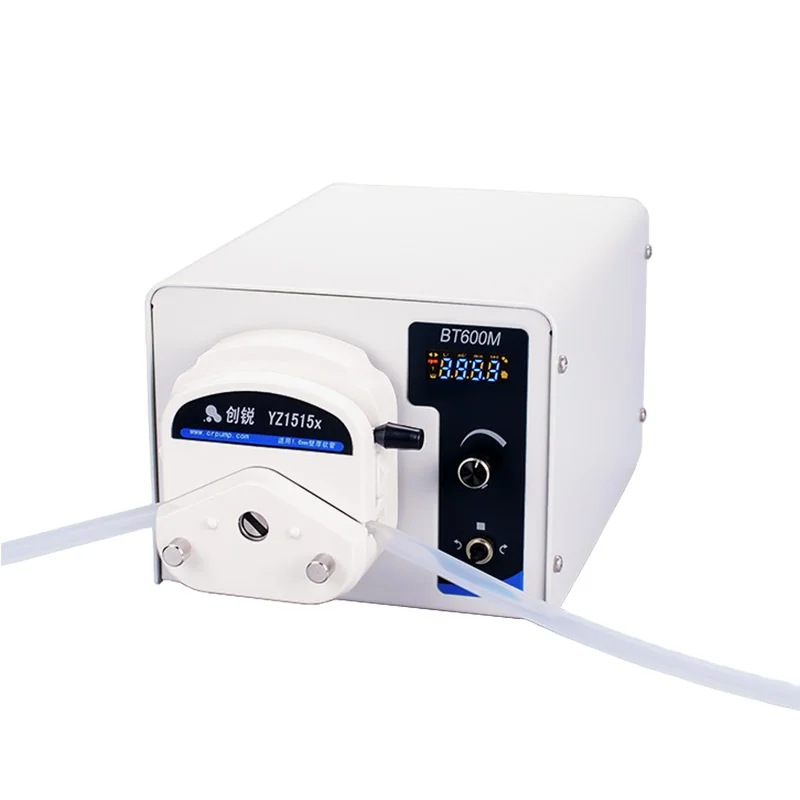

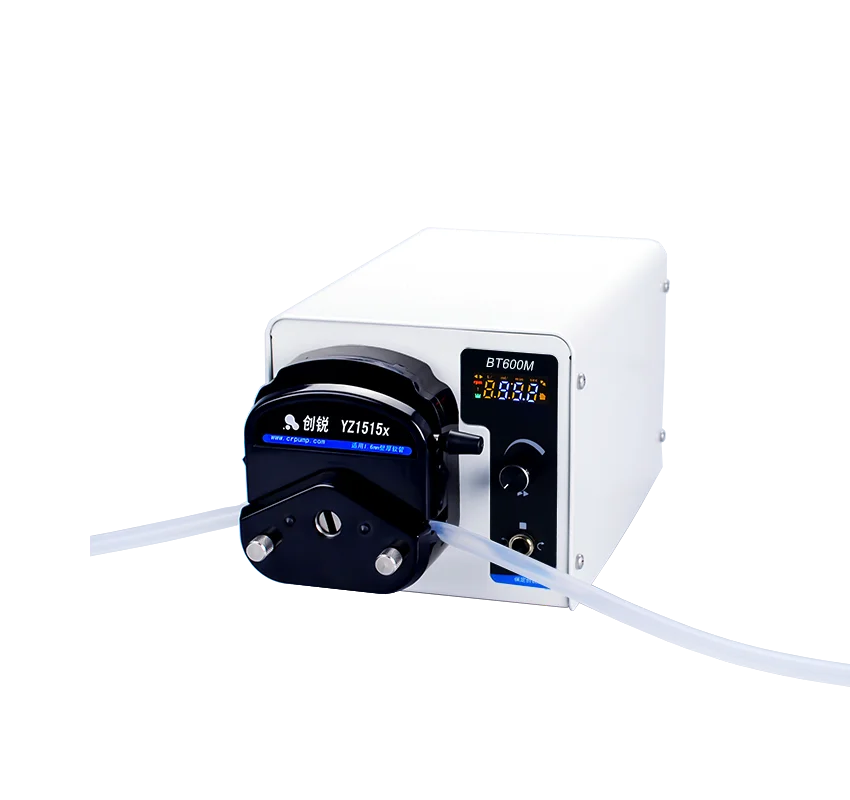

Basic Transfer Peristaltic Pump
Peristaltic Pump BT600M has excellent repeatability as Laboratory Peristaltic Pumps, as a LAB Peristaltic Pump, it can match various pump heads, to realize different pump head and drive combinations. The transfer peristaltic pump will not touch the liquid, ensuring the pollution-free operation, and the low shear force will not damage the carrier cells. it is an ideal tool for aggressive fluids. The constant flow peristaltic pump has a good self-priming ability, can be idling, can prevent backflow, has no valves and seals, and is simple to maintain.
Model | BT600M/YZ1515x |
Channel | 1(default) or 2 (optional) |
Speed range | 0.1-600 rpm |
Max Flow | 2280ml/min |
Remote Control | Support Foot Pedal |
Drive model ：BT600M | Pump Head Model: YZ1515x（Default black） | |
Speed range: 0.1~600rpm（reversible） | speed resolution : 0.1rpm | |
Flow range : 0.007-2280 ml/min | Suck back speed : 10~300rpm | |
Display Mode: 4-LED display | Control Method : Knob+Switch | |
Power supply: AC220V/AC110V Optional | Work Temperature: 0~40℃ | |
Function : Transfer Only | IP grade : IP31 | |
External control Support RS485/MODBUS communication protocol/ analog quantity control (0-5V / 0-10V / 4-20mA ...), Start/stop Optional. | ||
Tube Model | ID (mm) | Wall Thickness (mm) | Max Flow (ml/min) | Speed（rpm） |
13# | 0.8 | 1.6 | 42 | 600 |
14# | 1.6 | 1.6 | 162 | 600 |
19# | 2.4 | 1.6 | 306 | 600 |
16# | 3.1 | 1.6 | 492 | 600 |
25# | 4.8 | 1.6 | 1020 | 600 |
17# | 6.4 | 1.6 | 1740 | 600 |
18# | 7.9 | 1.6 | 2280 | 600 |
Kindly reminder:
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
The above data is for reference only. | ||||||||||
Model：BT600M/YZ1515X
Channlel：1
Why Choose Us
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
