Hot selling 3inch aluminum punching machine Unwinding rewinding spindle Inflatable roller supplier price
Product Description
1. Features of air shaft
1)Inflatable operation time is short
2)Paper tube placed simple
3)Heavy loading
4)High economic efficiency
2.Specification of air shaft
Type | Material | Spec. | Unaerated diameter (ømm) | Inflated diameter (ømm) | Applicable volume tube inner diameter (ømm) |
Key strip/Lug/Leaf Type |
No.45 steel/ Aluminum
| 1″ | 24.8 | 24.8-28 | 25-26 |
1.5″ | 37 | 40-42 | 38-38.5 | ||
2″ | 49 | 52-54 | 50-51 | ||
3″ | 74-75 | 80-82 | 75.5-78 | ||
4″ | 99-100 | 104-106 | 101-102 | ||
5″ | 125 | 130-133 | 126-128 | ||
6″ | 150 | 154-156 | 151-153 | ||
8″ | 200 | 206-264 | 202-204 | ||
10″ | 250 | 260-264 | 252-256 | ||
12″ | 300 | 308-310 | 302-305 |
Application
Air shaft application in all industries
Industry | Name |
Air shaft for printing industry | Flexo printing machine Offset printing machine Gravure printing machine |
Air shaft for cutting industry | Cutting machine |
Air shaft for slitting industry | Slitting machine |
Air shaft for coating industry | Coating machine |
Air shaft for laminating industry | Laminating machine Film making machine |
Air shaft for bag making industry | Bag making machine Plastic making machine |
Advantage
1.The connection of spindle head and steel tube is interference fit
We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube. While other suppliers knock the spind head into the steel tube with a big hammer,no quality and accuracy.
2. Adopting hi-precision cold-drawn steel tube as the shaft body
We adopt hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at same height and good material can help keep a better dynamic balance .
3. Adopting whole long key bar and pagoda springs for key type air shafts
For the key strip,we adopt a whole piece of aluminum plate to make it.And it can form a good protective ring around the air bladder. We adopt the pagoda springs to support the air bladder which can bear 300000 times.
4.The connection between our air bladder and shaft head have good sealing performance and very stable.
We use special equipment to connect the air bladder and the shaft head and then lock the outside by iron ring,,which will realize tight seal.
While,many other suppliers fasten both ends by iron wire,this operation is easy to leak ,has badly sealing performance.
5. Quality control
We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each shaft is qualified.
6.Packaging
Our air shafts are usually packaged by standard wooden box,plywood wooden box and carton,also can be packaged as customer's requirement.

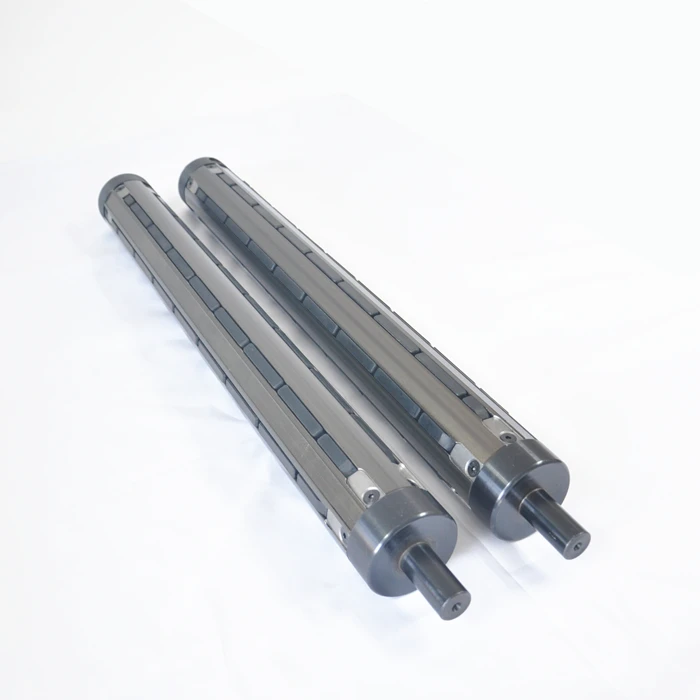

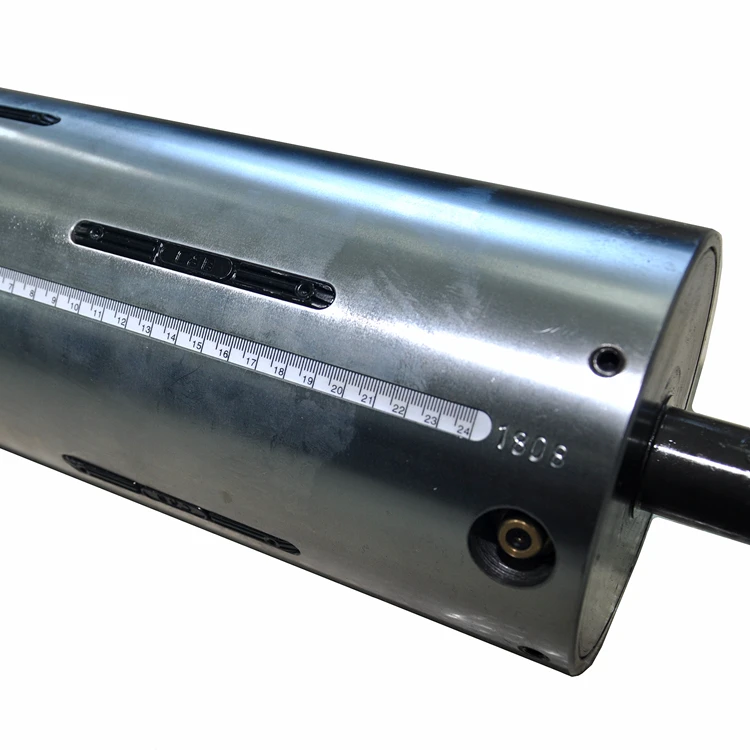

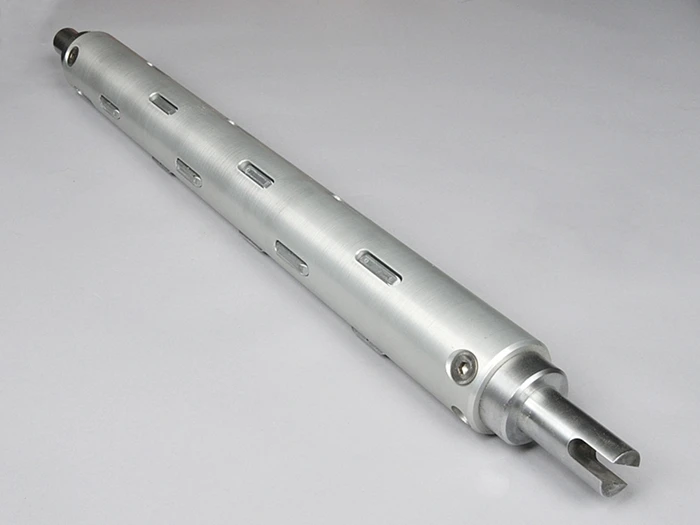

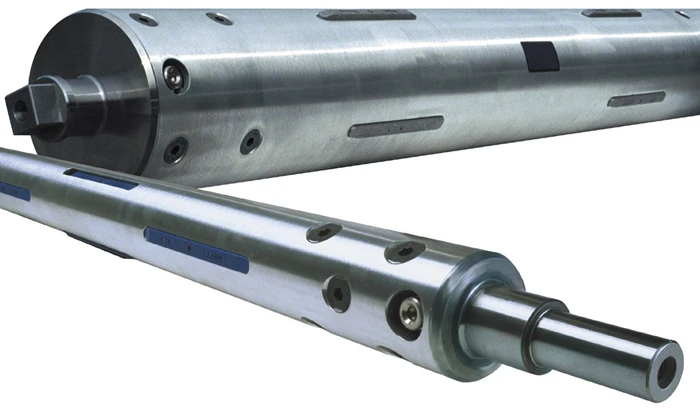

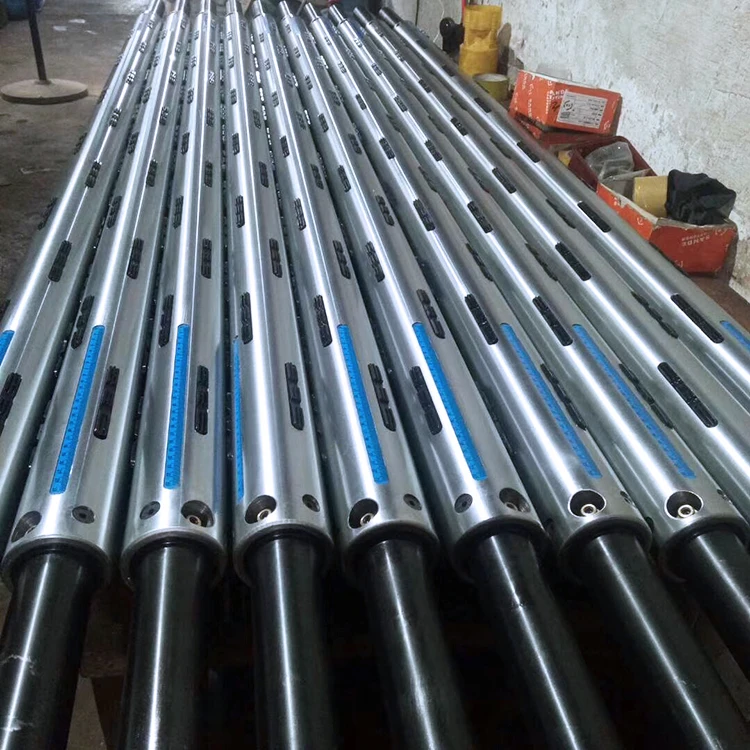

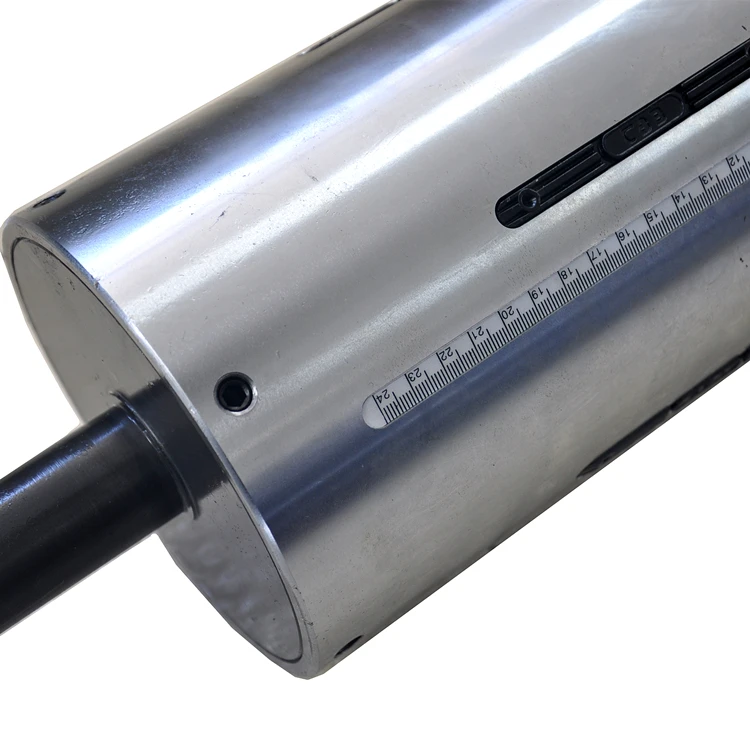

Product Pictures
Company Information
FAQ
1. How should I place the order?
For air shaft , please send us your drawing, or let us know your request.
2. What is your MOQ?
1 Piece.
3. What material of your shaft is made of?
45# steel ,aluminum.
4. Can you produce relative product,like adapter,hand shank?
Yes,Sure.
