5-тонный гидравлический самосвал с

Категория: Грузовики >>>
Поставщик: Jining,Zhuoshun,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.1 $*	0.54 $*
Aug-16-2025	0.75 $*	0.77 $*
Jul-16-2025	0.92 $*	0.29 $*
Jun-16-2025	0.24 $*	0.76 $*
May-16-2025	0.50 $*	0.88 $*
Apr-16-2025	0.50 $*	0.26 $*
Mar-16-2025	0.90 $*	0.87 $*
Feb-16-2025	0.7 $*	0.88 $*
Jan-16-2025	0.68 $*	0.0 $*

Характеристики

1 (1).png

Product Description:

This product is made in china ,widely used in construction work and bulk materials transport.

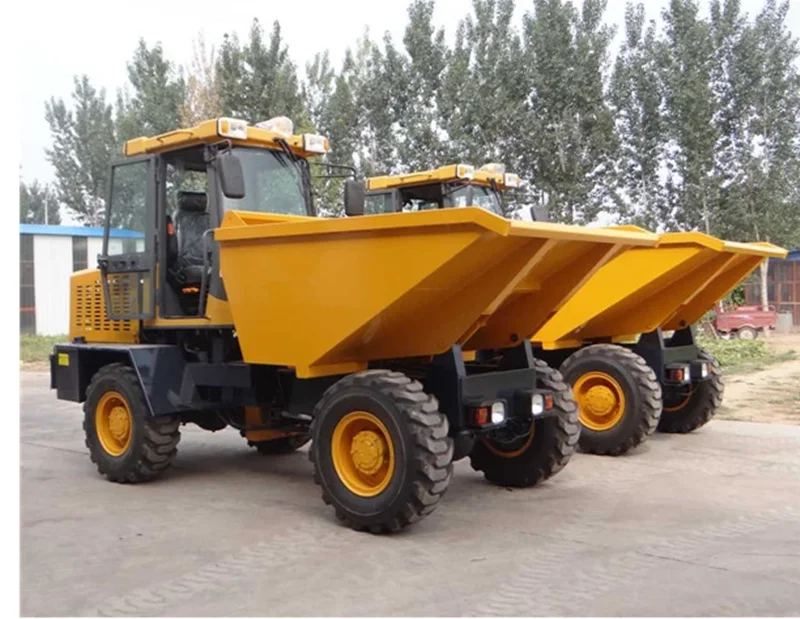

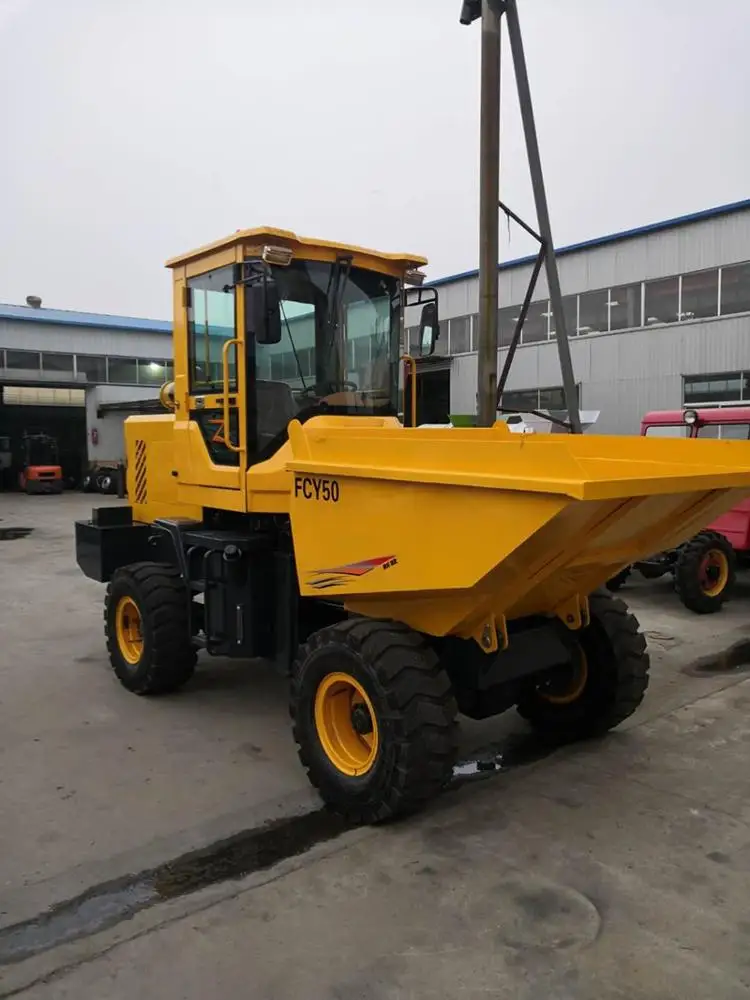

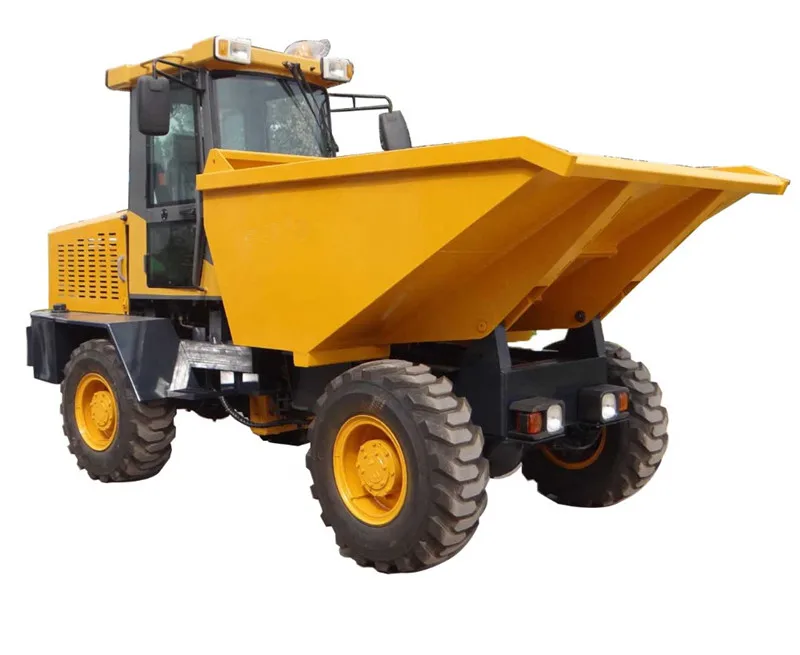

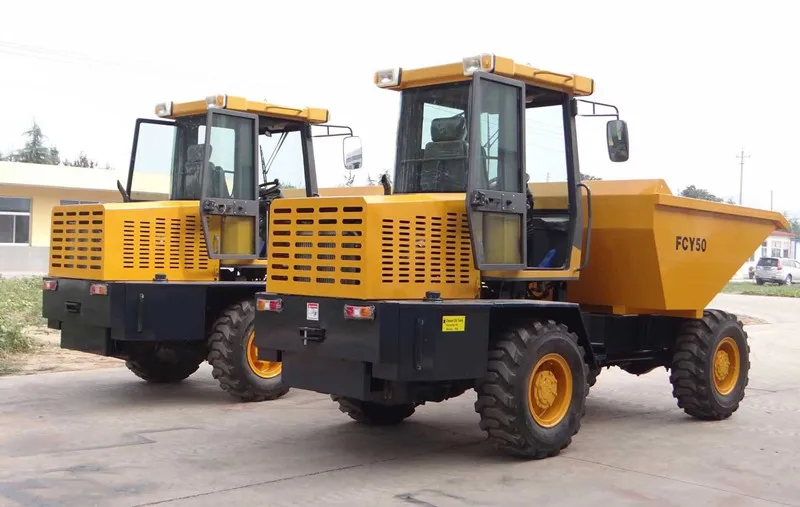

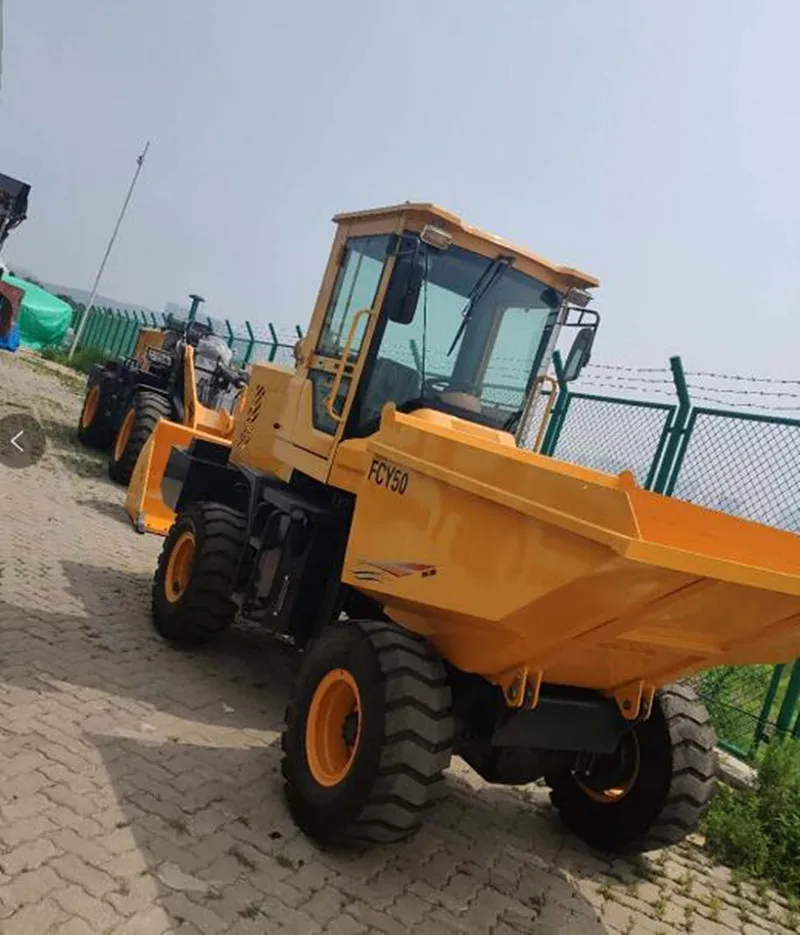

1.Medium-sized engineering dumper 5 ton,4*4drive, Full Hydraulic steering,can unload materials smoothly by strong hydraulic pressure unloading system. The product is stable performance, simple operation,low fuel consumption,widely used in construction engineering municipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,conduction sites,etc.especially suitable for narrow site loading and short distance running sand,gravel,coal,slag,loam.garbage and etc.

2.Easy operation,small turning radius can be used in a narrow environment.With full seal cabin optional

3.With self loading bucket can realize the multifunction tools.

4.DEUTZ engine as optional engine which makes he performance more reliable.

5.Off road wider types as option ,can work in muddy and bumpy roads.

MAIN TECHNICAL SPECIFICATIONS
MODEL	FCY50
BUCKET CAPCITY	2.0M3
RATED LOAD	5000KG
OPREATING WEIGHT	2850KG
MAX TRACTION	45KN
GRADBILITY	30°
MINI TURNING RADICUS	4000MM
GROUND CLEARANCE	248MM
NOISE LEVEL	≤102db(A)
LOADING DISCHARGE ANGLE	48.40°
TIME OF DISCHARGE	8S
TREAD	1580MM
WHEEL BASE	2000MM
OVERALL DIMENSION	L4250W1950H2300
ENGINE
MODEL	WEICHAI HUAFENG4102
TYPE	UP-RIGHT,WATERCOOLED,4 STOKES,4CYLINDERIN-LINE,DIRECT FUEL INJECTION
FUEL CONSUMPTION	248g.kw/h
SPEED	2400R/MIN
BORE*STROKE PISTON	100*102
WEIGHT	350KG
RATED POWER	47KW
MAX TORQUE	270N.M
DRIVE SYSTEM
GeraBOX	GEAR TRANSMISSION BOX
CLUTCH	DRY FRICTION CLUTCH,SINGLE DISC,
DRIVE SHAFT	TUBULAR-TYPE,OPEN-TYPE,RIGIDLE-BEARING UNIVERSAL JIONT
NOS OF SHIFTS	FOUR FRONT/BACKWARD SPEEDS
MAX SPEED	25KM/H
REAR AND FRONT ALEX	FOUR-WHEEL DRIVE,Front axle fixed,Rear axle moved(+/-11°)
STEERING TYPE	FULL-HYDRUALIC STEERING SYSTEM,CONTROL BY WHEEL,TWO CYLINDERS DOUBLE ACTING
STEERING ANGLES	35°
HYDRAULIC SYSTEM
WORKING PRESS	160(kgf/c m2),16MPA
HYDRAULIC PUMP	GEAR PUMP
DISTANCE AFTER BRAKE	≤2.5M with load and speed 10km/h
OPREATING BRAKE	Hydraulic shoe system,four wheel mounted
Handbrake	mechanically-pirated central sport-type disc
BRAKE TYPE	OIL BREAKE
TYRE SIZE	20.5/70-16
FRAME	Channel steel welding type,two-section articulated connection
wheel rim	9.75H
FUEL TANK	50L
HYDRAULIC TANK	30L
BATTERY	24V lead storage battery
