RIKA RK110-02 CE Plastic Wind Direction Measurement Device for Meteorological Monitoring Station
Product Description

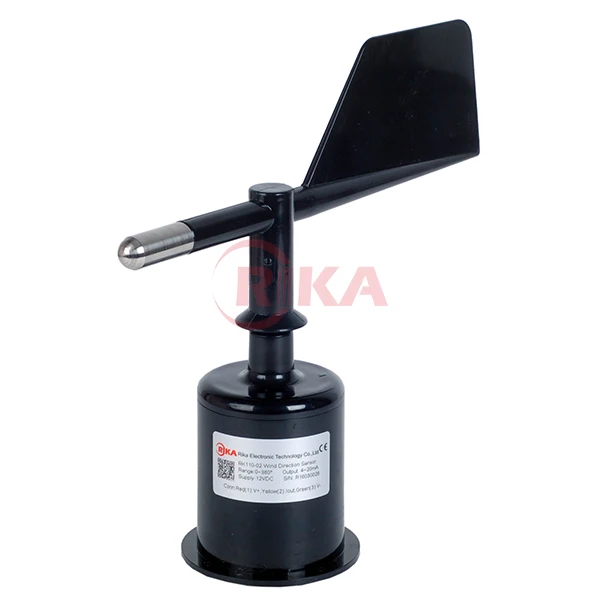

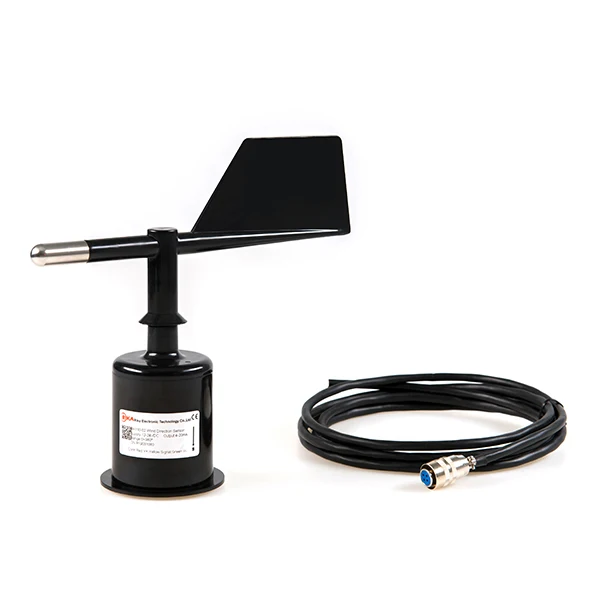

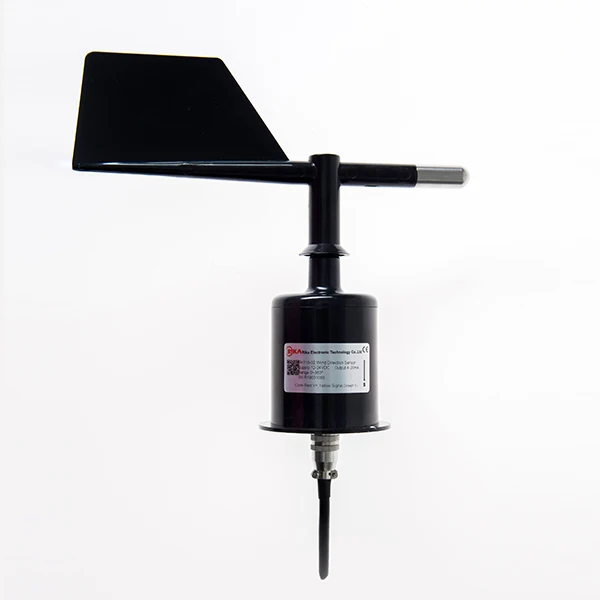

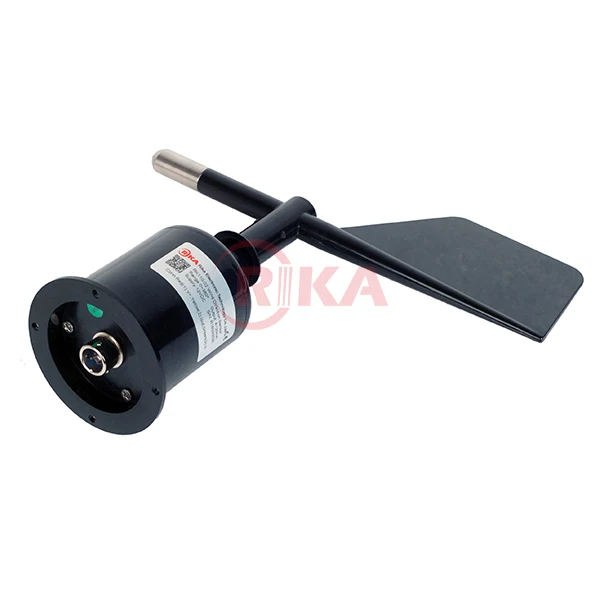

The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.
FEATURES
- Low starting threshold
- Great dynamic characteristics
- Overall carbon fiber material
- Strong corrosion resistant ability
- Light structure
- Various output signals optional
- Easy Installation
APPLICATIONS
- Weather monitoring stations
- Ports
- Solar and wind power generation
- Mobile weather monitoring vehicles
- Remote airports & helipads
TECHNICAL SPECIFICATION
Output | 4-20mA | 0-5V | RS485 |
Supply Voltage | 5V,12V-24V | 5V,12V-24V | 5V,12V-24V |
Load Capacity | <500Ω(typ 250Ω) | >1kΩ |
|
Range | 0~360° | ||
Accuracy | ±3° | ||
Resolution | 1° | ||
Starting Threshold | <0.5m/s | ||
Limit wind speed | 50m/s | ||
Ingress Protection | IP65 | ||
Operating Temperature | -40℃~+50℃ | ||
Cable Grade | Nominal voltage: 300V, Temperature grade: 80℃ | ||
Weight(unpacked) | 195g | ||
Dimension | Turning Radius: 147mm, Height: 199mm | ||
Main material | Carbon fiber | ||
Storage Condition | 10℃-50℃@20%-90%RH | ||

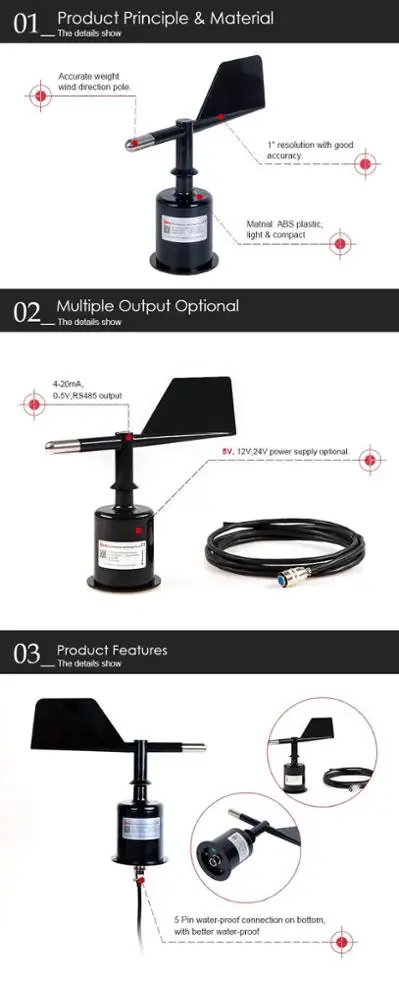

Details Show
Testimonial
Relative Products
 |  |  |

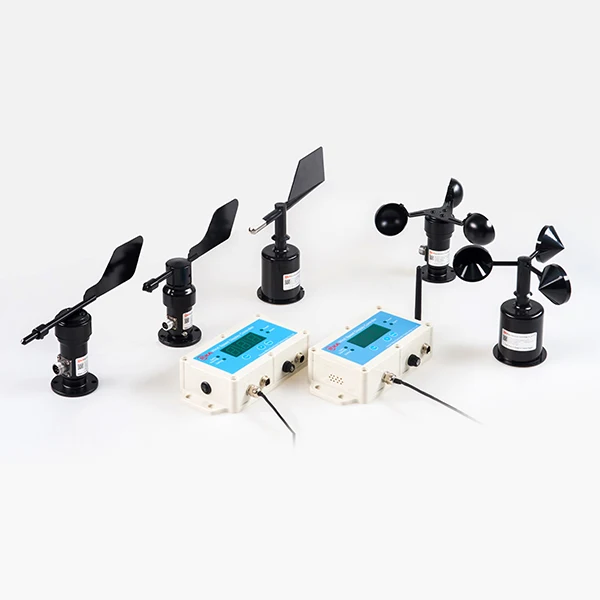

| Plastic Wind Speed Sensor | Pyranometer | Air Temp RH & Pressure Sensor |
 |  |  |
| Solar Panel Temp Sensor | Automatic Weather Station | Metal Wind Direction Sensor Sensor |
Application
Certifications
Company Information
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
