Метеорологический датчик дождя RIKA RK400-01 металлический опрокидной с

Метеорологический датчик дождя RIKA RK400-01 металлический опрокидной с

Категория: Gauges >>>
Поставщик: Hunan,Rika,Electronic,Tech,Co.,Ltd.

Цена:186,00 $ - 208,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	221.86 $*	232.34 $*
Aug-17-2025	219.86 $*	230.60 $*
Jul-17-2025	184.13 $*	193.82 $*
Jun-17-2025	216.48 $*	227.90 $*
May-17-2025	188.55 $*	197.87 $*
Apr-17-2025	212.84 $*	223.40 $*
Mar-17-2025	210.23 $*	221.33 $*
Feb-17-2025	208.32 $*	218.55 $*
Jan-17-2025	206.68 $*	216.23 $*

Характеристики

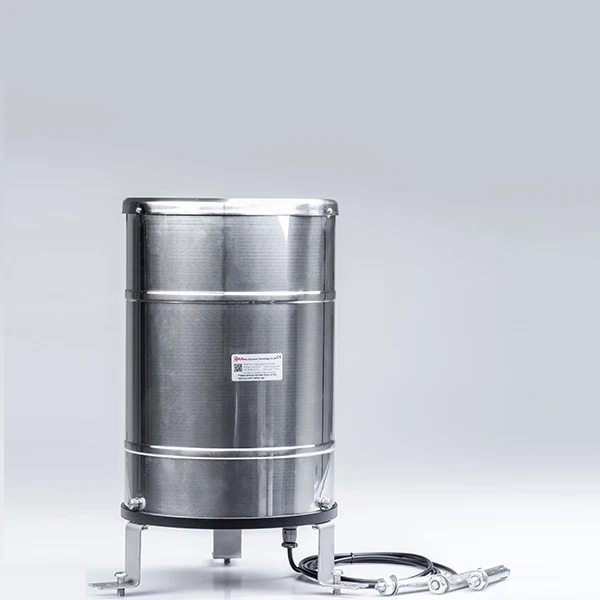

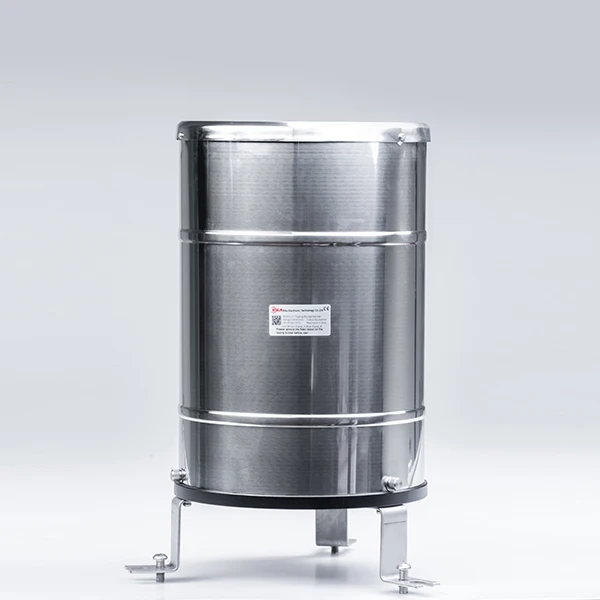

RIKA RK400-01 Meteorological Precipitation Rain Gauge Metal Tipping Bucket Rainfall Sensor with CE

Product Description

The RK400-01 Tipping Bucket Rain Gauge (self-emptying bucket rainfall sensor) is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, Hydrometric stations, Agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

FEATURES

Compact size for easy use

High accuracy, good stability

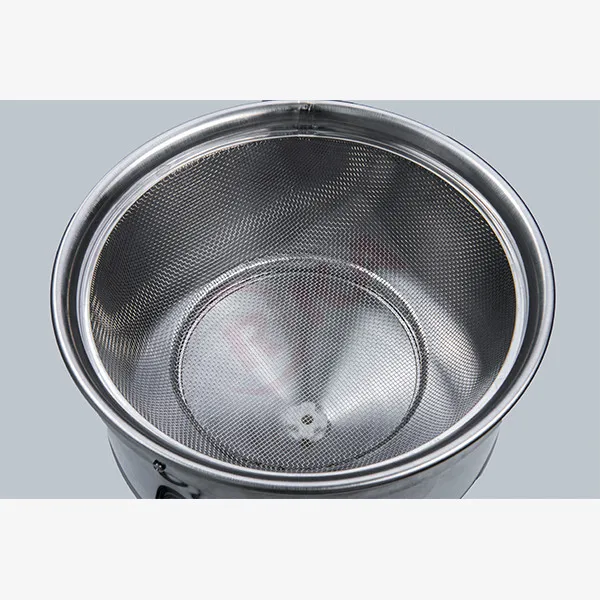

Mesh in the funnel preventing debris such as leaves and insects from entering the working of rain sensor

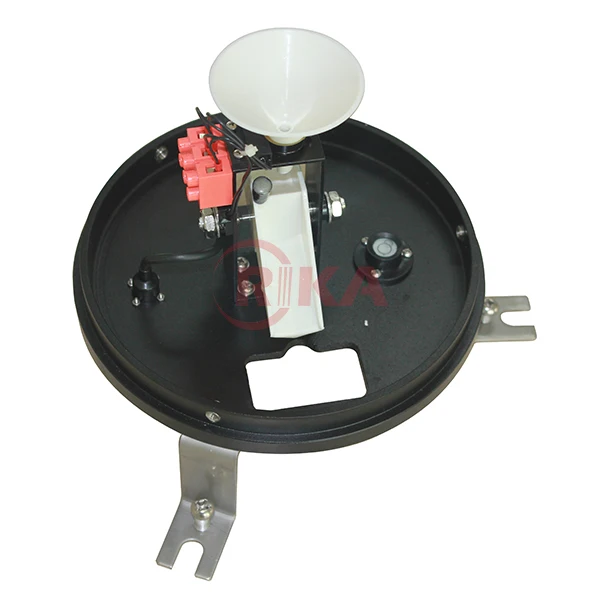

Well made tipping bucket with low resistance

Highly polished stainless steel construction

Horizontal Bubble in the bottom

APPLICATION

Water supply system

Hydrologic monitoring

Natural disaster monitoring

Agrometeorogical research

Climate research

SPECIFICATION

Item	Specification
Rainfall collector	Diameter :φ200mm, height: 350mm
Measured rainfall intensity	Max: 4mm/min
Allow rainfall intensity	Max: 8mm/min
Resolution	0.1mm, 0.2mm
Accuracy(2mm/min)	±4%
Maximum load voltage	30VDC(pulse output)
Maximum load current	20mA(pulse output)
Output	Reed switch pulses,RS485(12-24VDC supply)
Operating temperature (no freeze)	-20-+80℃
Main material	Collector:304SS,tipping bucket:ABS
Tipping bucket	Single
Heating(optional)\u0081	Heating power: approx.1000W Heating voltage:220VAC
Weight (unpacked)	3.5kg

Details show

Buying Guides

In order to send specific price to you, please tell me your information below:

1. What’s your required output signal ? -- We have pulse & RS485 optional. Please specify.
2. What’s your required power supply ? -- If pulse output, no power supply is required. If RS485 output, the supply is 12v or 24v optional, please specify.
3. What’s your required cable length ? - The standard is 1.5m. If you have special demands, please specify.
4. Quantity?

5. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address & post code for freight calculation.

6. Your complete company name,address, post code,contact person, tel, fax etc.
