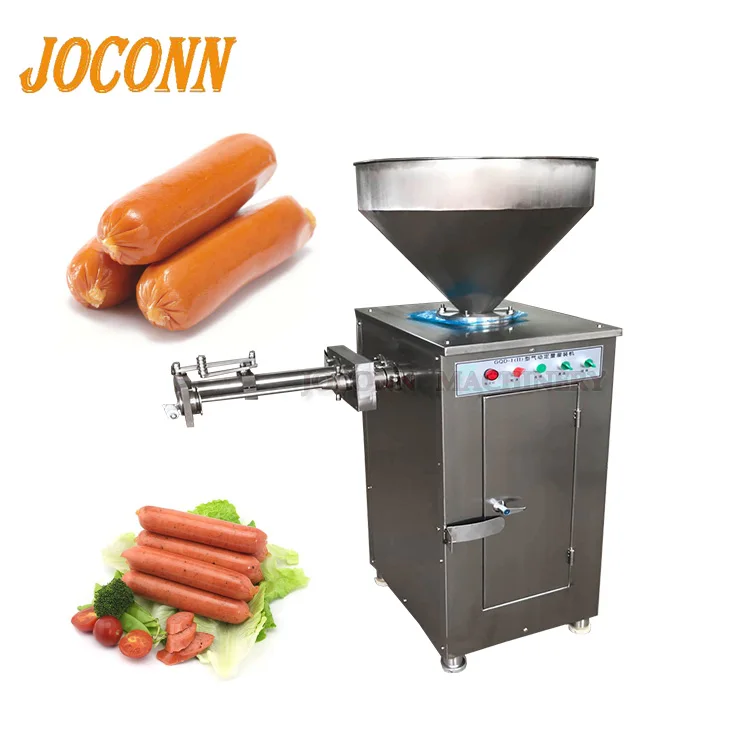

Пневматическая машина для наполнения колбасы клизмой/Коммерческая колбасок хот-догов/150 кг/ч

This machine is also called Pneumatic quantitative enema making machine, adopts advanced technology and  photoelectric control, can complete quantitative  filling continuously , suitable for filling all kinds of ham sausage,  smoked sausage,etc. suitable for small and medium-sized meat processing enterprises.

1. Quantitative filling part: Machine mainly consists of hopper, machine body, filling and twisting part.The quantitative filling part is mainly composed of quantitative sleeve, quantitative nut, positioning bumper, quantitative adjustment nut and locking nut. mainly adjust filling volume according to customer's need.

2. Pressure Display Meter:The feeding power of sausage filling machine is the air source from the cylinder, and the main cylinder drives the piston rod to control feeding. The air source force from the auxiliary cylinder of sausage filling machine controls the rotary arm, which drives the rotary valve, and the rotary valve controls discharging.

3. sausage twist tying: The pneumatic quantitative sausage filling machine replaces the original one. The greatest advantage is that it can effectively avoid secondary pollution. The whole machine is made of high quality 304 stainless steel, beautiful appearance, convenient cleaning, compact structure and good airtightness.

1. pretty appearance, big volume hopper, compact structure,  easy to move around

2. high quality, made of full stainless steel material, safe and healthy

3. easy to operate , clean and maintain

4. wide filling volume range from 30g-1000g, filling error is less than 3g, twist 30-50times each minute.can complete  Quantitative filling automatically.

5. The quantitative part is mainly composed of quantitative sleeve, quantitative nut, positioning bumper, quantitative adjustment nut and locking nut. It mainly adjusts the quantity of feed and adjusts it according to need.

6. power-saving, customer should equip an air compressor

7. sausage filling and twist tying automatically

8. can fill both meat paste and small meat particles or granules.

Name

Pneumatic quantitative sausage twist filling machine

Model

QD-II

Filling volume

20-500g, 50-1000g

Filling Frequency

30-50times/min

Meat state

Meat paste or particles

Air pressure

0.5-0.6Mpa

Weight

190kg

Size

1160*640*1470mm
