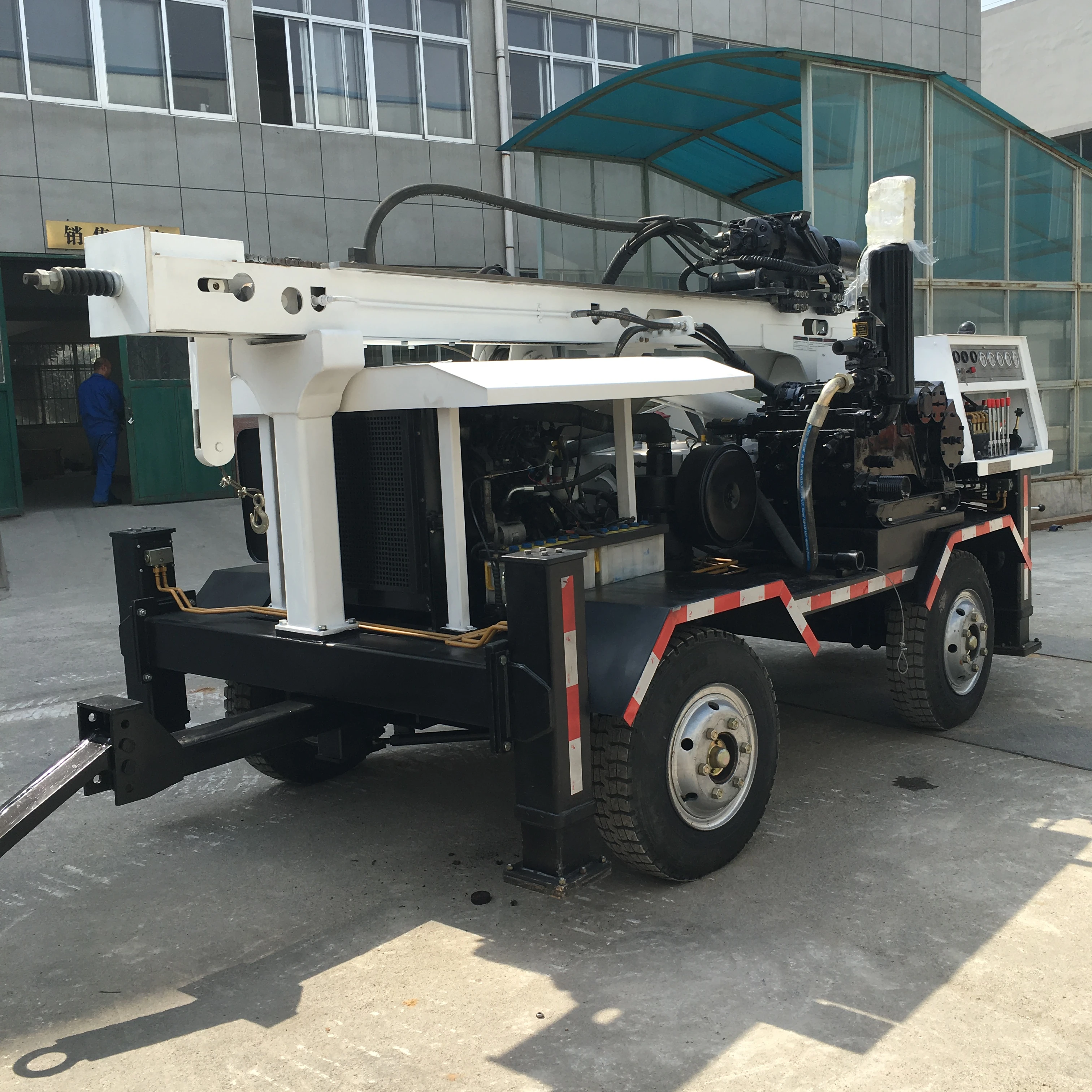

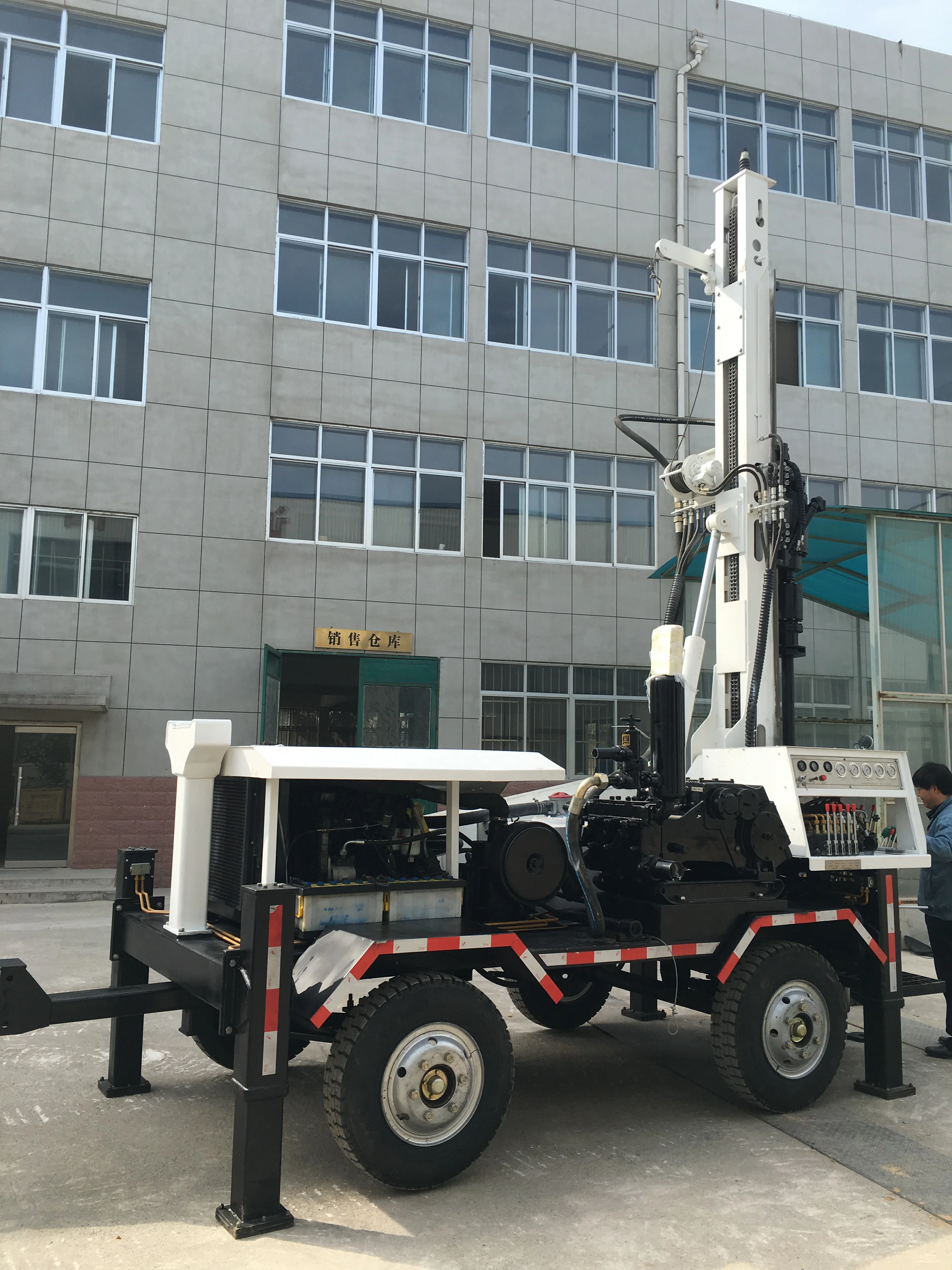

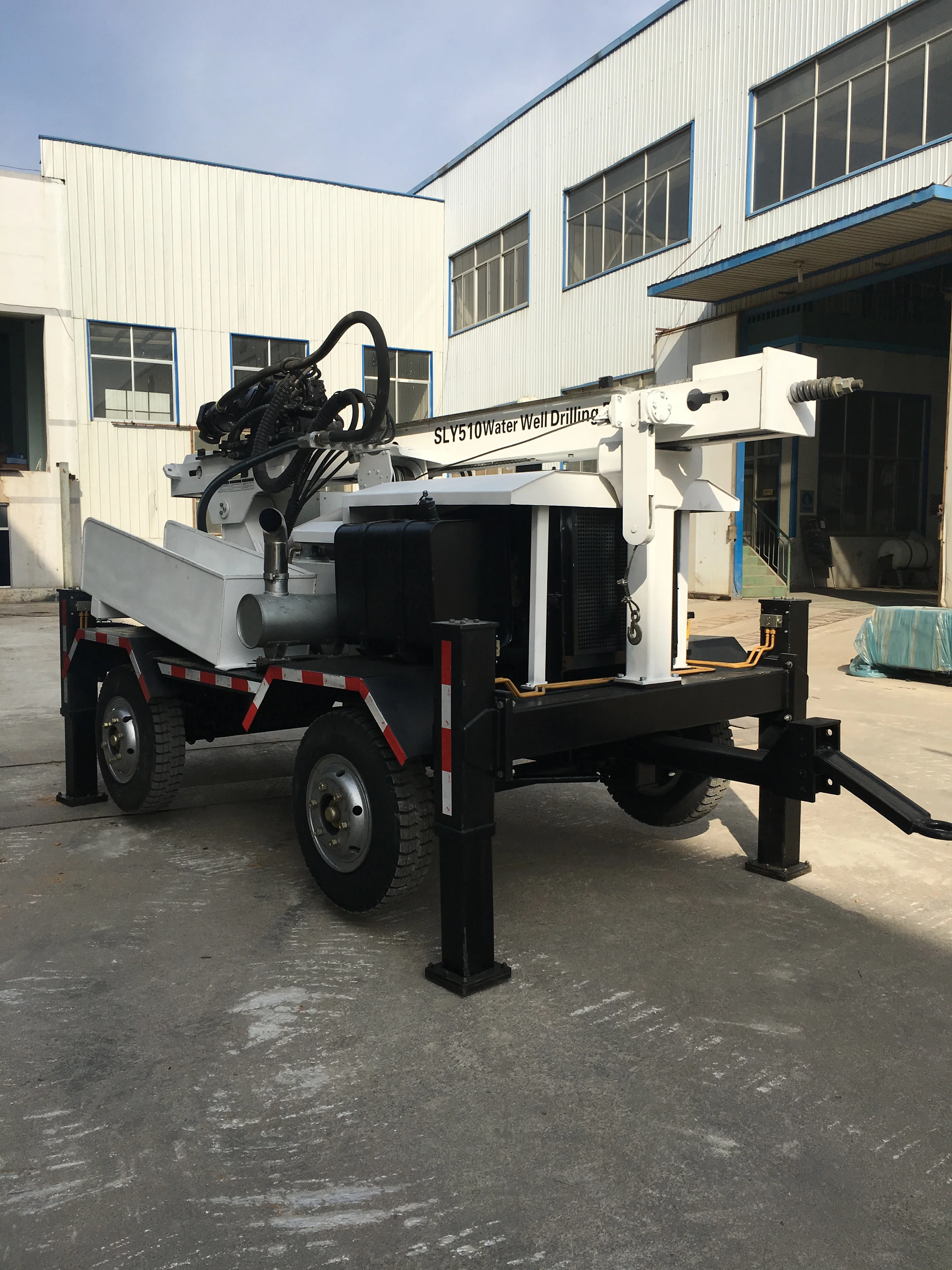

300 м гидравлическая буровая установка для бурения скважин с прицепом

water well drillg rig Description

SLY510

Geology drilled

All kinds

portable drilling rig  depth

260M

Drilling rig  Diameter

90 - 300mm

Drill system and operation

Hydraulic

Rig assembly

1 complete unit, main engine driven

Mobility

4 wheel tandem road trailer

Transportation

Towed by pickup or light truck

Drill pipe (diameter x length)

60/76 mm x 2 m

Mud pump

400 L/min@ 6 bar progressive pump

Foam pump

Hydraulic driven, mounted on rig

Weight

6000kgs

portable drilling rig ROTARYHEAD&FEED SYSTEM

Top head drive by a hydraulic cylinder through heavy duty chain.

Rotation torque

2232 N-m

Speed

0 - 34 rpm.

Head travel

2.25 meter

Pull-up capacity

3813.09 kg.

Pull-up speed-slow feed

1.22 meter/min

Pull-up speed-rapid feed

12.26 meter/min

Pull-down speed-slow feed

0-1.88 meter/min

Pull-down speed-rapid feed

0- 16.90 meter/min

DRILL PIPE

Drill pipe length

2.00 meter

Drill pipe diameter

76 mm

Thread

2 3/8 REG API Mod

Power pack speed

3000 rpm.

Load power pack

max. 6KW
