Dual row 2 3 4 position screw mounting distribution barrier strip terminal block 16mm2

Our Advantage

1.Professional: Since 2001, we have served more than 2000 customers.

2.Excellent performance: self-locking,vibration resistance, loosening protection, low electric resistance and excellent gas-tight, excellent pliability and fire resistance.

3.Rich product range: the connect capacity ranges from 0.5 to 35 mm2 with terminals of test,disconnection,fuse types etc.

4.Factory direct price: have the best price/performance ratio.

5.Good quality: strictly following IEC-60947-7-1 standard. we choose the best material for our product, and all of our product get the certificate of CE, RoHS, ISO9001, and pass the product type-test by authorized 3rd party in China. We have zero-tolerance for any flaw of a small part.

6.Service: we can provide OEM serives, and get our quick response within 24 hours.

JF7B series of terminal blocks can be installed on board for the situation without din rails.

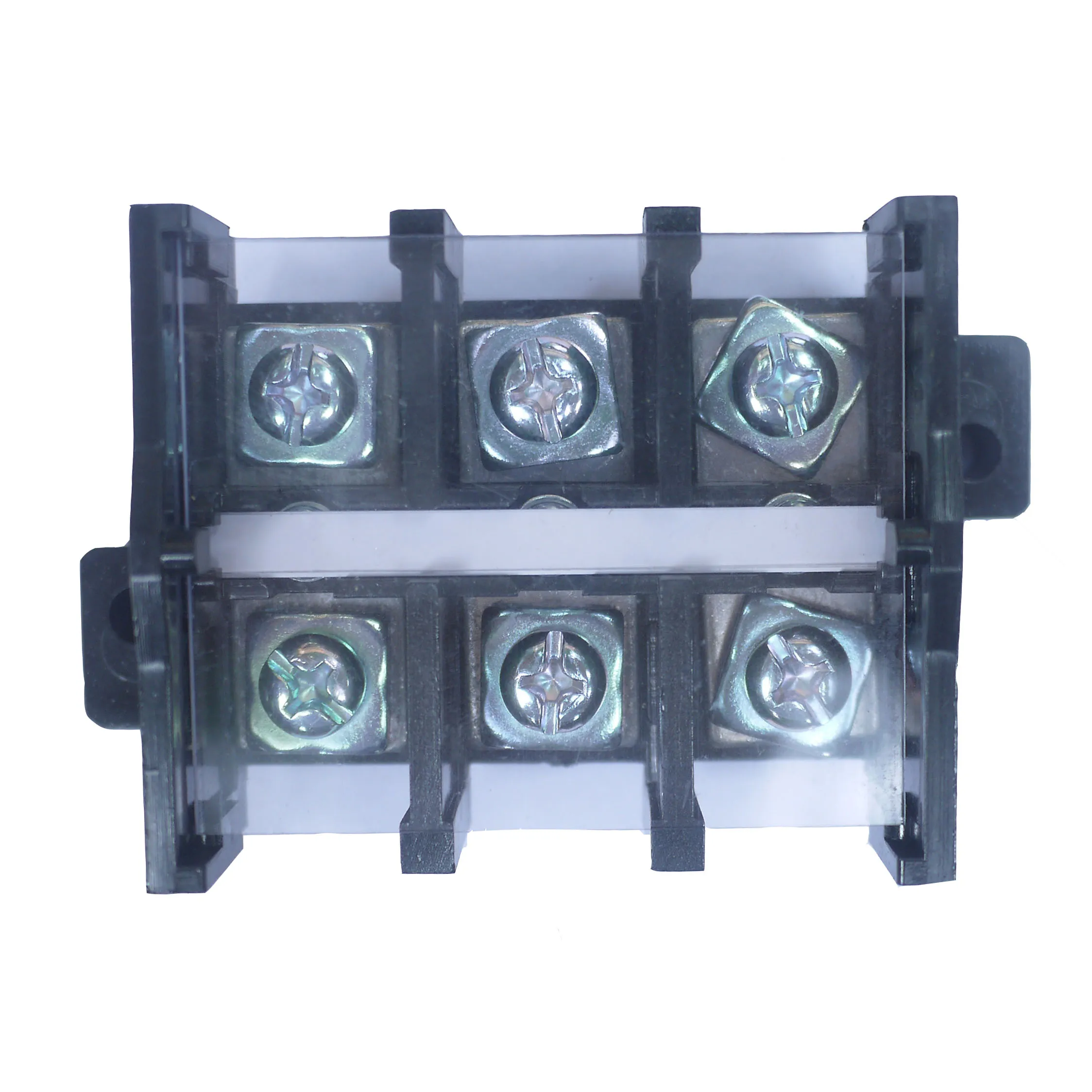

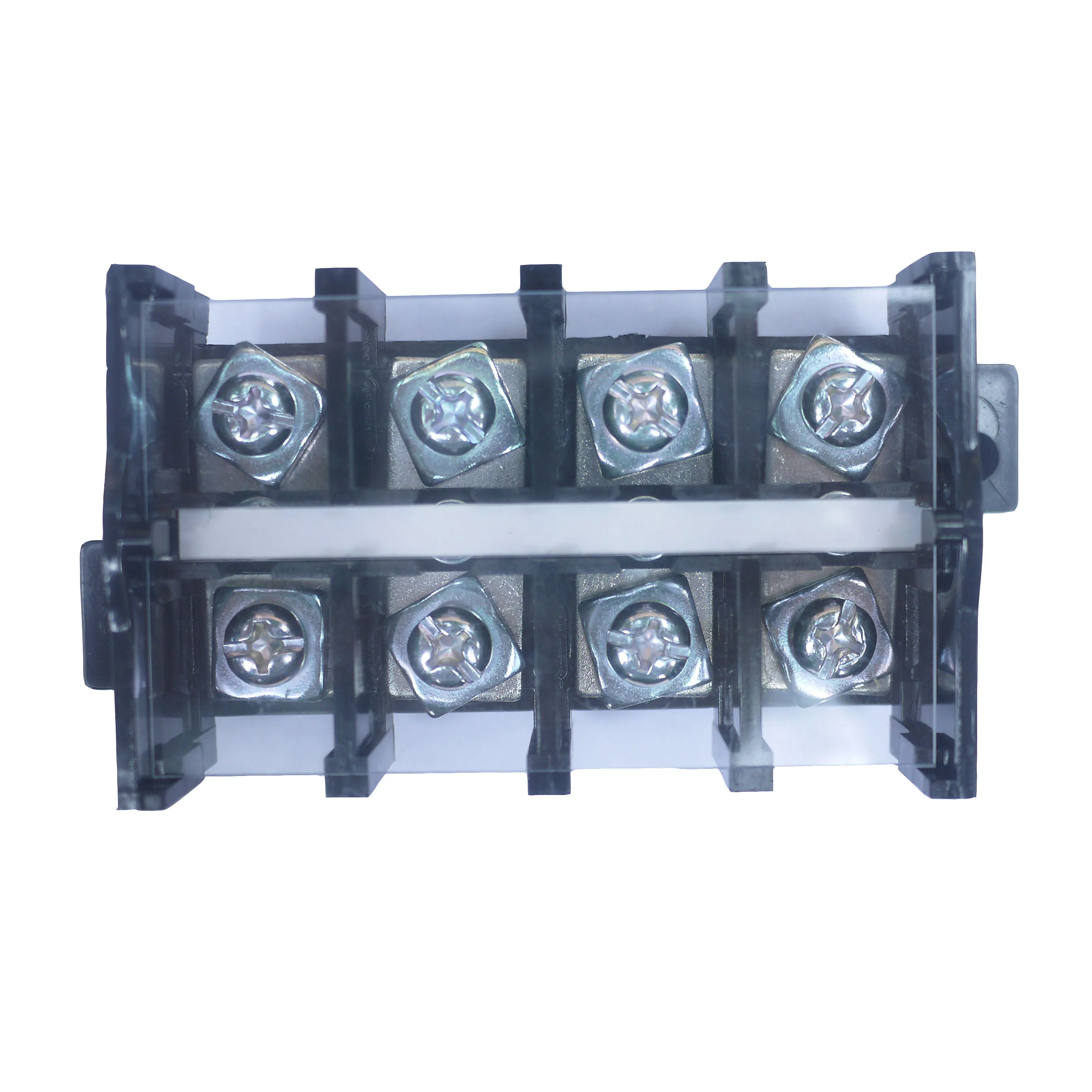

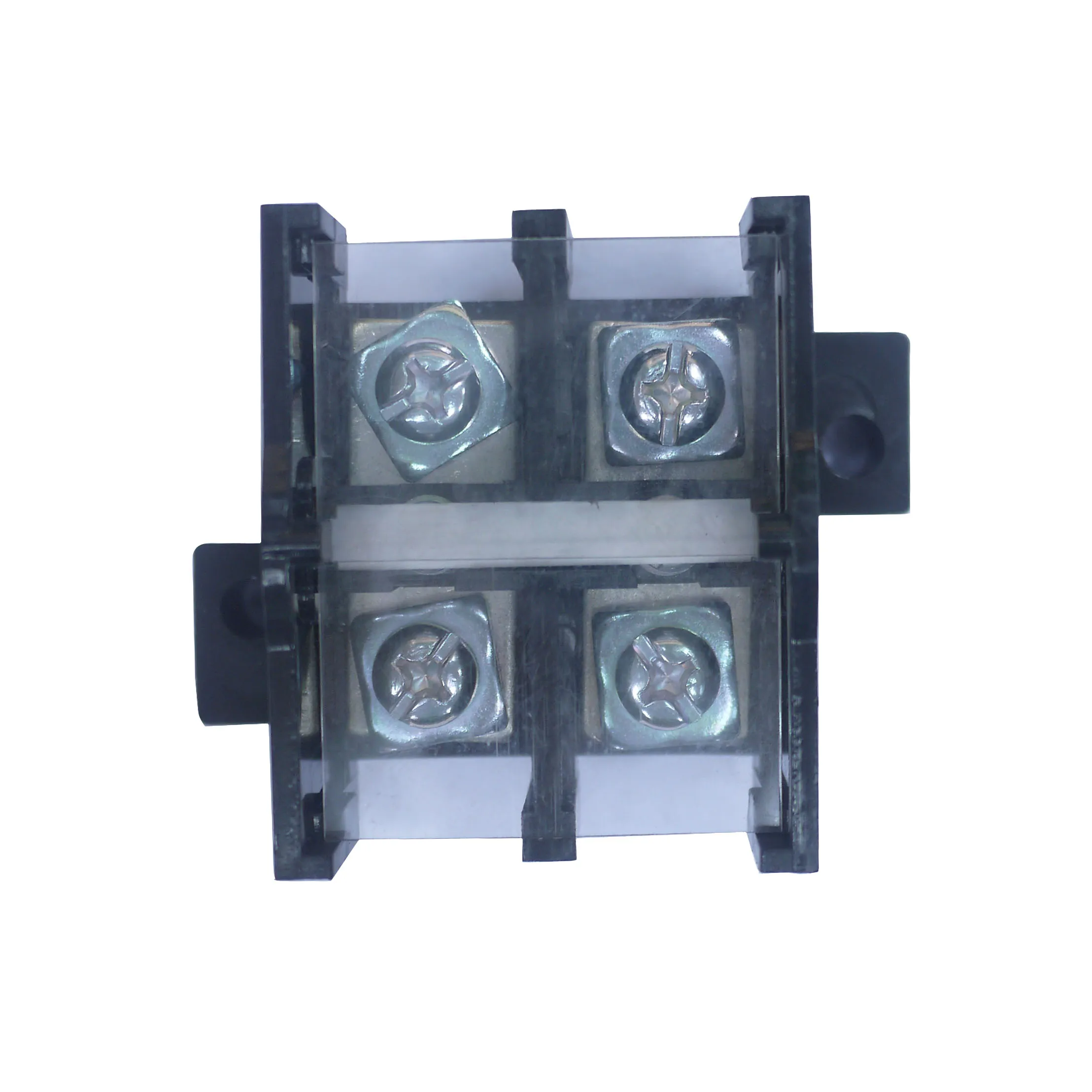

Dual Row, 2/3/4 Positions, Removable clear plastic insulating cover, screw barrier terminal block.
Each pair of terminals is insulated from the next, prevent circuit in disorder. The set screws secure wires reliable contact and help prevent accidental contact with the terminals.Used for wires connecting of home appliances, electronic circuits, machines, etc.One mounting hole each end for fixed mounting, easy to install.Volume -small, good electrical conductivity, the shape of the screw hole closed guide, not only can conveniently operate, but also prevents the screw from falling out.

Details:

Model	JF7B2.5	JF7B10	JF7B16	JF7B35
Materials	PC	PC	PC	PC
Voltage	660V	660V	660V	660V
Rated cross-section	0.75-2.5mm2	2.5-10 mm2	4-16mm2	16-35mm2
Rated Current	24A	57A	76A	125A
Rated Power-frequency	3KV	3KV	3KV	3KV
Pollution degree	3	3	3	3
Dimensions	54*30.5*25.5mm	66.5*41*31mm	98.5*60*41mm	113*78*50mm
color	black	black	black	black
Terminal	TU1-1/M3 TU1-1.5/M3 TU1-2.5/M3 TO1-1/M3 TO1-1.5/M3 TO1-2.5/M3	TU1-4/M5 TU1-6/M5 TU1-10/M5 TO1-4/M5 TO1-6/M5 TO1-10/M5	TU1-6/M6 TU1-10/M6 TU1-16/M6 TO1-6/M6 TO1-10/M6 TO1-16/M6	TU1-16/M8 TU1-25/M8 TU1-35/M8 TO1-16/M8 TO1-25/M8 TO1-35/M8



1.The Insulation materials PC : It has excellent electric and mechanical properties, and the flame resistance rating is V0 grade.

Specific resistivity (Ω/cm)	1012 (VDE0303 T.30)
Dielectric strength (KV/mm)	30 (VDE0303 T.2)
Comparative tracking index CTI (V)	600 (VDE0303 T.1)
Continuous service temperature (℃)	100 (VDE0304 T.21)
Lower temperature limit static (℃)	-50
Flammability according to UI94 is HB or V0	UI94

2.Special designed screw: zinc plated M6 screws, high quality nuts, not easy to slip wire, excellent electrical conductivity.

3.Transparent dust cover: transparent cover, clear and intuitive internal components, anti-slip and anti-corrosion, can protect wire connector. the shell can not break in an environment with low temperature, it is clean and beautiful with smooth surface.

4.Mounting holes distance: one mounting hole each end for fixed mounting, easy to install.



contact us for more information!





       Our main products include: terminal blocks, junction boxes, mounting rails, marking systems,        electronic models in terminal blocks, tools, and related electrical accessories, besides, our          technical engineer can help you design any user-customized products.

With our quality principle as ""Excellent Quality, Perfect Service, Exceeding Customers'                Expectation"" and operation philosophy as ""customer orientation, integrity, profession"", we        are looking forward to cooperate with you.
