KNTECH безжалостный Погодный и антивандальный телефон подходит для использования в сложных условиях

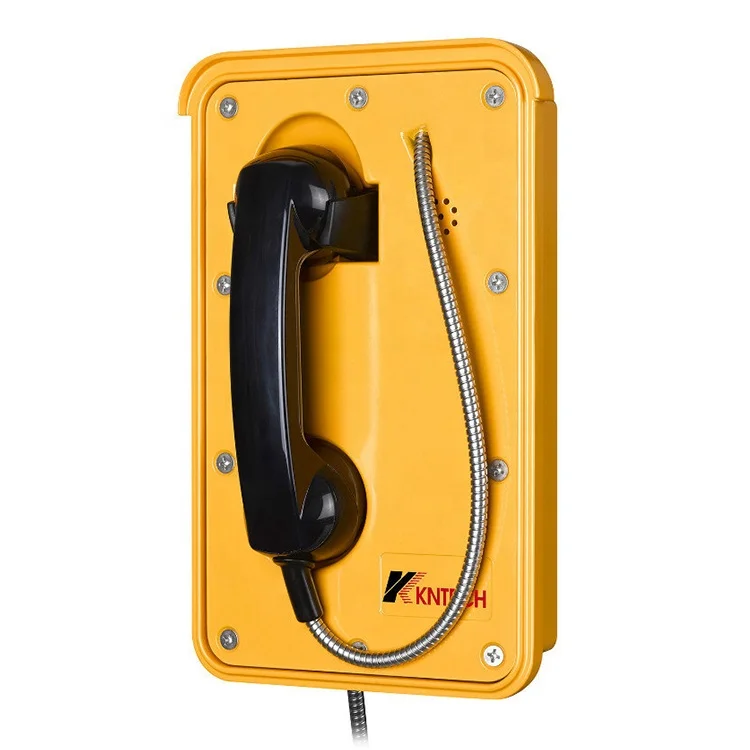

KKNTECH Buttonless Weather and Vandal Proof Telephone Suitable for Deployment in Demanding Environments KNSP-10

Hotline Emergency Automatic Dial telephone is made of aluminium alloy material by die casting. The Heavy Duty telephone is rugged and durable. Special sealing design can ensure complete waterproof grade up to IP66. Waterproof, dustproof and moisture-resistant. The Heavy Duty telephone widely used in tunnel and outdoor. Most metro and high-speed rail project need install IP66 telephone for emergency communication. Also expressway and power plant need Heavy Duty telephone. marine need moisture-resistant telephones. Heavy Duty telephone have analogue and Voip version for customers application.

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware, easy Installation.
2. Waterproof rating IP66 dust proof.
3. Full keypad with memory, 10 button programmable speed-dial telephone.
4. Door cover: orient automatically and good self - closing, convenient for use.
5. Weather resistant to IP66 standard, service temperature range from -30 degree to +75 degree.
6. Magnetic reed hook-switch.
7. Lightening protection to ITU-T recommendation K.21.
8. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
9. Handset with industrial strong curly cord .
10. Silicon keypad keep waterproof and dusty proof.
11. Phone integrity wiring to enable the telephone system to check if the telephone unit is still
Operational.(if PABX have this available we can provide this function).
12. Optional 7 minute time out to release the line if the handset is left off hook. This function upon buyer's requirement).
13. Powder coated in UV stabilized polyester finish.
14. The housing covered with a layer of reflective label for easy identification at night.Optional.

Technical parameter

SPECIFICATION - Analogue

1. PSTN analogue telephone 2. DTMF dialing
3. MTBF:100000hours 4. MTTR: 2 hours
5. Connection: RJ11 screw terminal pair cable 6. Sound level of ringing:over 70dB(A).
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16
digits)
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5%
~ +1.5%
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than
60dB(A)

SPECIFICATION - VoIP

1. VoIP SIP2.0 telephone 2. DTMF dialing
3. MTBF100000hours 4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load 8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A 10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC 12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d),
RSTP(IEEE 802.1d-2004)

The industrial telephone system

The industrial telephone application :

HONGKONG KOON TECHNOLOGY LIMITED is dedicated to engaging in R&D, manufacturing and sales of various types of exclusive emergency communication systems.
Products include IPPBX PAGA system, industrial SOS IP telephone, help call station, SIP intercom, as well as large network management command systems such as TR069, SNMP Modbus TCP protocol SIP applied in metro, tunnel, airports, petrochemicals, metallurgy, nuclear, power, marine, ship building, bridge, mine, and special industry.

The company is a state-level technology enterprise which is certified to be a high-tech one owning high-tech products.
The registered capital of the company is 10 million US Dollar. We established our R&D center, machining spraying plant, integrated manufacturing base in Shenzhen. The factory has a large area of 8,500 square meters. The corporation strives for building up KNTECH to be a top international brand.

We have focused on setting up a world brand and establishing a hundred-year store.
KNTECH has its own developing center and production base. The factory covers an area of 8000 square meters with workshop of 6000 square meters which have got ISO9001 and strictly controlling according to ISO. Professional and excellent quality control system helps KNTECH win clients from over the world.
Company principle: for first quality and best service.

KNTECH Buttonless Weather and Vandal Proof Telephone Suitable for Deployment in Demanding Environments KNSP-10 Certification:

We are the only Asian enterprise passing IEC, IECEX and EN50121 authentications in the industry. Our various products received the authentications from German TUV, European CE, USA FCC, ETL, PART68 as well as ISO9001.

We have built up good cooperation with varied international renowned corporations for several years, including SIEMENS, ABB, THALES, HUAWEI, AVAYA, NEC and ALCATEL.

Fast delivery, samples can be sent out within 3 days after payment received

                              KNSP-01

                     Weatherproof telephone

                       KNSP-18

          Harsh Environment telephone

                            KNSP-16

                          Outdoor telephone
