Крупногабаритный усадочный станок DX68 для сельского хозяйства обслуживания индустрии

Описание и отзывы

Трекер стоимости

Характеристики

DX68 hydrauilc pipe machine, 2 inch high pressure hose crimping tool made in China













SPECIFICATIONS:



Big force,low noise and easy to operate

Nice look,performance,price

ISO certificate











FACTORIES AND WAREHOUSES









SPECIFICATION:



        Max hose ID:2" -spiral Hose

Theoretical Crimping Force(Ton): 449

Max. Pressure(Mpa): 31.5MPA

Die Opening & Closing(mm): +/-40

Max Opening(mm): 136

Motor Size(Kw): 3

Operating Voltage(V):380v-3Ph-50Hz---220v-1ph-50Hz

Full Crimping Circle (Seconds):10

Accuracy(mm):0.02 Max.

      Standard dies: 15,19,23,27,31,36,41,47

      Optional dies: 53,58,67

Un-even(mm): 0.1 Max.

Weight(Kg): 240

Dimensions(Length×Width×Height): 660X430X680 (mm)











DIE-SETS CHART:



The Die Number with "*" tag means it is an Optional Die-set.

Die-sets with specs other than the Chart can be made to order.

Die No.	Range(mm)	Length(mm)	Die No.	Range(mm)	Length(mm)
15	15-19	75	41	41-47	75
19	19-23	75	47	47-53	75
23	23-27	75	53*	53-58	75
27	27-31	75	58*	58-64	75
31	31-36	75	67*	67-73	75
36	36-41	75	*Optional Die-sets







DELIVERY TIME:

Within 3days upon receipt of deposit



PAYMENT TERM:

We can accept TT OR LC Whether which term is better for you.

Any suggestion,please let me know.



CERTIFICATE:

ISO certificate

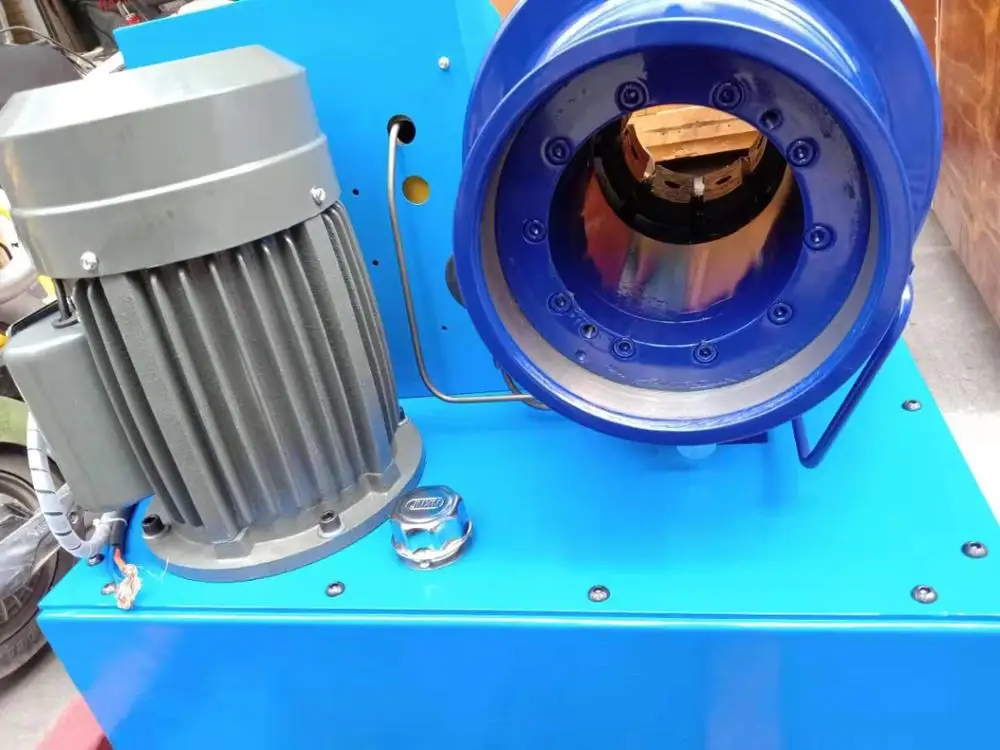

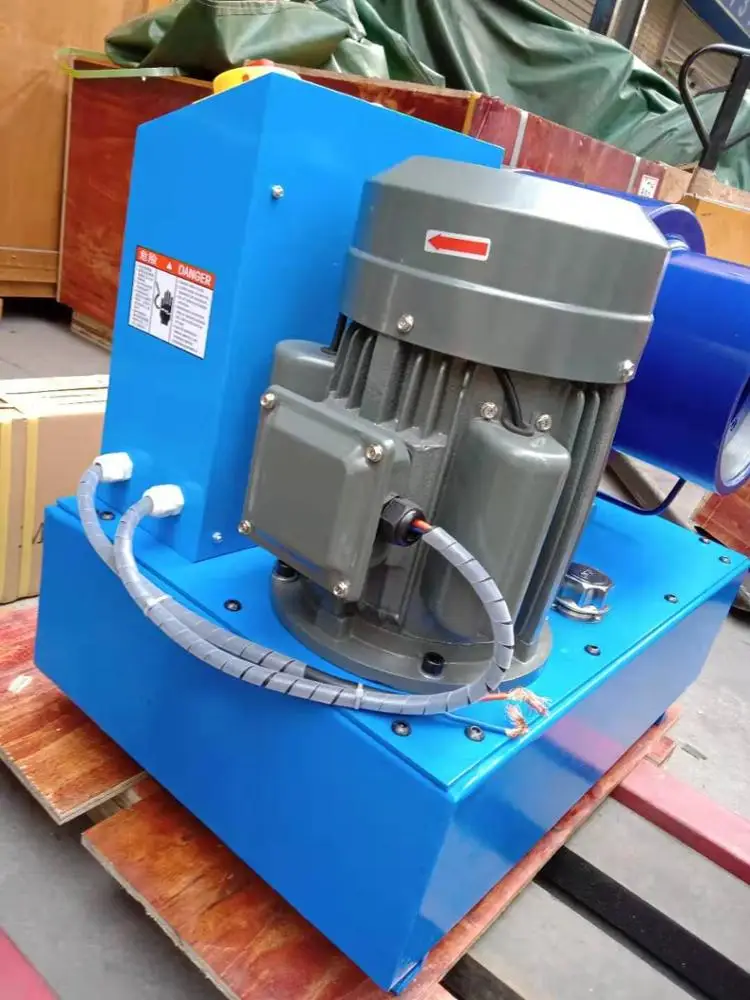

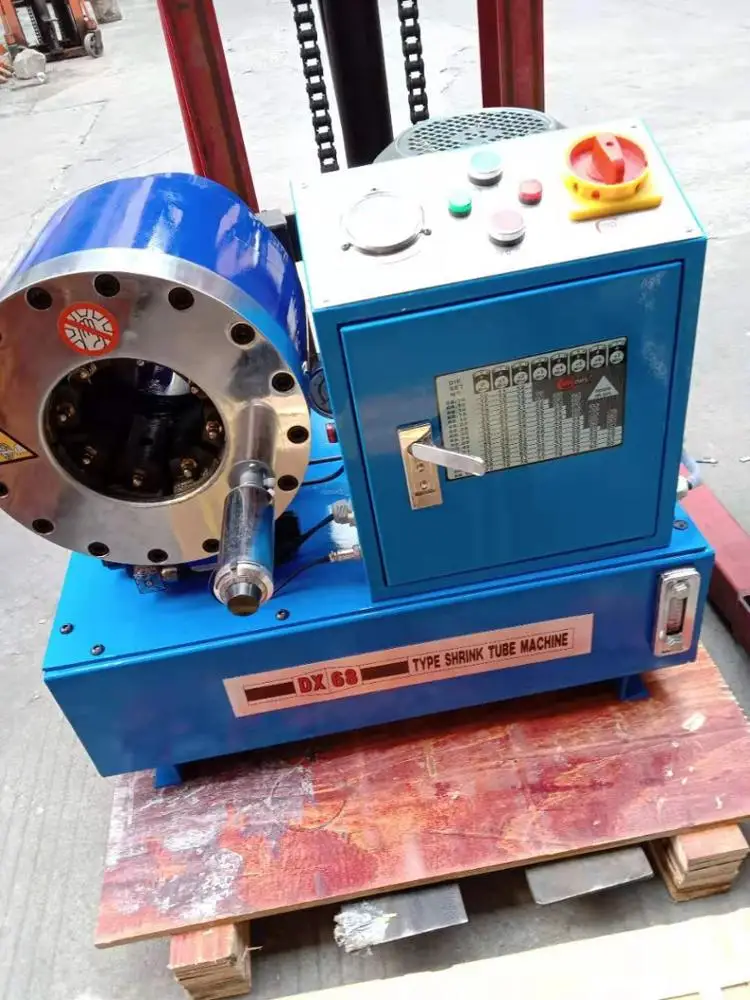

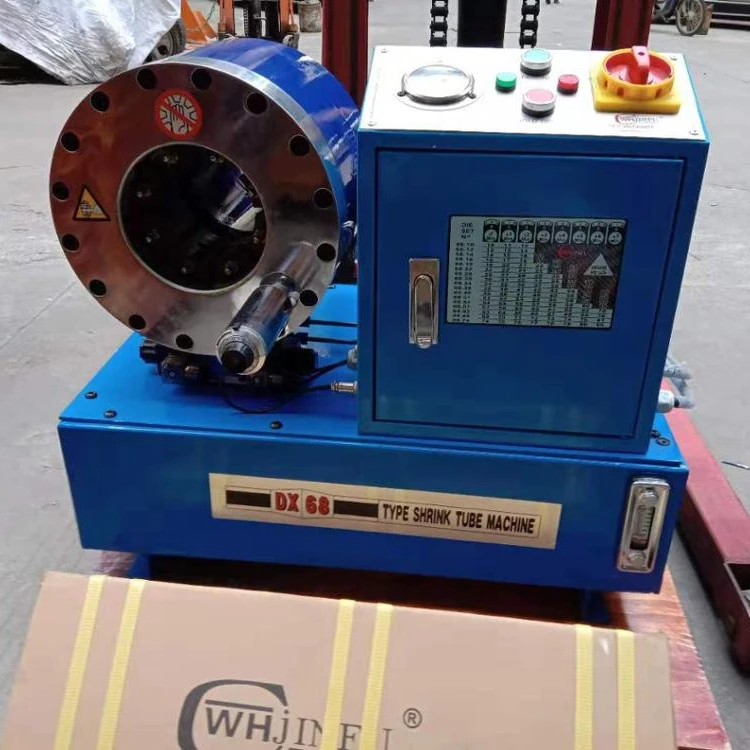

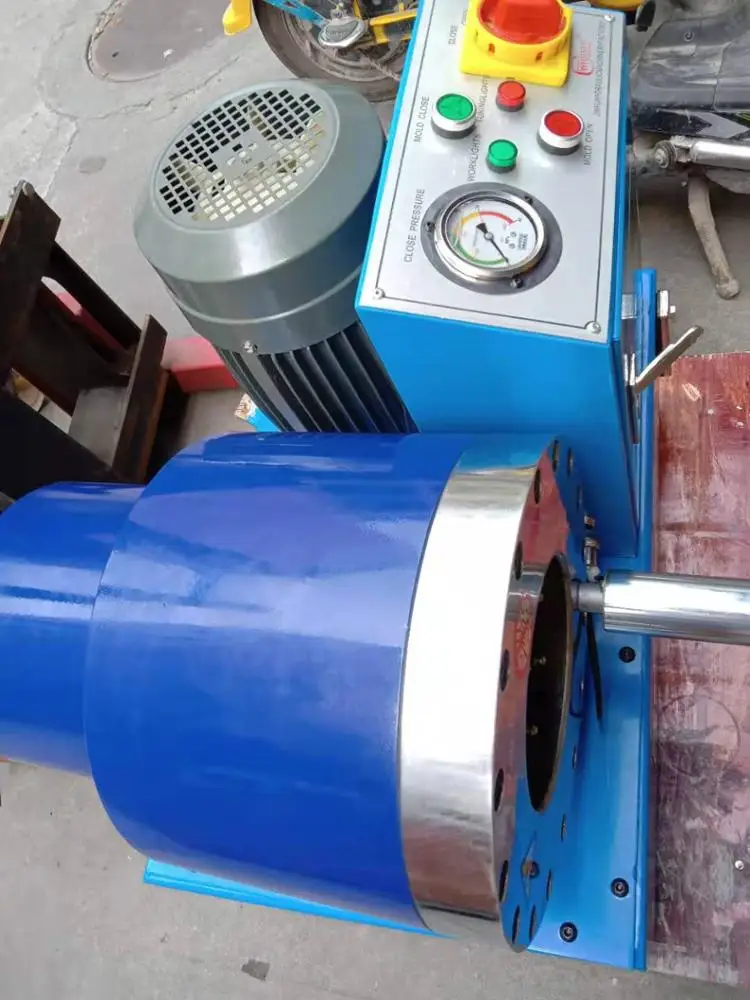

PRODUCT PICTURES
