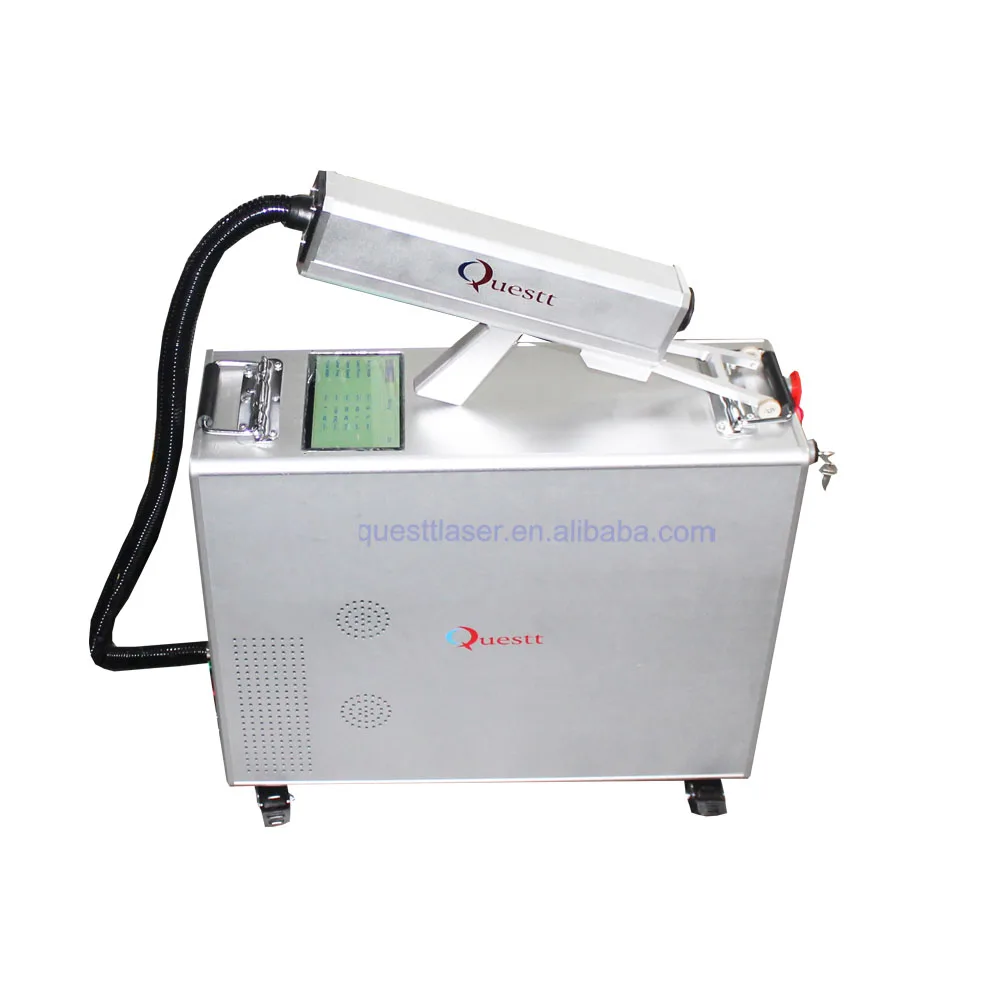

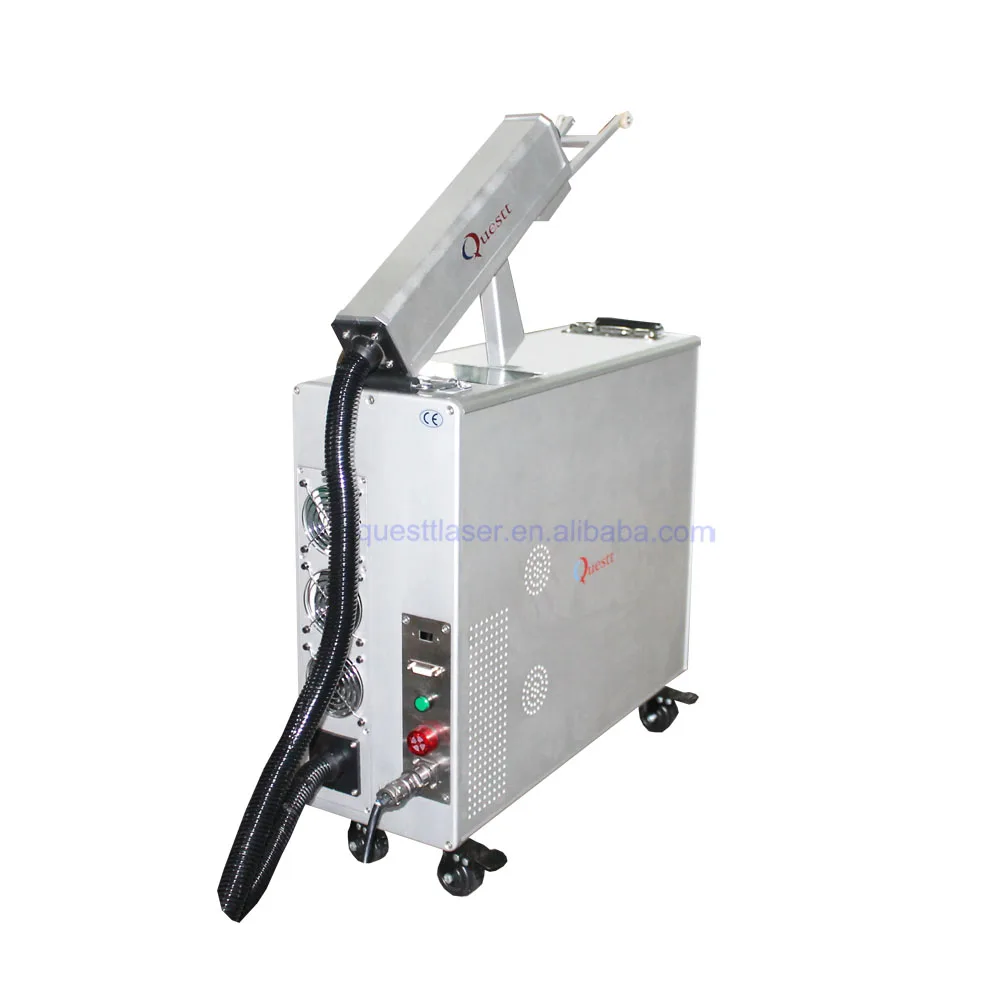

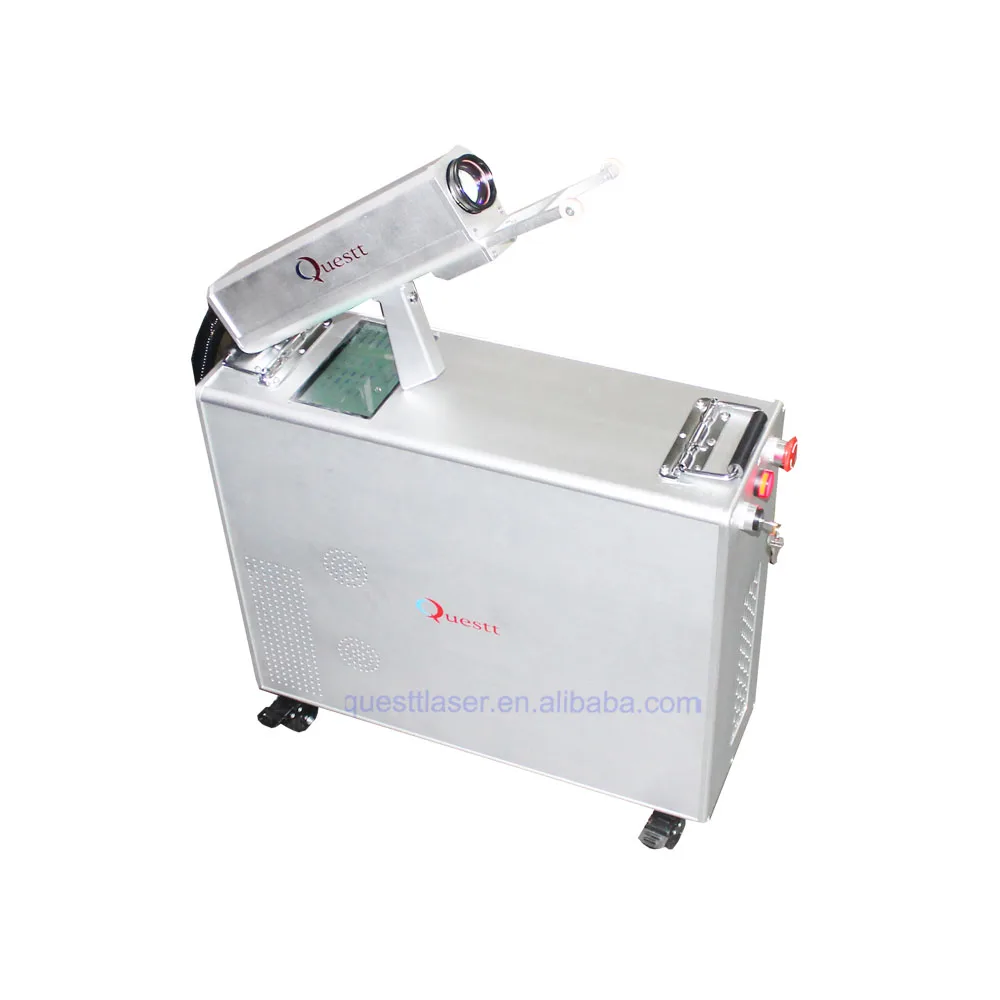

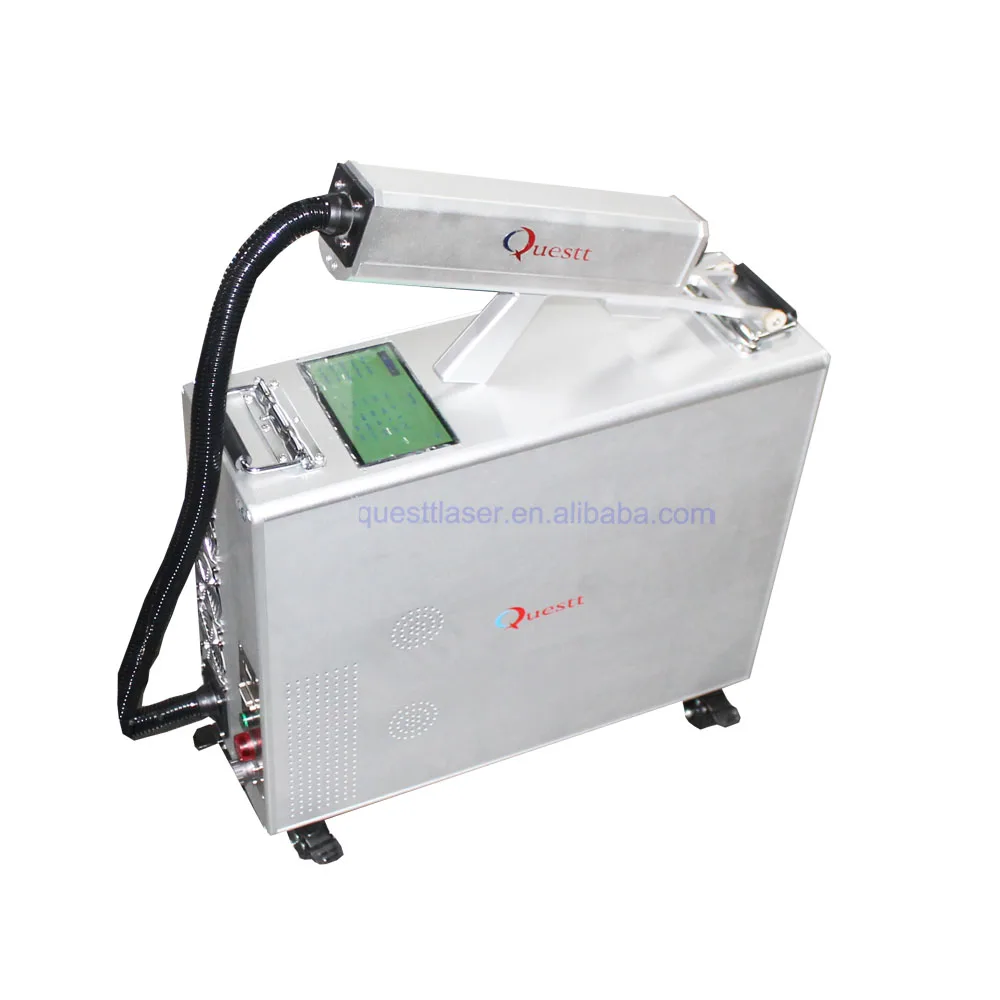

Portable 50W 100W Clean Laser Rust Removal Machine

Machine introduction

Fiber Laser rust removal Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.



Features



1. fiber laser high power laser cleaning machine

2. Non-contact cleaning, no damage to the parts matrix.

3. accurate cleaning, can achieve precise location, precise size selective cleaning.

4. do not need any chemical cleaning liquid, no consumables, safe and environmental protection.

5. simple operation, power can be hand-held or with the robot to achieve automated cleaning.

6. cleaning efficiency is very high, save time.

7. Laser cleaning system stability, maintenance-free.



Specifications:



Model	QA-LC50	QA-LC100	QA-LC200	QA-LC500
Laser source	Fiber	Fiber	Fiber	Fiber
Laser Power	50W	100W	200W	500W
Fiber cable L	3 M	3 M	5 M	10M
Pulse Energy	1 mJ	1.5 mJ	2 mJ	50 mJ
Wavelength	1060nm	1060nm	1060nm	1060nm
Frequency	50-500KHz	50-200KHz	20-50KHz	10-50KHz
Clean speed	≤5 M²/Hour	≤10 M²/Hour	≤15 M²/Hour	≤50 M²/Hour
Scann speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling	Air cooling	Water cooling
Dimension	450*350*500	650*350*560	900*600*1100	1600*1100*1800
Weight	30Kg	40Kg	120Kg	300Kg
Beam width	10-100mm	10-100mm	10-100mm	10-100mm
Optional	Manual	Manual	Manual	Manual
Temperature	5-40 ℃	5-40 ℃	5-40 ℃	5-40 ℃
Voltage	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ



Comparison with Traditional Clean Methods:



Comparison	Laser Cleaning	Chemical Cleaning	Mechanical Grinding	Dry ice cleaning
Washing Method	non-contact cleaning	contact cleaning	Abrasive contact cleaning	non-contact cleaning
Harm to base material	None	Yes	Yes	None
Washing Efficiency	High	Low	Low	Mid.
Consumable	Power	Chemical Detergent	Abrasive paper, grinder, abrasive stone	Dry Ice
Washing result	Very good, very clear	Medium, uneven	Medium, uneven	Good, uneven
Precision Washing	Accuracy controllable. High precision	Uncontrollable, low precision.	Uncontrollable, medium precision.	Uncontrollable, poor precision.
Safety/Environment	No pollution	Chemical pollution	Dust pollution	No pollution
Operation	Easy to operate, portable or automation optional.	Complicated process, higher technical requirement of the operator. Pollution prevention measures required.	Need more time & manpower. Pollution prevention measures required.	Easy to operate, portable or automatic.
Investment	High investment on machine. But no consumable, low maintenance cost	Low investment on machine. But expensive consumables	Medium investment on machine. High man-power cost.	Medium investment on machine. High consumable cost.





Fiber laser source advantages

Laser Source	Advantage	Disadvantage
Solid Laser	1.High power, high pulse energy, high cleaning efficiency 2.Wide range non-metallic material application 3.Excellent cleaning effect, excellent cleaning ability	1. Large consumption, need high power chiller 2. Limited integration, complicated maintenance 3. Expensive and high cost.
Fiber Laser	1.Free maintenance, high cost effective, low cost. 2.Forced air cooling, high stability of continuous using 3.Good laser beam mode, wide range metal application 4.Without light path problem, Flexibility integration, small and convenient 5.High photoelectric conversion rate, low consumption, energy saving and enviroment protection	1.Low effective for thick coated metal 2.Power limited







Application

Components combination, welding surface pretreatment, metal surface stripping (all surface paint or designated parts off paint) and a variety of industrial products or molds cleaning





1.Q:What is the warranty of the laser cleaning machine?

   A:2 years.

2.Q:Are you a factory or trading company?

   A:Quesstt Laser is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

   A:Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

   A:If needed,Questt Laser offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

   A:Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

 6.Q:How can i get assurance of my Payment?

 A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
