Заводская цена сборный складной раздвижной контейнерный дом 40

Huatuo prefabricated container house has features of high fire resistance, strong corrosion resistance.

MATERIAL LIST OF PREFABRICATED FOLDABLE CONTAINER HOUSE

  Technical Parameter Of Prefabricated Foldable Container House:

(1). Roofing load-bearing:≥ 50kilograms/m2

(2). Floor load-bearing: ≥ 150kilograms/m2

(3). Aisle load-bearing: ≥ 200kilograms/m2

(4). Side wall pressure: ≥ 80kilograms/m2

(5). Fireproofing grade: A grade

(6). Wall deformation coefficient: ≤300kilograms/m2

(7). Anti-seismic grade: 10-magnitude

(8). Wind resistance grade: 11 level of wind loading

Characteristics Of Prefabricated Foldable Container House:

(1). Convenient for transportation and storage: 40cm after folding can save 80% of transport costs. One 40ft container can hold 10 units.

(2). Thicker base, corrosion resistance, stable structure, catching groove design, seamless slicing, no glue on the box, strong sealing performance. Life service more than 15 years.

(3). Easy and fast to install.

(4). High sealing performance: The folding part can be seamlessly spliced with catching groove design, which can prevent wind and rain.

(5). Structural stability: Use one step moldig high frequency welder to make the galvanized steel structure.

(6). Wind resistant wall: middle folding part of sides walls four square tubes seperate the wall into 4 parts which are directly connected with the main body structure to ensure the stability of the wall.

Characteristics

1. Width 2.5m* Length 5.8m*Height 2.5m

2. Frame structure: The whole frame profile is a one-step molding of high-frequency welder. All joints are designed with upper and lower occlusion. It has excellent sealing performance and is wind-proof and rain-proof.The profile base is thickened to 2.5 zinc-plating materials, the base profile is 27 cm, the upright post width is 16 cm and the top beam profile is 19 cm wide. The frame contains the base line and the folded height is 40 cm.

3. Wall: 50 thick clean surface laminboard are used. The thickness of iron sheet is 0.32. Unit weight: 45KG; 0.8 thick steel plate is added on the top to ensure that no leakage at the top.

4. Floor: 1.5 thick glass-magnesium fire protected floor is used. (PVC plastic floor and composite wood floor are allowed to choose: 500/set)

5. Folding house indoor installation standard: One security door, two security windows, five glass-magnesium floors (waterproof and fire-proof), ±52m of sheet material, 104m of aluminum frame, supporting circuit (a light switch, two five-hole sockets, an LED lamp, a leakage protector, an air-conditioning switch, lamp line 1.5# Air conditioning wire # mainline 4#)

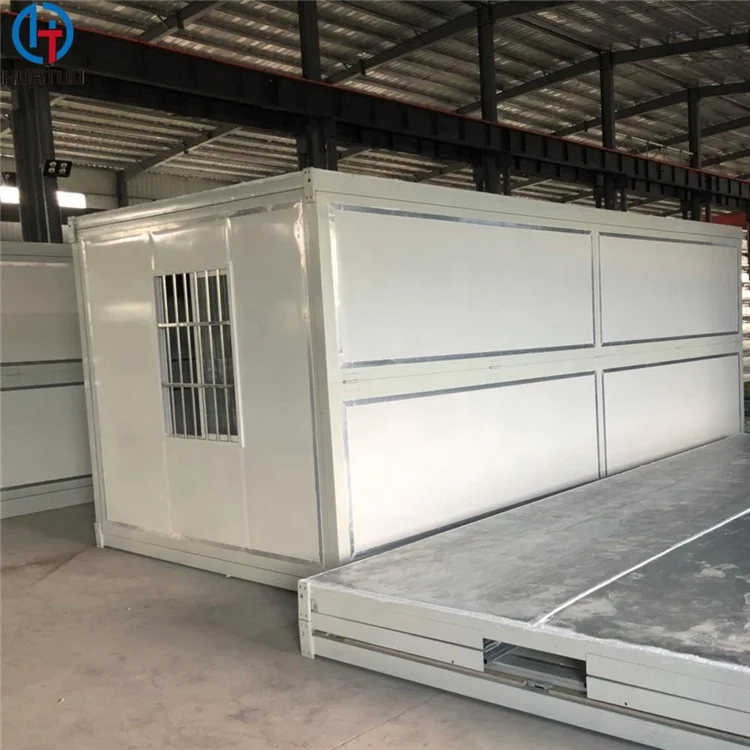

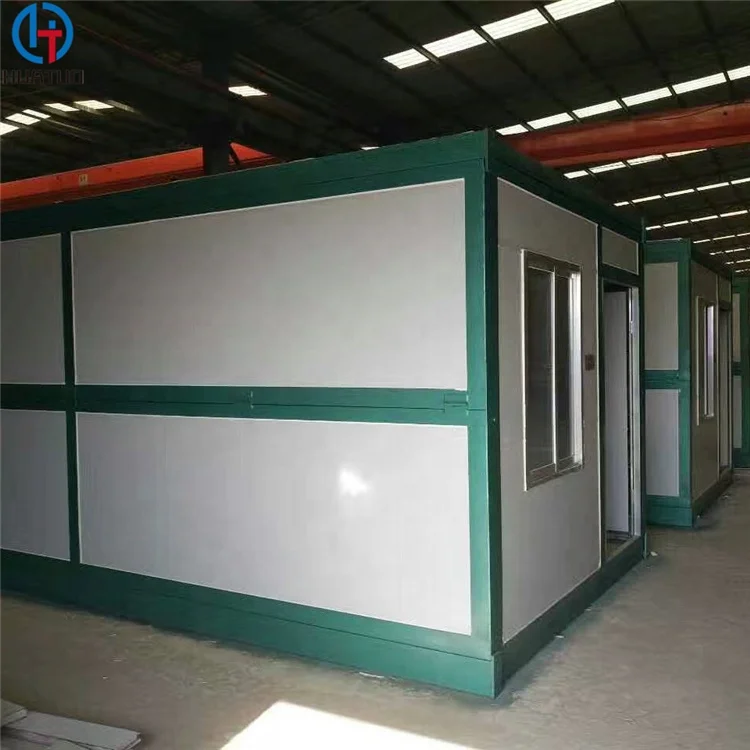

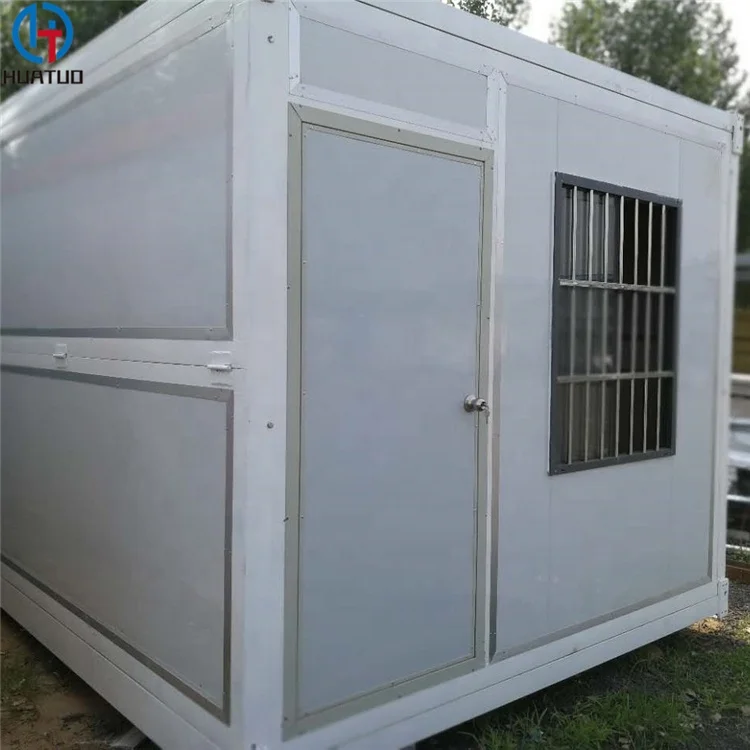

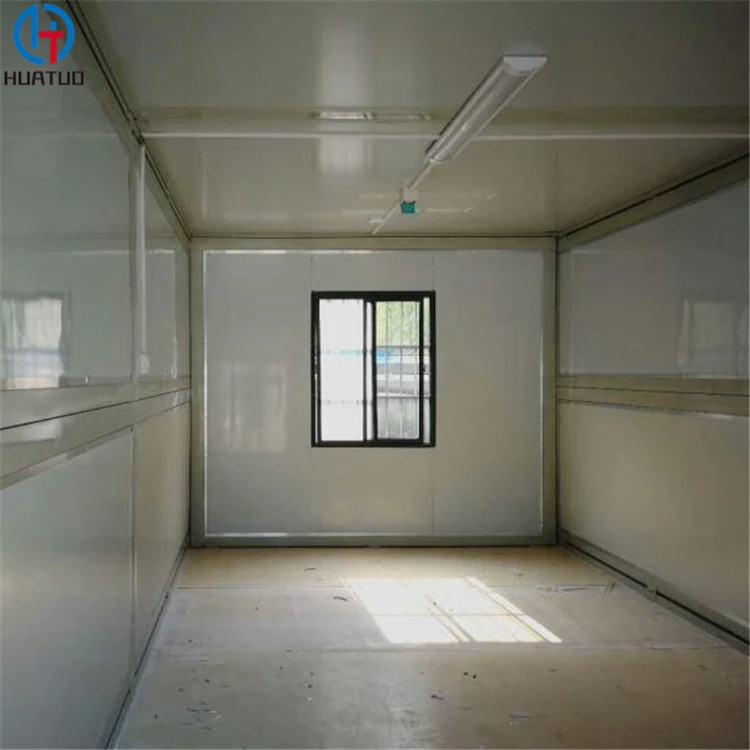

Product show

Our service and team

Produce:

1. Production job based on steel building confirmed drawing.

2. We also can make the products with materials and drawing from customer.

3. Quality control work goes through every step during production.

4. Third Party Quality Check , customer on-site quality inspection and any other reasonable inspection way is ok.

After-sale service:

1.After production, we will supply steel building installation drawing

2.Send techinican to guide installation on site if customer request.

Additional service:

if need us check the other factory, or need us inspect the container loading , we are glad to help.

By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.

Building Purpose:

we will recommend the best design for the purpose of the building
A. Labor camp

B. Temporary workers dormitory
C. Temporary office building

D. Accommodation house

 1.Are you trader or manufacturer?

Reply: Yes we are factory and Welcome to visit us.

2.What is the MOQ of the order?

Reply:Better 10 sets of foldable container houses to fill a 40ft container or according to client requirement.

4.How about the shipping cost?

Reply: Please provide destination port for us to check for you.

manual derust St2.0 on secondary steel structure.

5.What kind panel used for the roof and wall?

Reply: sandwich panel could be used. Sandwich panel performs well on the heat insulation, sound insulation. Common sandwich materials are EPS, glass wool, rock wool and PU.

6.How to install it?

Reply: We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if needed.

7.Deliver time:

Reply: Depending on the purchase quantity.
