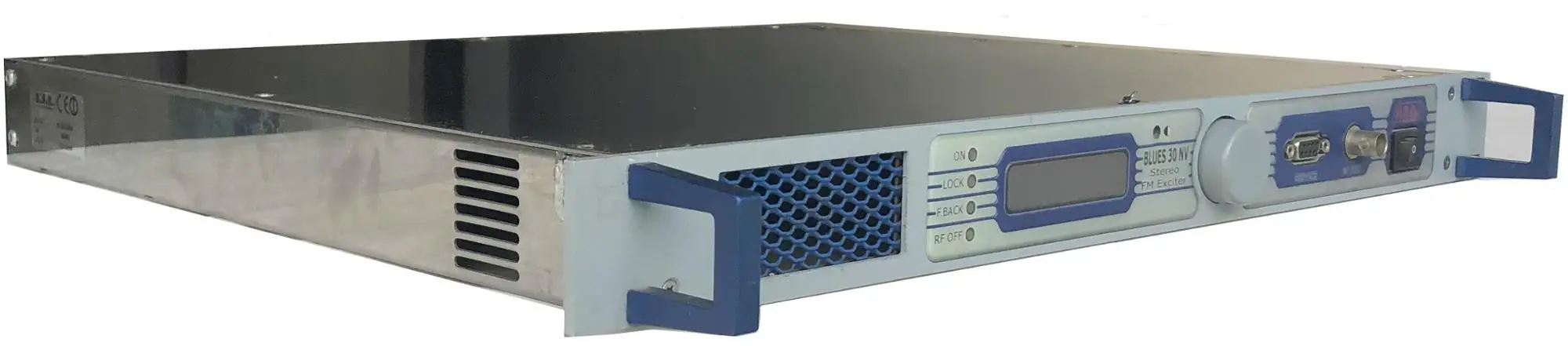

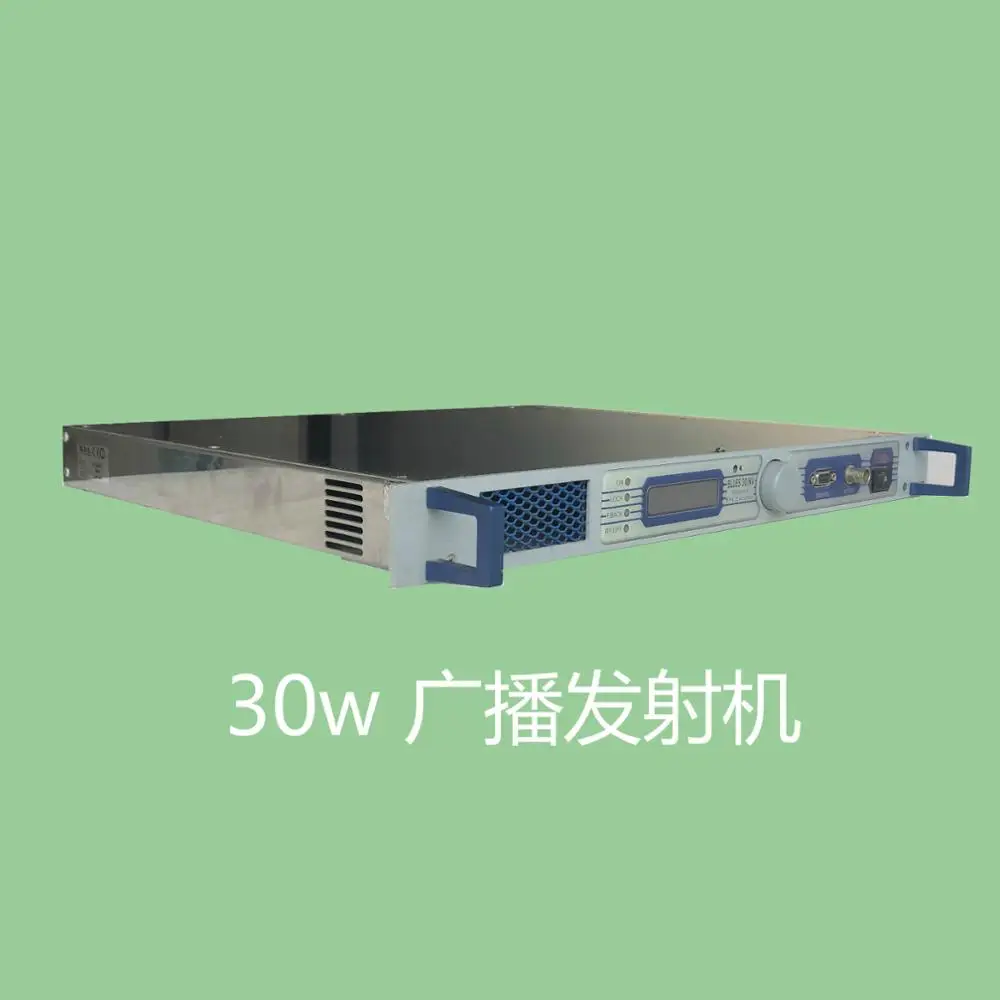

The fm broadcasting transmitter are widely used for professional radio station to transmit high quality FM radio programs, and power amplifier module has the advantages of good linearity, high gain, high power, high efficiency, and long life.
Technical index
No.
Item
Specifications
1
Frequency Range
87.5-108 MHz
2
Output Power
30w
3
Load Impedance
50Ω
4
Output Interface
7/8 flange
5
Residual Radiation
<-70dB
6
Modulation Frequency Offset
100% modulation, 75 kHz
7
Pre-emphasis
50μs/75μs
8
FM Signal to Noise Ratio
≥ 50dB
9
Frequency Response
20Hz-15KHz <±0.1dB
10
Harmonic Distortion
30Hz-15KHz <0.1%
11
Load Wave Suppression Degree
<-45dB
12
Audio Input Level
0 dBm±6dBm
13
Audio Input Impedance:
10K (Unbalanced)
14
Left &Right Signal Level
30Hz-15KHz<0.5dB
15
Degree of Separation
30Hz>53dB (Typical Value: 56dB)
16
Ambient Temperature
-10—+50℃
17
Power Consumption
1.1KW
FAQ
Frequently Asked Questions:
For a better understanding of our products, we collect most possible queryfor your reference, hope it will help you.
Q1.Are you the manufacturer or trading company?
A1. We are the manufacturerand wholesaler of Radio& TV Broadcasting equipments .
Q2. What are these equipments used for?
A2.They are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)
Q3.What equipment & solution your company can provide?
A3.We can do complete solution for FM Radio& tv station system, including fm/tv transmitter, antenna and feeder cable.
Q4.How do I choose suitable equipments for my station?
A4.The most import factors are Power and Frequency. We need to know the Power and Frequency you need exactly. How long the distance do you want to cover in Radius? What height your Antenna can be installed?
Q5. How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4 factors: 1. Power of Transmitter 2. Height of Antenna 3. Gain of Antenna 4. Surroundings. Then we can know the cover range of your station.
Q6. Is the Frequency Adjustable?
A6.FM Frequency is 88~108MHz, TV Band Frequency includes UHF/VHFband.
Our Services
1. We will provide the User Manual in English or operating videos for free.
2. We provide you with 24-hour technical supportby mail or online chat.
3. Warranty: 1 year, after that, chargeable maintenance.
4. OEM/ODM acceptable. But the MOQ of OEM/ODM is 100 sets.
