Скважин Drade S ди тип сережка с винтовым
- Категория: Смычка >>>
- Поставщик: Hangzhou,Zhezhong,Chain,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.42 $* | 0.72 $* |
| Aug-16-2025 | 0.55 $* | 0.13 $* |
| Jul-16-2025 | 0.99 $* | 0.67 $* |
| Jun-16-2025 | 0.25 $* | 0.58 $* |
| May-16-2025 | 0.3 $* | 0.20 $* |
| Apr-16-2025 | 0.24 $* | 0.12 $* |
| Mar-16-2025 | 0.91 $* | 0.9 $* |
| Feb-16-2025 | 0.94 $* | 0.10 $* |
| Jan-16-2025 | 0.6 $* | 0.24 $* |
Характеристики
Product Description
Product Introduction
· Forged G80 alloy steel, suitable for G80 lifting chain
· Individually proof test at 2 times Working Load Limit, with safety factor of 6:1
· Zinc planted, hot dip galvanized and color paint on pin
· Regular Mark: X WLL X T CE+ID & BATCH NO.
· Zinc planted, hot dip galvanized and color paint on pin
· Regular Mark: X WLL X T CE+ID & BATCH NO.

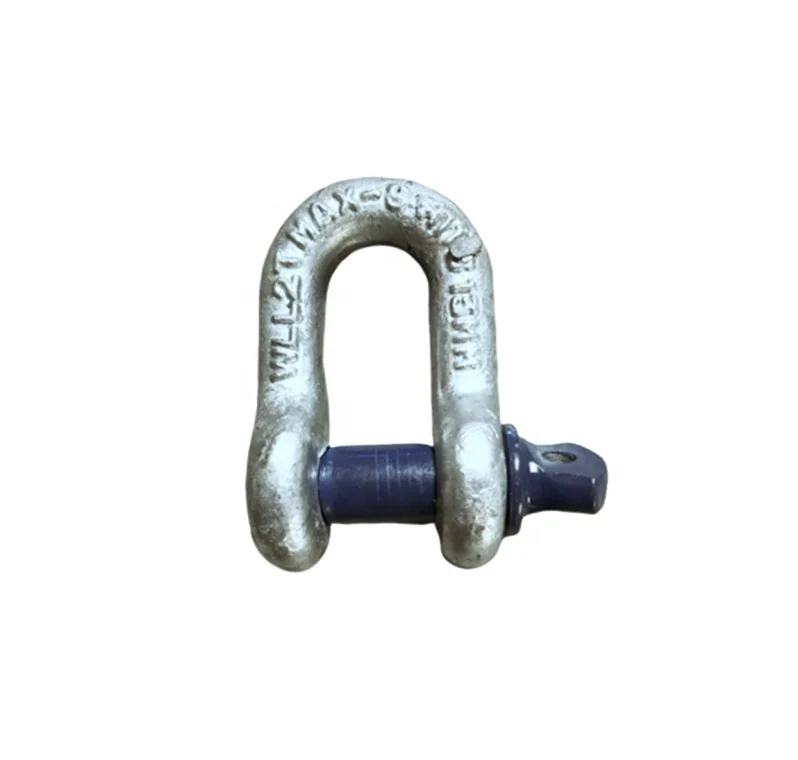

· Shackle Body with Dee type (D)

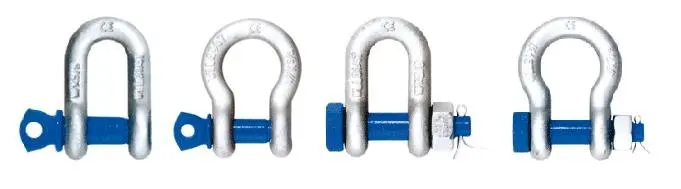

Typical type of pin with Screw Pin (S) & Safety Pin (B: Bolt & Nut and Split Pin)
Body Dia/mm | WLL/ton | MBL/kn | Inside Length /mm (Bow)/(Dee) | Inside Width/mm |
6 | 0.5 | 29.5 | 29/22 | 12 |
8 | 0.75 | 44.2 | 31/26 | 13 |
10 | 1 | 58.9 | 37/32 | 17 |
13 | 2 | 118 | 48/41 | 21 |
16 | 3.2 | 189 | 61/51 | 27 |
32 | 12 | 707 | 119/100 | 52 |

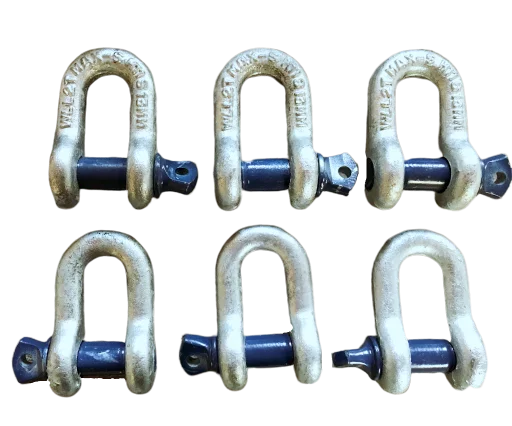

Detailed Images
Outlook
Pin
Mark
Inspection
Inspection
Packing & Delivery
Plastic Bags to Moisture-proof
Carton on Wooden Pallet
Our Factory
About Us
Hangzhou Zhezhong Chain Co.,Ltd (Z2 CHAIN) established in Hangzhou City of China in 2006. We focuses on manufacturing G80 and higher level welded lifting chain. Our main products are G80 and 100 lifting chain based on EN818-2 standard and load chain.We have the most advanced automatic machines industry, and senior engineering group that all had decades of years experience. Based on the good machines, skilled engineers, strict quality control systems and excellent management group, Z2 CHAIN is producing and had already supplied quantity of high quality chains.
Z2LIFTING is a group of Hangzhou Zhezhong Chain Co. and Ruby Imp 7 Exp Co. We located in Hangzhou City of China. Our Business focuses on the manufacturing & supplying the high quality of lifting, rigging, material handing & marine equipments. To ensure safety and meet customers' satisfaction, Z2LIFTING always pay great attention to inspection and delivery. Our aim is not only to be a trader in lifting area, but effort to help our customer grow and build safety and long-term business in their markets.
Exhibition
CHINA HOMELIFE POLAND
2015
NATIONAL HARDWARE SHOW
2018
ASIA-PACIFIC SOURCING
2019
Sample Room
Related Products
U.S. Standard Bow type Shackle With Screw Pin
High Quality Short Link G80 Lifting Chain Complies With EN818-2
G70 Australian Standard Ratchet Loadbinder
FAQ
Q: How long is your delivery time?
A: Generally it is 30-60 days.
Q: What's your packing and delivery?
A: Packing and the way of transport depend on customer's requirement.
Q: What is your terms of payment ?
A: T/T in advance, balance before shipment. Or L/C
If you have another question, pls feel free to contact us as below:
