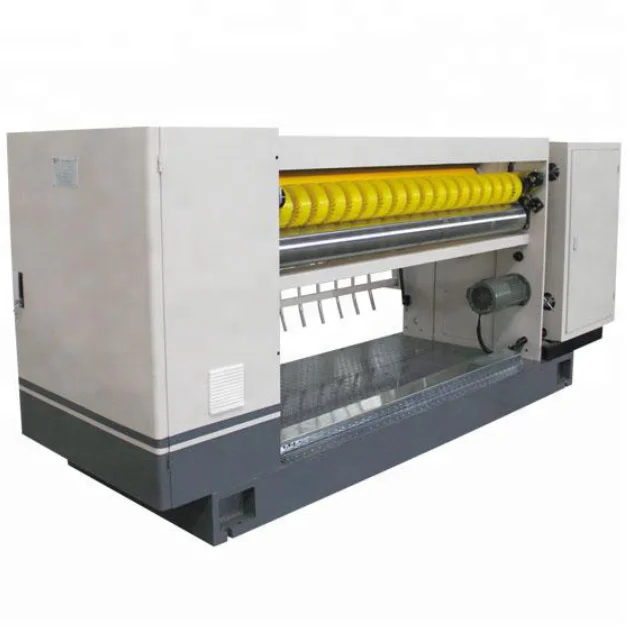

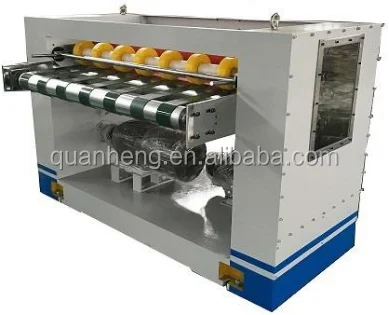

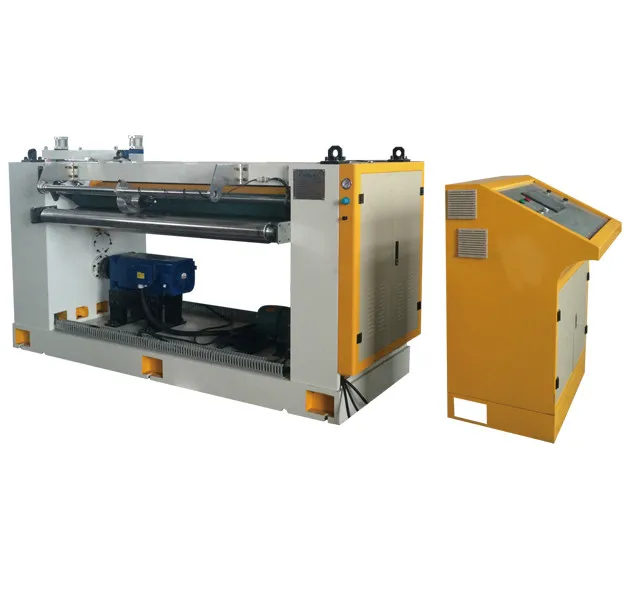

Полностью компьютерный спиральный NC-резак машина для изготовления гофрированных картонных коробок резки листов

technical parameter

Width:   2000mm                           Feeding Height:1050mm

Design speed:150m/min                     outfeed Height: 1000mm

Working speed : 80-120m/min

Paper cutting range:    Maximum 9999mm and minimum 500mm

Paper Cutting Accuracy: ±1mm  Uniform Speed

Diameter of guide paperbaord  shaft: φ136mm

Machine wall total width 1000mm

Working power supply: voltage 380V frequency 50Hz current 152A

Total power: 26 kw

Shape size of the whole machine: 3300 mm * 1550 mm * 1500 mm (length * width * height)

Structural characteristics:

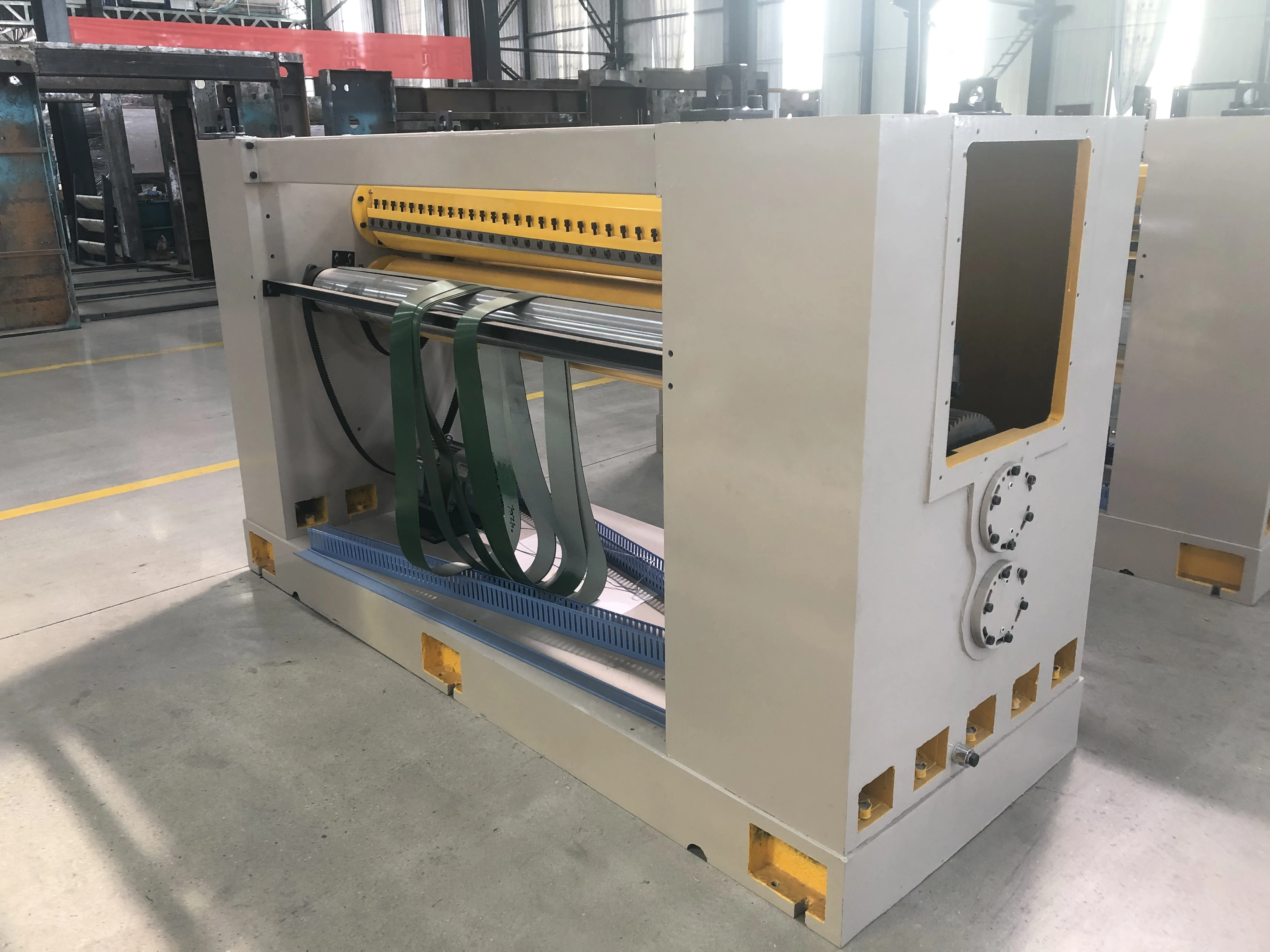

Special structure design, mechanical wallboard and base with excellent strength, wallboard with perspective window.

Easy to observe and maintain.

The transmission system adopts oil pump automatic circulation lubrication to ensure transmission accuracy.

High precision, high hardness grinding gear, high speed resistance, long service life, to ensure that the cutter precise meshing, cardboard flat without hairy edges.

High precision knife shaft, tool holder design, high-speed cutting is very smooth.

The drive part adopts AC servo drive, German Kobe driver, Shanghai Futian motor, high quality, quick response and accurate action.

The system has the function of automatic detection, which can prevent the loss of equipment caused by abnormal use and operation negligence.

The computer can automatically adjust the acceleration of paper cutting according to the specifications and production speed of the cardboard, and automatically track the speed of the cardboard to keep synchronization.

Raw materials and purchased parts

Material for wall panels and base on both sides: HT200 castings

45 steel for upper and lower knife shaft

Blade Material: W18crv5Co5 (High Speed Tool Steel)

Gear material: 20CrMnTi fine grinding and conditioning treatment, grinding accuracy of more than 6 levels, small backlash, low noise, smooth transmission.

Q:Are you manufacture or trading company?

A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company , so we are the source factory, welcome to be our agency.

Q:Do you inspect the finished products?

A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .

Q:Does the packing strong?

A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.

Q:How about after-sales service process?

A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy.

Q.Where is your factory?

A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!

Q. Do you have Import & export right?

A:Yes , we have , so we can export  the carton machines to you directly , without any trading company agency.
