desiccant wheel dehumidifier rotary dehumidifier desiccant rotor dehumidifier

Detailes

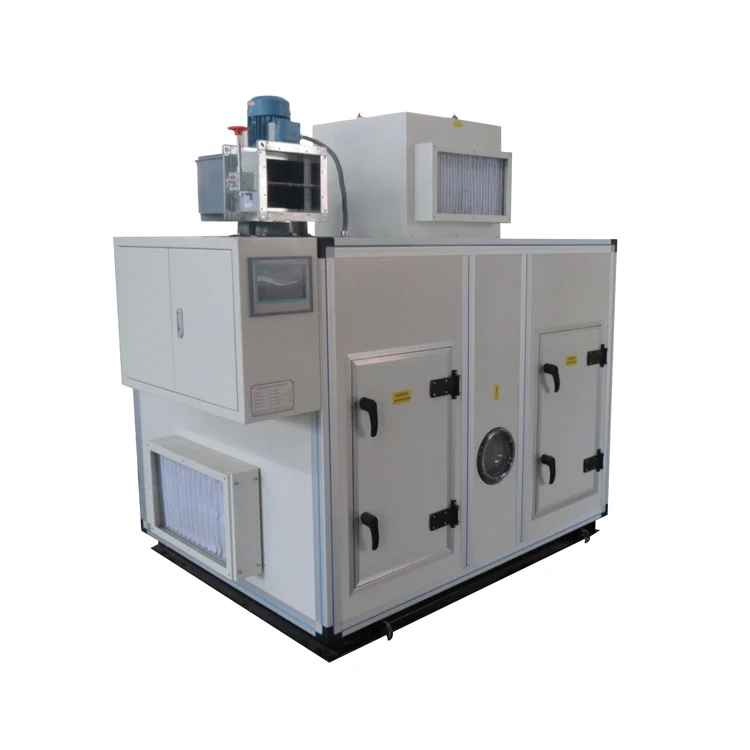

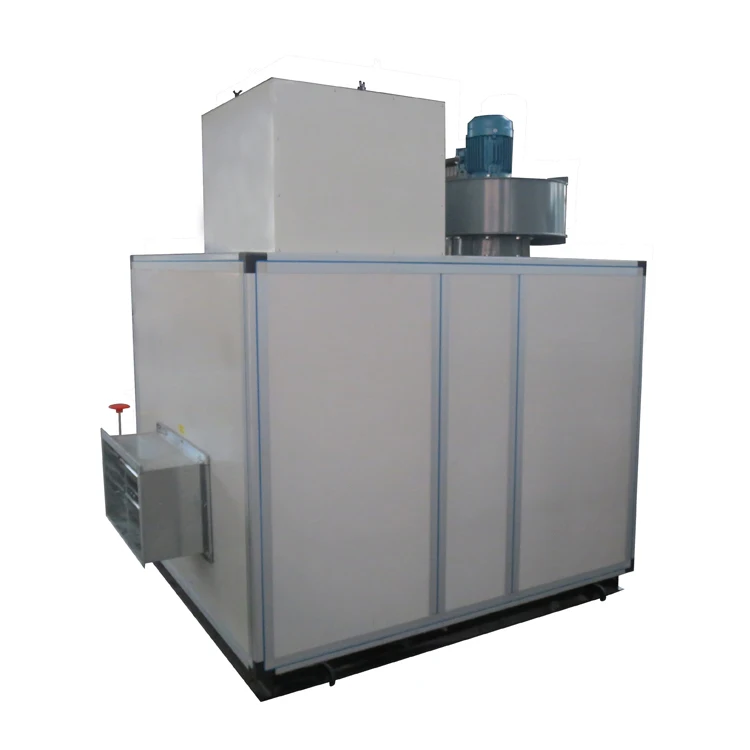

Food Desiccant Rotor Air Handling Equipment, Dehumidify Equipment, Rotor Dehumidifier

Mainly used in laminated safety glass and glass manufacturing. For example: film room together, laminating room.

Plastic film laminated safety glass in transparent thin have strong moisture absorption. Suck the moisture film, will emerge in the manufacturing process to produce steam bubbles. Confined to control the relative humidity in this very important process. Standard design conditions for this application are: at 25% relative humidity and comfortable temperatures



1. High moisture removal

2. Suitable for low temperature and RH process

3. Could be used together with air conditioner

4. Start with domestic first rotor dehumidifier

5. With 30 years professional theoretical and practical experience in dehumidifier field

6. Draw up the national military standard and industry standard of dehumidification equipment



Main parameters of ZL series



Main Parameters/Model		ZLK-2000F	ZLK-2500F	ZLK-3000F	ZLK-3500F	ZLK-4000F	ZLK-5000F	ZLK-6000F
Process Air	Rated Airflow(m3/h)	2000	2500	3000	3500	4000	5000	6000
	Process Motor Power (kW)	0.75	1	1	1.5	2.2	2.2	4
	Process ESP(Pa)	300	300	300	300	300	300	300
Reactivation Air	Rated Airflow(m3/h)	667	833	1000	1167	1333	1667	2000
	React. Motor Power (kW)	0.75	1.5	1.5	1.5	1.5	2.2	2.2
	Process ESP(Pa)	200	200	200	200	200	200	200
Drive Motor	Motor Power (kW)	0.06	0.06	0.06	0.06	0.09	0.12	0.12
Reactivation  Mode	Electric, Max Power (kW)	22.2	27.9	36	39	48	55.6	60
	Steam Pressure (Mpa)
	Steam Consumption(kg/h)	40	48	58	67	77	96	115
Dehumidifying Capacity (20°C,70%) (kg/h)		14.4	18	21.7	25.2	28.8	36	43.2
Total Rated Power (kW)	Electric Heating Mode	23.74	30.46	38.53	42.06	51.79	60.12	66.32
	Steam Heating Mode	1.54	2.56	2.53	3.06	3.79	4.52	6.32
Size (mm)	Length	2084	2084	2143	2550	2580	3320	3640
	Width	1000	1300	1262	1300	1250	1230	1230
	Height	1700	1885	1924	2100	1990	2080	2230
Approx. Weight (kg)		400	600	650	750	800	900	950
Supply Power
Latent heat temperature rise (kW/h)		12~15	15~18	18~22	21~26	24~29	30~37	36~44



Typical application fields

1.  Warehouse, Library and Archives

In low humidity environment, the goods, books and files will not be damaged for a long time.

2.  Pharmaceutical Industry

Widely used in processes need to control humidity in parametrical industries, for example, soft gelatin capsule, fluidized bed, tablet press, coating machine, tumble dryer, tray dryer and so on.

3.  Electronics Industry, Lithium Battery

It is widely used for precision instrument manufacture such as electronic components, astronavigation component, lithium battery etc which needs strict control of moisture.

4.  Chemical Fiber Industry

Used with chiller, it can make the dew point below -40℃ to meet the drying environment for PET chip in the chemical fibre factory.

5.  Food Processing Industry

Used in dehydrated vegetables, chocolate, candy, chewing gum manufacturing, cube sugar store,flour processing, fermentation, drying and other processes.

6.  Space and Aviation

7. Glass Lamination

8. Ship Coating

9. Bridge Anticorrosion

10. Rubber Tire

11. Nuclear power plants

12. Printing



Work principle

The core component of rotary dehumidifier is the 8-16 hour spin in turn densely cellular Conde desiccant wheel. The desiccant wheel on both sides by high-performance silicon fluorine rubber seals along the entire surface of the radial will be divided into 270 ° of the treatment area and 90 ° of the regeneration zone, when the moist air comes into the processing area, the air moisture in the desiccant wheel was absorbed into dry air, dry air meet the need of dry place or gas production process.
