10/100M 5V 1A Ethernet OPtical Fibre Media Switch/Converter 10/100Base-TX to 100Base-FX

Product Description

Fiber optic switch SST-6F2EH-1X9 has 2*10/100Mbps Ethernet ports and 6*155Mbps fiber ports.It is equipped with imported chips to ensure low power consumption and high stability. It extends the transmission distance of a network from 100m to 120km via copper cables; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.



Specifications

10/100M 5V 1A Ethernet OPtical Fibre Media Switch/Converter 10/100Base-TX to 100Base-FX specs:

  Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3z 1000Base-SX/LX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree

IEEE802.1az

Certifications

CCC, CE, FCC, RoHS

Ethernet Port

Connector: RJ45

Data Rate: 10/100M

Distance: 100m

UTP Type: UTP-5E or higher level

Fiber Port

Connector: SC/FC/ST slot

Data Rate: 155Mbps

Optical Wavelength: 850nm/1310nm/1490nm/1550nm

Distance: 2km~120km

Performance

Processing Type: Store and Forward

MAC Table Size: 2K

Buffer Space: 2Mbit

Back bandwidth: 1.6G

Time Delay: <150μs

Power

Power type: external power supply

Input Voltage: AC100V~240V  50/60Hz

Connector: DC Socket

Working Voltage: 5V

Power Consumption: 4W~10W

Environment

Storage Temperature: -40~70℃

Operating Temperature: -10~55℃

Relative Humidity: 5-90% ( no condensation)

Warranty

3 years

Physical Characteristics

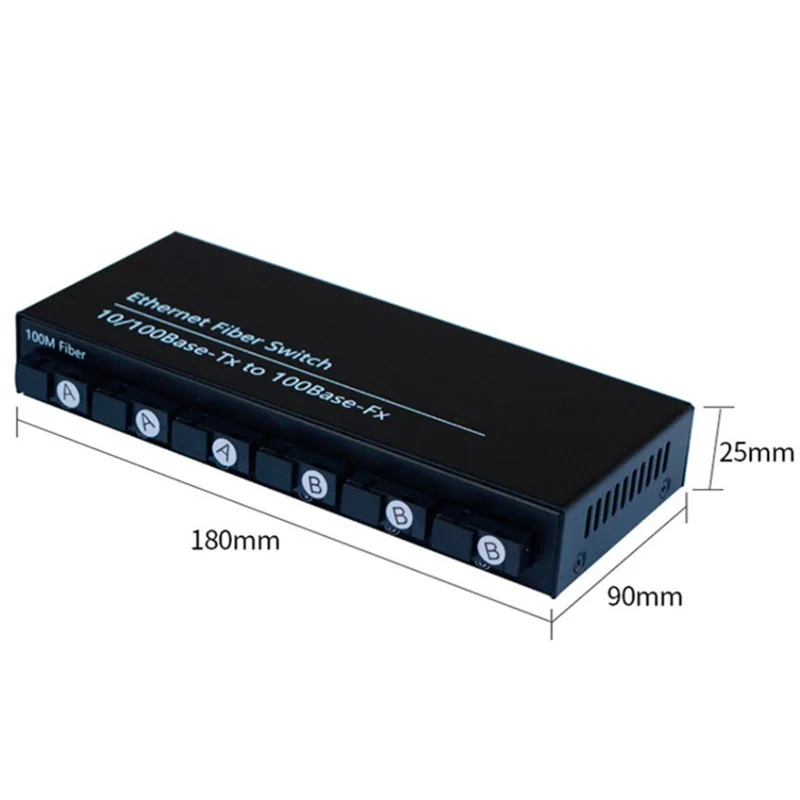

Dimension: 180mm*90mm*26mm

Weight: 0.7kg

Color: Metal, Black



Product Avantages

10/100M 5V 1A Ethernet OPtical Fibre Media Switch/Converter 10/100Base-TX to 100Base-FX advantages:

  • Support the switch between 10/100Base-T and 100Base-FX
  • 8*155Mbps full-duplex fiber ports and 2*10/100M adaptive Ethernet ports
  • Support MDI/MDIX and half/full-duplex with auto-negotiation function
  • Each port has the complete LED Indicator light
  • Support single mode single fiber, single mode dual fiber, multi-mode dual fiber and SFP slot
  • Support IEEE802.1d Spanning Tree
  • Support high performance QoS function on each port
  • Support broadcasting storm protection
  • Support 5-16V voltage input
  • Support 2M bit buffer space
  • Internal 2K MAC Address Entities
  • Support IEEE 802.3x flow control and back pressure control
  • Require no configuration and will instantly operate as soon as you power it up
  • Use US Marvel industrial chip, low power consumption and high stability
  • Heat sink built in to ensure longtime efficient operation.

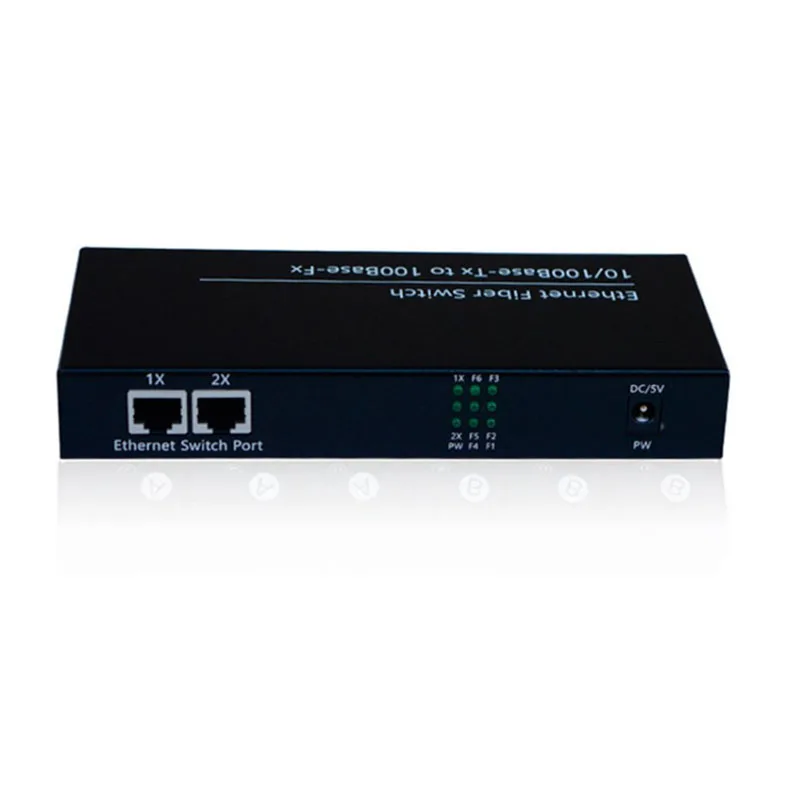

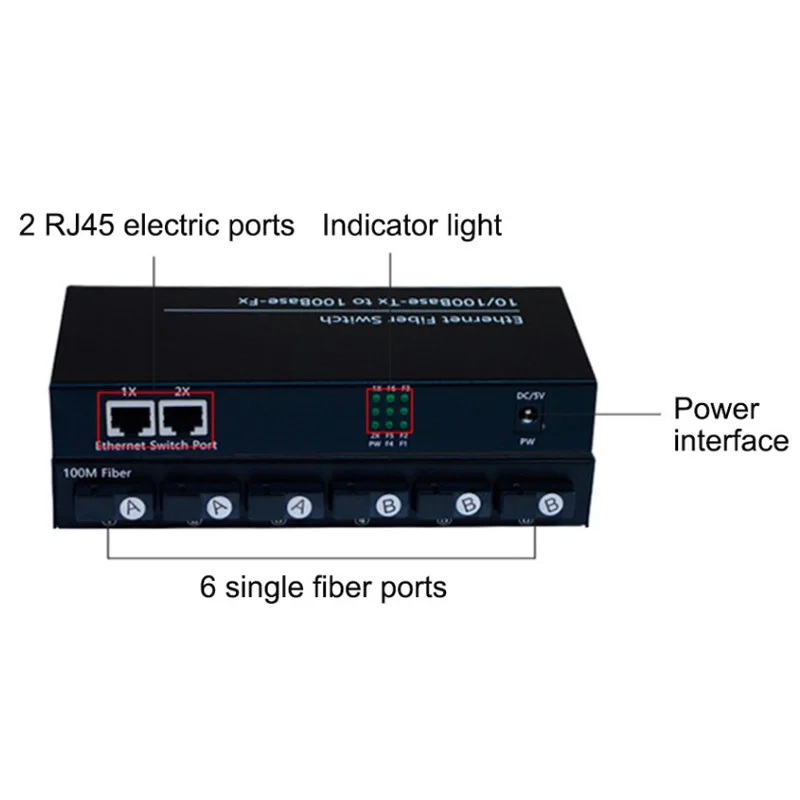

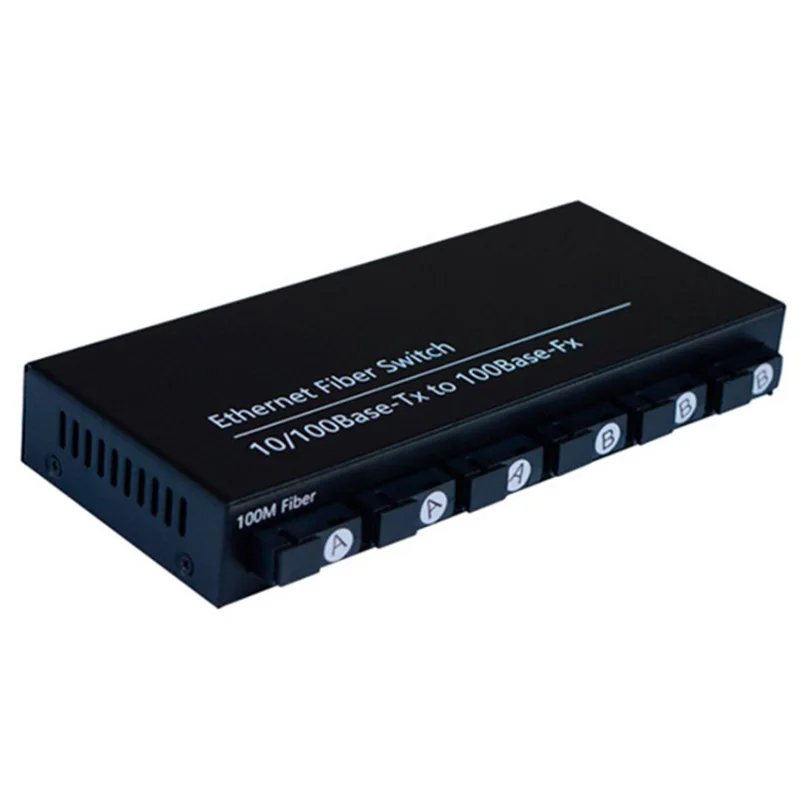

Detailed Images

fiber switch 2.jpg



fiber switch 5.jpg



fiber switch 3.jpg



fiber switch 1.jpg

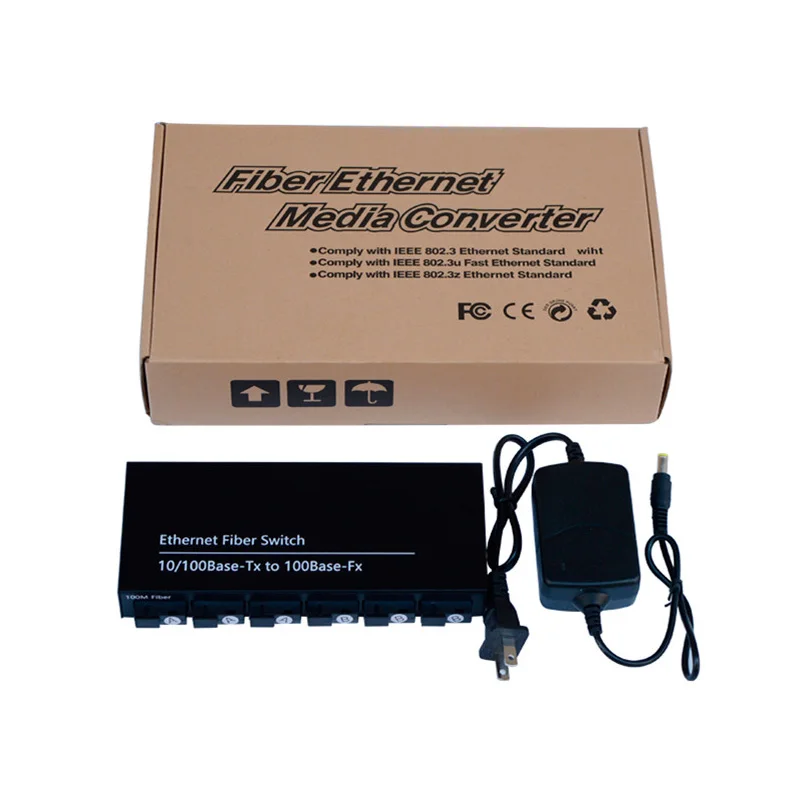

Packaging & Shipping

fiber switch 4.jpg



fiber converters.jpg
