Китай высокое качество тележка

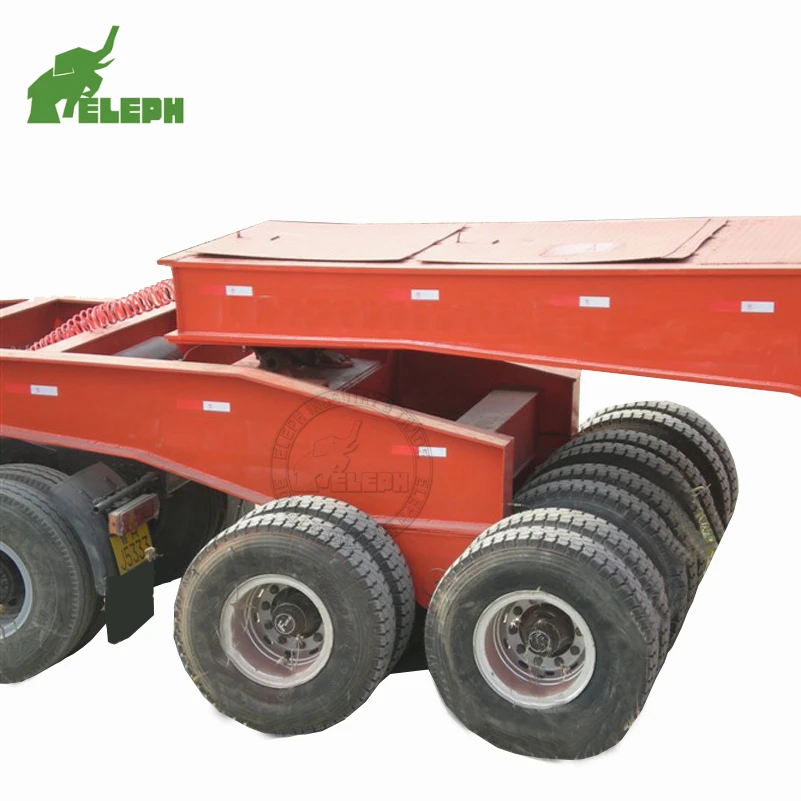

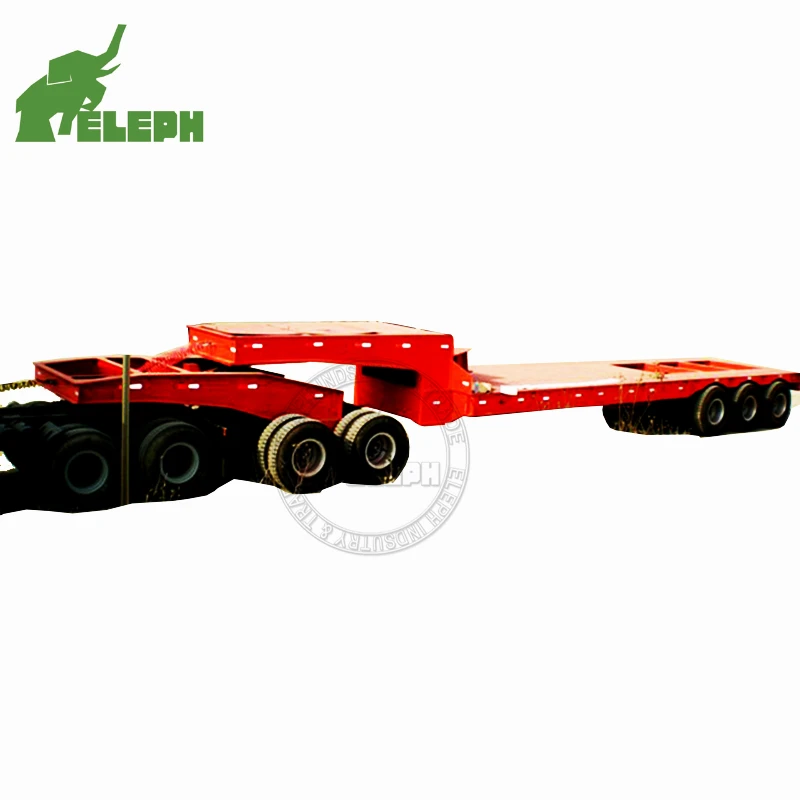

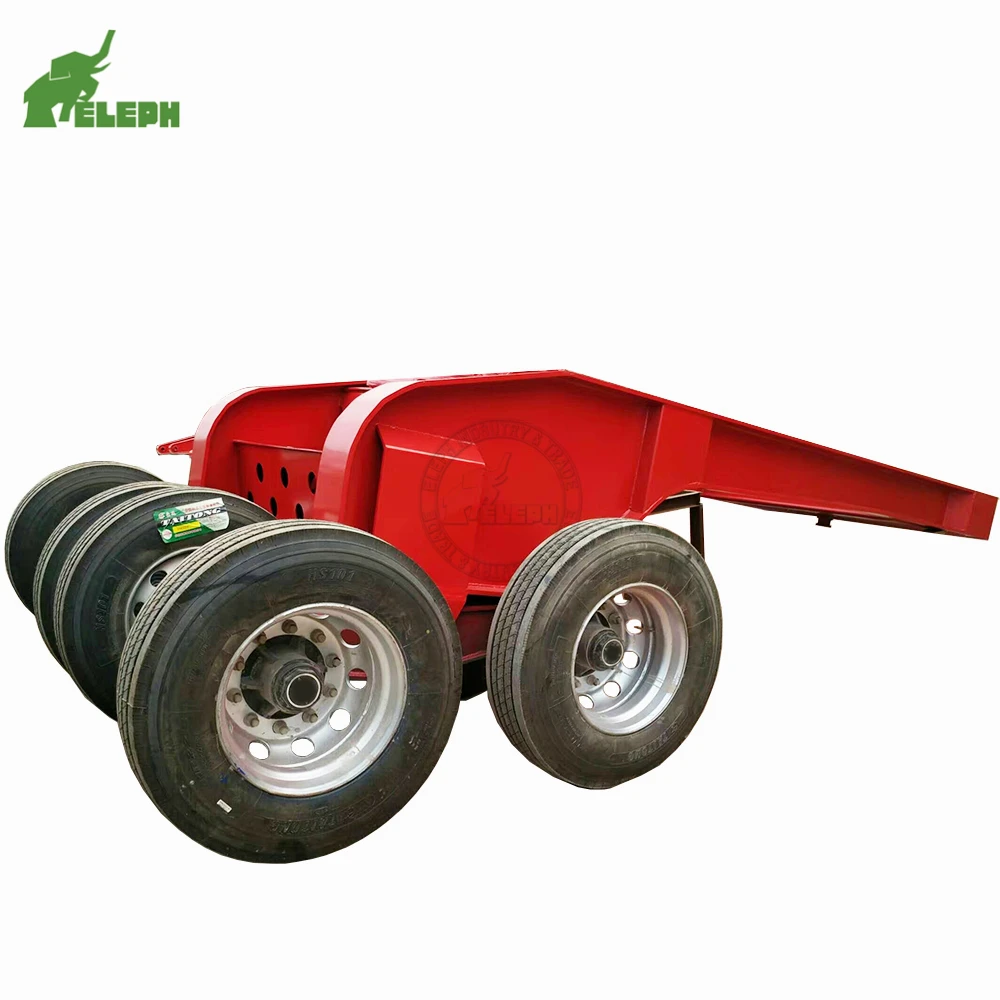

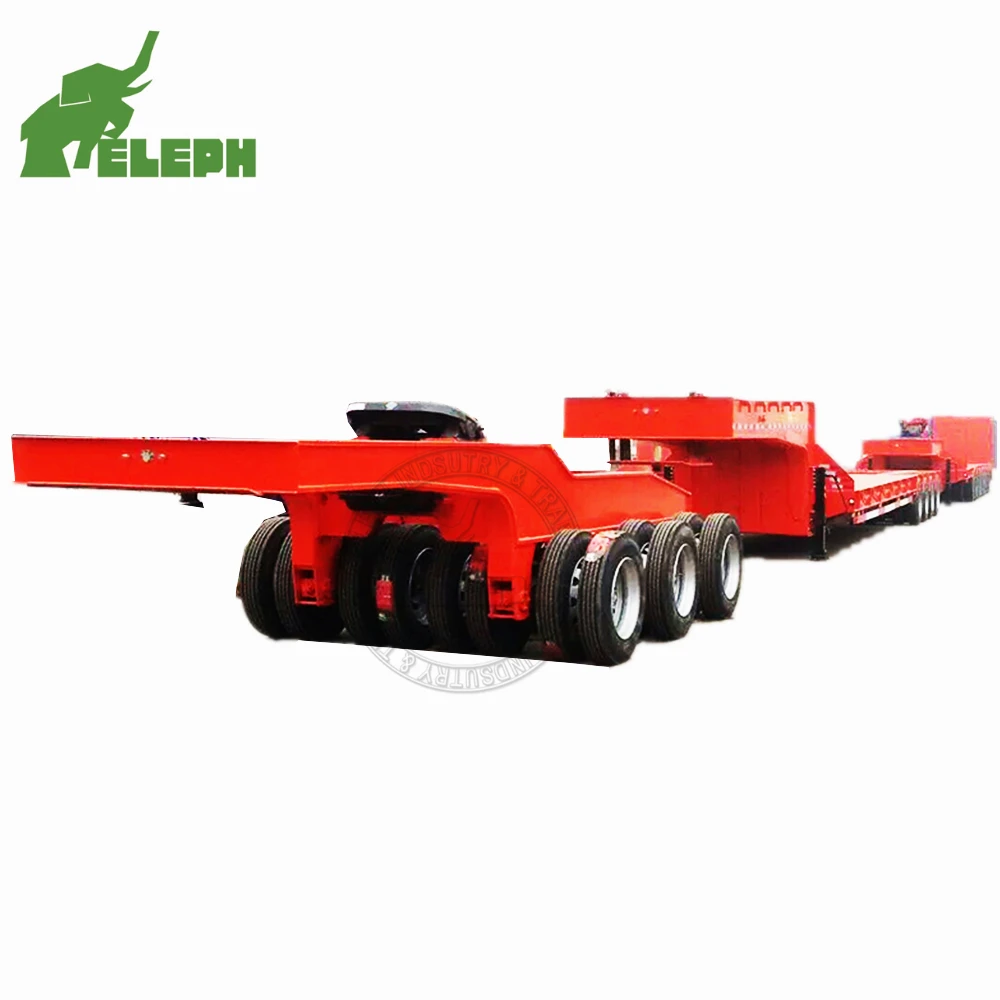

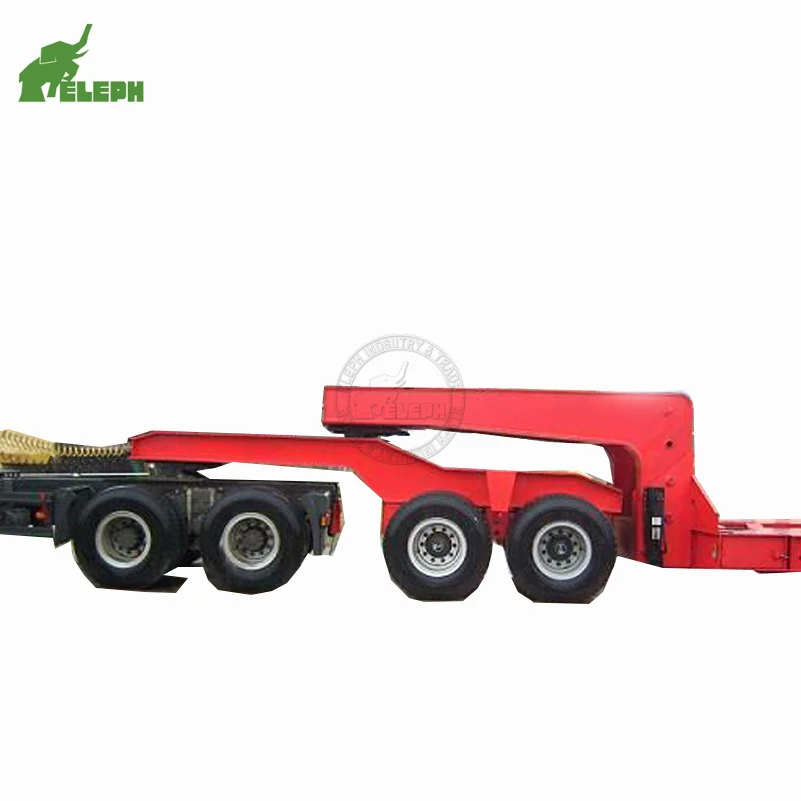

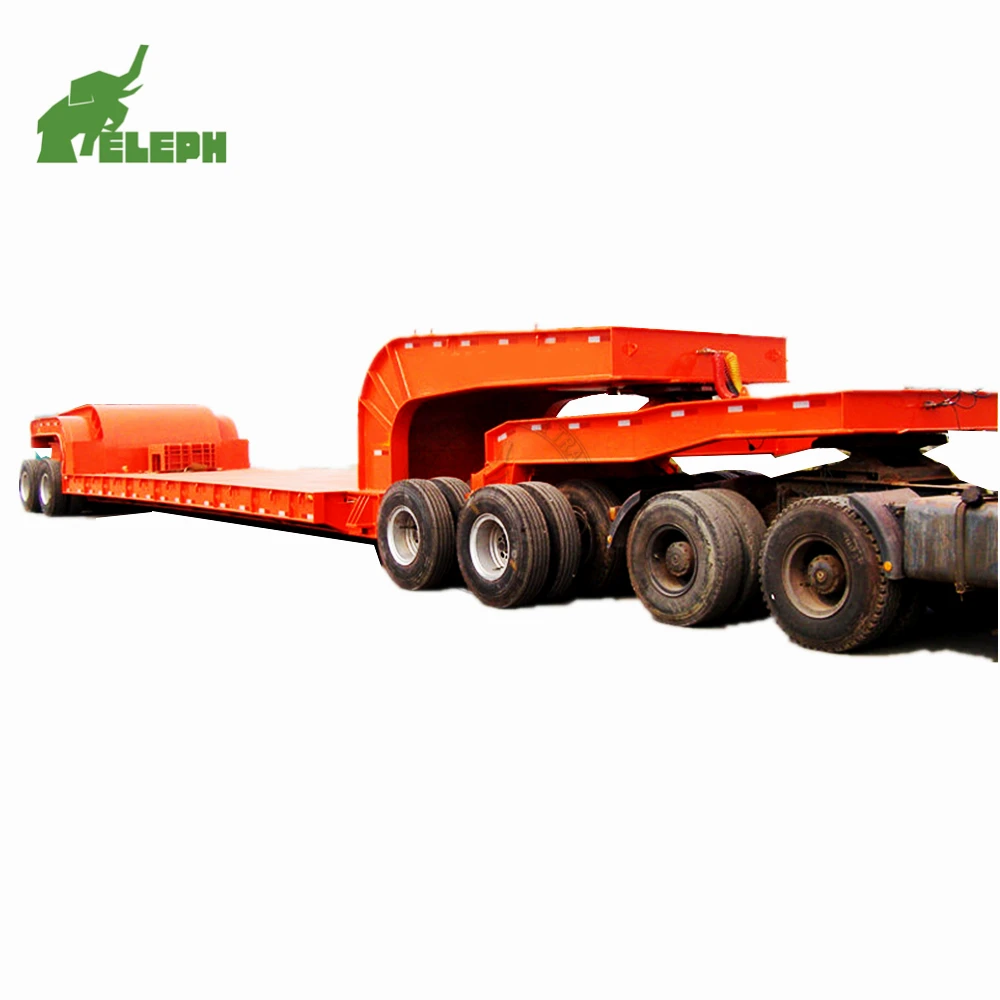

Heavy Duty Machinery Transport Dolly Trailer

Model

ALP9350LBST

Dimension(Optional)

Axle No.

Rated Load (kg)

Tire No.

Tire Size

Dimension Made by Customer Machine Size,

(contact supplier for more)

1

15

4

825R20 1000R20 1100R20 1200R20 12R22.5

2

40

8

3

60

12

4

80

16

Wheel Base  (mm)

1310

leaf-spring Pcs

10

Axle

13/16/18 T

Suspension

Heavy Duty Mechanic Suspension with Leaf Springs

Main Beam Material

Q345B manganese plates, automatic submerged arc welded

Brake System

Dual line braking system with automatic braking system/chambers

Brake Air Chamber

Double Model

Kingpin

2' or 3.5' Interchangeable

Landing gear

28T loading capacity with 80T static lifting capacity.

Platform

4-6 mm diamond steel plate

Brake System

Dual Lines Braking System With Automatic Air Chambers

Brake Air Chamber

Four double and two single chamber

Electrical System

24V, 7core socket, lights according to European standards.

Mainbeam Size

Upper plate

14mm

Lower plate

16mm

Mid Web

8 mm

Height

500-520mm

Tool Box

1 box of standard tools
