1.0. Introduction

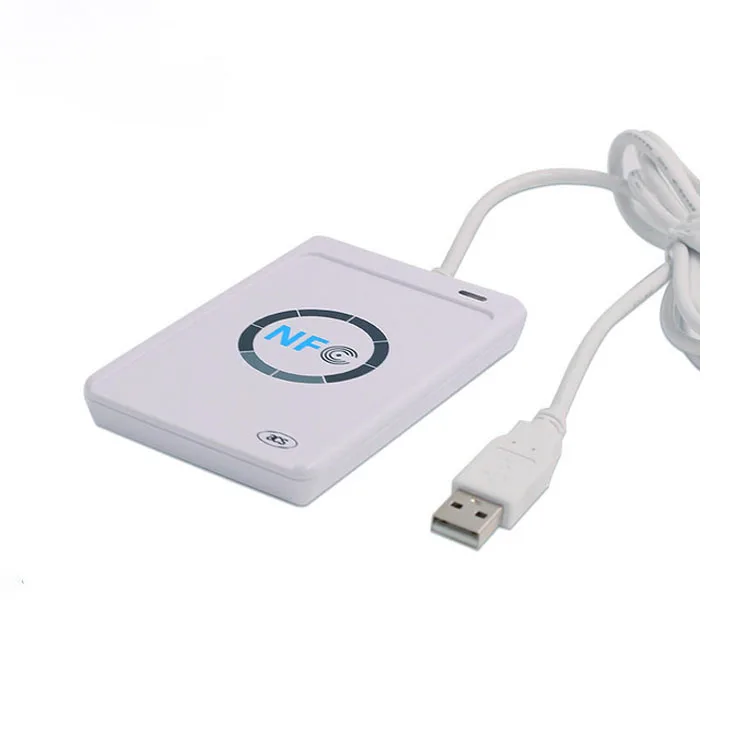

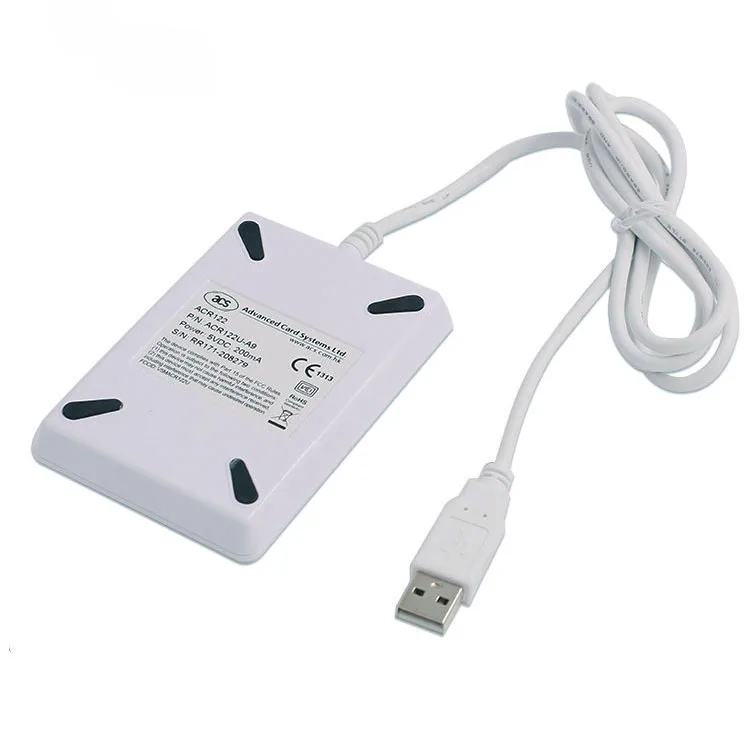

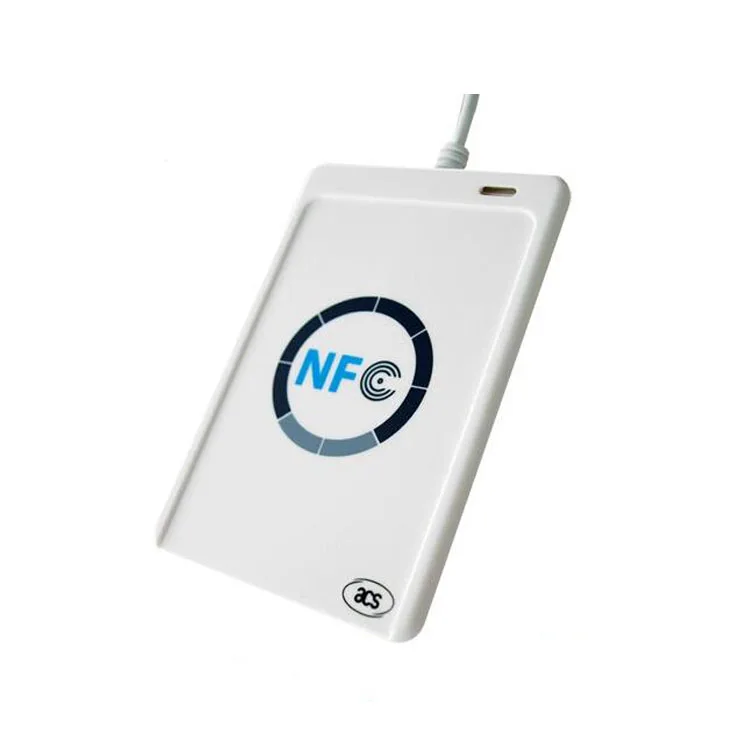

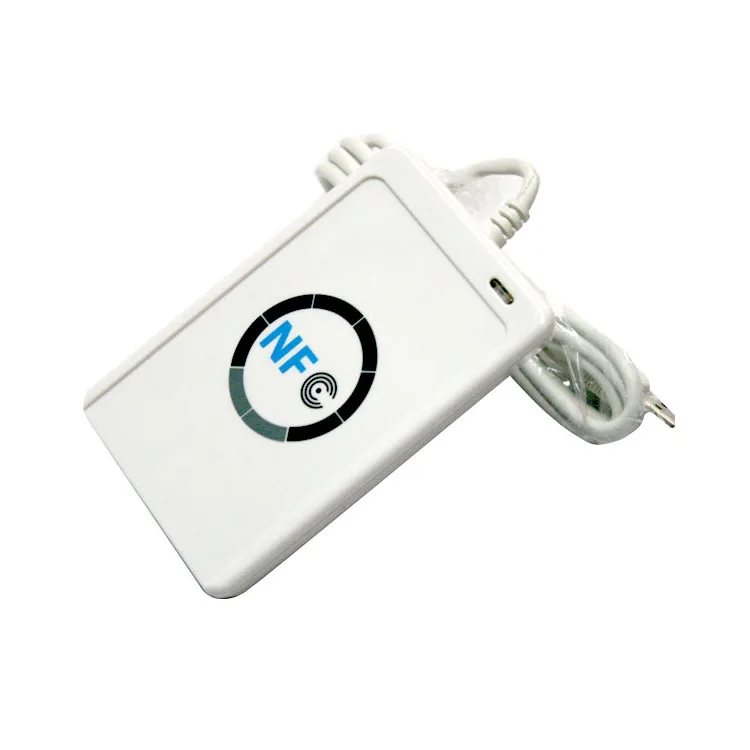

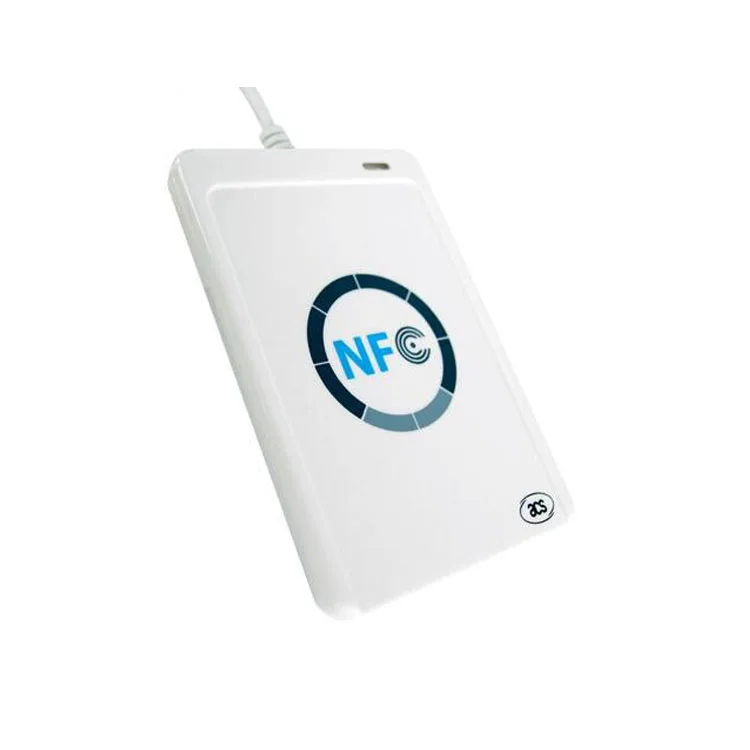

The ACR122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only  ISO 14443 A and B cards, but also all four types of NFC tags.

ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.

In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

The ACR122U NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.

The ACR122U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR122U with ease.

1.0. Features

• 2.0.Features
  • USB Full Speed Interface
  • CCID-compliant
  • Smart Card Reader:
  o Read/Write speed of up to 424 Kbps
  o Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  o Supports ISO 14443 Part 4 Type A and B cards, FeliCa, and all four types of NFC (ISO/IEC 18092 tags)
  o Built-in anti-collision feature (only one tag is accessed at any time)
  • Built-in Peripherals:
  o User-controllable bi-color LED
  o User-controllable buzzer
  • Application Programming Interface:
  o Supports PC/SC
  o Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ 3.1 and later1
  • Compliant with the following standards:
  o EN 60950/IEC 60950
  o ISO 14443
  o ISO 18092
  o USB Full Speed
  o PC/SC
  o CCID
  o CE
  o FCC
  o RoHS 2

1.0.  Typical Applications

• e-Government


• e-Banking and e-Payment


• e-Healthcare


• Transportation


• Network Security


• Access Control


• Loyalty Program
