Product Description

Product Application

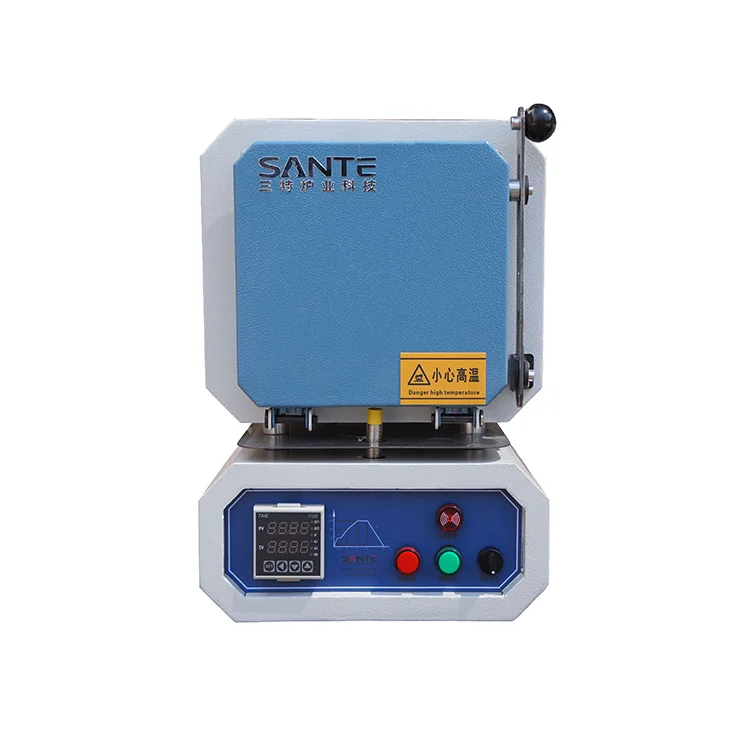

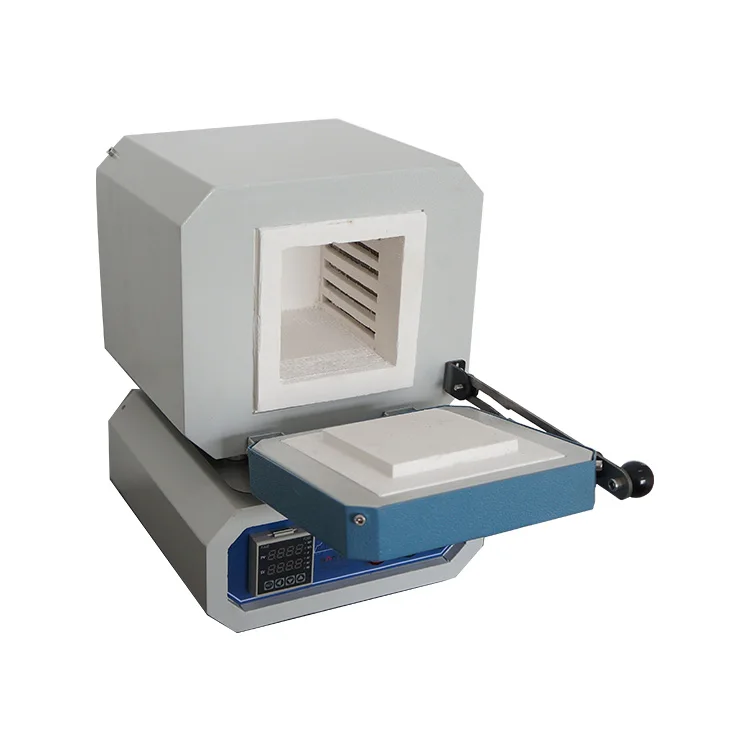

Laboratory Daily Using Small Size Muffle Furnace 1000c With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system;

\t
Model No.
\t
STM-1-10
\t
STM-8-12
\t
STM-18-12
\t
Chamber size(mm)W*D*H
\t
100*100*100
\t
200*300*120
\t
250*300*250
\t
Power supply
\t
220V/1.8KW
\t
220V/3KW
\t
220V/6KW
\t
Max.  temperature
\t
1000 ℃
\t
Continuous temp.
\t
900℃
\t
Heating rate
\t
≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )
\t
Accessories
\t
One pair of high temperature furnace gloves;
One pair of crucible stongs
\t
Optional devices
\t
Paperless recorder
Stainless steel exhaust chimney
Alumina crucible

Main Features

1. The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
2. The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
3. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
4. High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
5. Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
6. Electronic components are used Delixi products, with leakage protection, safe and reliable
7. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature.
8. When the instrument program is set, just press the run button and the next work will be completed automatically

9. Optional air inlet can be used to purge and protect the inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location.

Detailed Images
Packing & Delivery
\t
Packaging
\t
Size
\t
380 (L) * 380 (W) * 520 (H)
\t
Weight
\t
25KG
\t



Packaging Details
\t
1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
Our Company

About Us

Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan﹒China Free Trade Zone. SAFTHERM products cover 1000℃/1200℃/1300℃/1400℃/1600℃/1700℃/1800℃ Box furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on.

Our company has passed ISO9001 quality certification, CE certification and SGS factory certification. It also has got a number of technical honors like "Scientific and Technologic Enterprise of Henan Province", "National Small and Medium-Sized Sci-Tech Enterprise", "Refractory Material Technology Sintering R&D Center" issued by Science and Technology Department of Henan Province.
Before the products leaving the factory, it will be carried out QC processes, which including electrical test, temperature test, temperature accuracy calibration, furnace size check, furnace material check, product appearance inspection, electrical grounding safety test; ensure that each product is safe and qualified.
