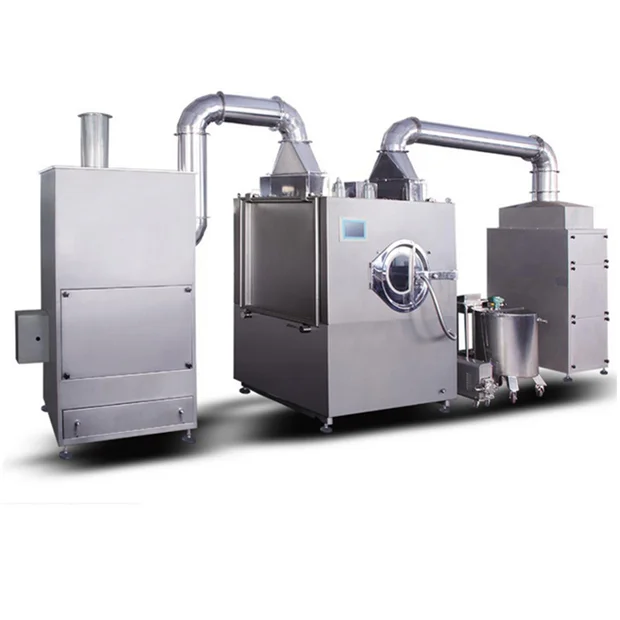

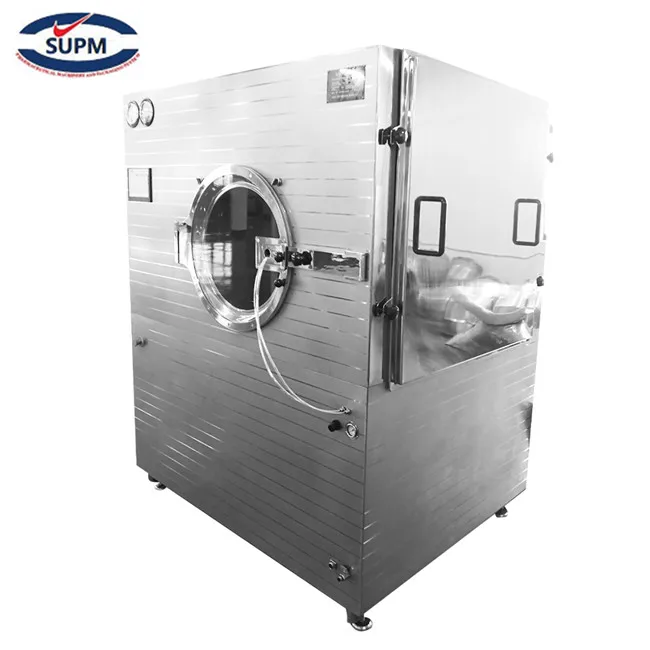

high output Automatic Closed Candy chocolate beans coating machine can used Chewing gum sugar film Tablet pill thin film coater









Product Description

Applications

It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc.

Characteristic:

1. All operations can be finished through pushing the touch key on the computer-controlled panel. The operational panel is a full-sealed slight touch film interface. The main machine has reliable and stable performance.

2. The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the quality of finished products.

3. Automatic feeding device stopped the cross pollution, convenient to feed, with high efficiency and full direction. The coating boiler equipped in the high pressure spray gun, which can rotate 1800, there set a cleaning sprayer at the air exhaust exit and hot air mouth, which can be rotated in automatic and full direction, without dead corner more convenient to clean.

4. Select the imported Japan ANEST IWATA spray gun. It's convenient to operate and easy to master and flexible controlled technological requirement. The spray gun head requirement must keep in the range of 0.29 MPa to 0.39 MPa.

5. Angle and sector can be adjustable, uniform density and particle in spray pressure and 0.4-0.5MPa in atomization pressure that avoid the dropping leakage and blockage phenomenon of size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and sector.

6. Film coating machine contains the mechanical device of cauldron wrapping little material can coat at least 20kg plain pills in 150 type coating machine, regulate through it inherent machinery, make a small mount of medium coat in cauldron and will not cause the wasted of dressing and greatly improve the scope of appliance.





Technical specifications





Item/model		BGB400
Loading Capacity (kg/batch)		400kg
Drum Revolution (r/min)		0-13rpm
Main Machine Power		3KW
Diameter of coating drum		1580mm
Power of air exhaust cabinet motor		7.5KW
Air exhaust flow		10000m3/h
Power of hot air cabinet motor		2.2KW
Hot air flow		3517 m3/h
Weight of main machine		1000 kg
Clean air	Pressure	≥0.4MPa
	Air consumption	1.5 m3/min
