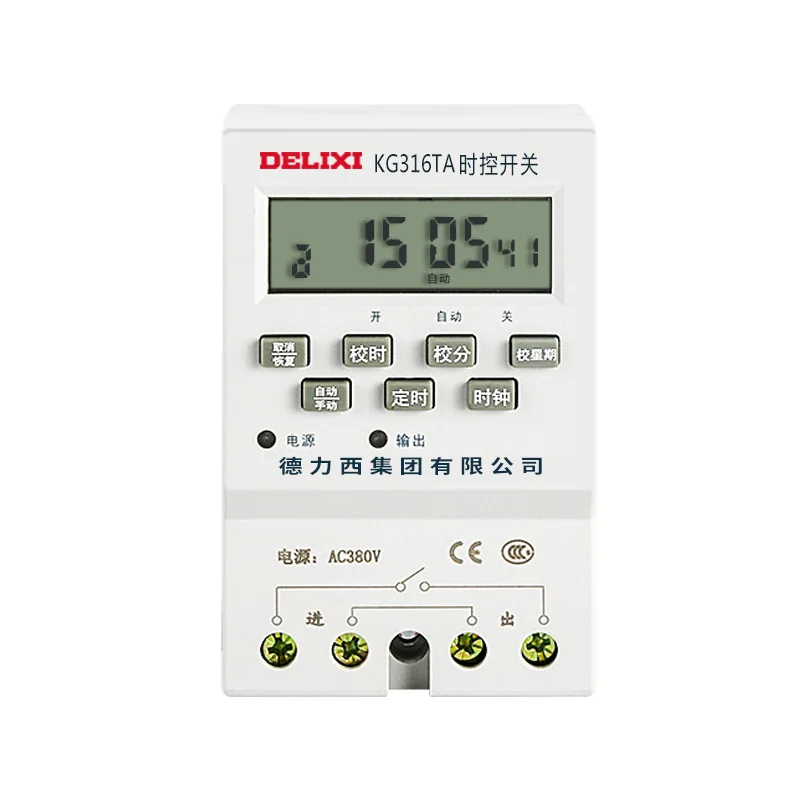

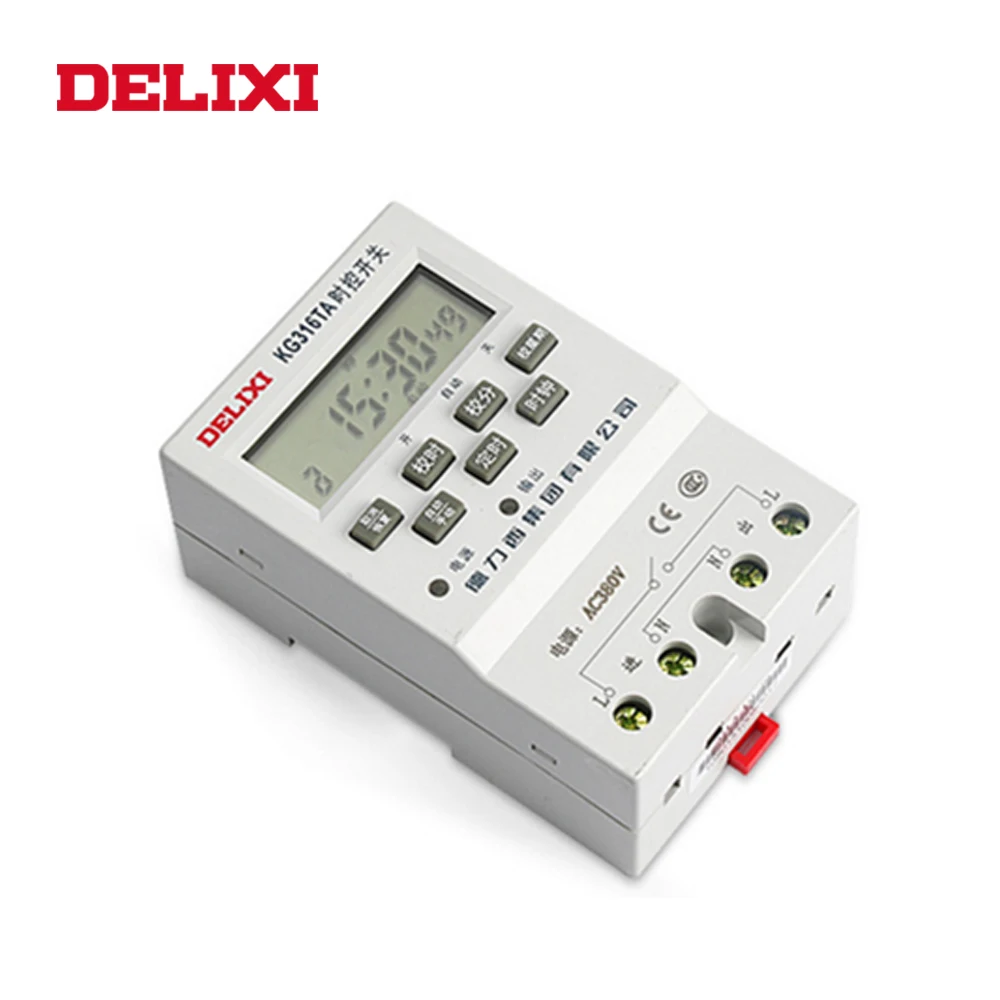

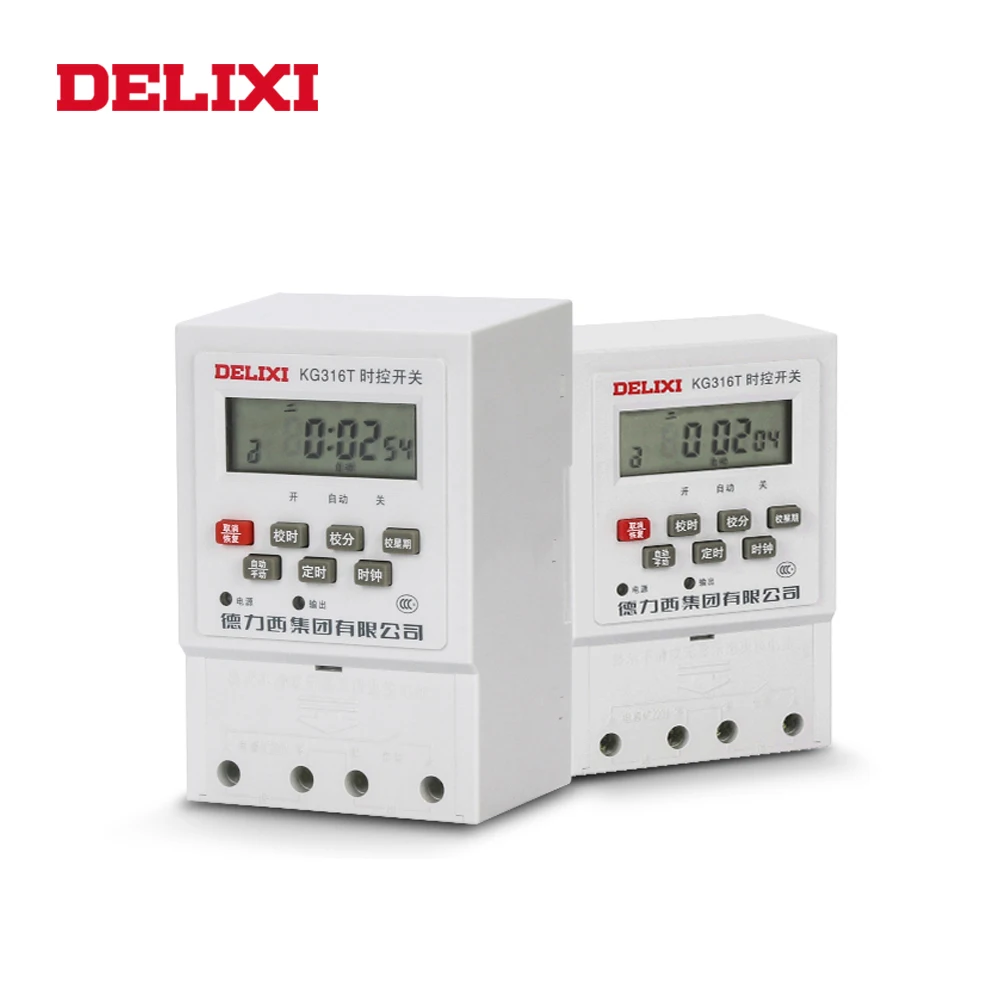

KG316t Timer Switch

SELECTION GUIDE
PRODUCTION NAME	Number of output circuit groups	Setting control power supply voltage
KG316T	Default: time-controlled single output 2: Time-controlled dual output 21: Time-controlled single output R:Time-control switch Y:Time-control switch A:Time-control switch	220:AC220V 380:AC380V

Max. Current: 25A

Max. Voltage: 250V

Mechanical Life: 1,000,000 times

Electrical Life: 100,000 times

Power Consumption: Less than 3W

 Feature:

1) AC frequency 50Hz, rated control power supply voltage AC380V and below.

2) In the automatic control circuit, as a time control component, turn the circuit on or off for a predetermined time.

3) This series of products mainly consists of voltage converter, rectifier regulator, microcomputer timing chip/storage/decoding/driver, LCD display, digital preset, electronic switch, execution relay and components such as the outer casing.

4) This series of products adopts 8-bit microprocessor time-control chip directly packaged on PCB board, peripheral use patch components, surface mount technology, LCD liquid crystal display, high-power relay output, battery can be externally replaced, and small size, low power consumption, strong anti-interference ability, etc.
