Электромотор для автомобиля QS 2000W 205 50H V2

It's QS electric In-Wheel Car Hub Motor for Conversion Kits, which can be used in convert gasoline to electric car.

Especially suit for light weight car (around 400-800kg).

1. Feature

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

3. Production Description

• Motor Type: BLDC Hub Motor with Permanent Magnet


• Motor design: Single axle out without


• PCD for rim installation: 4 x100mm, 5x114.3mm


• CB: >60mm


• Magnet Height: 50mm


• No. of Pole Pairs: 23 pair


• Rated Power: 2000W


• Peak Power: 4000W


• Rated Voltage: 72V( 48V-96V Can be optional)


• Speed: 50km/h (20-60km/h can be customized


• Max No-load RPM: 900RPM


• Max Torque: 162N.m


• Max Efficiency:90%


• Continious current:41.6A


• Brake type: Disc brake


• Winding Core material: Aluminium


• Cross Section of Phase wire: 10 mm2


• Hall sensor phasing angle: 120 degree


• Temperature Sensor: Optional


• Max. Working Temperature: 70 degree, Peak 120 degree


• Waterproof Grade: IP54


• Color: Black


• N.W./ G..W. : 13.2kgs /14.6gs


• Package Size: 34*34*33CM

Pictures Show

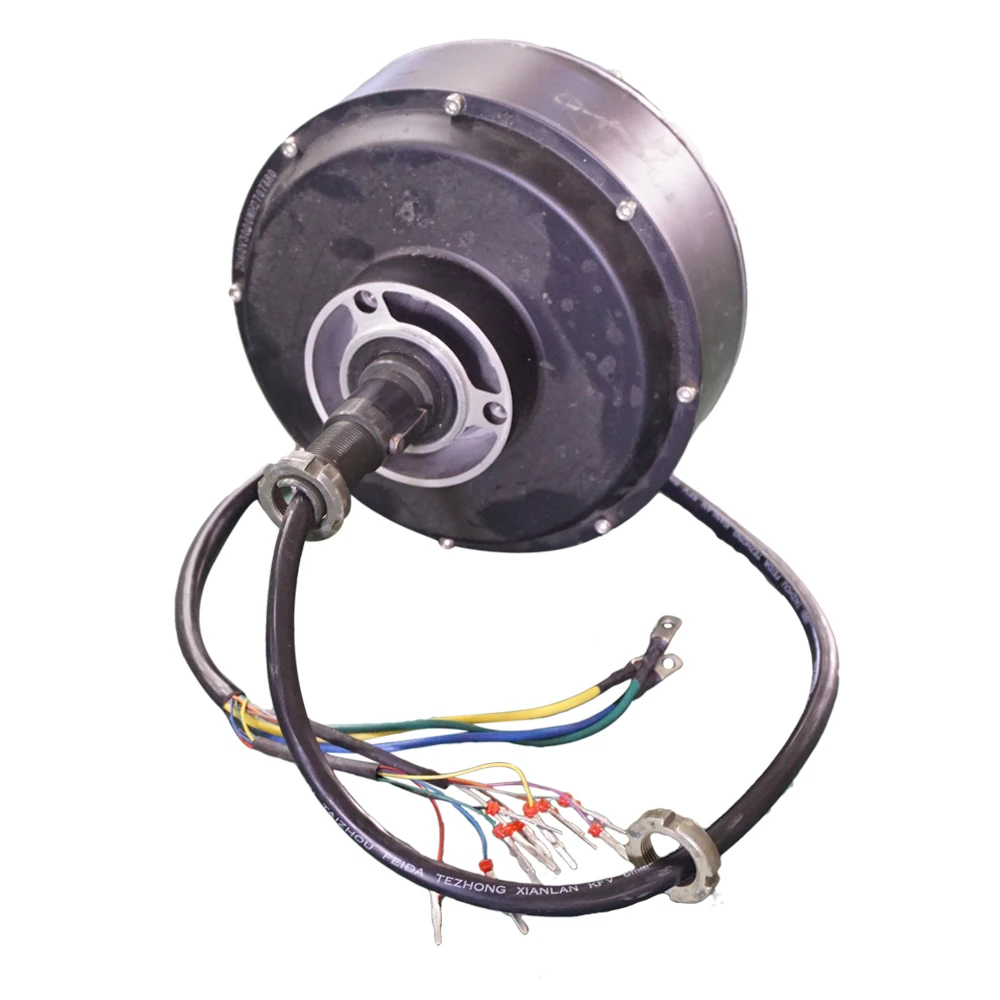

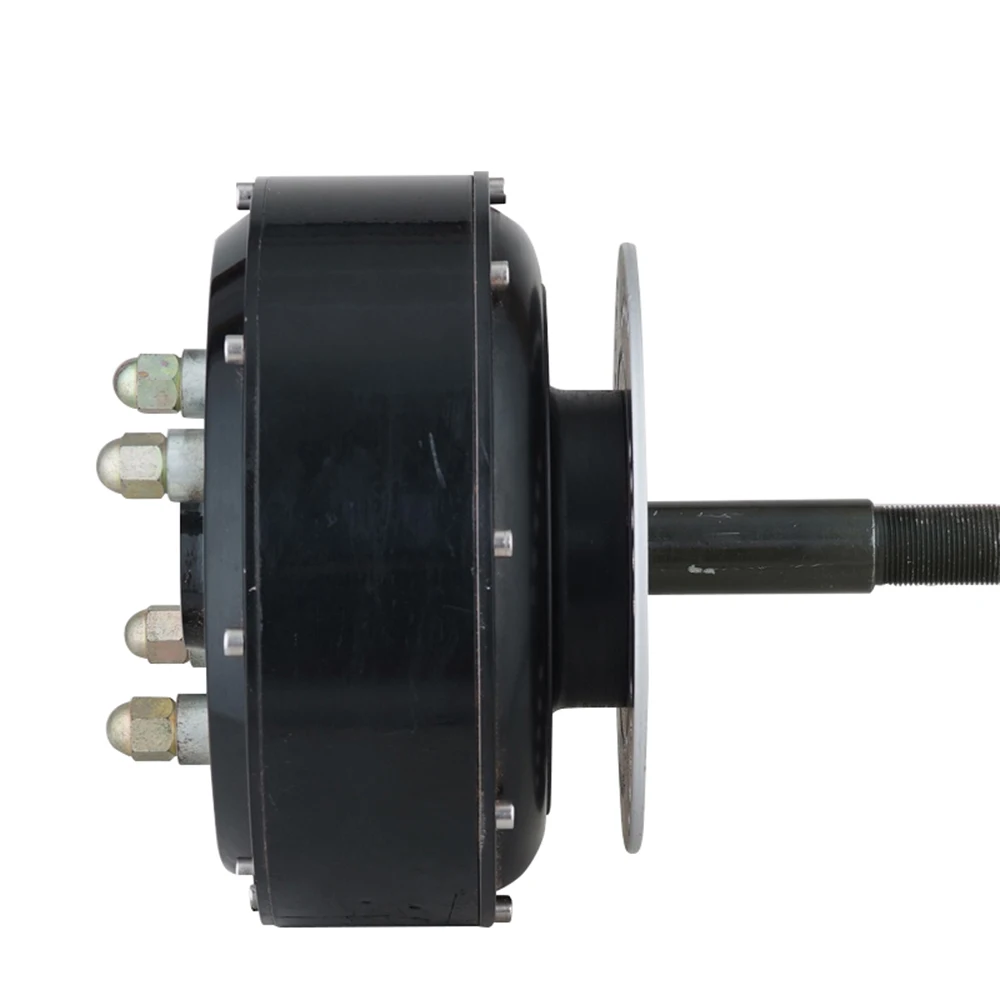

Iron convering:

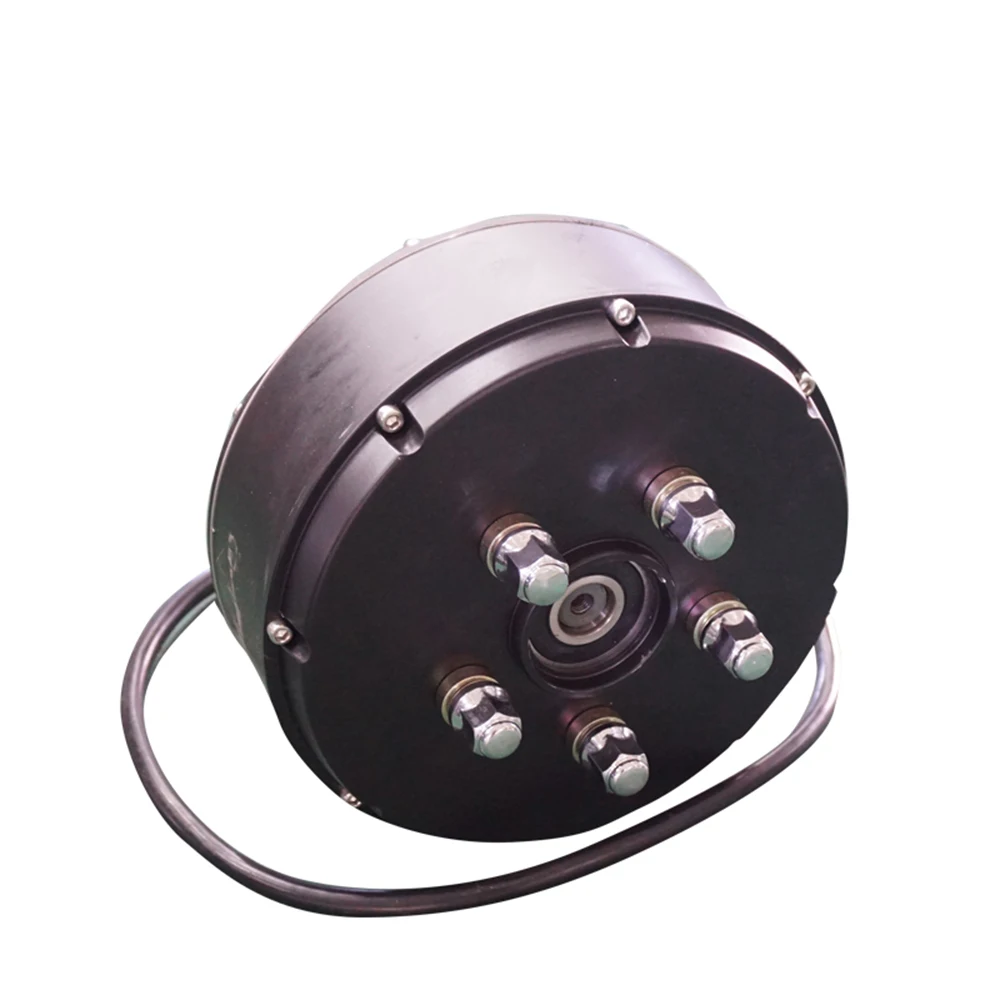

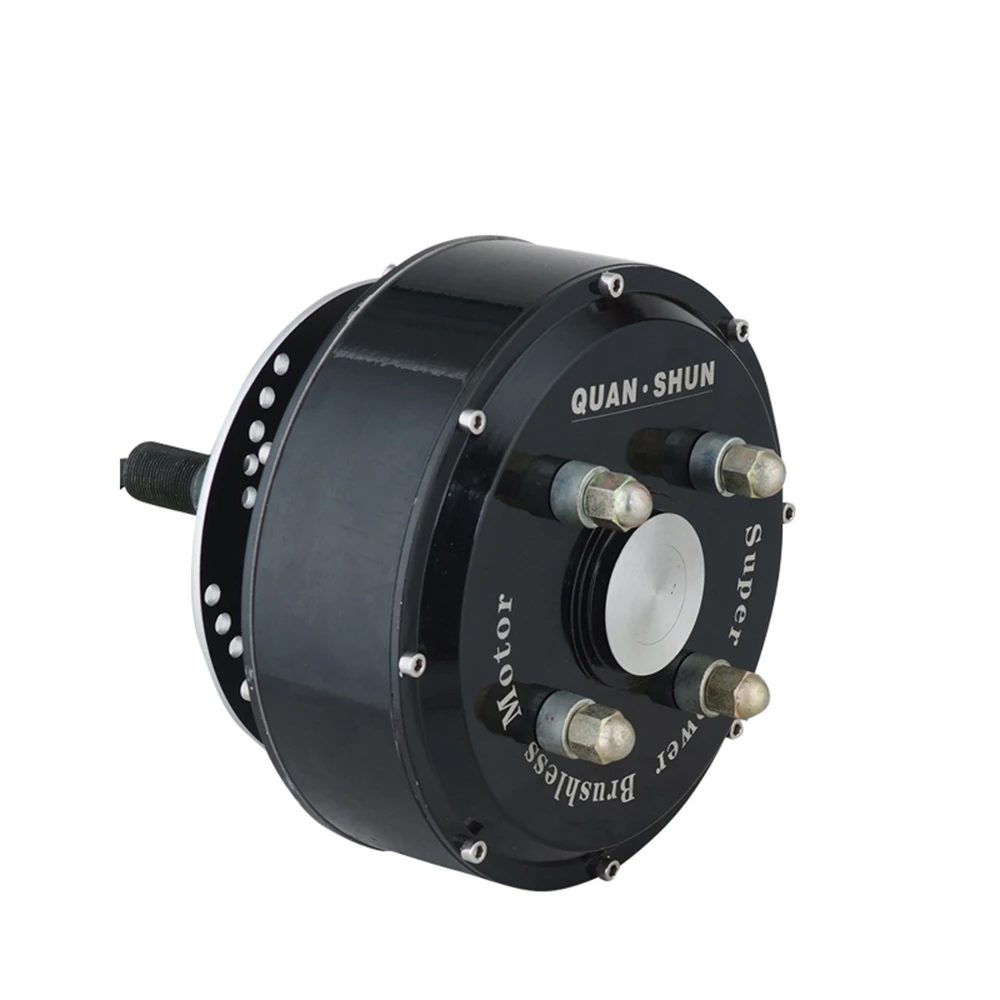

Aluminum cover:

Drawing for Iron cover

Drawing for Aluminum cover

QS Motor 1000W~3000W 205   Electric wheel hub Motor Price List

 Kits

2pcs * Motor

2pcs * Contoller

1pc * Speedometer

1pc * Throttle pedal

1pc * Disc brake system

How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project

Application

 About US

SIAECOSYS is an union of manufactories in electric driving industry, and belongs to Taizhou SIA Trading Co., Ltd that set from QS Factory in 2013 year.

Currently, more than 80 top factories join SIAECOSYS, and they are willing to provide customized products and service for international customers who has passion in e-scooter/tricycle/car industry.

SIAECOSYS focus on organizing member factories together to customize specific e-driving system solution and products for different requirements from customers in the world.

Nowadays, SIAECOSYS has more than 5000 customers from the world and more than 40 customers send inquiry every day.

SIAECOSYS has sale department, Technology department, Quality inspection department, general accounting department, purchase department and after-sale service department.

Q1. Are you trader or manufacture?

A: We're manufacture.

Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).

The specific delivery time depends on the items and the quantity of your order.

Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.

Q4. About Customs Clearance

For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

Special countries list:

Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.

Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.

05. Does your products with CE certification?

Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
