Лазерный сварочный аппарат для металла от
- Категория: Лазерные сварочные станки >>>
- Поставщик: Jinan,Lasermen,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.8 $* | 0.60 $* |
| Aug-16-2025 | 0.91 $* | 0.34 $* |
| Jul-16-2025 | 0.56 $* | 0.24 $* |
| Jun-16-2025 | 0.40 $* | 0.21 $* |
| May-16-2025 | 0.98 $* | 0.45 $* |
| Apr-16-2025 | 0.15 $* | 0.36 $* |
| Mar-16-2025 | 0.62 $* | 0.55 $* |
| Feb-16-2025 | 0.78 $* | 0.76 $* |
| Jan-16-2025 | 0.75 $* | 0.80 $* |
Характеристики
Product Description
LaserMen supply laser wobble welding machine for metal
Model | LM-2000 |
Laser type | Fiber laser, 1080nm |
Laser power | 1000W / 1500W / 2000W |
Cable length | 10 meter |
Welding speed | 0-120mm/sec |
Welding thickness | 0.5-3mm |
Cooling method | Water cooling |
Gas assist | Nitrogen |
Visual positioning | Red dot |
Working voltage | 220V 50HZ/60HZ |

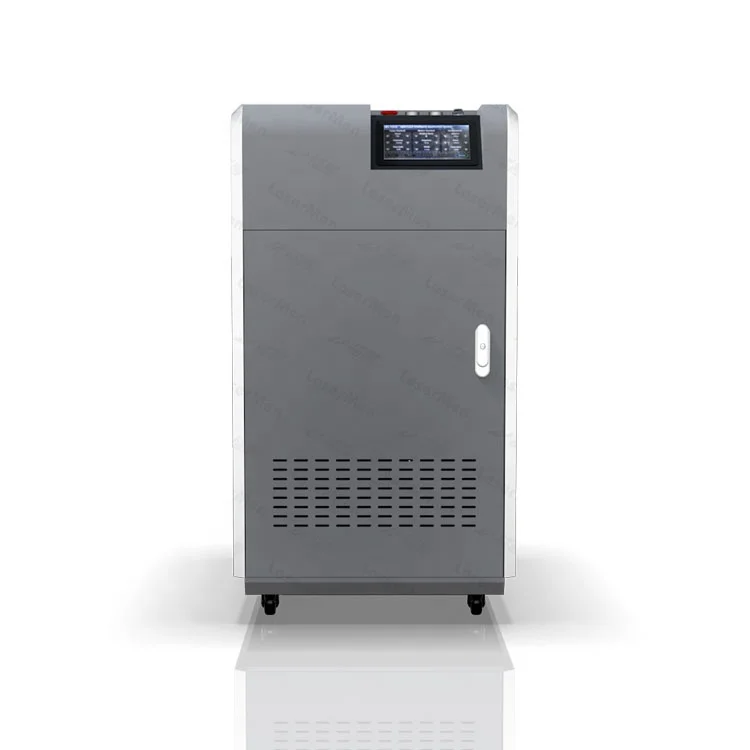

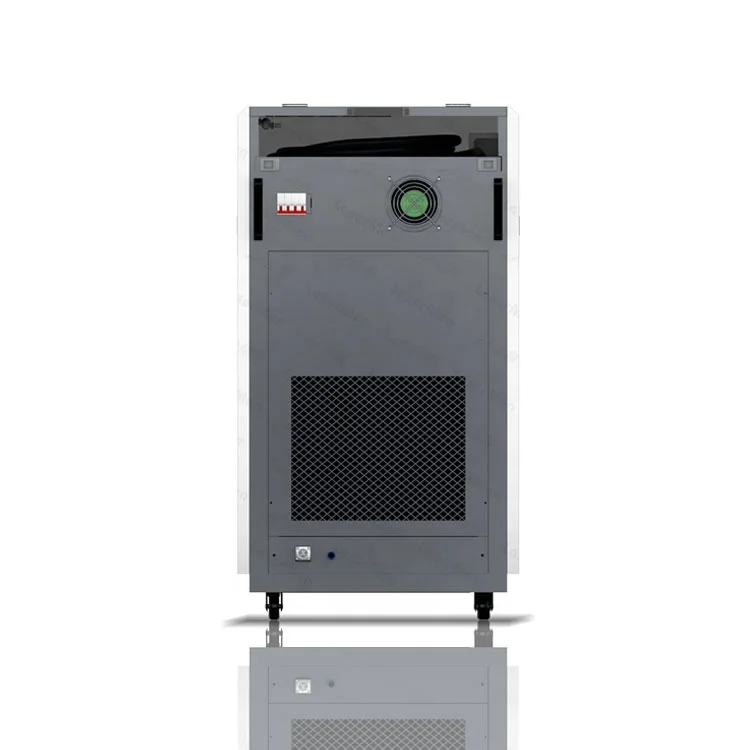

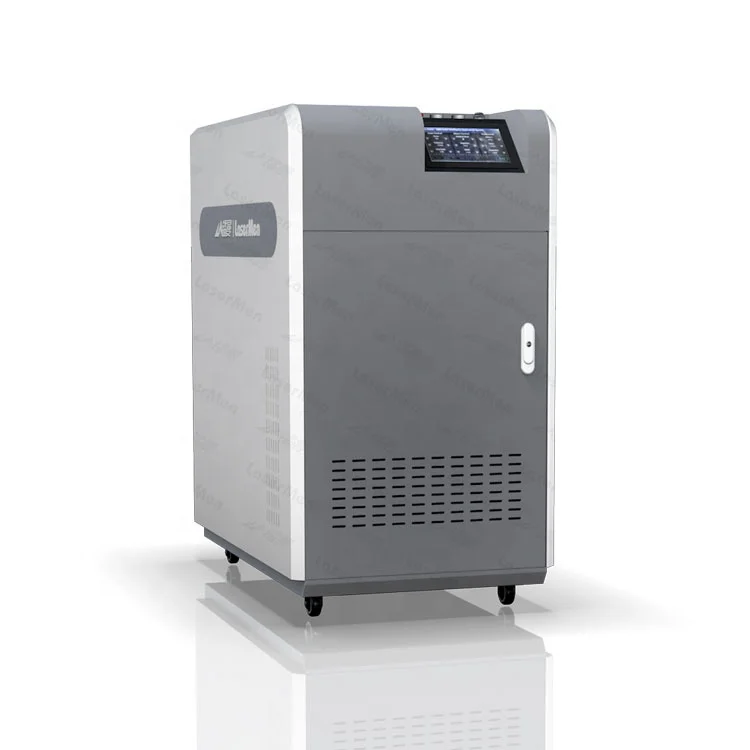

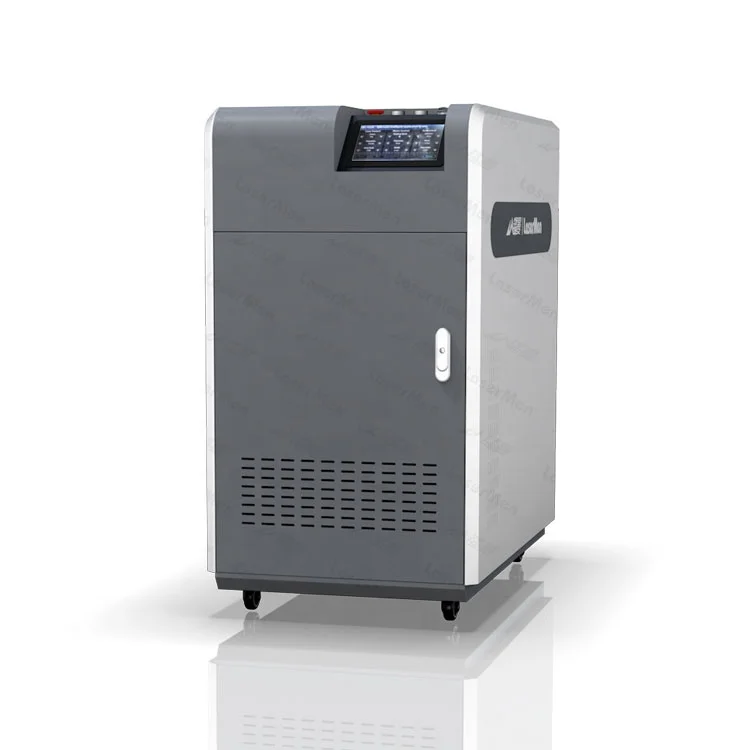

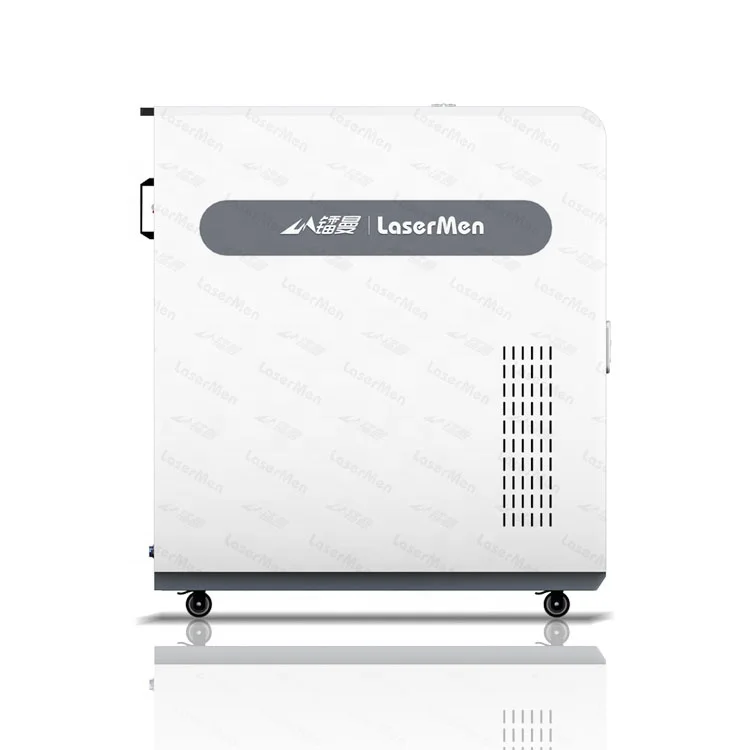

Fiber laser welding machine
Using the latest generation fiber laser source and Independently developed , LaserMen hand-held laser welding machine Filled in the blank of hand-held welding in laser equipment industry.
Its advantages are simple operation, welding seam beautiful, fast welding speed and no consumables. Welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials can perfectly replace the traditional argon arc welding and electric welding technology.
The laser welding machine adopts 1000W, 1500W, 2000W fiber laser, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times than that of YAG laser.
Fiber Welding Machine Features
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Detailed Image
Qilin BWT15 welding head
- Multiple laser spot modes (6 working modes) can be switched freely
- Built-in dual-axis high-speed servo motors
- Digital display screen, real-time control of welding data
- Circulating water route design, rapid cooling of the welding gun body
- The overall structure of the welding gun accords with ergonomic design
- Imported high-end chips, with multiple safety protection measures
- All ports on the motherboard can resist 20W volt static
Auto wire feeding system
High-precision speed control knob, good wire feeding speed controllability
Safety goggles
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Industrial Water chiller
Enclosed water chiller. It saves a lot of the machine's dimension. It is constant temperature industrial type.

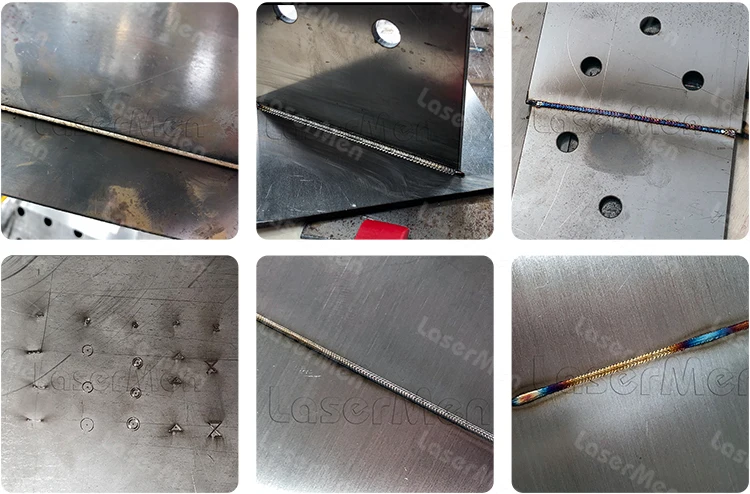

Samples
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24/7 on-line receiving your question or requesting.
* Providing solution within 12 hours.
Related Products
Packing & Delivery
Our Company
FAQ
1.Q:Why should you choose us?
A: If you choose us, you will get best quality, best service, best price and best warranty.
2.Q: I'm not familiar with the machine?
A:You just need to tell us materials, working size and thickness, I'll recommend you the right machine.
3.How to operate the machine?
A:We will deliver English manual and video with the machine to you, If you still need our help, please contact us.
4.Q:How can get the sample to check your quality?
A:If you want to marking sample to check the quality, we can help you do this.First you need to provide the logo or design to us, free mark samples can be provided.
5.Q:Do the machine can be customized according my requirements ?
A:Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW etc.
