Прочный анодированный алюминиевый складной тент серии
- Категория: Алюминиевые трубы >>>
- Поставщик: Shanghai,Hoogen,Industry,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 9.20 $* | 9.75 $* |
| Jul-17-2025 | 7.87 $* | 7.4 $* |
| Jun-17-2025 | 9.26 $* | 9.65 $* |
| May-17-2025 | 9.88 $* | 9.4 $* |
| Apr-17-2025 | 7.25 $* | 7.56 $* |
| Mar-17-2025 | 9.58 $* | 9.63 $* |
| Feb-17-2025 | 8.13 $* | 8.48 $* |
| Jan-17-2025 | 8.65 $* | 8.79 $* |
Характеристики
7000 Series Durable Anodized Aluminum Collapsible Tarp Tent Pole
Product Description
Aluminum Camping Tent Pole
Aluminum Canopy Tent Pole
Aluminum Collapsible Tent Pole
Steel Tent Pole
Aluminum Telescopic Tent Pole
6061 Aluminum Extend Pole
Detailed Images
Tent pole FAQ
WHAT YOU NEED TO KNOW FIRST:
ALUMINUM SEAMLESS PIPE:
Hoogen Aluminum 7001 7075 T6 tent tubing. They are available in many different diameters (.6.0mm, 7.0mm, 8.5mm, 9.0mm,
10.0mm, 11mm,12mm, 13mm,15mm, 16mm,18mm,20mm....- outside diameter). surface custom anodized color . Custom make your own tent poles. Poles can be shortened if necessary to custom lengths, and shockcorded together.
THINGS TO KNOW BEFORE YOU MAKE A POLE:
There are 2 types of poles:
(1) Poles with inserts -the insert is a tube (or sleeve) that is typically glued inside one hollow end of a tent pole section and protrudes approximately 3". This insert allows you to stack one section on top of another.
(2) Poles without inserts-these are hollow poles (sections) with no inserts
To make a set of poles it is usually best to map out on paper to determine how many sections and parts you many need of each. You will usually need more sections with an insert than those without. For example if you want to make a pole with 4 sections (this would make a 6 foot long pole), you would need to have 3 sections with an insert and 1 without an insert. The reason you need the last section to be without an insert: picture stacking one section with an insert on top of another. If the last section has an insert, that would not allow you to put an endtip into both ends of the pole. Therefore if you use a section without an insert for the last one you will have a hollow end on both ends of the pole, this allows you to put an endtip on each end of your pole.
HOW TO MAKE ALUMINUM TENT POLES:
Step #1 Lay out your poles in the order you want them. (cut them to the right length, if it is necessary, using a hacksaw or even better a pipe cutter (we stock these for your convenience). Note: If you need to shorten carbon fiber poles wrap the pole with tape over the area that needs to be cut to keep it from fraying.
Step #2 Knot one of the endtips onto to one free end of the shock cord and push it into one of the hollow ends of the pole sections. Thread your shock cord through each pole section.
Step #3 On the other end, tie the other endtip onto the shock cord. Push the second endtip up into the other hollow end of the pole. Test the tension; you do not want it too tight that when they are folded up they want to spring open. If the tension needs to be re-adjusted, re-tie the knot. If the shock cord is not tight enough remove the end tip and re-tie it a little tighter.

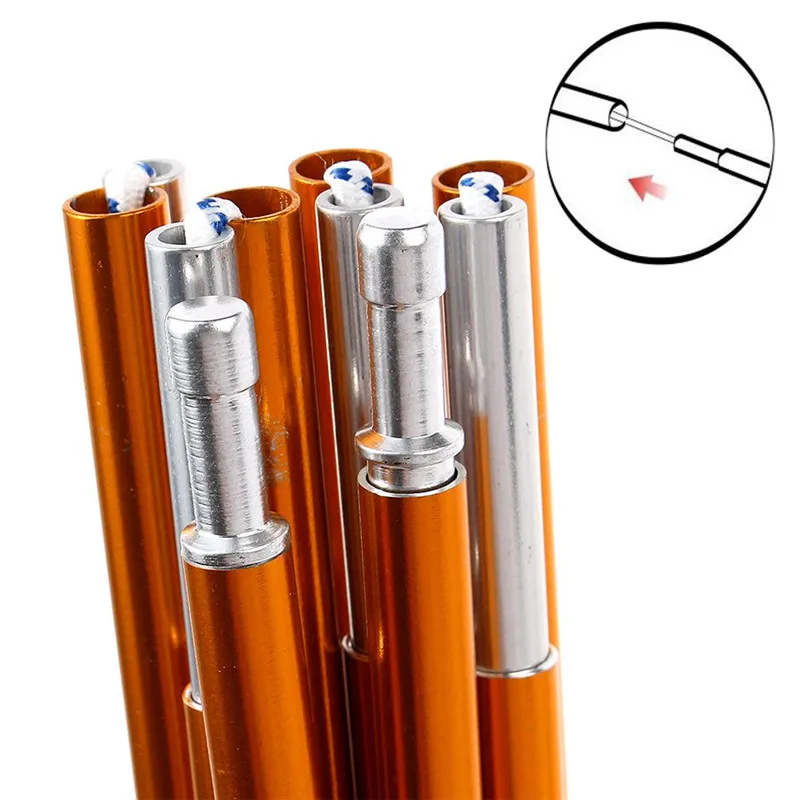

Pictured above are both types of tent pole sections: the two sections on the right are sections with an insert. The last section on the left is a section without an insert. Using the pole without an insert at the end gives you a hollow end on both the rightside and leftside of the long pole to insert the tied-off endtips.
HOW TO SHOCKCORD POLES TOGETHER WITHOUT USING ENDTIPS-(IE. RING AND PIN SYSTEM):
For your ring and pin system the best way to shockcord the poles together is to tie the shockcord onto a small washer that is just slightly smaller than the inside diameter of the tent pole. When the washer is pushed up into the pole the insert on the first pole will stop it from going past. You can then feed the shockcord through the rest of the poles making sure to put one pole without an insert in the center or your chain of poles. On the opposite end of the pole sections you again tie another washer onto the shockcord and let it go up inside the pole (note you will not be able to adjust the cord tension after this is done as the knot and washer will be way up inside the pole). This method allows you to shockcord all of the poles together and have a hollow end on each end the pole sections to fit into your ring and pin at the bottom. We have separate insert pieces that will fit up into the poles. This will allow you to glue these extra inserts onto the hollow ends of the poles to give you more structural support in the pin.
PRE-BENT ARCHES:
Pre-bent arches are available for the .340", .433" and .490" poles. They are available in 90 degree, 125 degree and 145 degree. All of the arches come with inserts already attached in each end, there are more detailed measurements on the order page for each available size. Note, when using arches you may want to draw out your configuration first as you will most likely need more poles without an insert than with an insert. If you are only using a few poles and you need to make a very strong arc, to avoid kinking, you may want to consider using pre-bent arches.
Below is an example of using a short connector piece between two arches to create tight angles without bending poles.
Certifications
Application
They are wide use on camping tents, Military tents, Individual tents, Disaster relief tents,Beach umbrella ....etc.
Company Profile
Packing & Delivery
About The delivery
All delivery will be forwarded as purchasing order. Delivery time for order within available stock is in 10days,Delivery time for order without available stock is 15-25 days,please confirm.
1. Shipment time to North of America is 30-35days.
2. Shipment time to Asia countries& middle east is 15-25days
3. Shipment time to Africa countries is 40-45days
4. Shipment time to Euro countries is 30-35days
Trade Method
Our company accept all trading methods. e.g. EXW, FOB, CIF, DDP, DDU etc.....
Payment Term
Our company accept all kinds of payment terms. e.g. TT, L/C, D/P, O/A, Western Union, etc.......
Better Quality, Better Price, Better Delivery Time and Better Service" which is every customers' require and every company's goal. Here, I'm sure you can enjoy this. Thank you!!!
OEM are welcome!
FAQ
Q1. Can I have a sample order for tent pole and accessories ?
A: We are honored to offer you samples for quality check. Please feel free to contact us to get the samples
Q2. What's the delivery time?
A:It usually takes about 15-25 working days to produce an order from MOQ to 40HQ container.
But the exact delivery time might be different for different orders or at different time.Q3. Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
Q4. How does your factory do regarding quality control?
A: Quality is priority. Most people always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5. What's your warranty terms?
A:We offer different warranty time for different products. Please contact with us for detailed warranty terms.
Q6. Will you deliver the right goods as ordered? How can I trust you?
A: Yes, each process and the photos will be timely updated to you. The core of our company culture is honesty and credit. Our company have over 12 years in the outdoor field.
