RIKA RK120-03 Integrated Ultrasonic Wind Speed And Direction Sensor For Environment Monitoring







Product Description


RK120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors, integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions,made the accurate and stable elements, low maintenance, an open communications protocol and so on.It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.







FEATURES



  • Adapt to complex weather conditions


  • No moving parts, long service life


  • The surface preservative treatment


  • Strong anti-interference


  • High accuracy

  • Automatic heating anti-frozen



APPLICATIONS



  • Environmental monitoring

  • Sea-going vessel

  • Bridge & Tunnel

  • Solar and wind power generation

  • Wind resource assessment

  • Drilling platform

  • Automatic weather station

  • Agriculture


TECHNICAL SPECIFICATION
























































Item

Technical Specification

Power Supply

12-24VDC

Power consumption

<1W(Heating not activated); <3W(Heating activated)

Output Signal

RS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional

Operating Temperature

-30℃-+70℃

Ingress Protection

IP66

Heating power

3W max.

Electronic compass

optional

Atmospheric pressure

optional

Dimension

145*138mm

Weight(unpacked)

0.8kg

Main material

Anti-radiation ABS Engineering plastic













































Item

Technical Specification

Wind speed

Wind direction

Atmospheric pressure

Range

0-45m/s,0-60m/s

0-360°

150-1100hPa

Resolution

0.01m/s

1°

0.1hPa

Accuracy

10m/s0.2m/s

>10m/s:<±2% the current value

±3°

±1 hPa

Starting Threshold

0.1m/s

0.1m/s



Extreme Wind Speed

60m/s

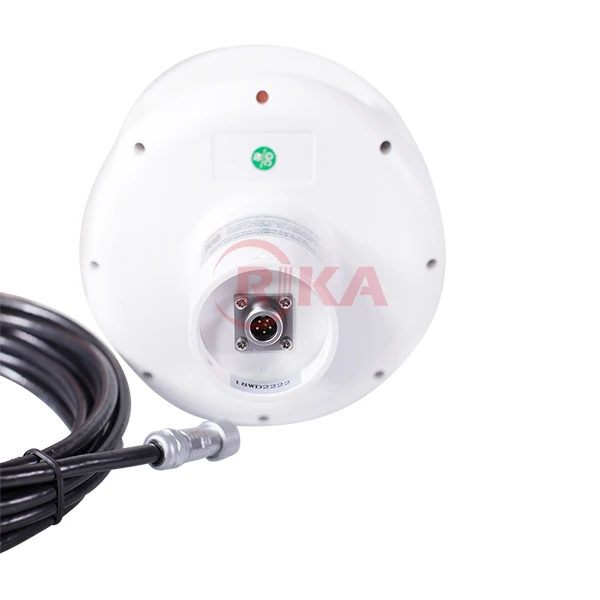

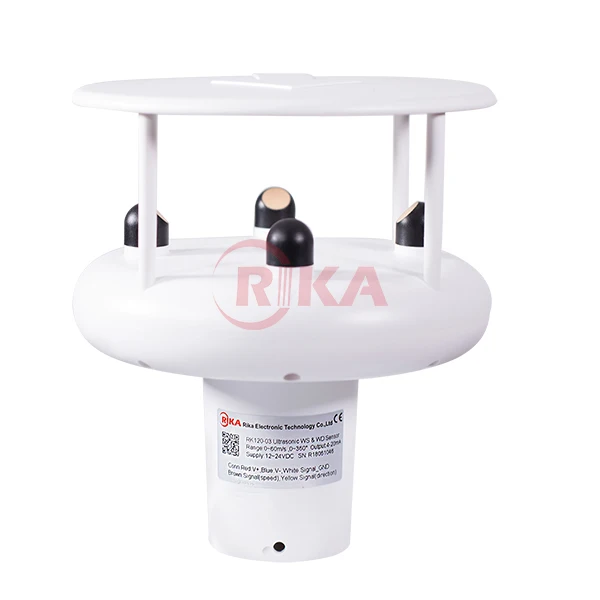

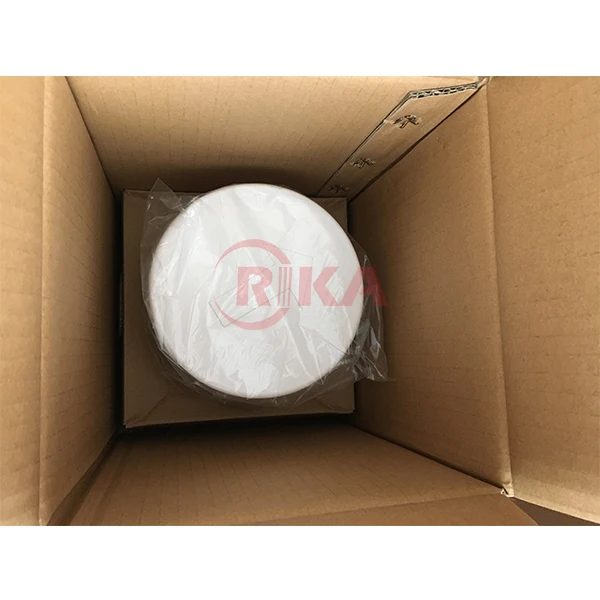

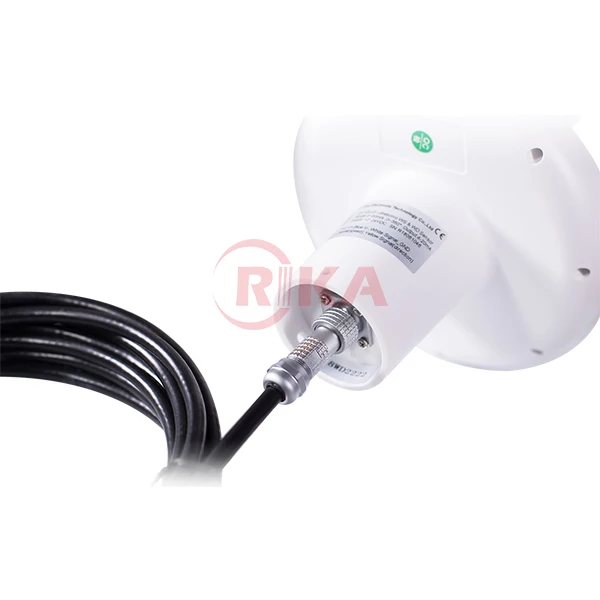

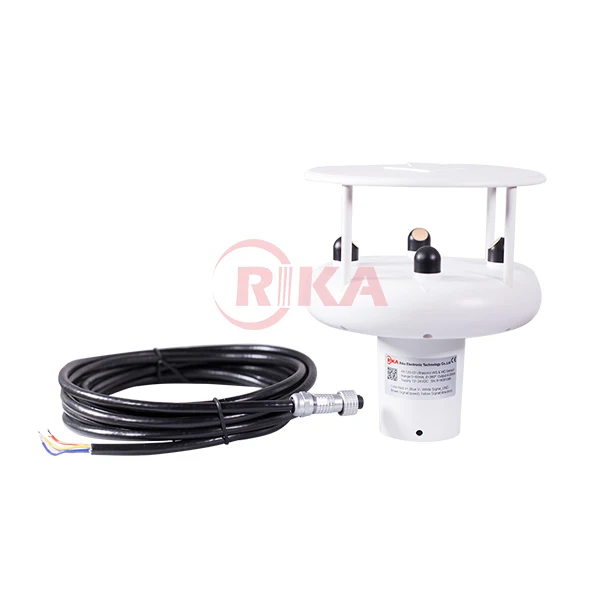

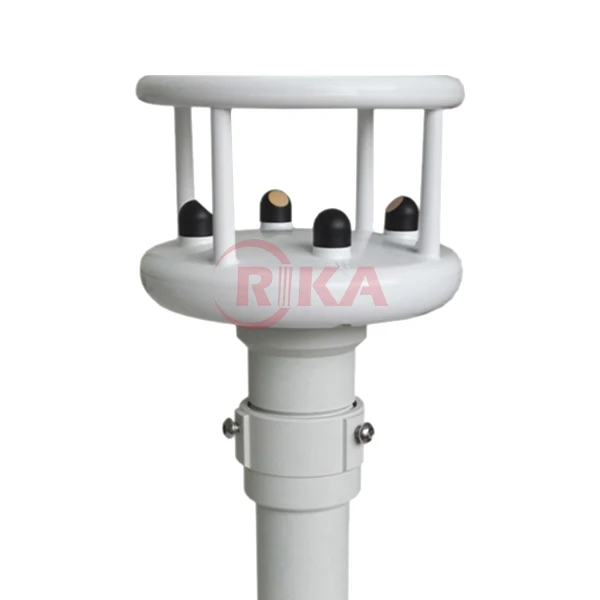

Details Show



get discount.webp




get discount







Testimonial








Applications








Related Products























Plastic Wind Speed Sensor Plastic Wind Direction Sensor
Wind Speed & Direction Sensor Air Temp RH & Pressure Sensor










 get discount




Ordering Process


In order to send specific price to you, please tell me your information below:





1. What’s your required wind speed range: 0-45m/s or 0-60m/s ?
-- The standard range is 0-45m/s, 0-60m/s optional
2. Do you need the optional electronic compass ?
3.Do you need the optional atmospheric pressure ?
4.What’s your required power supply ?   -- The standard is 12-24V. If you have special demands, please specify.
5.What’s your required output signal ?   -- We have 4-20mA, 0-5V, RS485, RS232 optional. Please specify.
6.Quantity?
7.Price items: CIF or Exw or FOB ?  -- If CIF please tell us your detail shipping address for freight calculation.
8.Your complete company name,address, post code,contact person, tel, fax etc.









Company Information


Our companyCertificates






FAQ



Q: Are you the final manufacturer?


A: Yes, We are SENSOR manufacturer and exporter in china with 10+years experience and with the factory authorized by SGS.




Q: Do you offer the OEM service ?


A: Yes, we can offer OEM service and design the logo marking for you . But the minimum quantity is 10pcs for the first order .





Q: Do you offer free samples ?


A: Sorry , we do not offer free samples .





Q: What payment ways do you accept ?


A: You can pay us by T/T , PayPal , and West Union .





Q: What is your delivery time  ?


A: It is in 6-8 working days since the payment confirmed . If quantity more than 100pcs /order, it will need extra 3-5 working days .





Q: What is your normal delivery way?


A:  Goods will be sent DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.





Q: How is your quality assurance service ?


A: Our service is free exchange within one month and 18 months`quality guarantee





Q: Could we make a visit to your factory ?


A: Yes, you are welcomed . But before that ,we will do the visiting investigation.
