Полностью автоматическая катушка катушки для
- Категория: Оборудование для изготовления электроприборов >>>
- Поставщик: Guangzhou,Feineng,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.56 $* | 0.55 $* |
| Aug-16-2025 | 0.34 $* | 0.4 $* |
| Jul-16-2025 | 0.93 $* | 0.51 $* |
| Jun-16-2025 | 0.9 $* | 0.85 $* |
| May-16-2025 | 0.63 $* | 0.87 $* |
| Apr-16-2025 | 0.50 $* | 0.31 $* |
| Mar-16-2025 | 0.43 $* | 0.34 $* |
| Feb-16-2025 | 0.46 $* | 0.43 $* |
| Jan-16-2025 | 0.44 $* | 0.83 $* |
Характеристики
Product Description
AC Power voltage | 220-240V |
Rated power | 3000W |
The spindle number | 12 |
Spindle speed(rpm) | 12000 |
Spindle Pitch (mm) | 75 |
Spindle servo motor power(W) | 1500 |
Quick clamp interface diameter (m) | 10 |
Apply to wire diameter (mm) | 0.02-0.6 |
Maximum support multi-strand | 4 |
Maximum outside diameter of winding bobbin (mm) | 65/35 |
Movement amount of quide rod (mm) | X:120;Y:120;Z:80 |
Movement speed of guide rod m (mm/sec) | 200 |
Applicable air pressure(Mpa) | 0.4-0.6 |
Machine size (mm) | 1300(L)X1300(W)X1600(H) |
Machine weight(kg) | 790 |
Optional functions | Vibration plate automatic feeding Wrap tape function Manual feeding |
Item

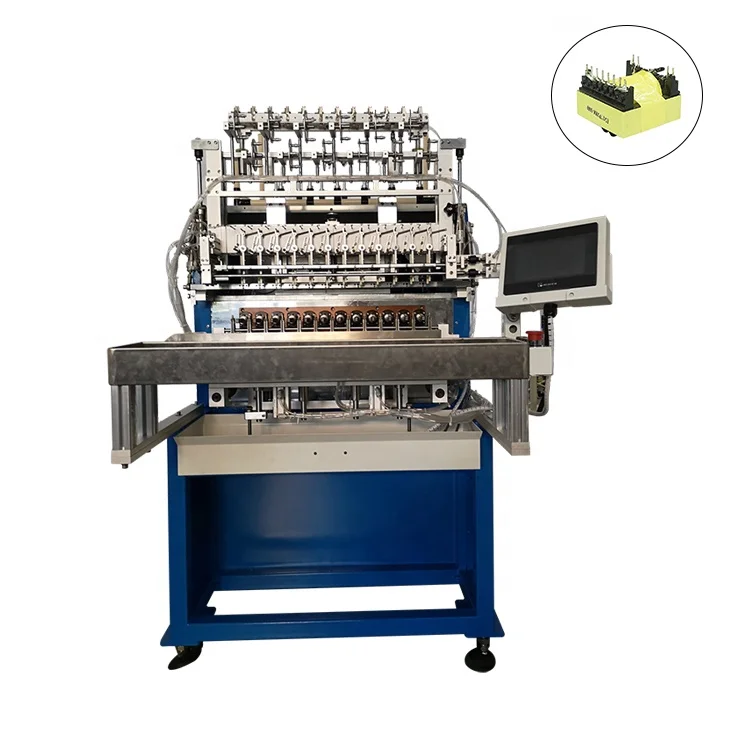

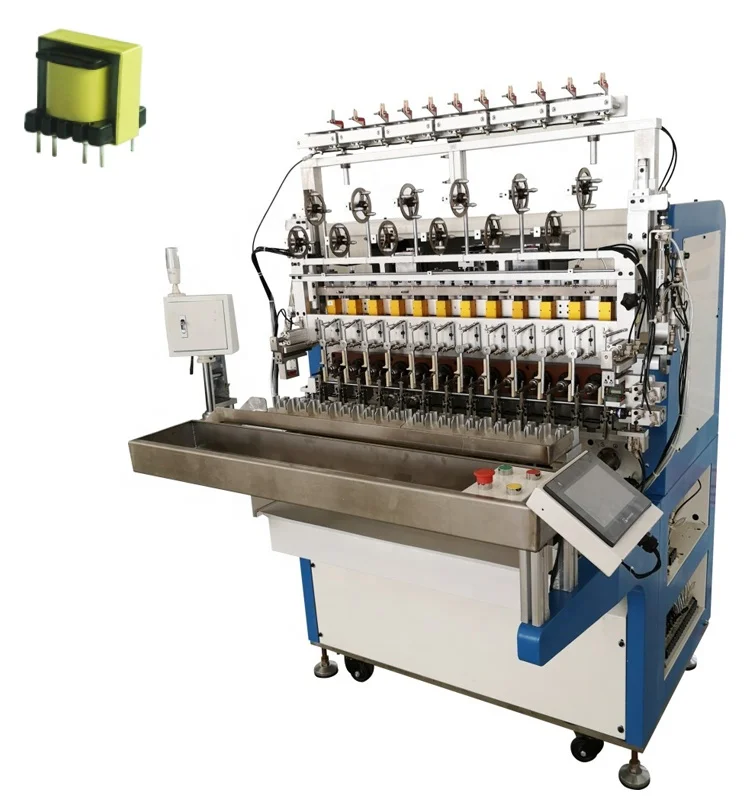

12 axis 75 spacing winding machine
Apply to wire diameter
Large size high frequency transformer,coil and 0.5MM thick wire wound by 5 wires and multi-strand wire
Product instruction
The machine is suitable for high volume and high efficiency winding and taping coils
Product Feature
*The machine structure design is simple and reasonable, the important standard accessories are alhigh-end brands which ensures the fast operation speed, high precision, good stability and strong rigidity of the equipment, and greatly extends the service life of the equipment.
*The machine is equipped with a touch screen, Chinese and English control system which is easy to operate, to learn, to understand and to maintain, help the users save more time and greatly improving the production efficiency.
*The design of quick replacement fixture chuck can effectively save the time of product type change
*Multiple functions are available for users to choose freely
*This machine is used for winding transformer products aim to replace the manual operation,its with wide feeding range, high production quality, fast production efficiency, it will reduce labor cost and control product cost greatly,easy operation be widely used in the inverter production field.

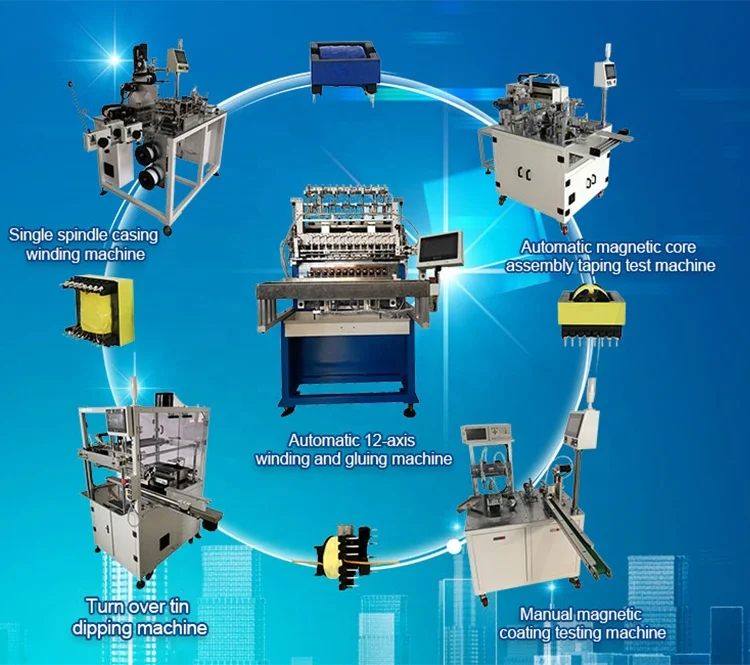

Related Products
