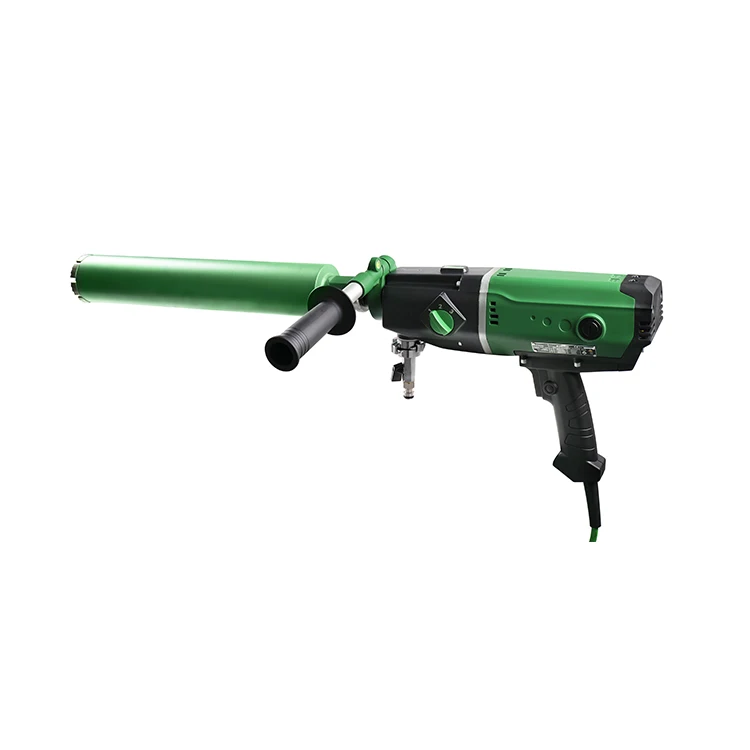

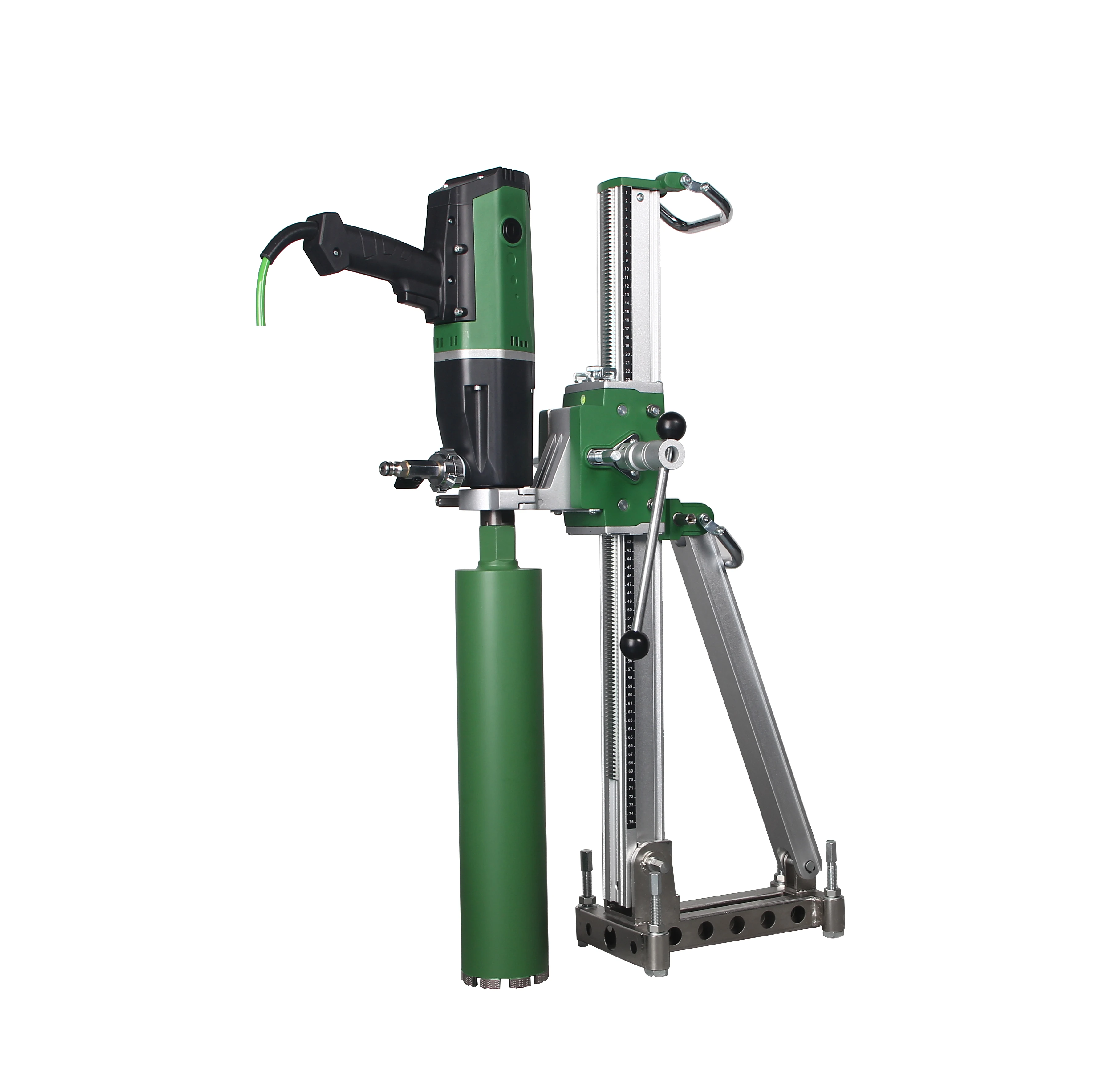

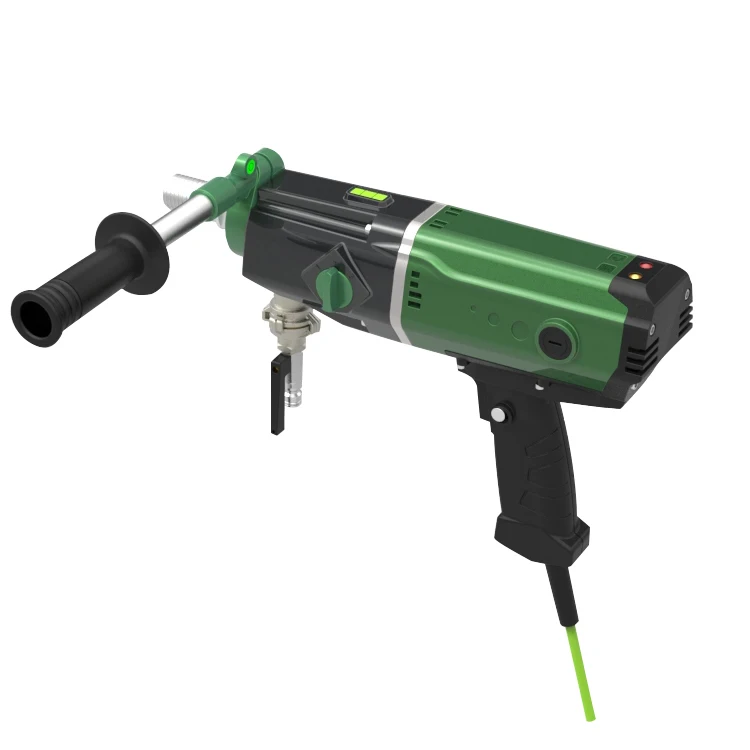

DMP-162P 2200W 3-speed electric diamond core drilling hole machine concrete coring to 202mm
Product Description
Specification:
Model
DMP-162P
Art number
1123162
Input power
2200W
Output power
1500W
Voltage
220V, 50HZ / 110V, 60HZ
No load speed
650/1300/2600RPM
Spindle thread
1/2'' BSP (F), 1 1/4'' UNC (M)
Max.ø concrete
162mm
Max.ø brick
202mm
N.W
7.5KG

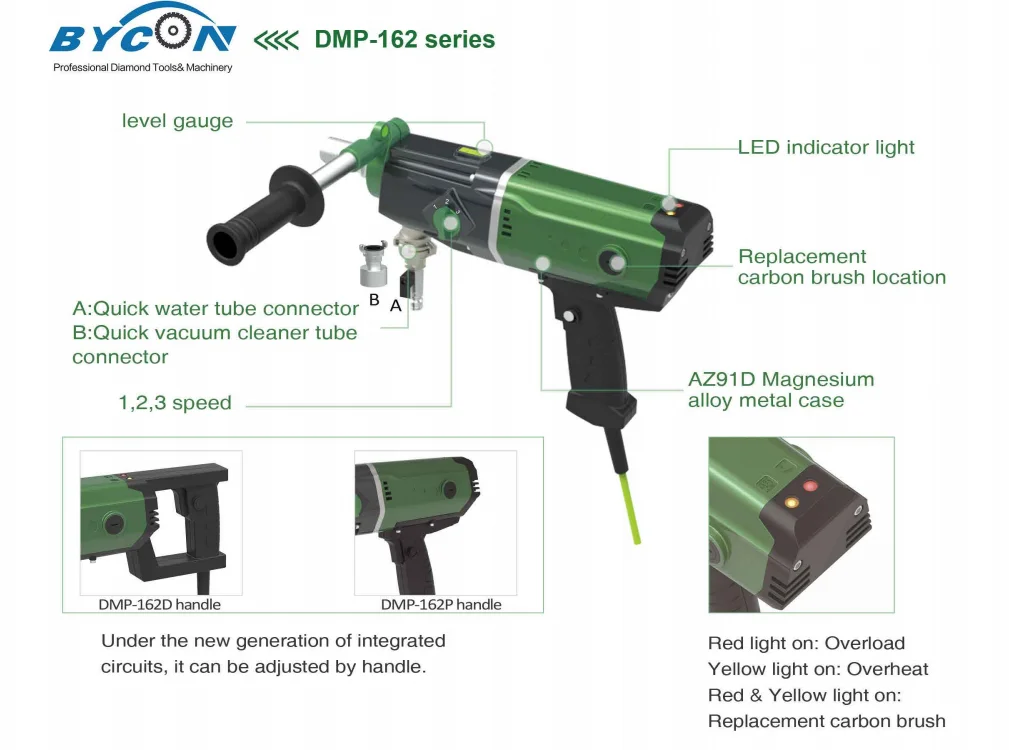

Features:
1. 3-speed gear regulation: different operating speed for different core drilling diameter in concrete. The magnitude of torque has an inverse proportion of no loading speed.
2. Electronic smart control for motor: our motor is equipped with Soft Start, PRCD, Overloading protection. Soft start helps the motor start slowly and then reach to no load speed in a few seconds. Also, it has the function to make motor stop working if the currency overloading. 3. Mechanical slipping clutch equipped: as a pro concrete core drill motor, it is one of the irreplaceable parts in machines. Mechanical gives more safety to operators, if the electronic protector out off work, it will work for protection. Maximize motor safety. 4. External carbon brushes: say no to the complex replacement of carbon brushes. Our carbon brushes inserted in the shell even can use a coin to open its cover. 5. New material armature: a conductive coil, bigger than the common in the market. 6.LED indicator light: showing repair warning of overloading and carbon brush replacement. 7. Magnesium alloy for shell: for lightweight.

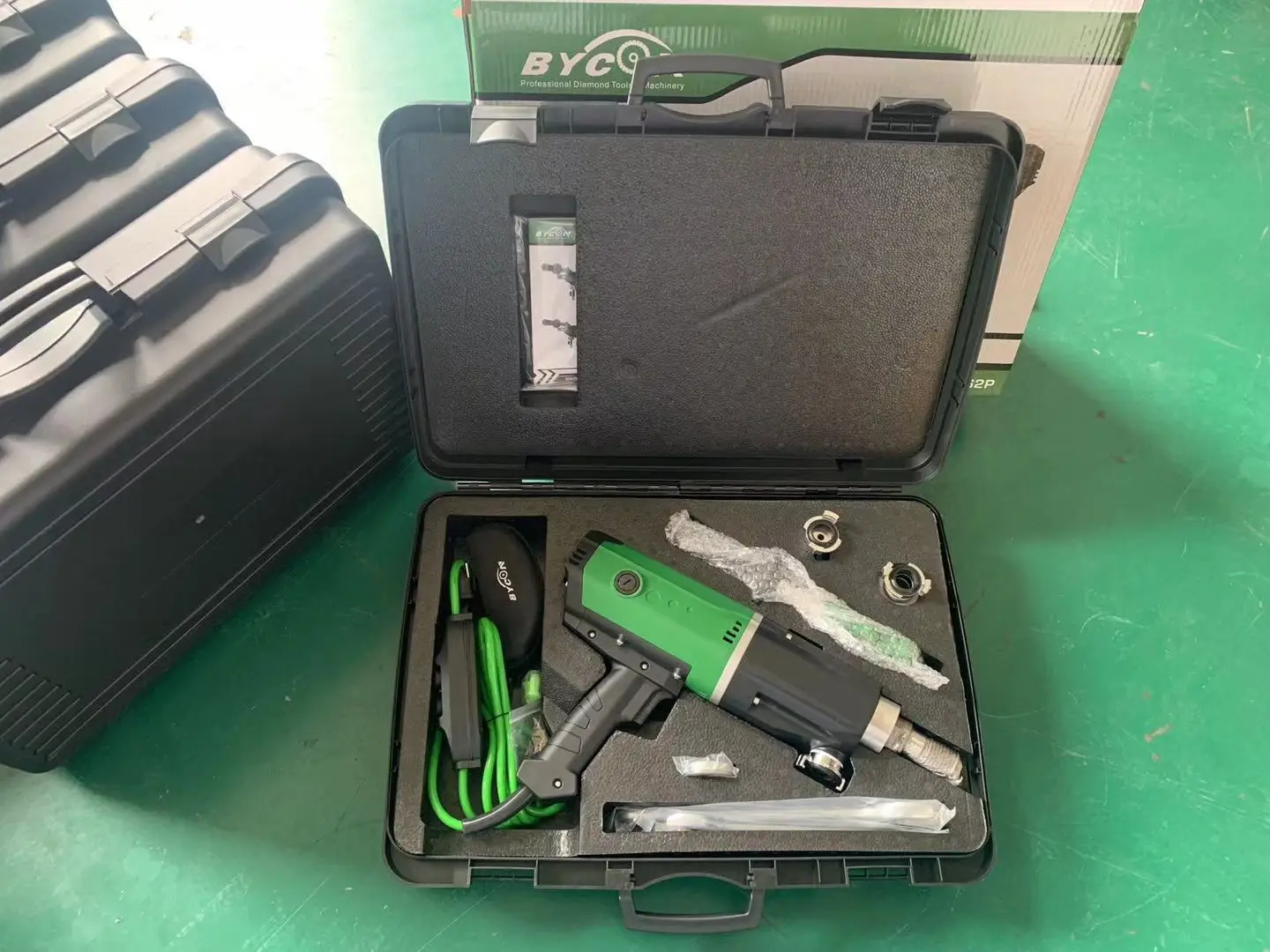

Packaging & Shipping
Our Services
SALES & SERVICE AS a customer-oriented company, we try to put ourself in customer's position and carry out daily operations in an efficient manner. To us,sold a machines is not the end of the deal but the start of a partnership and friendship. * A well organized professional sales-support team * Export to more than 40 countries * OEM orders and customers' drawing are welcome * NO MOQ * Up to 1 year quality warranty * Quick response * Rapid parts supply for after service We are keen to listen to our customers' voice and meet their demands,wore more flexible and react more quickly,we keep building reputation for honest and reliable business conduct among our worldwide customers. If you need more details about our products, please feel free to let us know. To us, your satisfaction is our final purpose.
FAQ
1.Could I put my LOGO on it?
Yes,As long as the order quantity reach to the MOQ.
2.Could I paint my own color?
Yes,As long as the order quantity reach to the MOQ.
3.Could I order trail small order?
Yes,we have no MOQ for standard version products. The price is different from different order quantity.
4.What is the delivery time?
Normally 15-30days after payment in general condition.
5.What points need to be confirmed before placing the order?
Voltage and frequency,Plug type.
Company Information
In the 2005s a German came to China and brought the latest German technology in diamond core drilling industry. Then a new China-Germany joint venture company was established in 2005.
Armed with little more than determinationwe produced our first professional core drill rig and core drill motor with German design and technology.
As the years passed,we continued the tradition of innovationandtechnical achievements, now we have two brands in our company. Bycon for diamond tools and construction machinery. Thrall for petrol tools include petrol post driver, petrol breaker, petrol hammer drill...
