Product Description

Product Introduction:

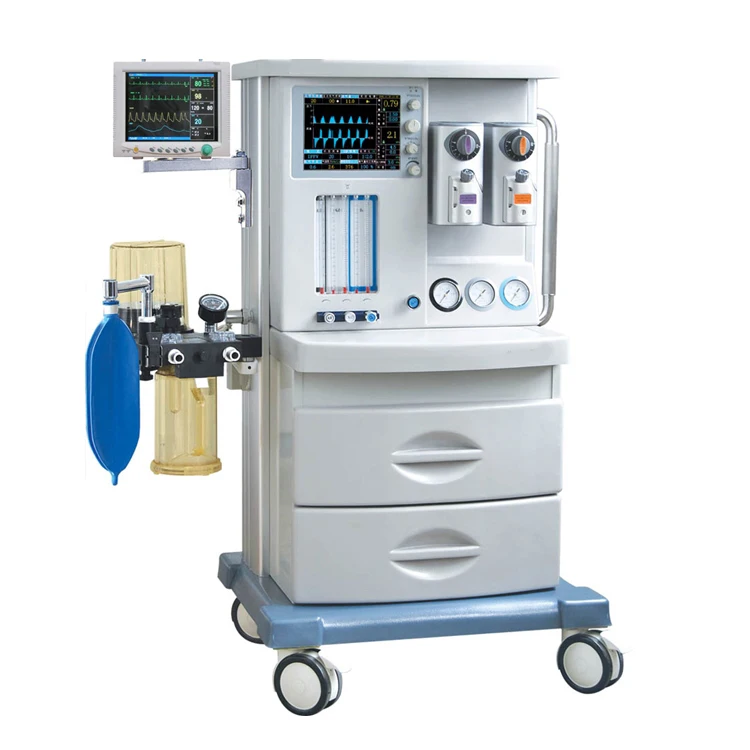

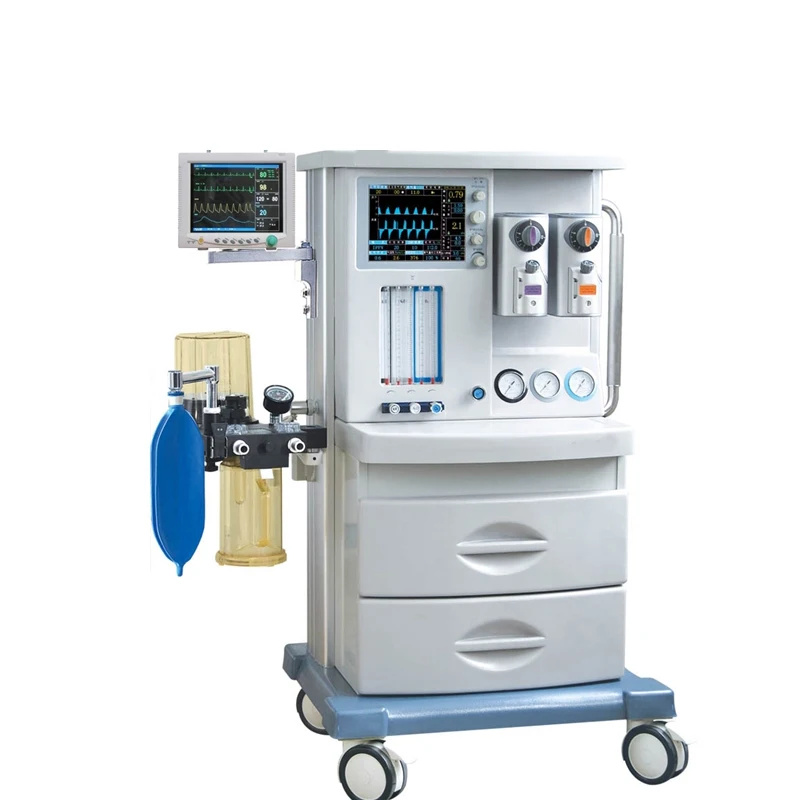

YJ-8501 Anesthesia Machine is equipped with an accurate dedicated anaesthetic vaporizer and a safety device for preventing cyanosis and necessary alarm system. During the anesthesia, the patient's respiratory functions can be managed by using a microcomputer controlled pneumatic electrically controlled synchronizing anesthesia respirator. Each connection part of the whole machine is a standard interface. A highly efficient and large volume soda lime absorber can minimize the re-inhalation of carbon dioxide by the patient.
Pneumatically driven and electrically controlled system
Built-in ventilator, 8.4" LCD display screen
Closed; Semi-Closed; Semi-Open wotking mode
Applied for Adult and Pediatric

Main technical specifications:
Pneumatically driven and electrically controlled system
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
Respiration Mode: A/C,IPPV,SIPPV,IMV,SIMV,VCV,PCV,PEEP,SIGH,MANUAL
Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,AC

power malfunction,Battery low power.

Parameters
Built-in ventilator	YES
Display screen	8.4" LCD display screen
Wotking mode	Closed; Semi-Closed; Semi
Application	Adult and Pediatric

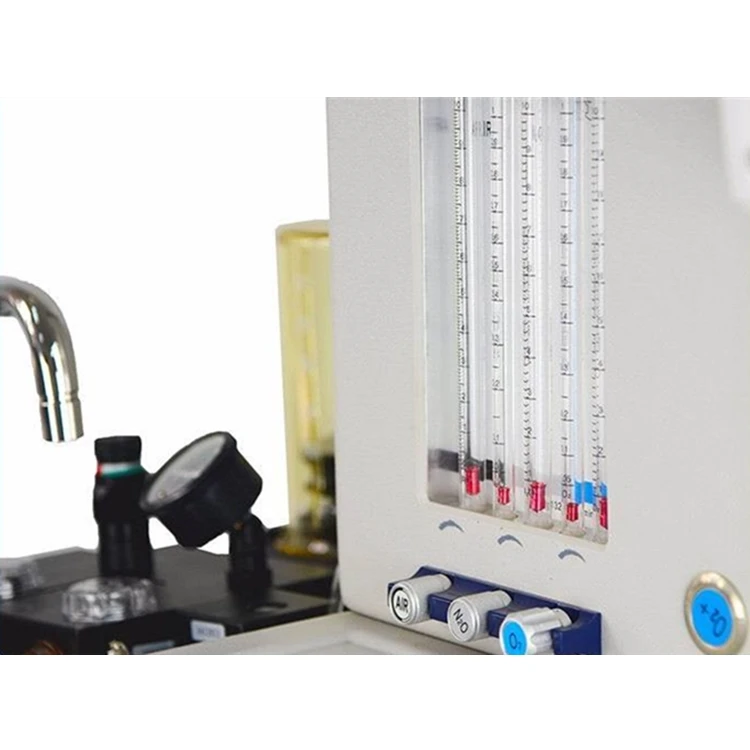

5-tubes Flowmeters	O2 & N2O & Air ; 0.1L/Min ~ 10L / Min
Oxygen Flush	25~75 L / Min
Tidal Volume :	Adjustable range:20 ~ 1500 ml, Display range:0~2000ml
I/E Ratio	8:1 ~ 1:10

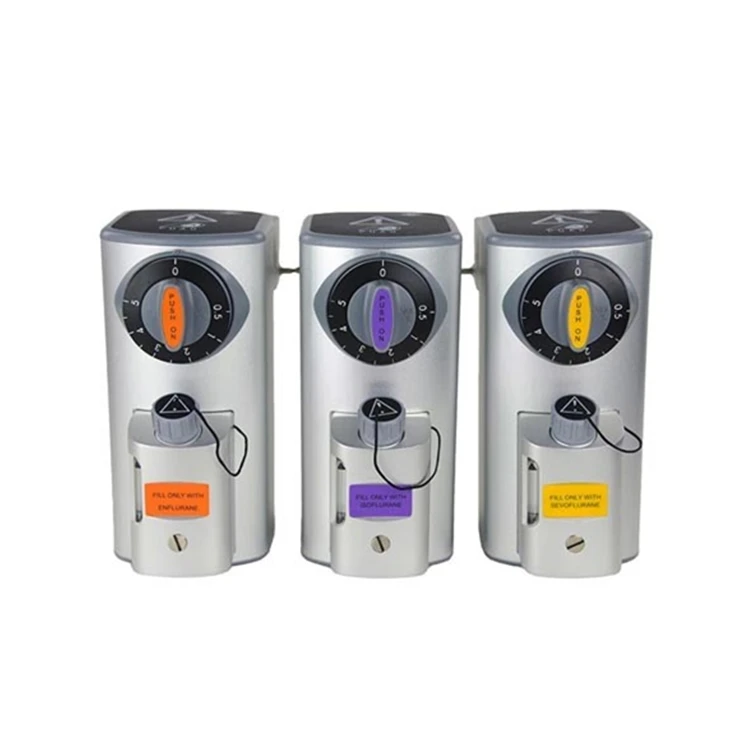

Two vaporizers	Enflurane/ Isoflurane/Sevoflurane/Halothane
Vaporizer Setting Range	0.5%~5%
Respiration Frequency	1~100 bpm
Lung compliance	≤30 mL / kPa
IMV frequency	1~20 bpm
PEEP	0 ~ 2.0 kPa
Ptr	-1.0kPa ~ 2.0 kPa
CO2 absorber capacity	1KG
Inspiratory Plateau	0~1 S
O2 Concentration	21%~100%
Patient monitor	Optional

We are professional Supplier of Anesthesia Machine Patient Monitor in China,wish we can provide you solution on operations.

Packing & Delivery

Packaging
Size	70 (L) * 68 (W) * 37 (D)
Weight	28kg
Packaging Details	The normal package is cortons(Size: LWH).
