Product Description

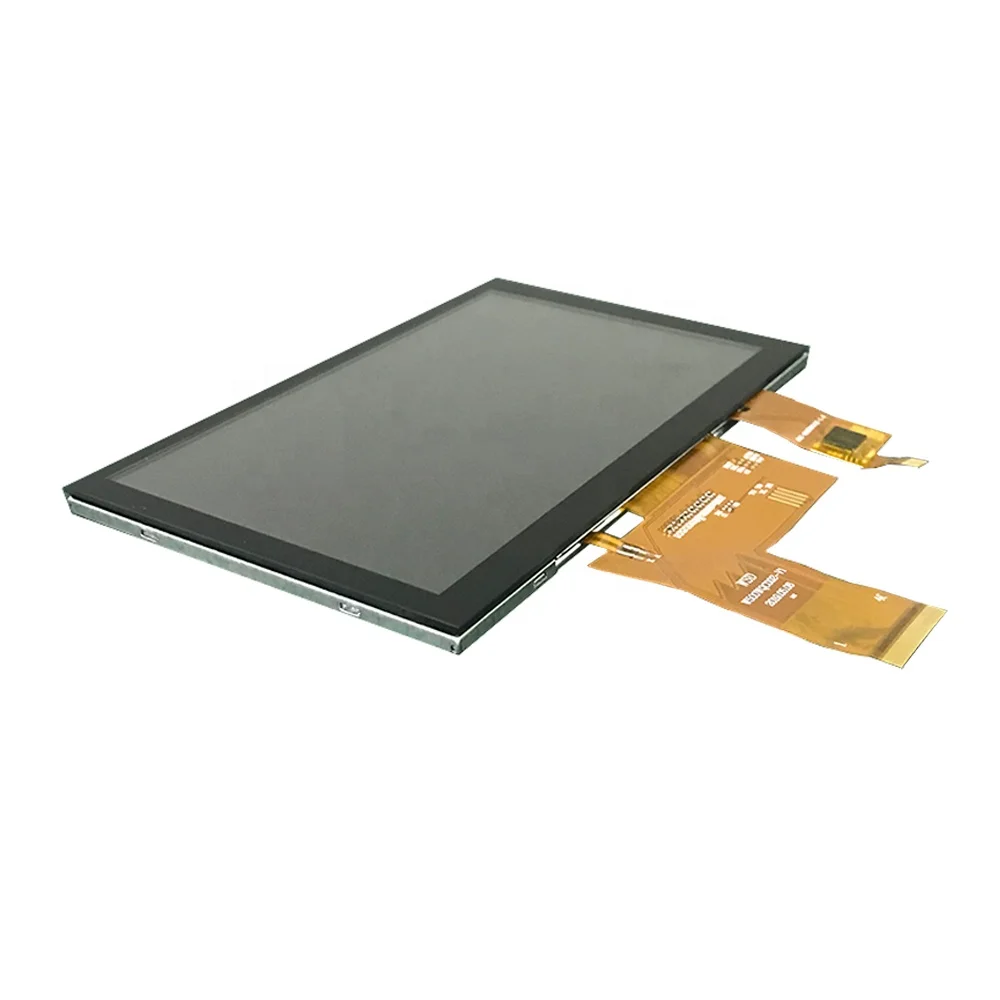

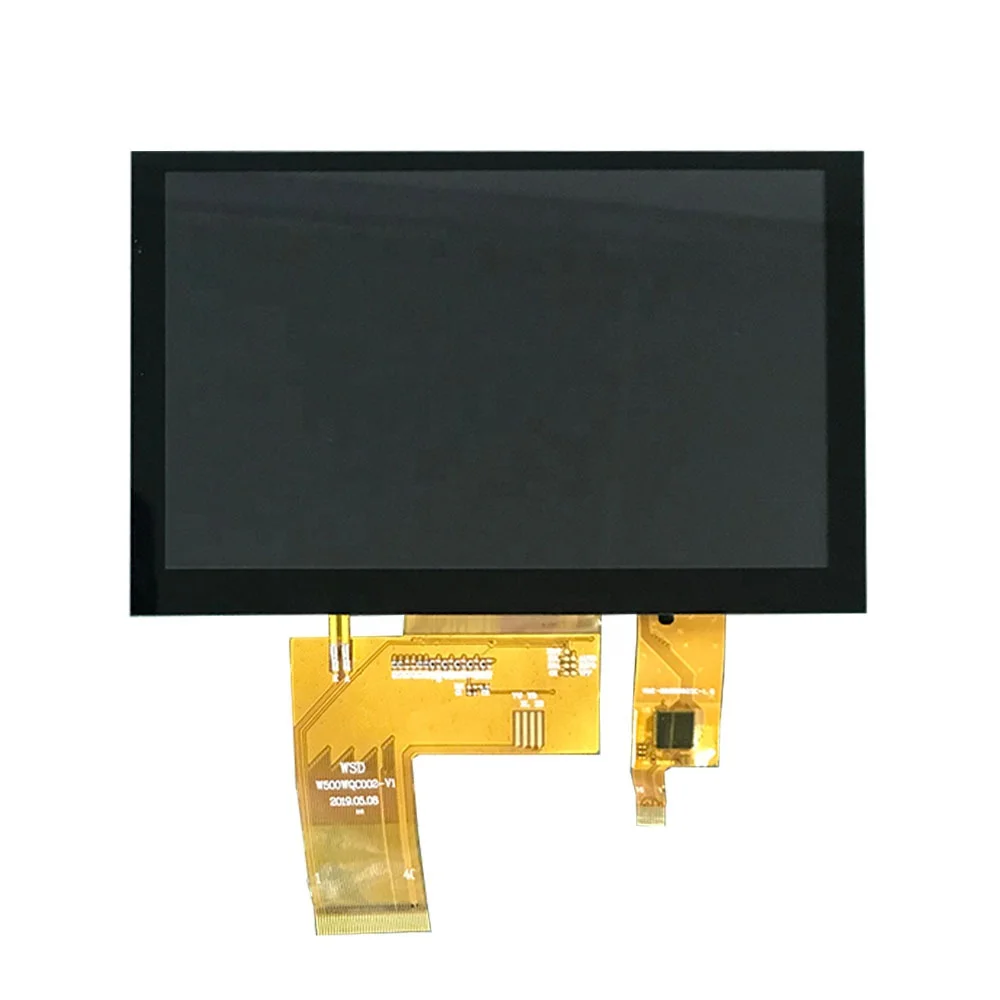

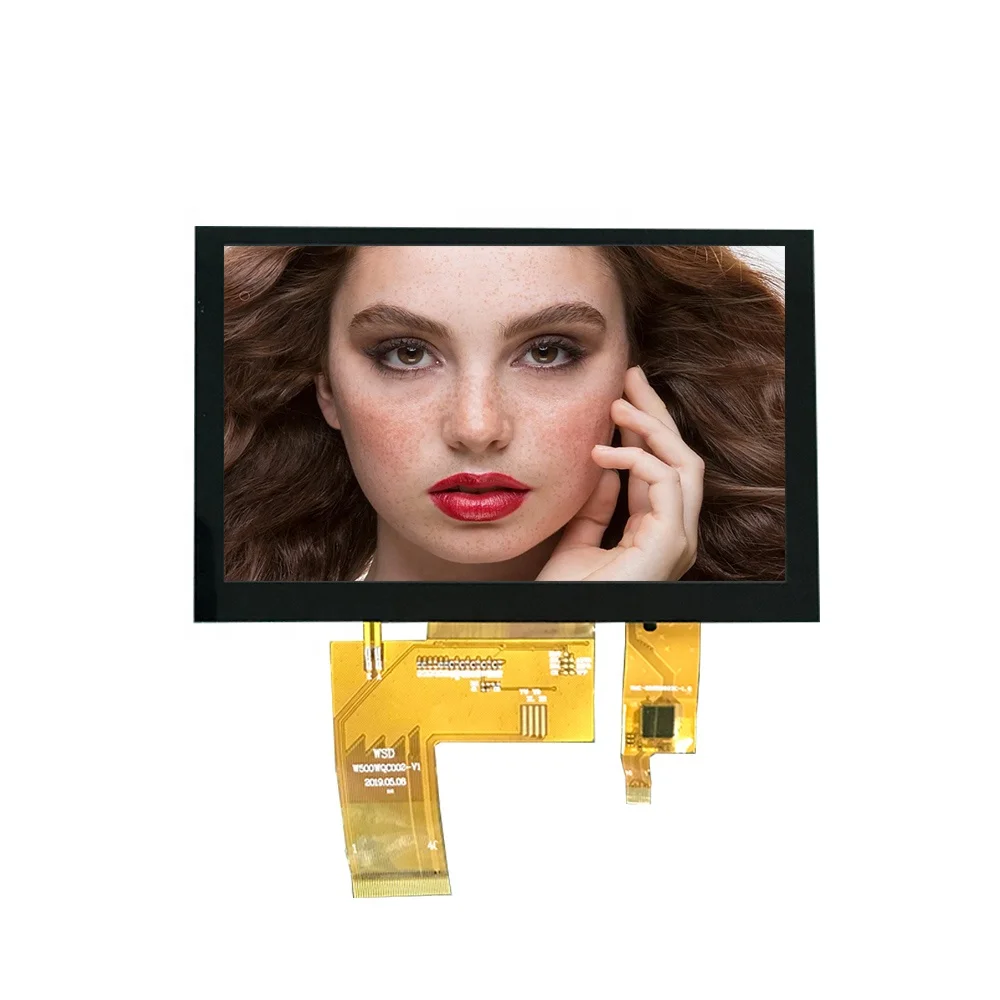

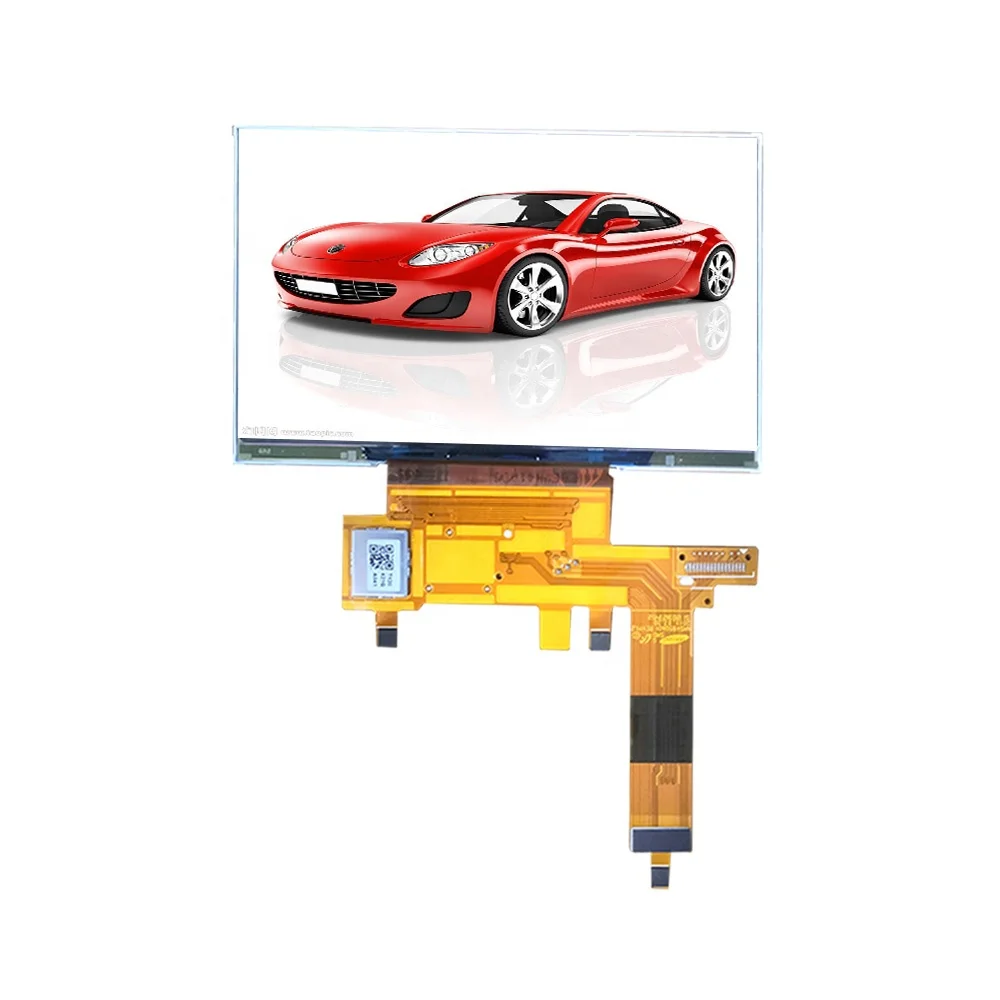

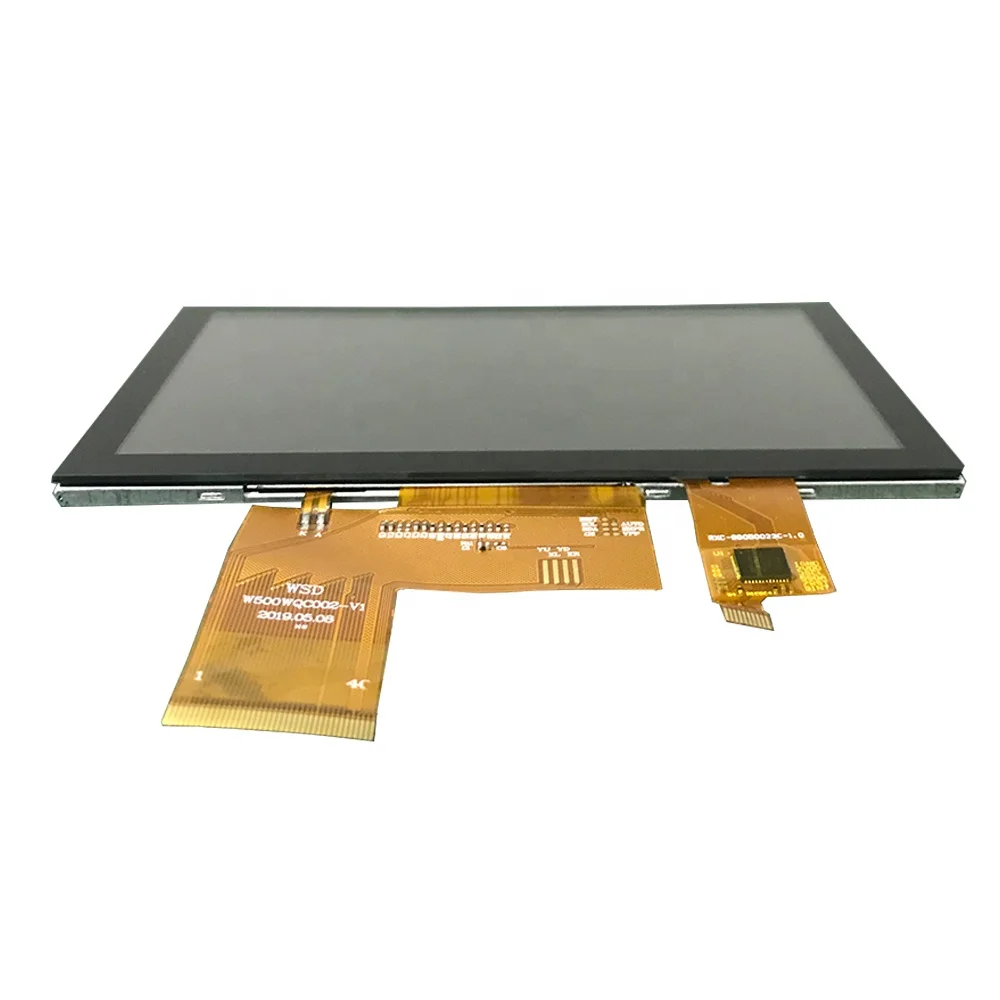

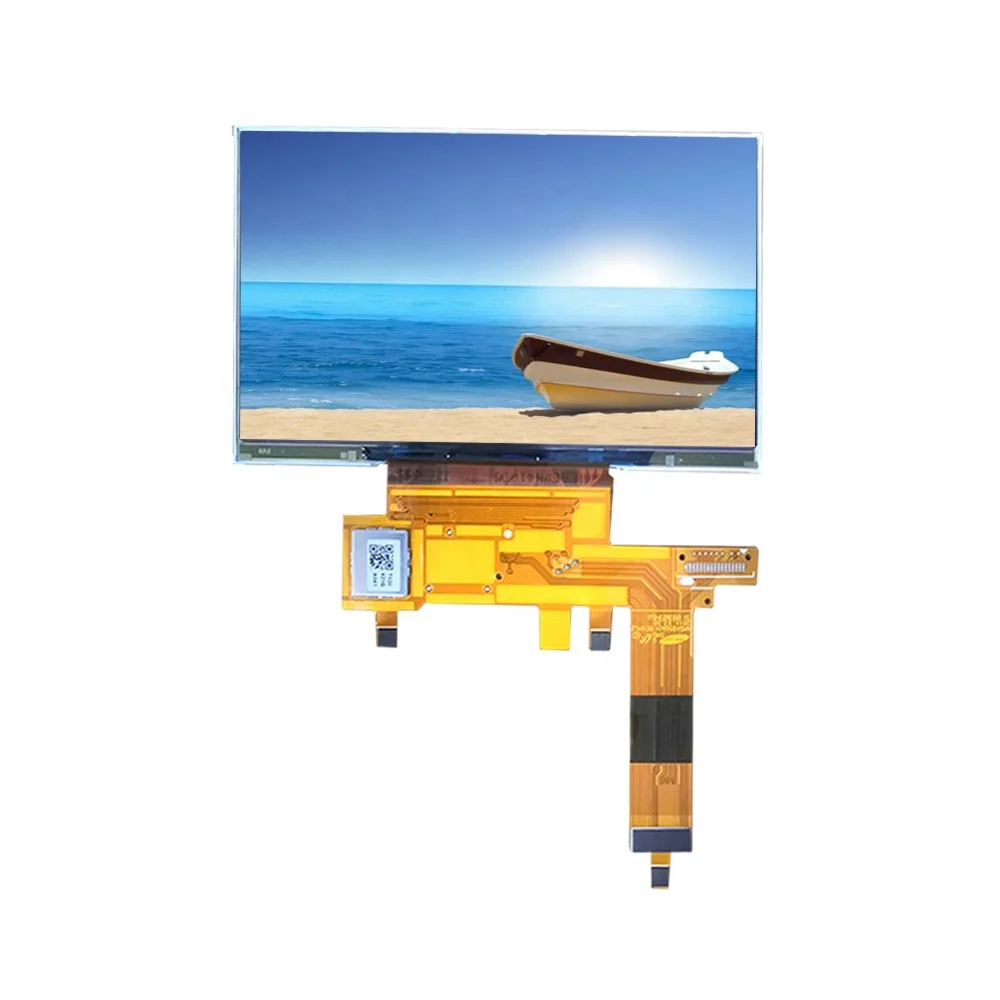

5 inch 800*480 RGB interface mobile graphic programmable IPS full viewing angle horizontal tft lcd display with capacitive TP
Parameters
Item | Specification |
Display Mode | Normally White,Transmissive |
Display Technology | α-Si TFT active matrix |
Outline Dimension | 132.72(H) X 87.8(V) X 4.8±0.2 |
Active Area | 108.0 (H) X 64.8 (V) mm |
Resolution | 800X(RGB)X480 dots |
Pixel Pitch | 0.135X0.135 |
Pixel Configuration | RGB Stripe |
TP driver | GT911 |
Luminance | (400)(Typ.) cd/m2 |
Surface Treatment | Anti-Glare |
Driver IC | ST7262 |
Viewing Direction | All |
Pin
Interface NO. | Symbol | I/O or connect to | Description | When not in use |
1 | LEDK | LED DRIVER | Backlight cathode. | - |
2 | LEDA | LED DRIVER | Backlight anode. | - |
3 | GND | PWR SUPPLY | Power ground. | - |
4 | VDD | PWR SUPPLY | Voltage input pin for internal logic. 2.5V-3.3V. | - |
5-12 | R0-R7 | I/O | Red signal data bus. | GND/IOVCC |
13-20 | G0-G7 | I/O | Green signal data bus. | GND/IOVCC |
21-28 | B0-B7 | I/O | Blue signal data bus. | GND/IOVCC |
29 | GND | I/O | Power ground. | - |
30 | DCLK | I/O | Clock signal in serial. | GND/IOVCC |
31 | DISP | I/O | Standby mode control. “H”, normal operation. | GND/IOVCC |
32 | HSYNC | I/O | Horizontal sync input. | GND/IOVCC |
33 | VSYNC | I/O | Vertical sync input. | GND/IOVCC |
34 | DE | I/O | Data enable signal. | GND/IOVCC |
35 | NC | - | No connect. | - |
36 | GND | PWR SUPPLY | Power ground. | - |
37 | YU | - | TP up control signal. | - |
38 | XL | - | TP ledft control signal. | - |
39 | YD | - | TP down control signal. | - |
40 | XR | - | TP right control signal. | - |
Drawing
