Flexo Resin Plate Mounting Machine For Flexo Printing Cylinder
Email:helen@ allmachine.cn WhatsApp/WeChat/Skype:+8619138001602 QQ:2187713951
Product Description
Parameters of Flexo Resin Plate Mounting Machine For Flexo Printing Cylinder
| Model | Plate Length | Machine Size | Packing Size | Weight | Power |
| OR-ZB450 | 450mm | 850*510*1350mm | 1100*700*1700mm | 150KG | 0.8kw |
| OR-ZB650 | 650mm | 1000*510*1350mm | 1250*700*1700mm | 180KG | 0.8kw |
| OR-ZB800 | 800mm | 1150*510*1350mm | 1400*700*1700mm | 300KG | 0.9kw |
| OR-ZB1000 | 1000mm | 1350*510*1350mm | 1500*700*1700mm | 365KG | 0.9kw |
| OR-ZB1200 | 1200mm | 1550*510*1350mm | 1700*700*1700mm | 400KG | 0.9kw |
| OR-ZB1500 | 1500mm | 1850*510*1350mm | 2000*700*1700mm | 600KG | 0.9kw |
Features of High Quality Flexo Printing Plate Mounting Machine
1. Left and right positioning adopts precision linear guides , the camera lens can be adjusted up and
down with precision screw mechanism (Taiwan's silver precision linear guide).

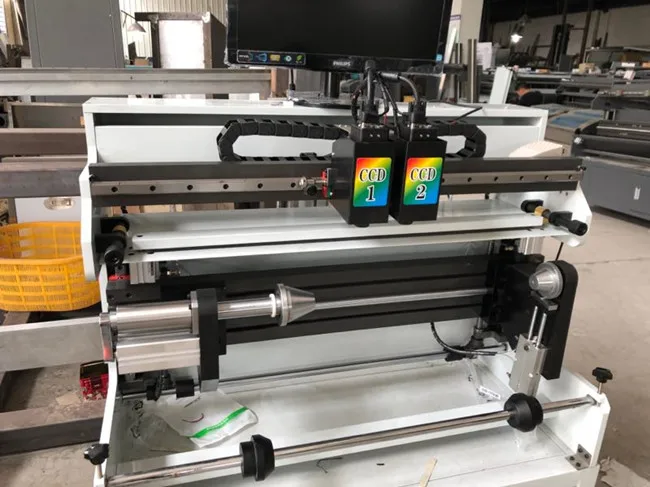

2. Advanced zoom fixed focus lens, high-definition CCD camera, LCD display. (Taiwan Mitong camera,
Taiwan's optical optical lens in Asia, South Korea's Samsung 19-inch LCD monitor)
3. Camera lens can be six-direction adjusted, parallelism is adjustable, with high-precision plate mounting,
high precision chromatography.
4. Adopts specialized plate pressing roller, to joint seal the plate with double-sided adhesive tape.
5. Can checked the precision of plate mounting.
6. Fast speed mounting, easy operation, greatly improves work efficiency.
7. Applicable for flexographic rotary printing plate and resin plate and other letterpress printing plate.
