Product Application

The powered respirator is used for dust removal and partial odor removal, not for gases or vapors and is used to reduce or remove resistance to inhalation during respiration by producing a constant airflow. The unit is designed with manufacturer's minimum design flow rate 170 litres, 210 litres or 250 litres per minute (the flow rate at which the equipment still will fulfill the requirements of the class in EN12941). The actual working time will be about 8 hours .

Main Features

The unit supplies an overcapacity of clean and filtered ambient air, which is fed to mask. It allows the user to breathe in air without himself having to overcome the resistance of the filter. Considering that an adult person requires some 50 litres of air per minute, the overcapacity ensures an overpressure and thus a high degree of protection.

With a fully charged battery the unit will operate for about 8 hours. The unit contains a warning facility to warn the user against reduced air supply, due to clogged filter or low battery.

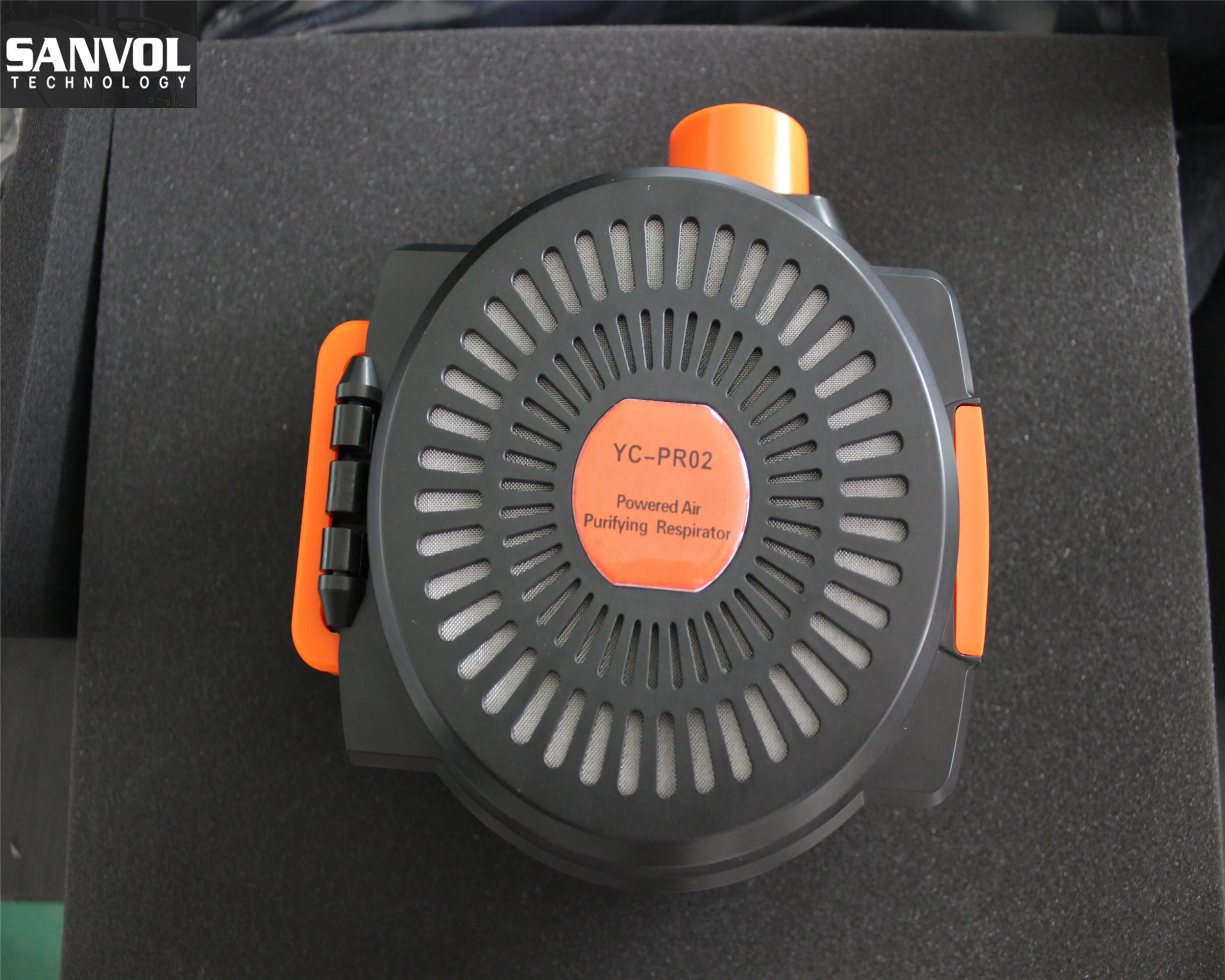

Blower unit

Airflow:\t\t\t170 L/min,210L/min,250L/min adjustable
Motor Speed:\t\tElectronically controlled
Alarms:\t\t\tElectronically controlled, for low flow and
Low battery
Material:\t\t\tImpact proof ABS
Color:\t\t\t\tBlack/orange
Weight (incl.filter. battery and hose):\t1080 grams
Dimensions LxWxH:165x95x200mm

Rechargeable battery

Type: \t\t\t\tLithium,rechargeable
Voltage:\t\t\t12 Volt
Capacity:\t\t\t5200 mAh
Operating time:\tHI:7 Hours,MI:9 Hours,Lo:11 Hours
Charging time:\t\t3 hrs
Charging cycles:\t﹥500
Material case:\t\tImpact proof ABS
Color:\t\t\t\tBlack
Weight:\t\t\t350 grams
Dimensions:\t\t137x50x72 mm

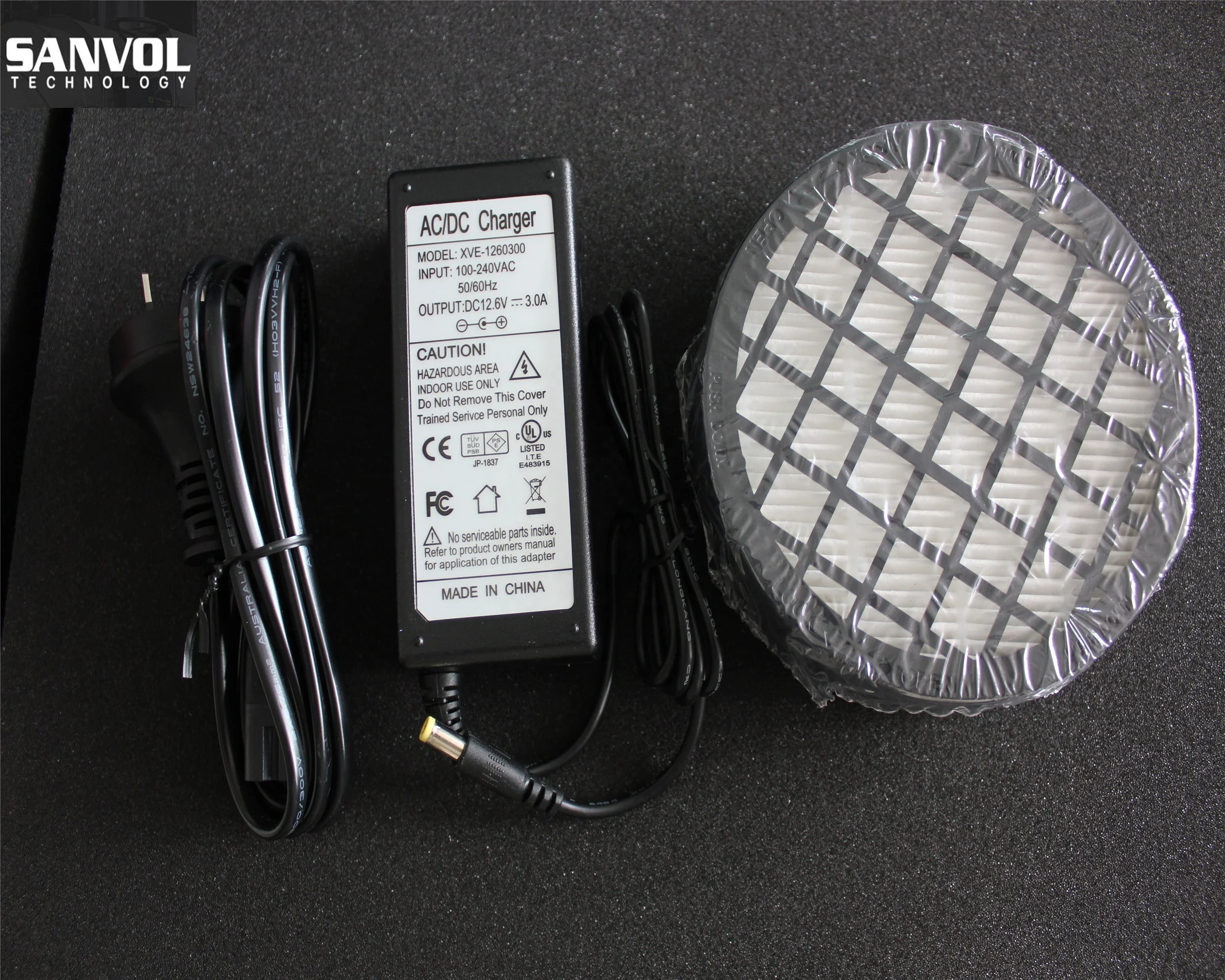

Battery charger, fully automatic.

Type:\t\t\t\tFully automatic, overcharge protection

Primary voltage:\t100-240 v, 50/60 Hz
Secondary voltage:\t12.6 Volt
Material case:\t\tNoryl
Color:\t\t\t\tBlack
Weight:\t\t\t200 g
Dimensions:\t\t110x48x30 mm

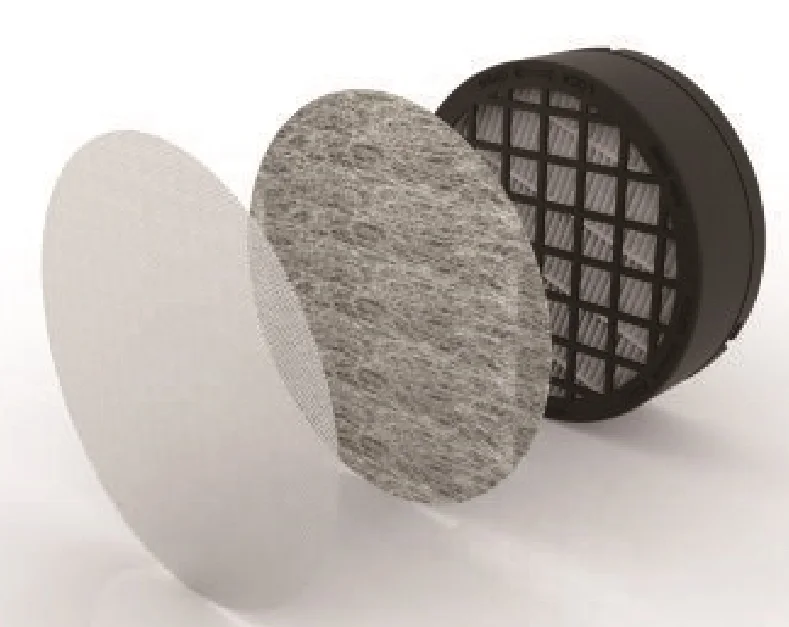

Filter

Filter class:\t\t\tP3
Material filter medium:\t\tEfficient filtering low resistance papers
Material support disks:\tABS
Color:\t\t\t\tBlack
Weight:\t\t\t90 grams
Dimension(DxH):\tø120x38mm
