Б/у машина для изготовления винтов из стали
US $1000-$2000
Автоматическая машина для скручивания виноградных листьев арматура стальная Т-образная
- Категория: Thread Rolling Machines >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.80 $* | 0.84 $* |
| Aug-16-2025 | 0.33 $* | 0.3 $* |
| Jul-16-2025 | 0.70 $* | 0.22 $* |
| Jun-16-2025 | 0.83 $* | 0.51 $* |
| May-16-2025 | 0.6 $* | 0.81 $* |
| Apr-16-2025 | 0.24 $* | 0.35 $* |
| Mar-16-2025 | 0.56 $* | 0.95 $* |
| Feb-16-2025 | 0.1 $* | 0.58 $* |
| Jan-16-2025 | 0.4 $* | 0.34 $* |
Характеристики
Product Description

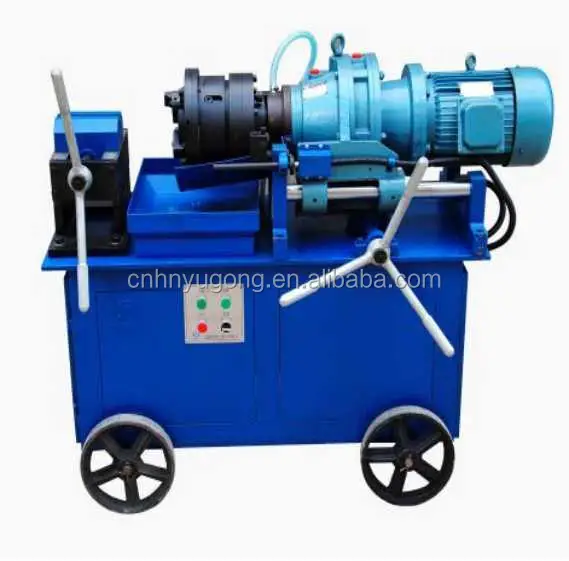

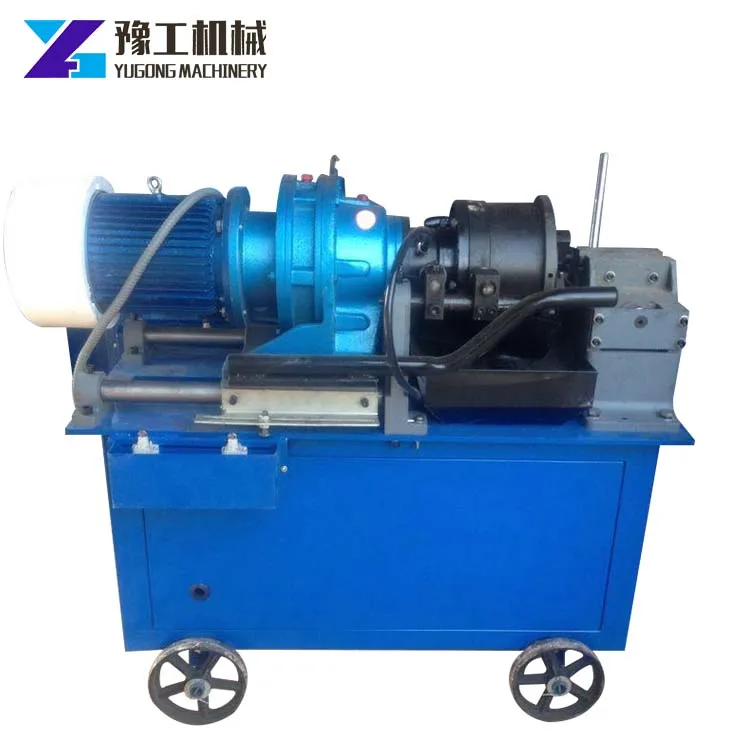

Rebar thread rolling machine is mainly applied to peel rebar rib first, then roll parallel thread on rebar end, after that, two threaded rebar sectors could be connected by coupler. It is a necessary machine for rebar joint.
In addition, it is also applied to roll threads on round steel bar, anchor rod, or other equivalent materials.
Technical Parameters
Technical Parameter of Rebar Thread Rolling Machine | |
Model | YGD40 |
Rebar diameter | 14-40mm |
Max. process length | 80mm |
Work schedule | 80mm |
62-80r/min | |
Motor power | 4kw |
Voltage | 380v |
30-40mm/min | |
Dimension | 1500*600*1000mm |
Weight | 450kg |
Roller
Technical Parameter of Roller | |||||||
Model | 16 | 18 | 20 | 22 | 25 | 28 | 32 |
Outer diameter (mm) | 24 | 27 | 31 | 33 | 37 | 41 | 47 |
Length(mm) | 40 | 45 | 50 | 55 | 60 | 65 | 70 |
Quantity per bag (pcs) | 280 | 200 | 150 | 130 | 100 | 80 | 60 |
Details and Features
1.One-time clamping reinforced rib peeling rolling thread can be completed.
2.Both right-handed threads & left-handed threads could be processed with one machine head.
3.Processing speed, high degree of automation.
4.Convenient operation, service life is long,
5.The thread rolling round joint additional cost is low.
6. Environment-friendly, safe, no environment and weather restrictions.

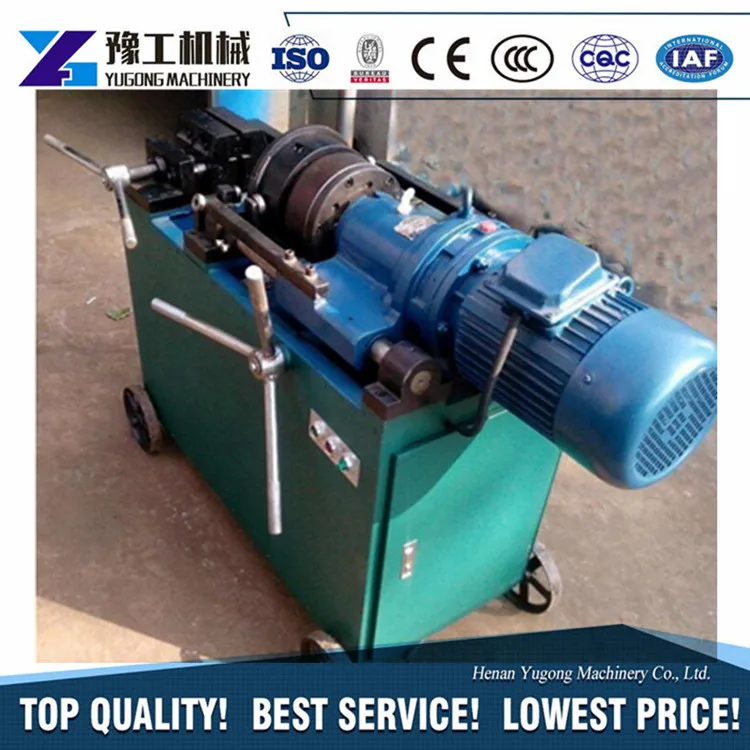

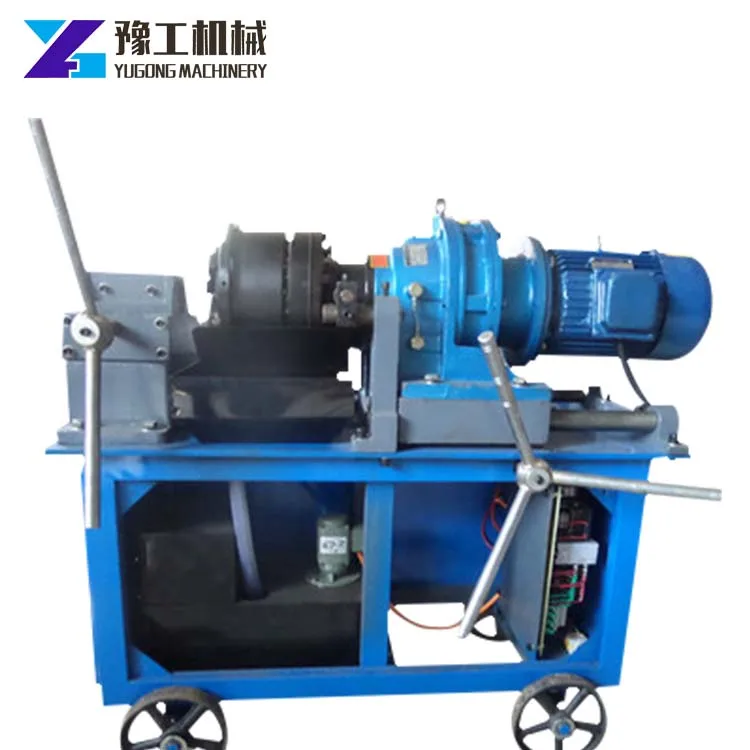

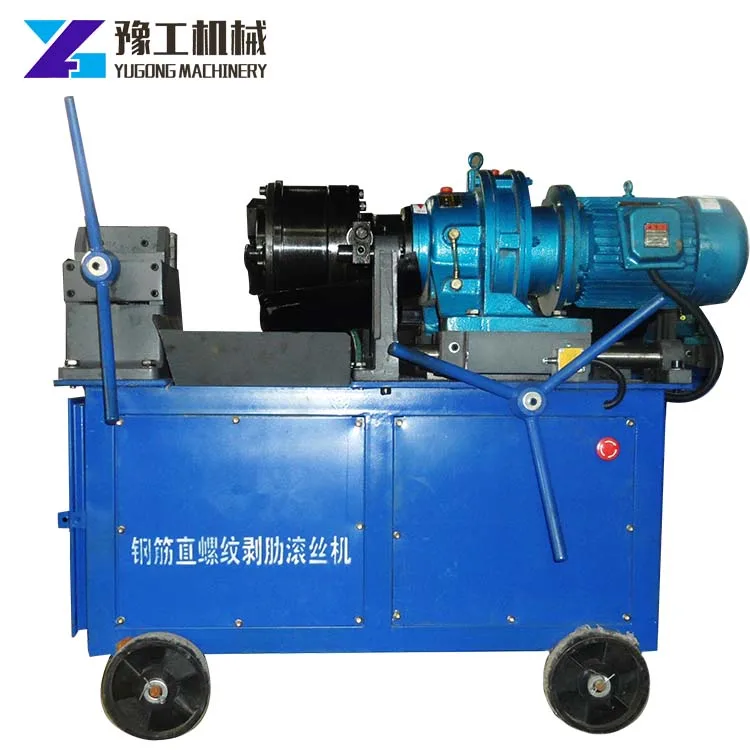

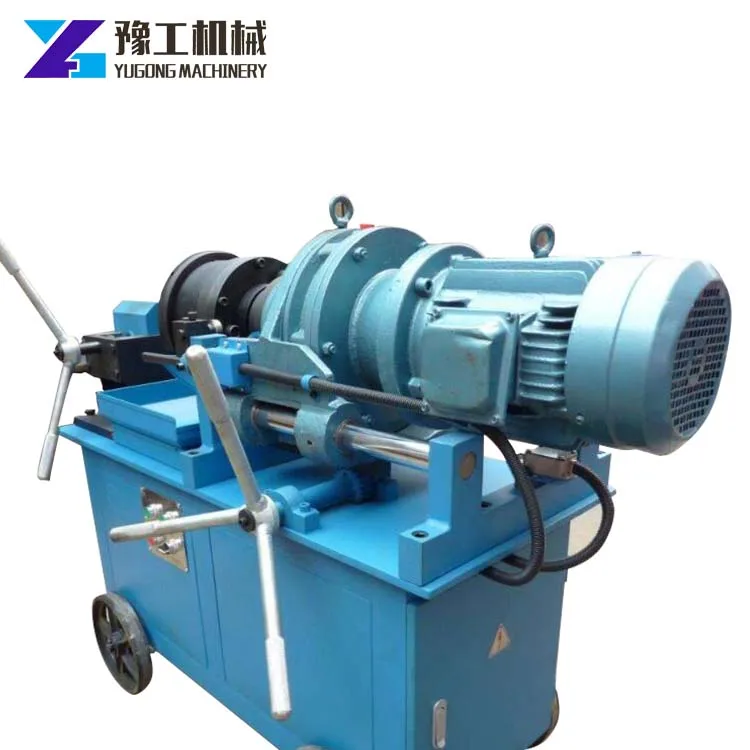

Working Picture
Company Information
Henan Yugong Machinery Co.,Ltd. is specialized in machinery in China over 20 years.We are committed to researching and developing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc.
Henan Yugong Machinery Co., Ltd aims to have top quality, top reputation and top service. "Quality First, Reputation First, Be Innovative, Be Excellent" has always been our purpose. We warmly welcome your corporation from all fields and build great future for us all.
Contact Us
Mr.Kerwin Liu
Sales manager
Mob/WhatsApp : +86 15890139878
Email: sales25(at)yg797.com
Henan Yugong Machinery Co., Ltd.
Add:No.8 South Jingguang Road, Erqi District, Zhengzhou City, China
